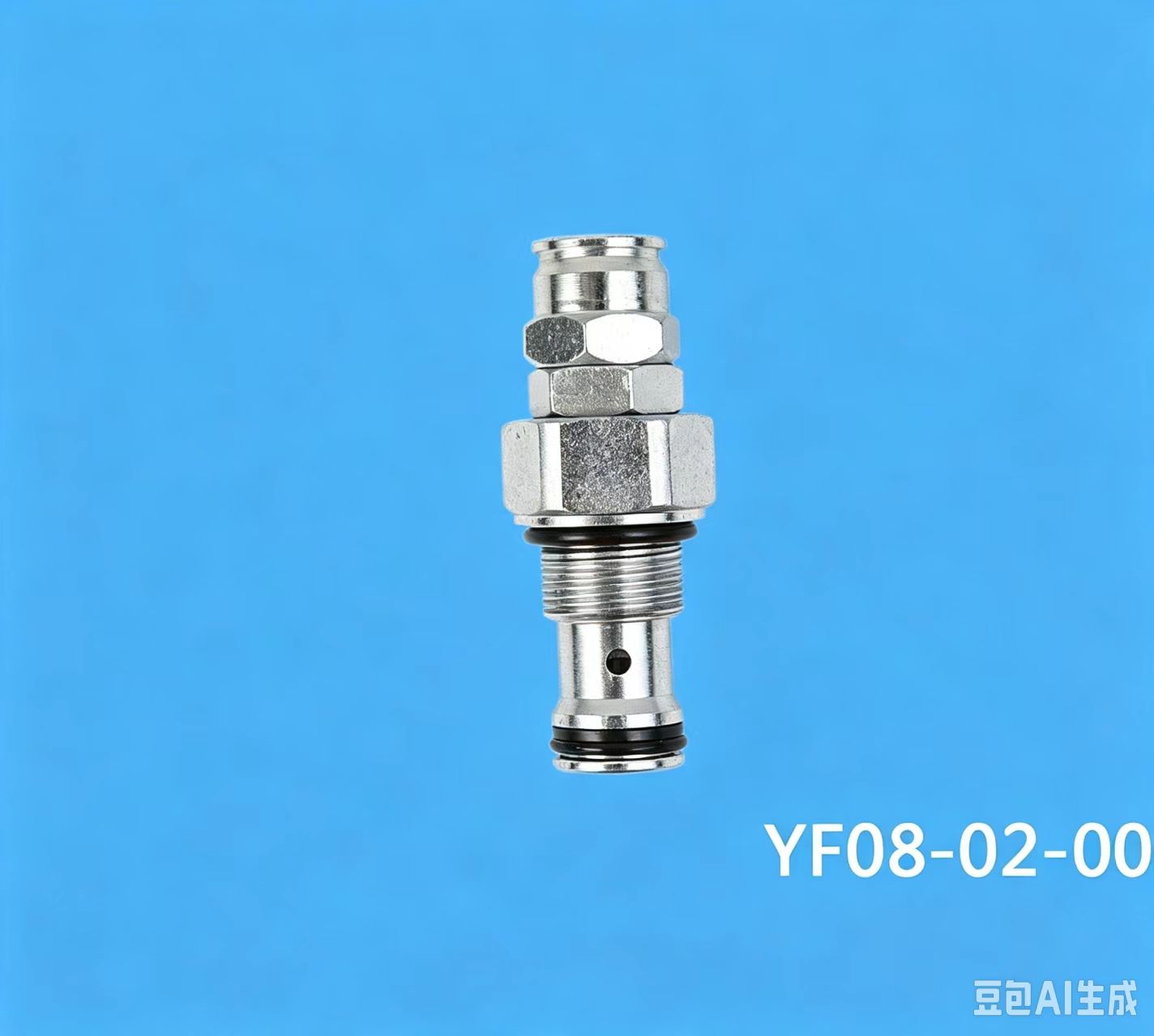

YF08-02 Threaded Cartridge Valve
1. Product Overview
YF08-02 is an adjustable 08-port threaded cartridge relief valve built for compact integrated hydraulic manifolds. Its screw-in design greatly cuts the occupied space inside valve blocks, mainly used for circuit overload limiting, peak pressure suppression and constant pressure maintenance. It is widely fitted to mini excavators, small loader auxiliary circuits, portable hydraulic clamping jigs, agricultural machinery and compact hydraulic power units to protect pumps, cylinders and piping from pressure spikes.
YF08-02 Threaded Cartridge Valve is a high-performance pressure control Hydraulic valve. As a screw-in CARTRIDGE VALVE, it serves as essential pressure protection equipment in the hydraulic system. This threaded CARTRIDGE VALVE can be directly installed into integrated manifold blocks, simplifying complicated external piping structure and optimizing layout to make the whole hydraulic system more compact. This Hydraulic valve stabilizes circuit pressure and offers reliable overload prevention to keep the hydraulic system operating safely.
2. Core Technical Specifications
Parameter Specification
Mounting Cavity Standard 08-size threaded cartridge installation hole
Rated Working Pressure 21 MPa nominal, max peak pressure 25 MPa
Maximum Applicable Flow 30 L/min
Adjustable Pressure Range 3–21 MPa (tunable via the top adjustment screw)
Seal Material Oil-resistant nitrile rubber (NBR)
Recommended Hydraulic Oil ISO VG32 / VG46 anti-wear mineral hydraulic oil
Operating Temperature -10℃ ~ 80℃
Installation Direct screw-in mounting for standard 08-series manifolds
3. Working Principle
A preset spring keeps the poppet sealed against the seat under normal pressure, closing the overflow channel. When inlet pressure surpasses the spring setting, hydraulic force pushes the poppet open to divert excess flow back to the tank and cap system pressure. Once pressure falls below the threshold, the spring resets the poppet to shut overflow automatically. The tight poppet sealing structure minimizes internal leakage for steady long-duration pressure control.
4. Key Advantages
1. Compact threaded layout supports modular assembly for narrow valve block spaces
2. External screw adjustment enables fast on-site pressure matching for varied working loads
3. Hardened valve core resists abrasion and vibration, reliable for harsh construction and farm sites
4. Universal 08 cavity size is interchangeable with mainstream insert valves for easy replacement
5. Aging-resistant NBR seals reduce maintenance frequency and long operational costs
5. Typical Applications
- Overload safety protection for portable hydraulic jacks and clamping fixture loops
- Auxiliary circuit pressure limiting for mini excavators, compact loaders and farm machinery
- Pressure stabilization for small electric/manual hydraulic power packs
- Peak pressure buffering for small cylinder drive systems
