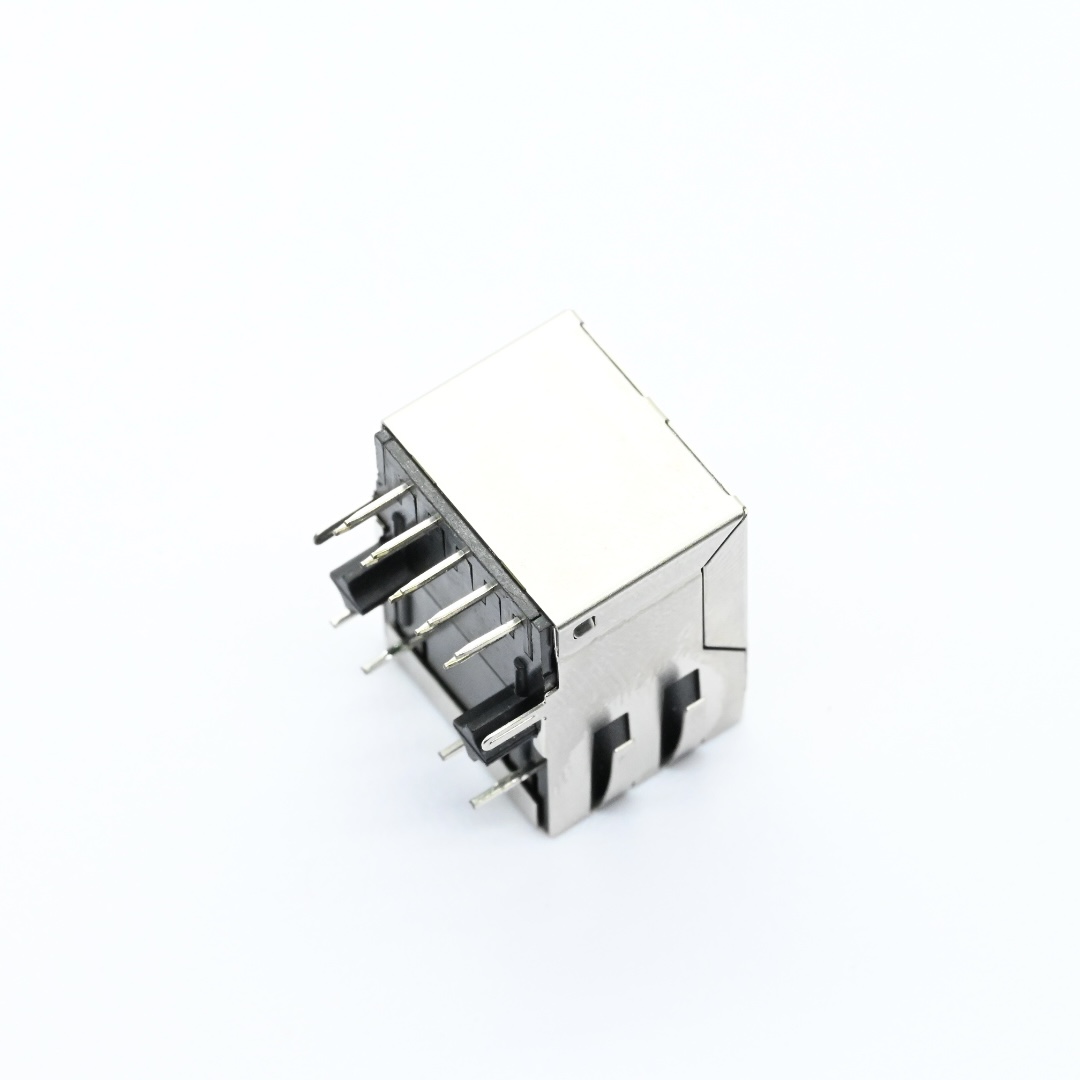

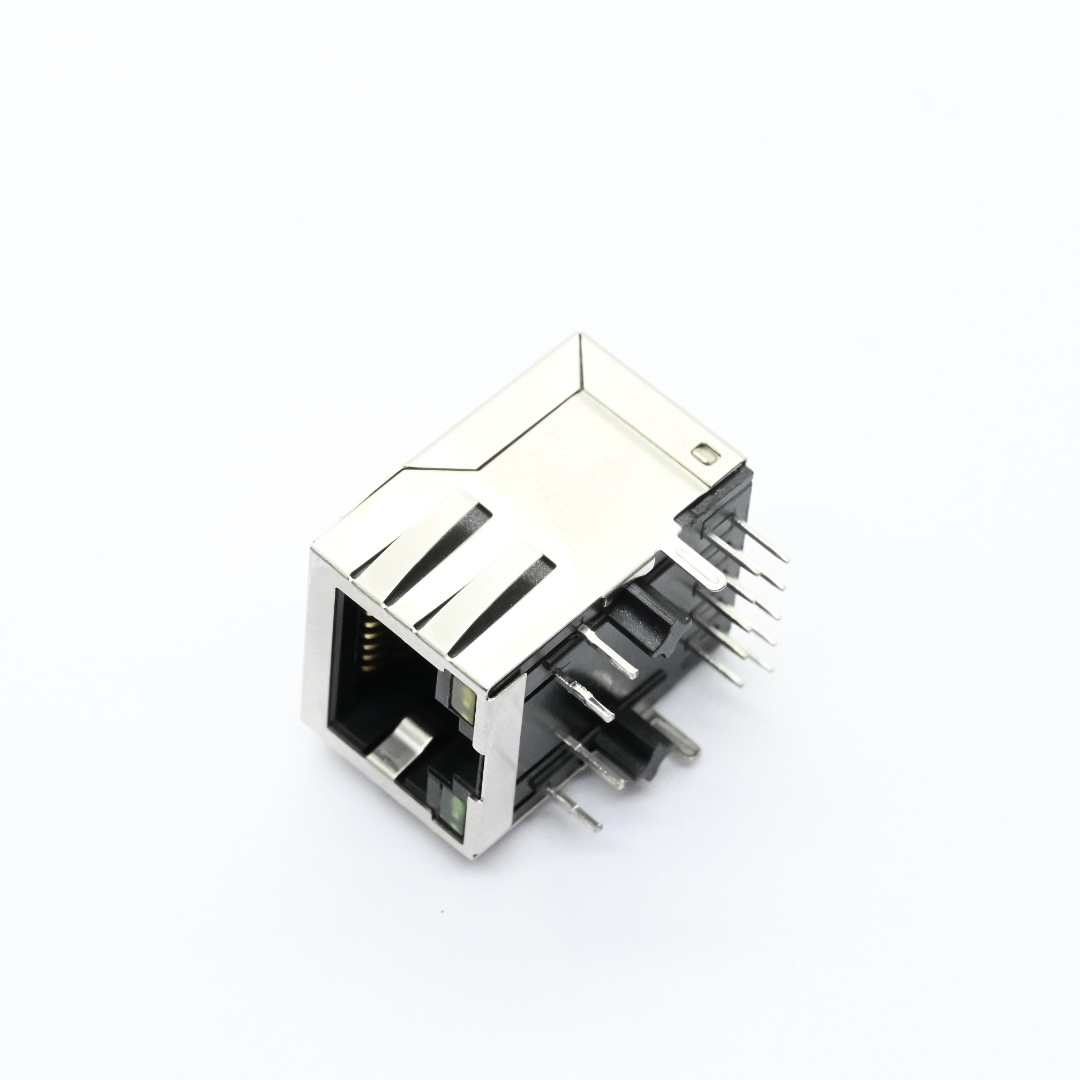

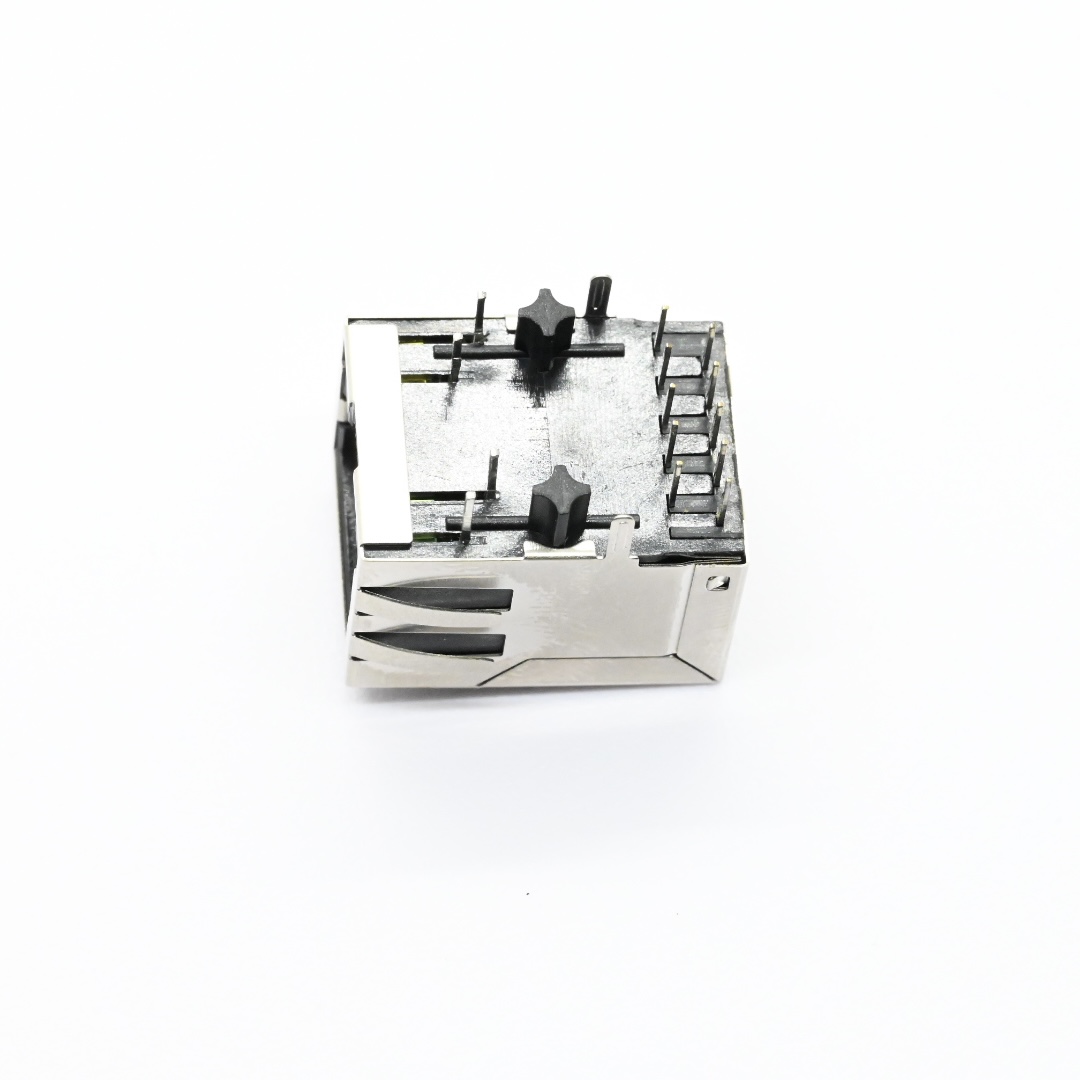

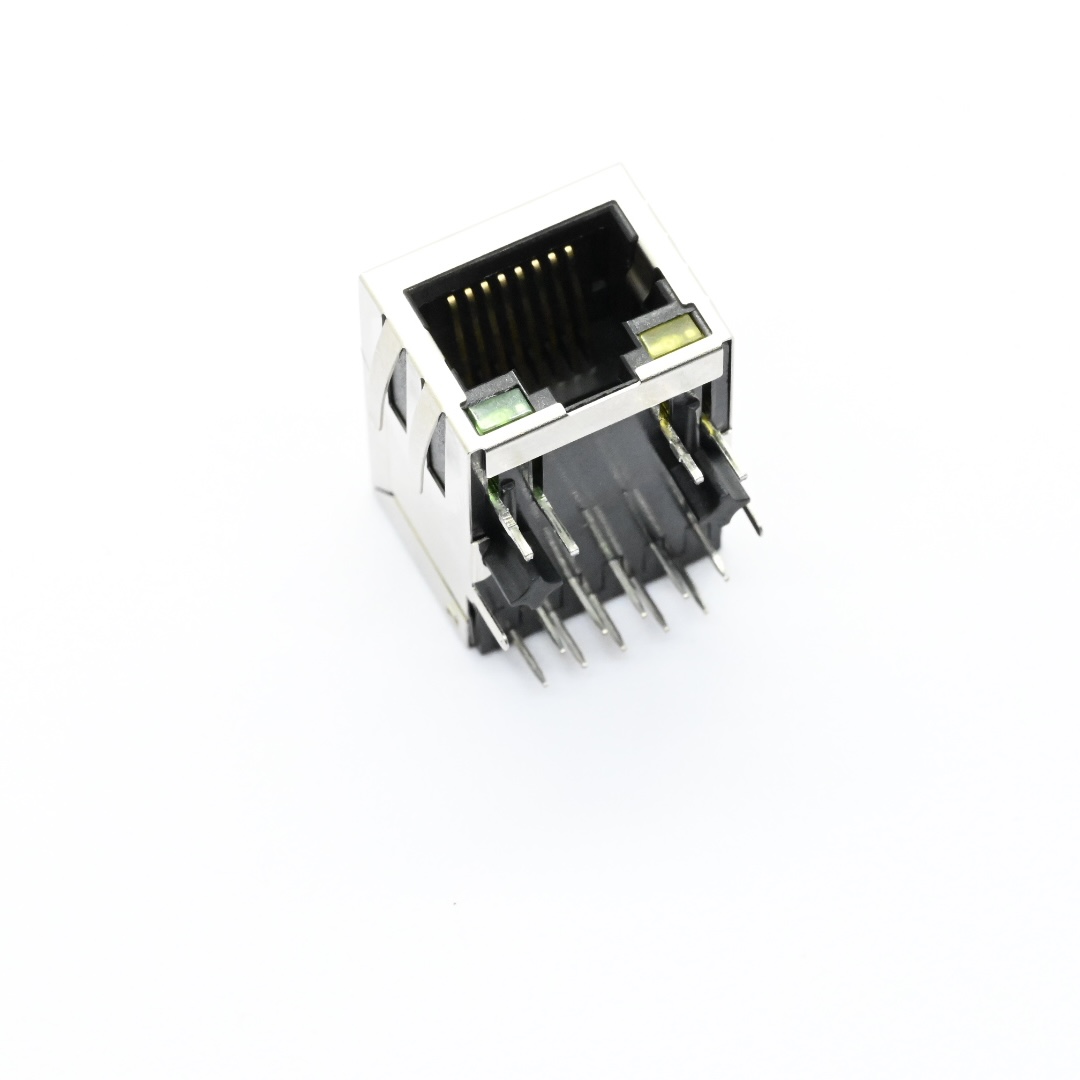

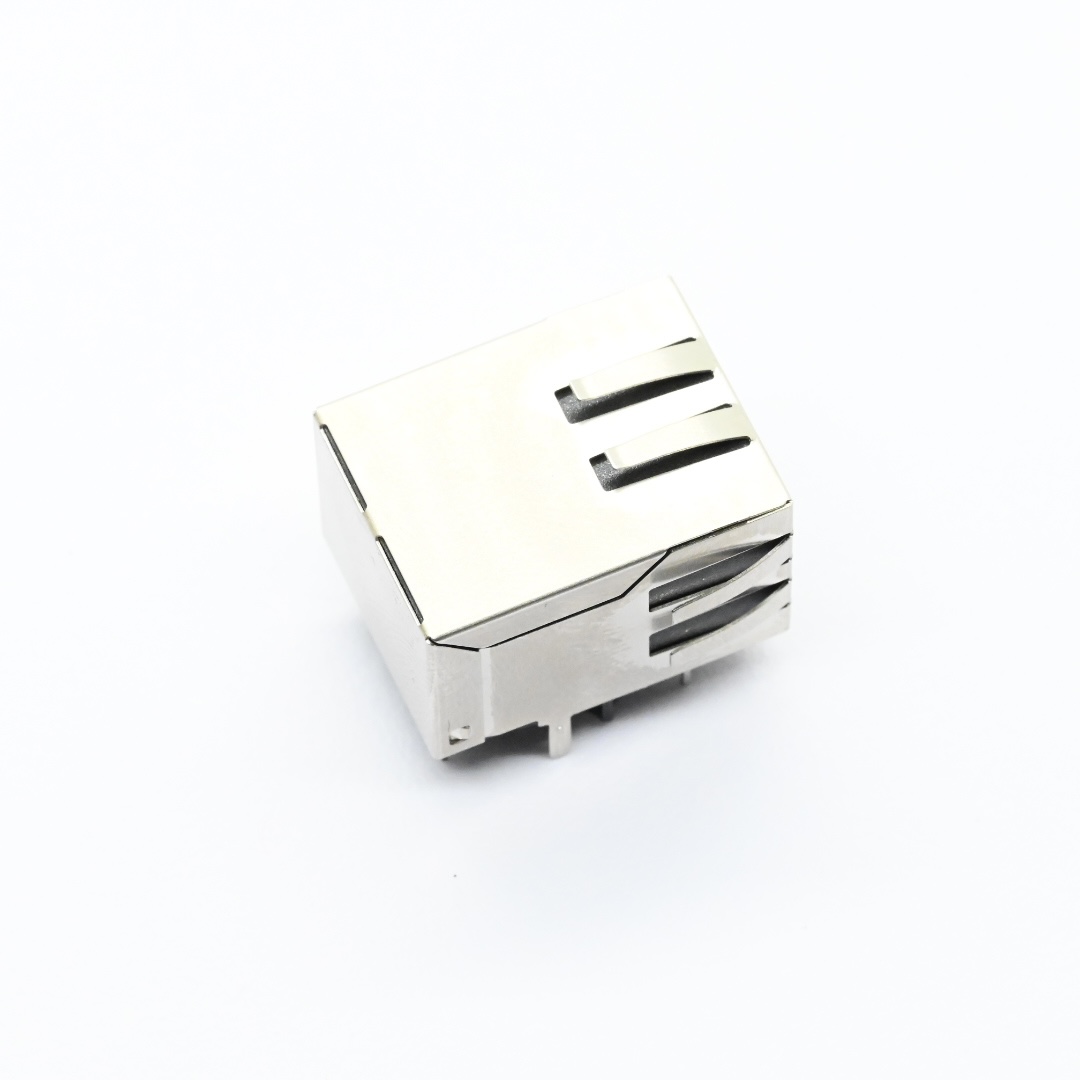

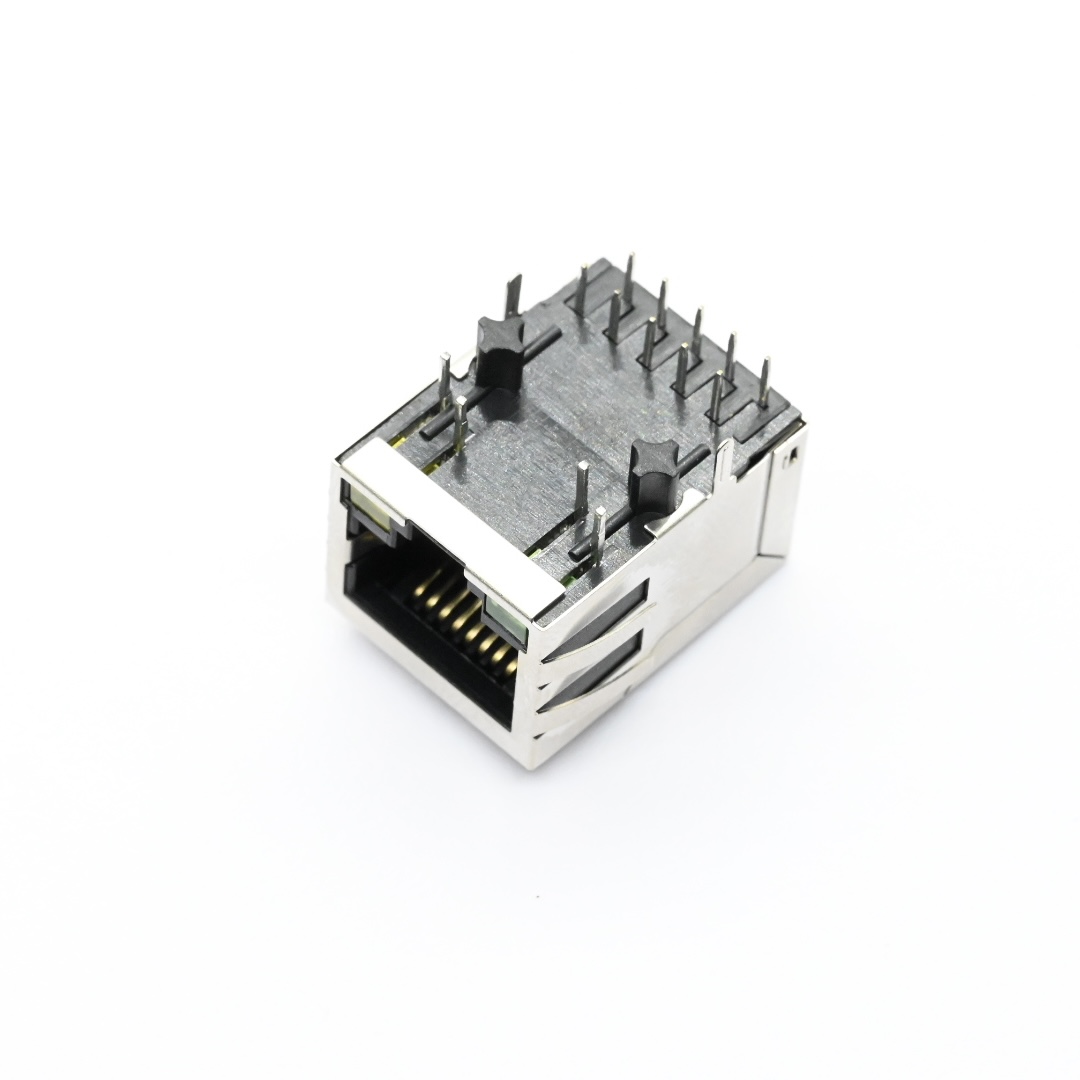

Tab-up Shielded CAT6A RJ45 Jack With LED

Huizhou Antenk Electronics Co., Ltd. manufactures ATRJ5625 series single port tab-up shielded CAT6A RJ45 modular jack equipped with dual LED indicators and EMI shielding structure for high-speed stable gigabit network signal transmission between PCB and standard RJ45 modular plugs compliant with TIA-1096 standard. This RJ45 jack adopts UL94V0 flame retardant thermoplastic housing, copper alloy contacts and stainless steel shield shell with tin dip terminals, supporting diversified contact plating choices including gold flash, 3μ",5μ",15μ",30μ" gold and matte tin, available in versions without shield, shield only and shield with EMI gasket, fitted with independent yellow and green status LED lights to reflect network connection status. Its electrical parameters contain 125VAC rated voltage, 1.25A rated current and 1000V AC one minute dielectric withstand voltage, meeting strict CAT6A transmission performance indicators covering return loss insertion loss and cross talk under designated frequency range, suitable for storage temperature from minus 40 degree Celsius to plus 85 degree Celsius operating environment. This high-performance network jack is widely used in communication equipment industrial control panels digital household appliances computer peripheral equipment and precision measuring instruments. Operators need to select corresponding shielding and plating models based on anti-interference requirements, perform SMT soldering strictly according to official PCB layout drawing, avoid repeated improper plugging to reduce contact wear and store finished jacks in dry dust-free environment to prevent surface plating oxidation. Unlike competitors outsourcing mold production and metal stamping Antenk implements complete independent production workflow covering self-developed plastic and metal mold manufacturing copper alloy high-speed stamping thermoplastic injection molding multi-layer electroplating and comprehensive high frequency network performance laboratory testing, certified with ISO9001 ISO14001 IATF16949 and UL E472792 while conforming to RoHS HSF and REACH global environmental standards. We develop hundreds of proprietary precision molds, supply customized shielding plating and packaging schemes, provide round the clock professional engineering technical support, and over seventy percent of our network connector series are exported globally backed by Guangdong Famous Trademark ANTENK and reliable consistent mass production quality.
