Straight Solder DIN41612 Female Power Terminal
3 week ago
Product details

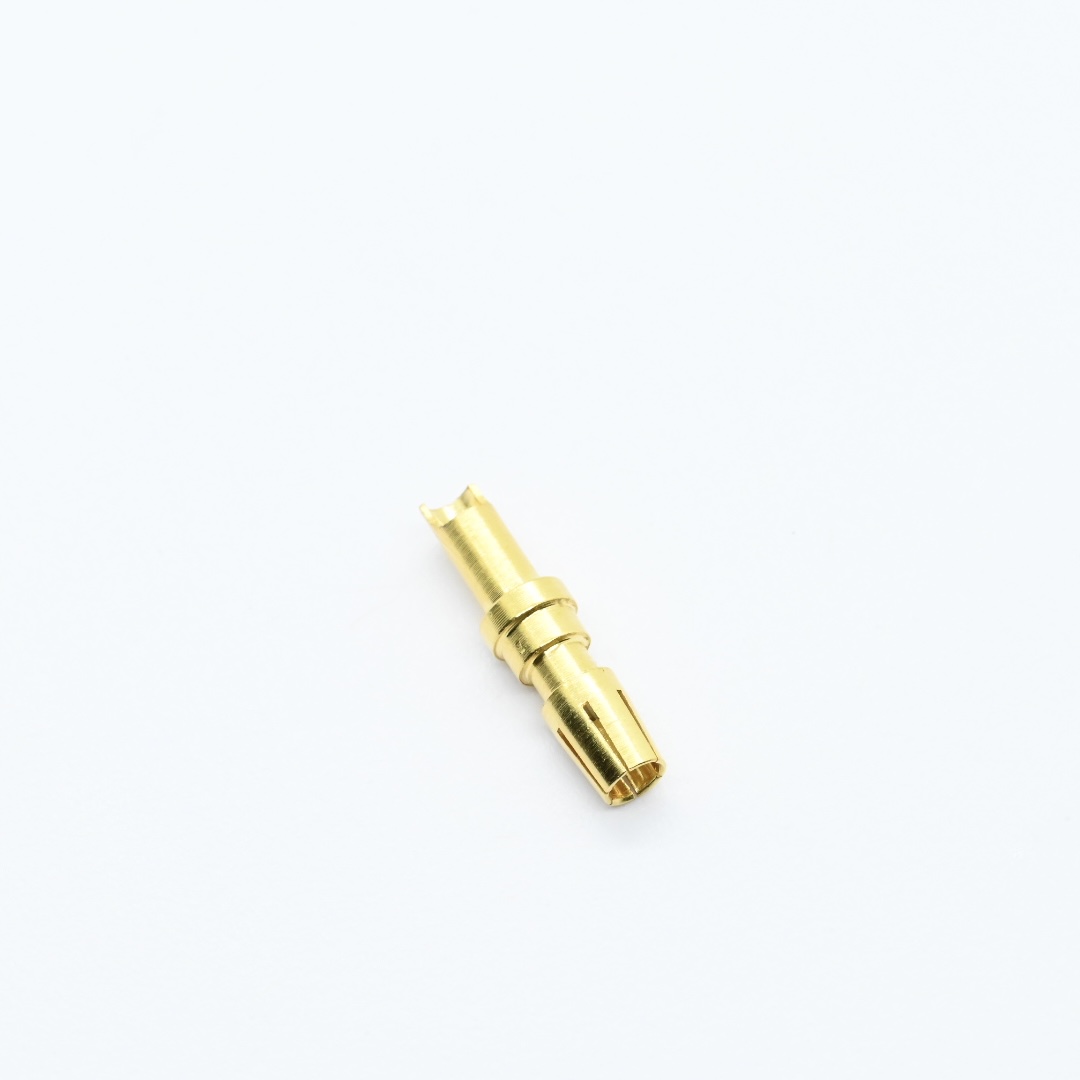

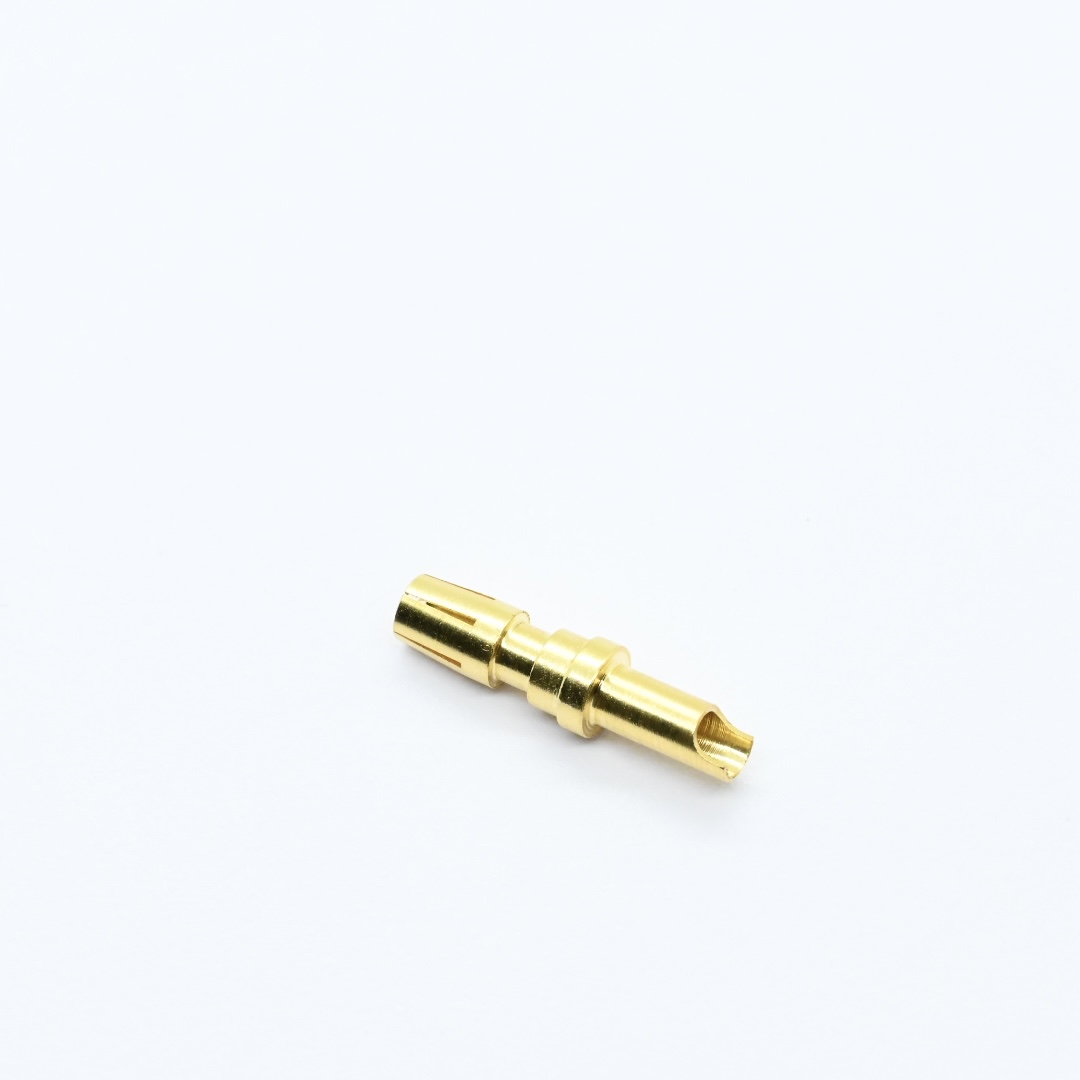

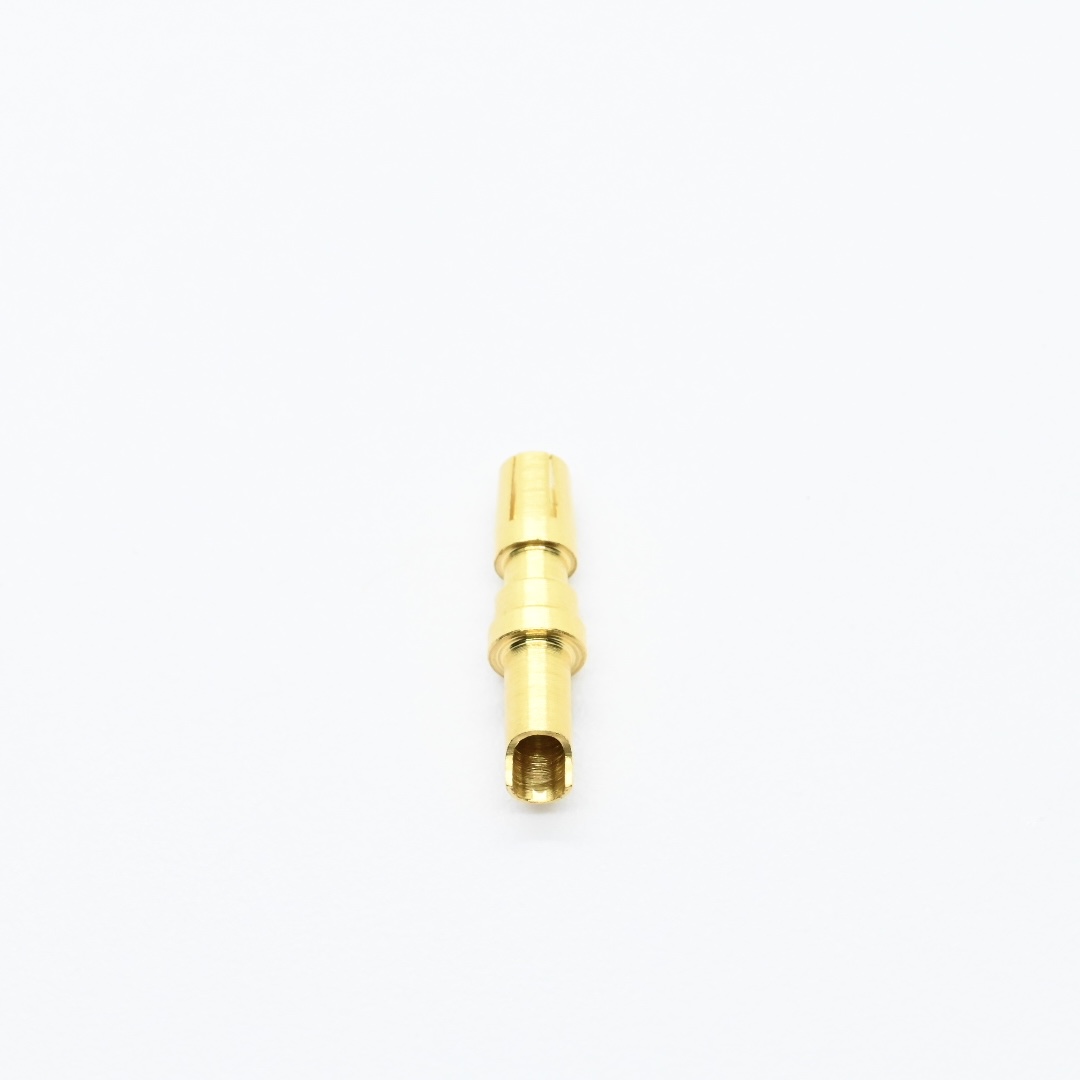

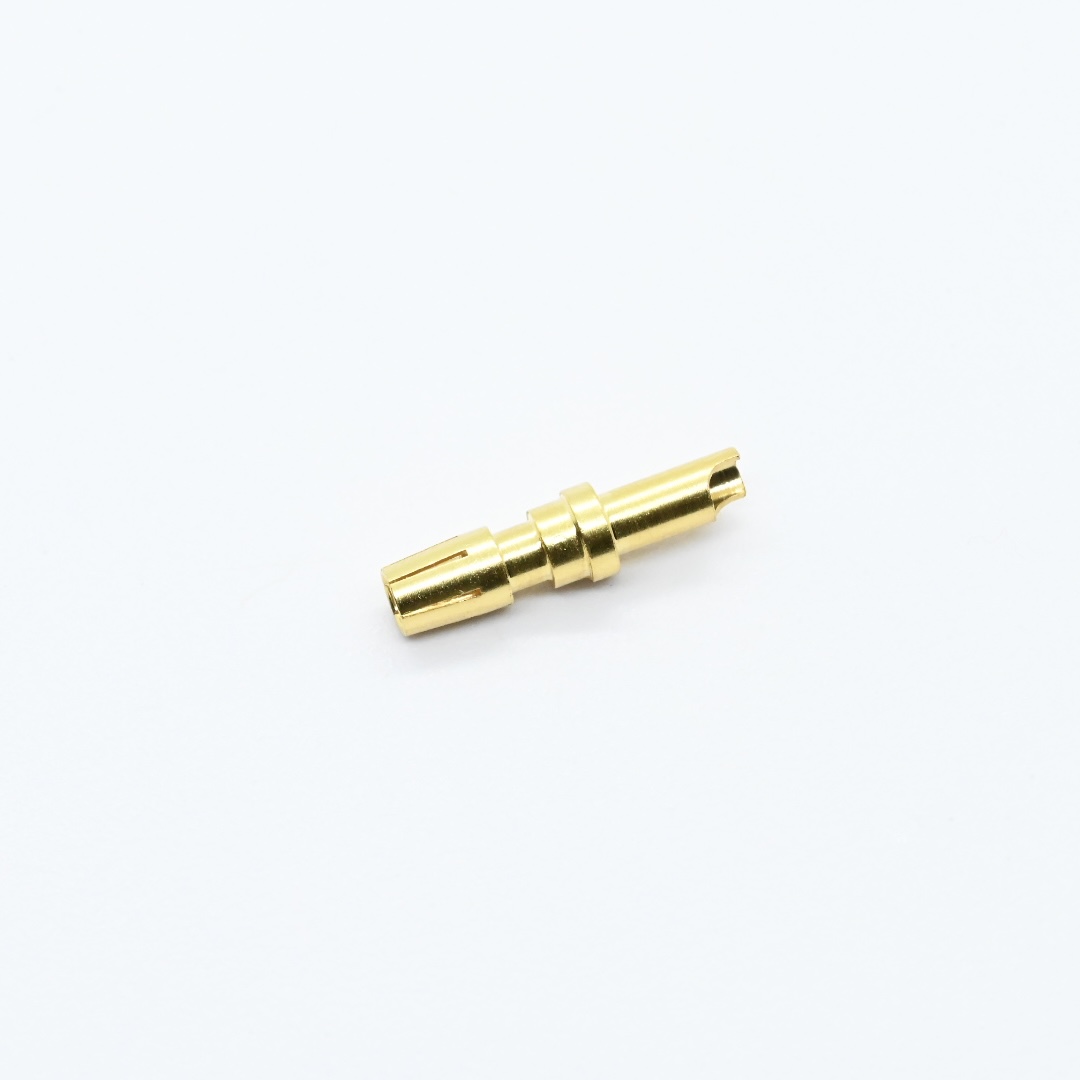

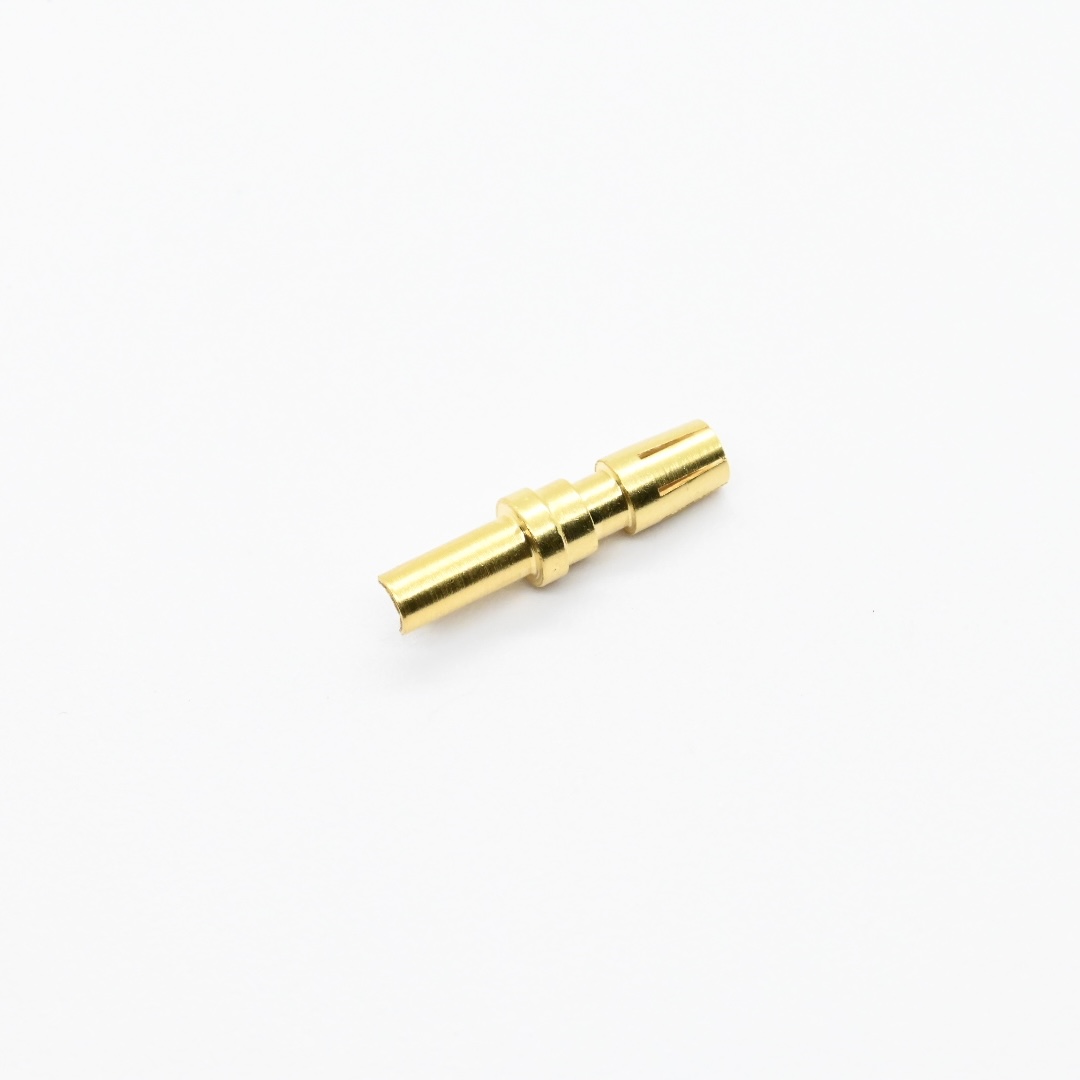

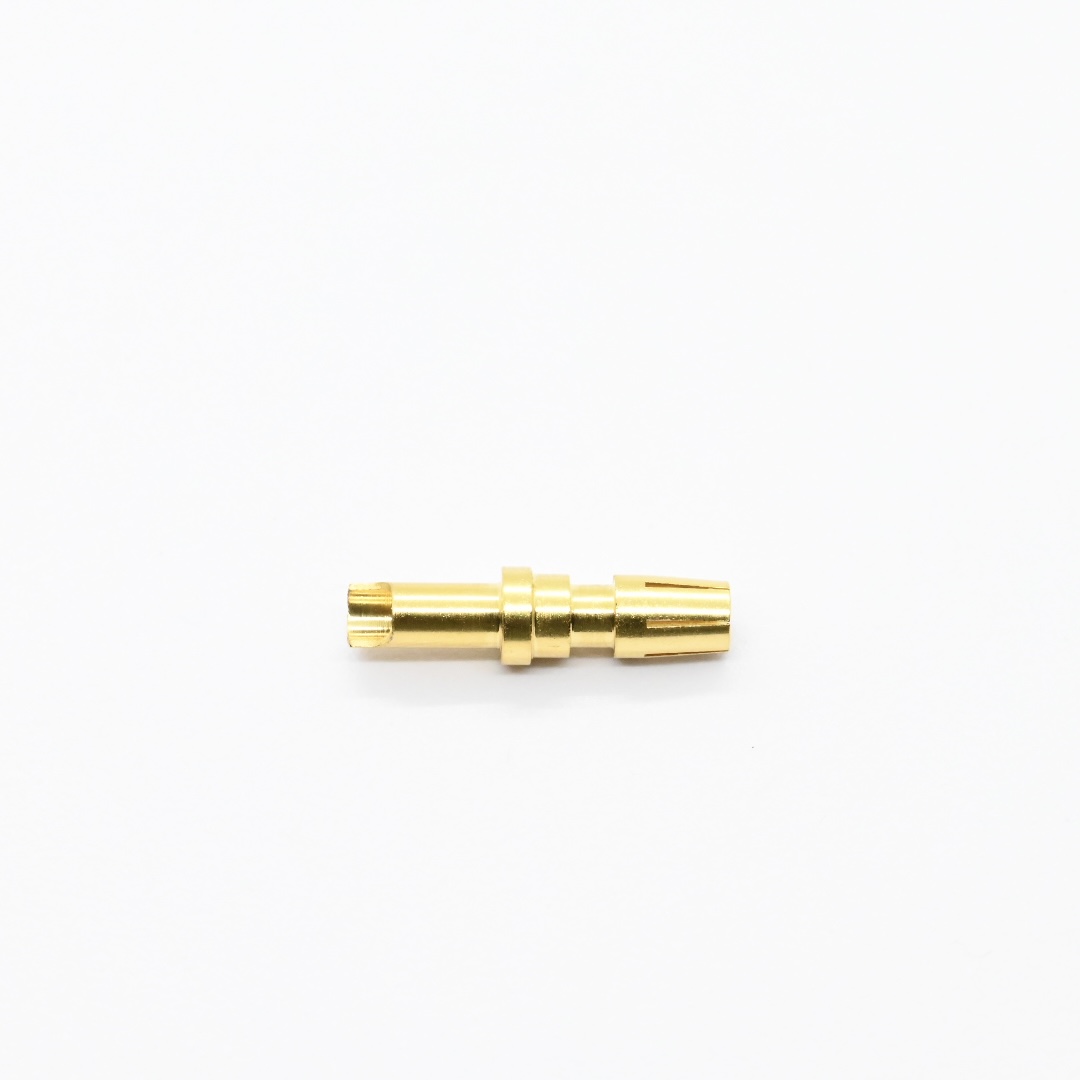

Huizhou Antenk Electronics Co., Ltd. produces CP12F series DIN 41612 M type straight solder female power terminals to deliver stable high-current power conduction between DIN standard backplane connectors and PCB circuits, supporting three rated current specifications of 10A, 20A and 40A matched with exclusive dimension A and dimension B sizes for each current grade. This power terminal adopts solid copper alloy as core conductive material with two mainstream plating solutions including tin over nickel and gold over nickel, and multiple customizable gold thickness options covering gold flash, 3μ",5μ",10μ",15μ" and 30μ" to satisfy different anti-oxidation and low-resistance transmission demands, with fixed overall length of 21.35mm and standardized structural dimensions for seamless matching with DIN41612 male connector counterparts. This heavy-duty female terminal complies with HSF and RoHS lead-free environmental standards and fits long-term power supply transmission in industrial control cabinets, communication base station equipment, automotive control modules, precision testing instruments and digital power supply appliances. Operators shall select matched current rating and plating finish based on actual power load, conduct PCB soldering following official dimensional drawing parameters, avoid excessive bending during assembly to prevent copper alloy terminal deformation and stock finished terminals in dry sealed packaging to protect nickel and gold plating layers from oxidation. Unlike competitors outsourcing mold development and metal stamping Antenk adopts full self-controlled production processes i ncluding independent precision metal mold design, copper alloy high-speed stamping, multi-layer nickel-gold electroplating and complete high-current load reliability lab testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications while meeting RoHS HSF and REACH international environmental norms. We possess over one hundred eighty sets of exclusive precision terminal molds, offer fully customized current size and plating schemes, supply round-the-clock professional engineering technical support, and more than seventy percent of our connector terminals are exported worldwide relying on our Guangdong Famous Trademark ANTENK and consistent stable mass production quality.
Variable Amp Copper Alloy Terminal ensures steady high-current conduction for different industrial power load requirements.
Nickel Base Gold Flash Power Pin delivers excellent anti-corrosion and low-resistance performance for long-term DIN connector operation.
Straight Solder DIN M Female Contact achieves precise PCB welding and reliable mating with standard DIN41612 male terminals.
1. Material & Contact Plating
1.1 Terminal Base Material: Copper alloy
1.2 Underplate: Nickel base layer
1.3 Optional Surface Plating
1.3.1 SN: Matte tin plating
1.3.2 Gold series: Gold flash, 3μ",5μ",10μ",15μ",30μ" gold over nickel

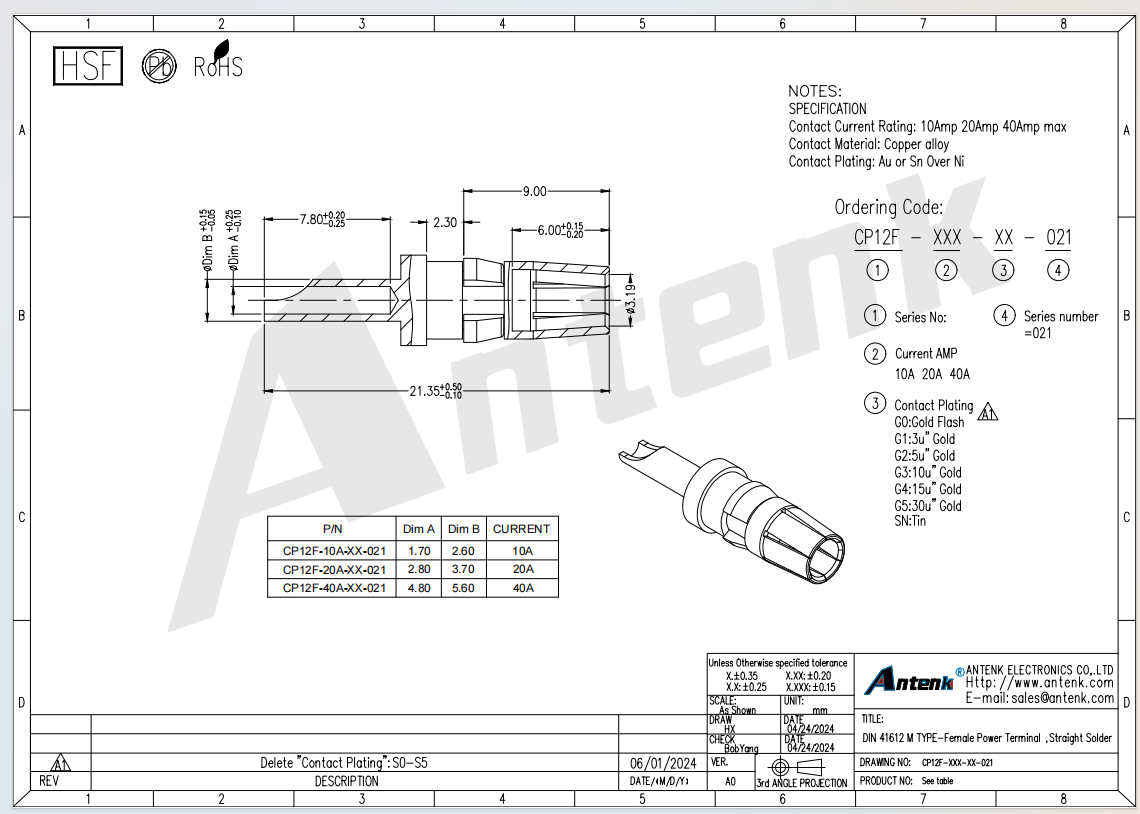

2. Electrical Current Ratings & Matching Dimensions (Unit: mm)
2.1 CP12F-10A-XX-021: Max 10A, Dim A=1.70, Dim B=2.60
2.2 CP12F-20A-XX-021: Max 20A, Dim A=2.80, Dim B=3.70
2.3 CP12F-40A-XX-021: Max 40A, Dim A=4.80, Dim B=5.60
3. Overall Structural Dimensions & Tolerance (Unit: mm)
3.1 Total overall length: 21.35, tolerance +0.50 / -0.10
3.2 Front mating segment length: 9.00
3.3 Internal contact segment length: 6.00, tolerance +0.15 / -0.20
3.4 Middle transition length: 2.30
3.5 PCB solder pin length: 7.80, tolerance +0.20 / -0.25
3.6 Mating outer diameter: Φ3.19
3.7 Diameter tolerance: Dim A Φ +0.15/-0.05; Dim B Φ +0.25/-0.10
4. Product Standard & Structure Type
4.1 Comply with DIN 41612 M industry standard
4.2 Structure: Straight solder female power terminal, series code 021
5. Environmental Compliance
5.1 Conform to RoHS and HSF lead-free environmental requirements
6. Application Scenarios
6.1 Industrial control backplane cabinets
6.2 Communication base station power modules
6.3 Precision test and measuring instruments
6.4 Industrial power supply equipment
6.5 Automotive control electrical assemblies
7. Operation & Storage Precautions
7.1 Select 10A/20A/40A terminal according to actual working current load
7.2 Match plating type by working environment humidity and anti-oxidation demand
7.3 Follow official dimension tolerance drawing during PCB soldering processing
7.4 Avoid strong bending or extrusion to prevent copper alloy terminal deformation
7.5 Store finished terminals in dry dust-free sealed packaging to avoid plating oxidation
