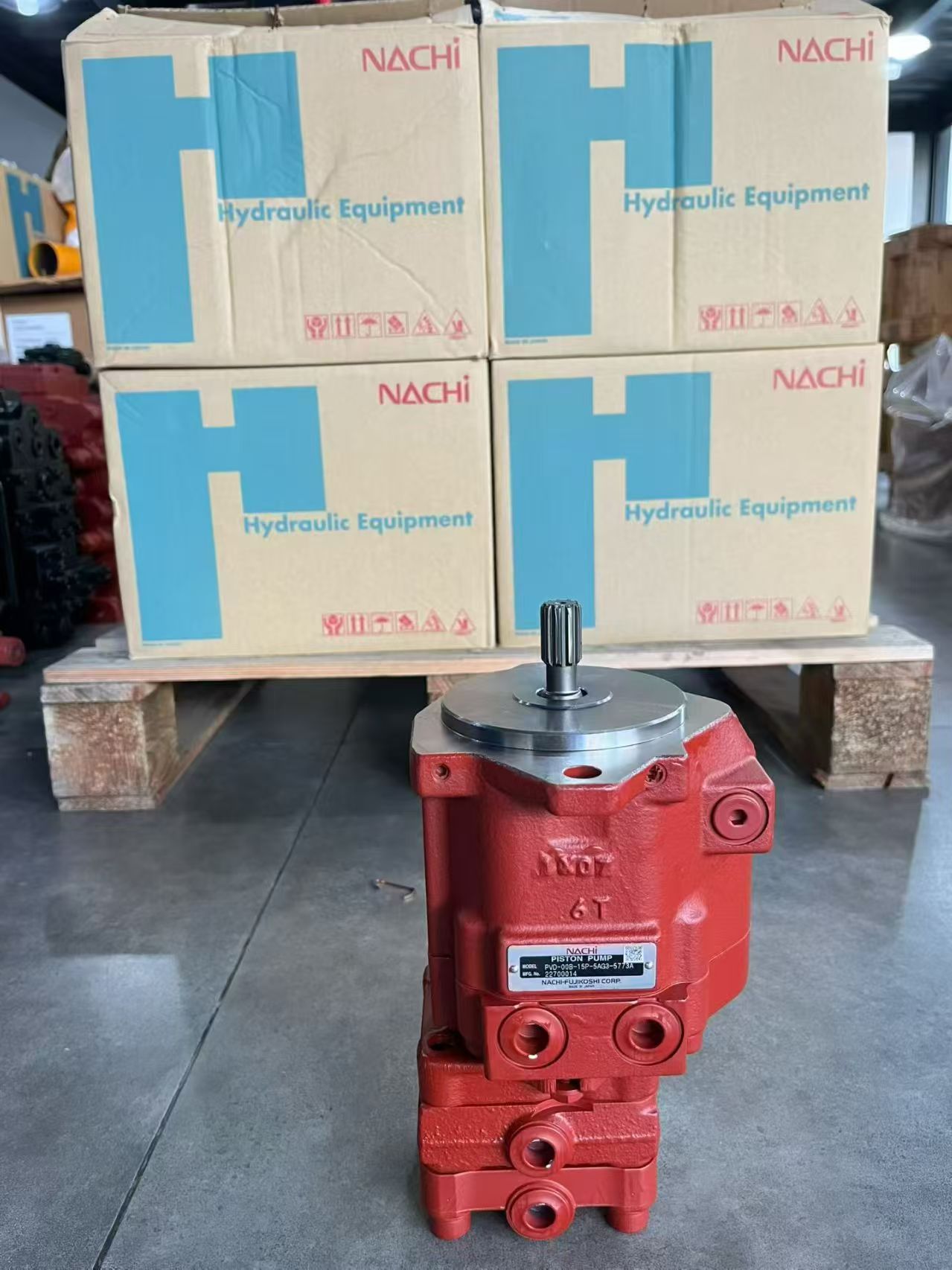

NACHI PVD-00B-14/15/16 Hydraulic Pump

1. Product Overview

The NACHI PVD-00B series pumps are compact variable displacement axial piston pumps manufactured by NACHI-FUJIKOSHI. Models PVD-00B-14, PVD-00B-15, PVD-00B-16 are widely fitted on mini excavators ranging from 1 ton to 3.5 tons. This series is the main hydraulic power source for small construction machinery, characterized by small size, lightweight structure, low noise and reliable performance. It supports multiple control modes and is a mainstream original main pump for micro excavators.

2. Model Specification Definition

- PVD：Series code, Variable Piston Pump

- 00B：Frame size series

- 14 / 15 /16：Nominal displacement (14cc,15cc,16cc/rev)

3. Main Technical Parameters

Item Specification

Pump Type Variable Displacement Axial Piston Pump

Displacement Options 14cc/r, 15cc/r, 16cc/r

Rated Pressure 24.5 MPa

Max Peak Pressure 29.4 MPa

Standard Rotation Clockwise (counter-clockwise optional)

Allowable Speed Range 600 ~ 2600 rpm

Control Method Negative flow control (standard for mini excavator)

Hydraulic Fluid Anti-wear hydraulic oil

Operating Temperature Range -20℃ ~ +80℃

Mounting Form Flange direct connection

4. Structural & Performance Advantages

1. Compact lightweight design, perfectly matched for 1–3.5 ton mini excavator limited installation space.

2. Optimized valve plate and piston sliding pair design, low internal leakage and high volumetric efficiency.

3. Negative load sensing control system, effectively reduce fuel consumption and system heat generation.

4. Low vibration and low running noise, improving machine operating comfort.

5. Stable pressure output, excellent anti-stall performance under heavy load.

6. Mature aftermarket spare parts supply; original and interchangeable replacement versions available.

5. Typical Applications

Main hydraulic pump for 1T ~ 3.5T mini excavators, micro diggers, small trenchers and small crawler engineering equipment.

Compatible with multiple brands of mini excavators.
