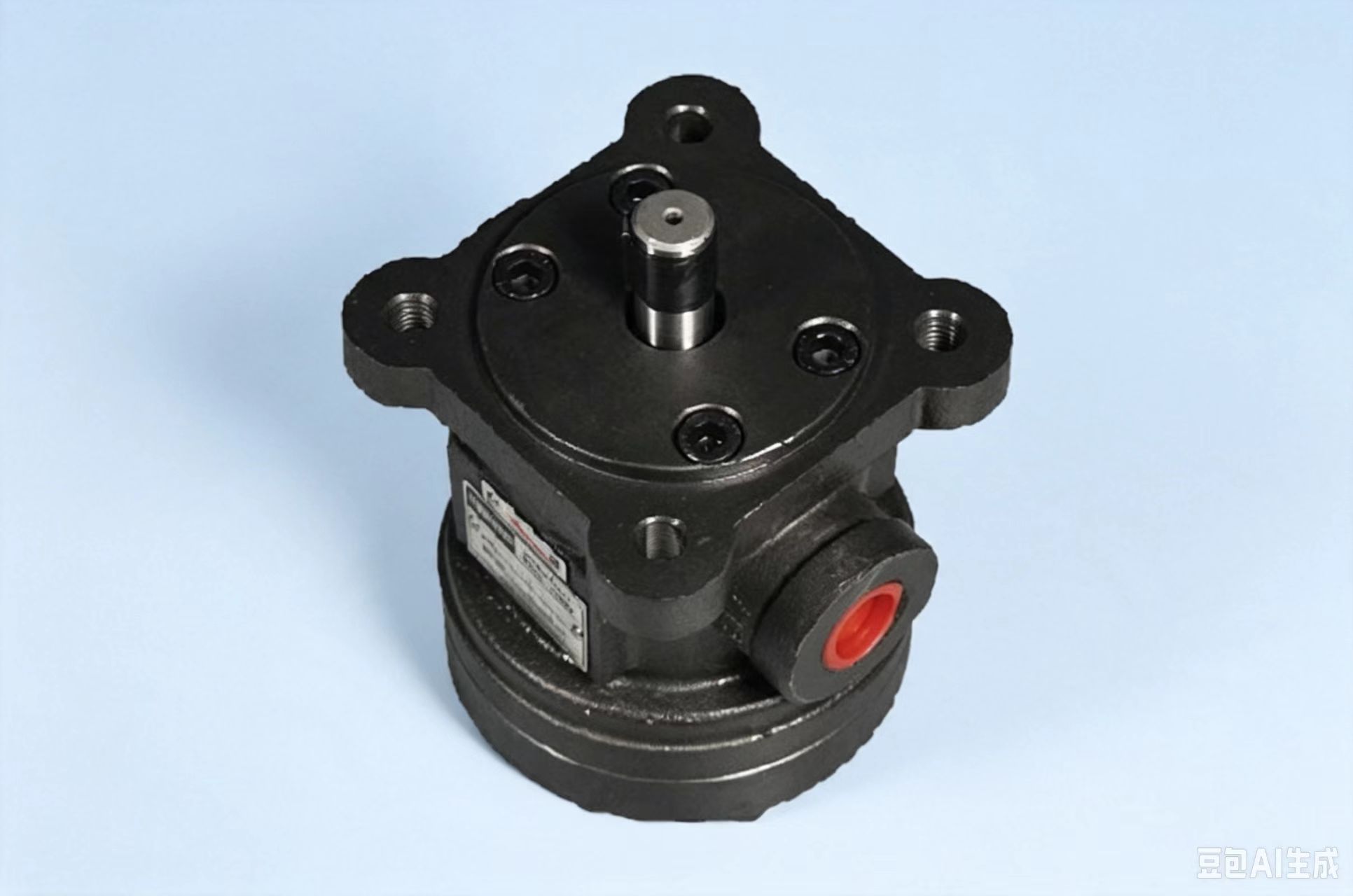

50T Fixed Displacement Vane Pump

Product Overview

The 50T series fixed displacement vane pump is a medium-low pressure hydraulic vane pump widely adopted in industrial hydraulic systems. It adopts double pressure-balanced vane structure design. Featuring low pressure pulsation, low running noise and stable flow output. Compact cast iron housing, easy to install, maintain and interchange with mainstream Taiwanese 50T series pumps.

Model Code & Displacement Options

Common displacement specifications: 50T-07,50T-12,50T-17,50T-23,50T-26,50T-30,50T-36,50T-39,50T-43

- Pump Structure: Single pump, fixed displacement

- Mounting: Flange mounting

- Port Type: Threaded oil ports

Main Technical Parameters

Parameter Specification

Type Fixed Displacement Vane Pump

Rated Working Pressure 70 bar (7 MPa)

Max Intermittent Pressure 105 bar (10.5 MPa)

Speed Range 600 ~ 1800 rpm

Rotation Direction Clockwise / Counter-clockwise (optional)

Hydraulic Fluid ISO VG32, VG46 anti-wear hydraulic oil

Operating Temperature 0 ~ 60°C

Seal Standard NBR nitrile rubber, Viton optional

Product Advantages

1. Double pressure balance structure reduces side force on vanes, lower wear and longer service life

2. Low pressure fluctuation, smooth hydraulic actuator movement, low vibration and noise

3. Simple internal structure, spare parts easy to obtain, convenient on-site maintenance

4. Standard installation dimensions, direct replacement for many domestic and imported 50T vane pumps

5. Cost-effective, ideal choice for medium and low-pressure general hydraulic equipment

Application Range

Hydraulic power units, injection molding auxiliary machines, machine tools, logistics conveying machinery, light industry equipment, rubber machinery, small hydraulic presses and automation production lines.
