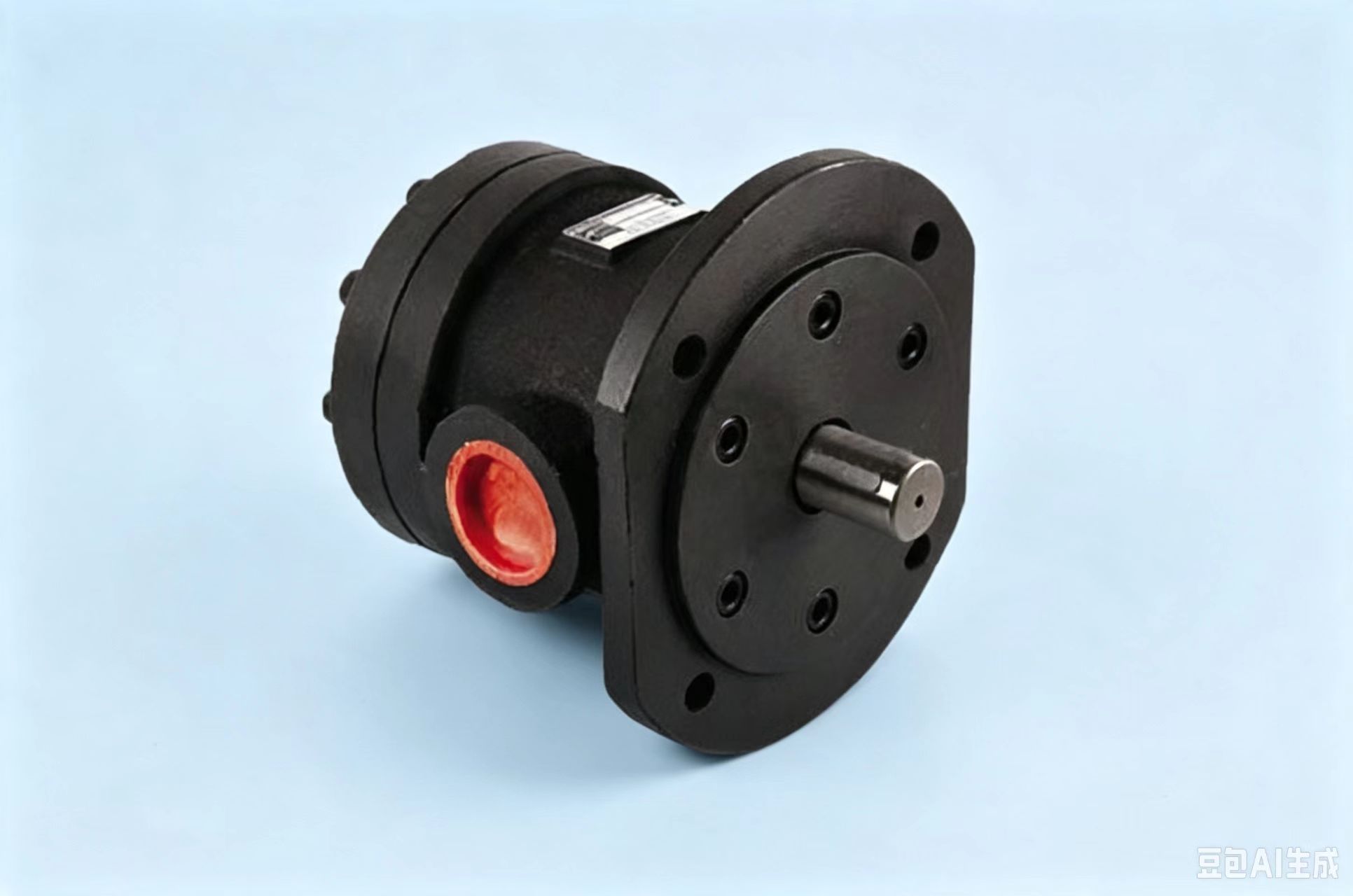

150T Fixed Displacement Vane Pump

Product Overview

150T series fixed displacement vane pump is a medium-pressure large-flow single vane pump widely used in industrial hydraulic systems. It adopts optimized double pressure balanced structure and improved stator cam curve. The pump features low pressure pulsation, stable large flow output, reliable continuous operation performance and excellent anti-pollution capacity. Standard installation dimensions are interchangeable with mainstream 150T series vane pumps from Taiwan brands.

150T Fixed Displacement Vane Pump is a mature and reliable Hydraulic Vane pump. As a popular fixed-displacement hydraulic pump, it acts as the power source core of the hydraulic system. This Hydraulic Vane pump converts mechanical energy into hydraulic energy, supplying continuous pressurized oil flow for every actuator inside the hydraulic system. Featuring compact overall dimensions, easy installation and stable oil delivery, this hydraulic pump can match various manifold configurations and simplify the overall layout of the hydraulic system.

Common Model Displacement Specifications

150T-48, 150T-61, 150T-75, 150T-94, 150T-116

- Structure: Single fixed displacement vane pump

- Mounting form: Flange mounting

- Oil port form: Thread connection

Main Technical Parameters

Parameter Specification

Pump Type Fixed Displacement Vane Pump

Rated Working Pressure 70 bar (7 MPa)

Max Intermittent Pressure 105 bar (10.5 MPa)

Operating Speed Range 600 ~ 1800 rpm

Rotation Direction Clockwise / Counter-clockwise optional

Applicable Fluid ISO VG32, VG46 anti-wear hydraulic oil

Working Temperature 0 ~ 60°C

Standard Seal NBR; Viton available for high temperature condition

Product Advantages

1. Optimized stator cam profile effectively reduces torque fluctuation, ensuring steady flow output under long-term continuous operation

2. Double pressure balanced design minimizes component abrasion and extends service life

3. Good contamination resistance, suitable for medium working conditions with ordinary filtration standards

4. Simple internal assembly structure, easy disassembly, inspection and maintenance

5. Universal mounting size, direct replacement for original 150T series pumps, high cost performance

Application Scope

Hydraulic power stations, hydraulic presses, rubber machinery, conveyor equipment, packaging machinery, engineering auxiliary hydraulic systems and light industrial automation equipment requiring medium-pressure large flow.
