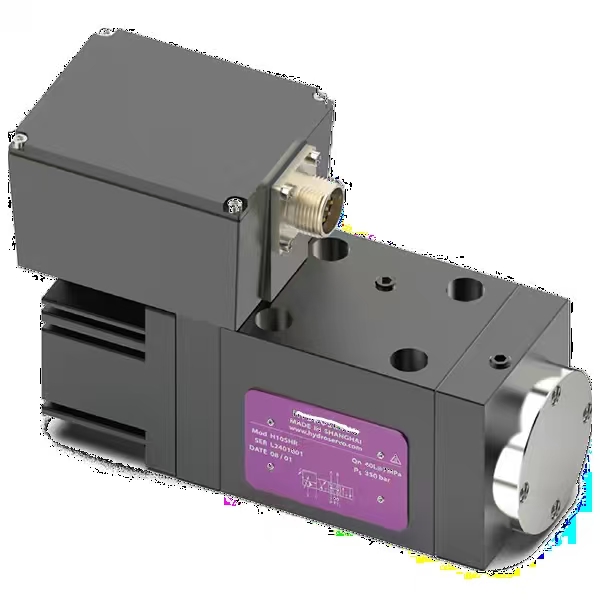

H10SHR High Frequency Response Electro-Hydraulic Servo Valve
Product Overview
H10SHR high frequency response servo valve adopts advanced voice coil direct-drive driving technology with double-layer magnetic array structure. The spool is rigidly connected with voice coil assembly. It realizes ultra-fast dynamic response by converting electrical signals into linear thrust directly without a separate pilot stage. This direct-drive 4-way servo valve eliminates complex pilot flow circuit, achieves ultra-high frequency bandwidth, low internal leakage and excellent anti-contamination performance. Standard ISO 4401 mounting interface, widely used for high-dynamic vibration test, fatigue loading and high-speed closed-loop motion control systems, and serves as a cost-effective alternative for imported high-bandwidth servo valves.
H10SHR High Frequency Response Servo Valve is a high-precision electro-hydraulic Hydraulic valve. It can be selected as premium Excavator Spare Parts and high-end control component for sophisticated hydraulic system. This high-frequency response servo valve receives electrical control signals and precisely regulates oil flow direction, flow rate and pressure inside the hydraulic system. Delivering ultra-fast dynamic response and high control accuracy, this Hydraulic valve greatly improves the response speed and control precision of intelligent construction machinery hydraulic system, meeting high-demanding motion control requirements.
Common Rated Flow Specifications
25 L/min, 40 L/min, 60 L/min, 80 L/min
*Tested under rated pressure drop ΔP=35 bar per metering edge
- Structure: Direct drive, voice coil actuated, 4-way high-frequency servo valve
- Driving mode: Voice coil linear direct drive
- Feedback form: Built-in LVDT electrical position feedback
- Mounting standard: ISO 4401-05 standard installation surface
Main Technical Parameters
Parameter Specification
Valve Type High Frequency Response Direct-Drive Electro-Hydraulic Servo Valve
Max Working Pressure (P/A/B Ports) 350 bar (35 MPa)
Max Allowable Return Pressure (T Port) ≤ 100 bar
Step Response Time (0~100% signal) ≤1.2 ms
Frequency Response (±25% command) -3dB bandwidth up to 750 Hz; -90° phase bandwidth up to 540 Hz
Recommended Hydraulic Fluid ISO VG32, VG46 anti-wear mineral hydraulic oil
Permitted Oil Cleanliness NAS 8 (NAS 1638) / ISO 4406 19/16 or superior
Operating Temperature -20°C ~ +80°C
Hysteresis ≤ 2.5%
Resolution ≤ 0.3%
Control Input Signal ±10V DC
Safety Feature: Fail-safe Built-in return spring; spool resets to predefined position upon power failure
Product Advantages
1. Voice coil direct-drive architecture without pilot stage, ultra-fast dynamic response and ultra-wide frequency bandwidth, ideal for high-speed cyclic loading and vibration simulation
2. Optimized magnetic circuit design, low power consumption and stable thrust output under continuous high-frequency reciprocating motion
3. Relaxed requirement for oil cleanliness, works reliably at NAS 8 grade, lower maintenance cost compared with traditional nozzle-flapper servo valves
4. Built-in LVDT position feedback, high positioning repeatability, outstanding static control precision
5. Integrated fail-safe return spring, improves system safety for fatigue test and dynamic test equipment
6. Compact integrated structure, low internal leakage, reduces system heat generation
7. Universal ISO mounting dimensions, interchangeable with mainstream imported high-frequency response servo valves
8. Simple zero calibration, convenient commissioning for dynamic test benches
Application Range
High-speed vibration simulation test systems, material fatigue test rigs, automotive component dynamic test platforms, aerospace simulation equipment, high-frequency cyclic loading machinery, shock test equipment, ultra-high precision dynamic closed-loop hydraulic control systems.
