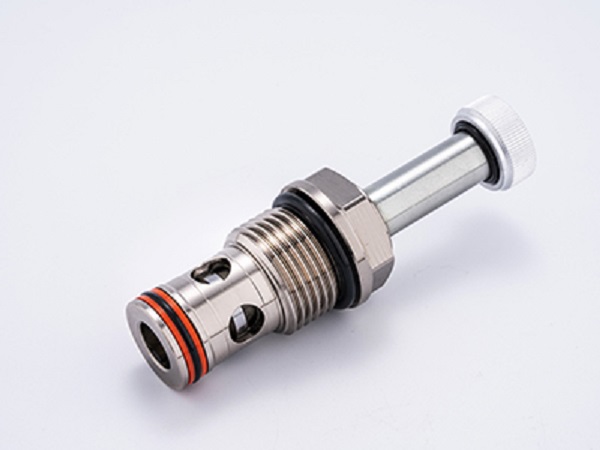

2/2-Way Poppet Type Threaded Cartridge Valve
Product Overview
The 2/2-Way Poppet Type Threaded Cartridge Valve is a normally closed or normally open two-position two-way hydraulic cartridge valve adopting poppet structure. It is installed into standard valve cavity inside manifold blocks. The poppet sealing structure provides tight shut-off performance with minimal internal leakage.
This valve controls the connection and cut-off of a single hydraulic circuit. Widely used for oil on-off control in modular hydraulic systems. Available with electromagnetic control, hydraulic control, manual override options. It is easy to assemble, flexible for system layout, and a common basic component for integrated hydraulic power units.
The 2/2‑Way Poppet Type Threaded Cartridge Valve is a high‑reliability Hydraulic valve. As a typical CARTRIDGE VALVE, it is threaded for direct insertion into valve manifold blocks, performing on‑off control of oil flow inside the hydraulic system. This compact component is widely used for circuit switching, pressure holding and unloading in various hydraulic power units and industrial equipment.
Key Technical Specifications
- Structure: Poppet sealing design
- Type: 2 Position 2 Way
- Mounting: Standard threaded cartridge installation
- Working pressure: Up to 315 bar
- Flow range: According to different valve size (08,10,12,16 series)
- Function options: Normally Closed (NC) / Normally Open (NO)
- Control modes: Solenoid operated, pilot hydraulic control
- Sealing characteristic: Near zero leakage when fully closed
- Operating fluid: Anti-wear hydraulic oil
- Fluid temperature: -20℃ ~ +85℃
- Recommended oil cleanliness: NAS 8 or better
Working Principle
When no control signal is applied, the poppet keeps the main port closed or open depending on valve configuration. Once the control force (electromagnetic or hydraulic pilot force) acts on the poppet assembly, the poppet lifts away from the valve seat. The main oil passage opens, allowing fluid to flow. When control force disappears, spring pushes the poppet back onto the seat to cut off flow.
The metal-to-metal or soft seal poppet achieves reliable shutoff, effectively preventing reverse flow and pressure leakage.
Core Advantages
1. Poppet seat sealing, extremely low internal leakage compared with spool valves
2. Compact threaded cartridge design, embedded installation in manifold block, save space
3. Fast response, simple flow on/off logic
4. Resistant to pressure impact, stable working performance under high pressure
5. Multiple control forms and valve sizes for flexible configuration
6. Easy maintenance, convenient replacement without disassembling the whole manifold
7. Compatible with standard international cartridge valve mounting cavities
Typical Applications
- Hydraulic power packs and machine tool hydraulic systems
- Injection molding machinery
- Engineering machinery auxiliary control circuits
- Logistics lifting equipment
- Pressure holding, clamping and locking circuits
- Automated production line hydraulic stations
