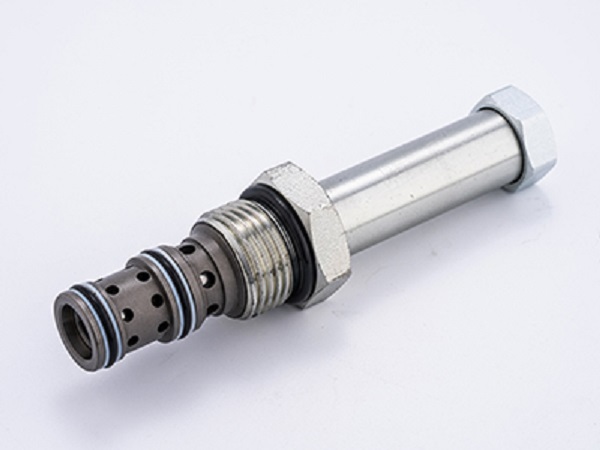

2/3-Way Spool Type Solenoid Operated Threaded Cartridge Valve
Product Overview
The 2/3-Way Spool Type Solenoid Operated Threaded Cartridge Valve is a two-position three-way spool directional control valve driven by electromagnet. It adopts threaded cartridge installation and can be directly embedded into the standard cavity of hydraulic manifold block.
This valve features three oil ports to realize switching between oil inlet, execution port and return port. It is widely used for pilot control, single-acting cylinder drive and pressure switching circuits. Multiple voltage options for solenoid coils are available. Compact design simplifies modular hydraulic system layout, serving as a common control component for hydraulic power units and machinery equipment.
Key Technical Specifications
- Structure: Spool sliding construction
- Function: 2 Position 3 Way
- Mounting form: Standard threaded cartridge installation
- Max working pressure: Up to 315 bar
- Control mode: Direct solenoid operation
- Coil voltage: DC12V, DC24V, AC110V, AC220V (optional)
- Medium: Anti-wear hydraulic oil
- Operating fluid temperature: -20℃ ~ +85℃
- Recommended oil cleanliness: NAS Class 8 or better
- Feature: Slight inherent internal leakage under closed condition (typical characteristic of spool structure)
Working Principle
Under the de-energized state, the return spring holds the spool at the initial position to form the default oil path connection. After the solenoid is energized, electromagnetic force pushes the spool to slide axially inside the valve sleeve, switching the communication relationship of internal flow passages and changing the oil circuit direction.
Once power is cut off, the spring drives the spool to reset automatically, and the hydraulic circuit reverts to the original state. It completes the switching control of three-way oil passages to realize stretching/retracting and pressure switching of single-acting actuators.
Core Advantages
1. Integrated solenoid drive, quick electromagnetic response for frequent switching operations
2. Threaded cartridge compact structure, embedded installation saves manifold layout space
3. Standard universal cartridge valve mounting hole, good interchangeability
4. Stable flow performance and smooth direction switching
5. Multiple coil voltage selections to meet global equipment requirements
6. Easy disassembly and inspection without removing the whole manifold block
7. Strong adaptability, applicable to industrial machinery and mobile hydraulic equipment
Application Reminder
Belonging to spool structure, tiny internal leakage exists. It is not suitable for circuits requiring strict zero leakage sealing.
Typical Applications
- Pilot control circuits of main hydraulic valves
- Single-acting hydraulic cylinder control loops
- Clamping, positioning and auxiliary actuating mechanisms
- Hydraulic stations, machine tools and automation production equipment
- Agricultural machinery, engineering machinery auxiliary control systems
- Pressure switching and signal control loops
