2/4-Way Spool Type Solenoid Operated Cartridge Valve

3 week ago

0 0 

4 year

Product details

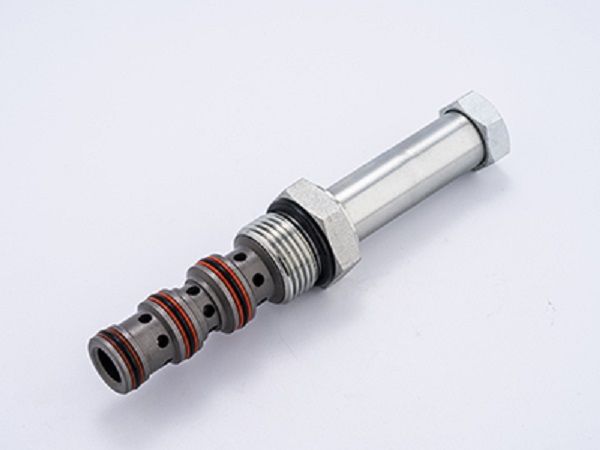

2/4-Way Spool Type Solenoid Operated Threaded Cartridge Valve

Product Overview

The 2/4-Way Spool Type Solenoid Operated Threaded Cartridge Valve is a solenoid-controlled two-position four-way directional valve with spool construction. It adopts threaded cartridge design and can be mounted inside standard cavities of hydraulic manifold blocks.

Equipped with four fluid ports, this valve controls forward and reverse movement of double-acting hydraulic actuators such as hydraulic cylinders and hydraulic motors. It switches the flow path to change the movement direction of actuators. Different control voltages for solenoid coils are optional. With compact integrated layout, it is widely adopted in modular hydraulic systems for industrial machinery and mobile equipment.

Key Technical Specifications

- Structure: Sliding spool structure

- Function: 2 Position 4 Way

- Installation: Standard threaded cartridge mounting

- Maximum working pressure: Up to 315 bar

- Driving Mode: Direct solenoid actuation

- Optional coil voltage: DC12V, DC24V, AC110V, AC220V

- Working medium: Anti-wear hydraulic oil

- Operating fluid temperature: -20℃ ~ +85℃

- Recommended oil cleanliness: NAS Class 8 or higher

- Feature reminder: Spool design creates minor inherent internal leakage; not applicable for zero-leakage holding circuits.

Working Principle

When the solenoid is de-energized, the return spring retains the spool at the original position to maintain the initial oil circuit connection. Once the coil is energized, electromagnetic force pushes the spool to slide axially inside the valve sleeve. The internal flow passages are switched, altering the direction of oil supplied to double-acting cylinders or motors.

After power cut-off, the return spring pushes the spool back to the home position, and the actuator reverses movement or stops as required. It realizes bidirectional motion control of double-acting hydraulic executive components.

Core Advantages

1. Direct solenoid driving, rapid response, suitable for frequent directional switching

2. Threaded cartridge compact design, embedded installation saves manifold space

3. Standard universal cartridge valve mounting dimensions, strong interchangeability

4. Stable flow characteristics, smooth commutation with low impact

5. Multiple coil voltage options to satisfy different regional power supply standards

6. Easy maintenance; individual valve replacement without disassembling the whole manifold block

7. Wide adaptability for stationary industrial equipment and off-highway machinery

Typical Applications

- Double-acting hydraulic cylinder drive loops

- Small hydraulic motor forward/reverse control

- Automation equipment and machine tool hydraulic systems

- Hydraulic power units for modular systems

- Agricultural machinery, light engineering equipment auxiliary hydraulic circuits

- Logistics lifting and clamping equipment
