Manual Powder Coating Machine for Fire Hydrants

4 month ago
4 0
Product details

Product Overview
The F1 Manual Powder Coating Machine is configured as a professional fire hydrant powder coating machine for barrels, bonnets, flanges and outlet sections. These cast components contain raised edges, deep joints and narrow recesses that are difficult to cover with a fixed electrostatic setting.

PTC powder control combines a 50μm digital-valve powder pump with dual-stage pressure stabilization. This maintains a precise, uniform powder feed as the operator moves from the open hydrant body to smaller cast details.

For manufacturers comparing a powder coating machine for sale, the F1 provides numerical control, an LCD interface and intelligent process storage in one mobile unit. The flexibility of this manual coating machine makes it suitable for recurring hydrant batches, project-specific colors and varied cast geometries.

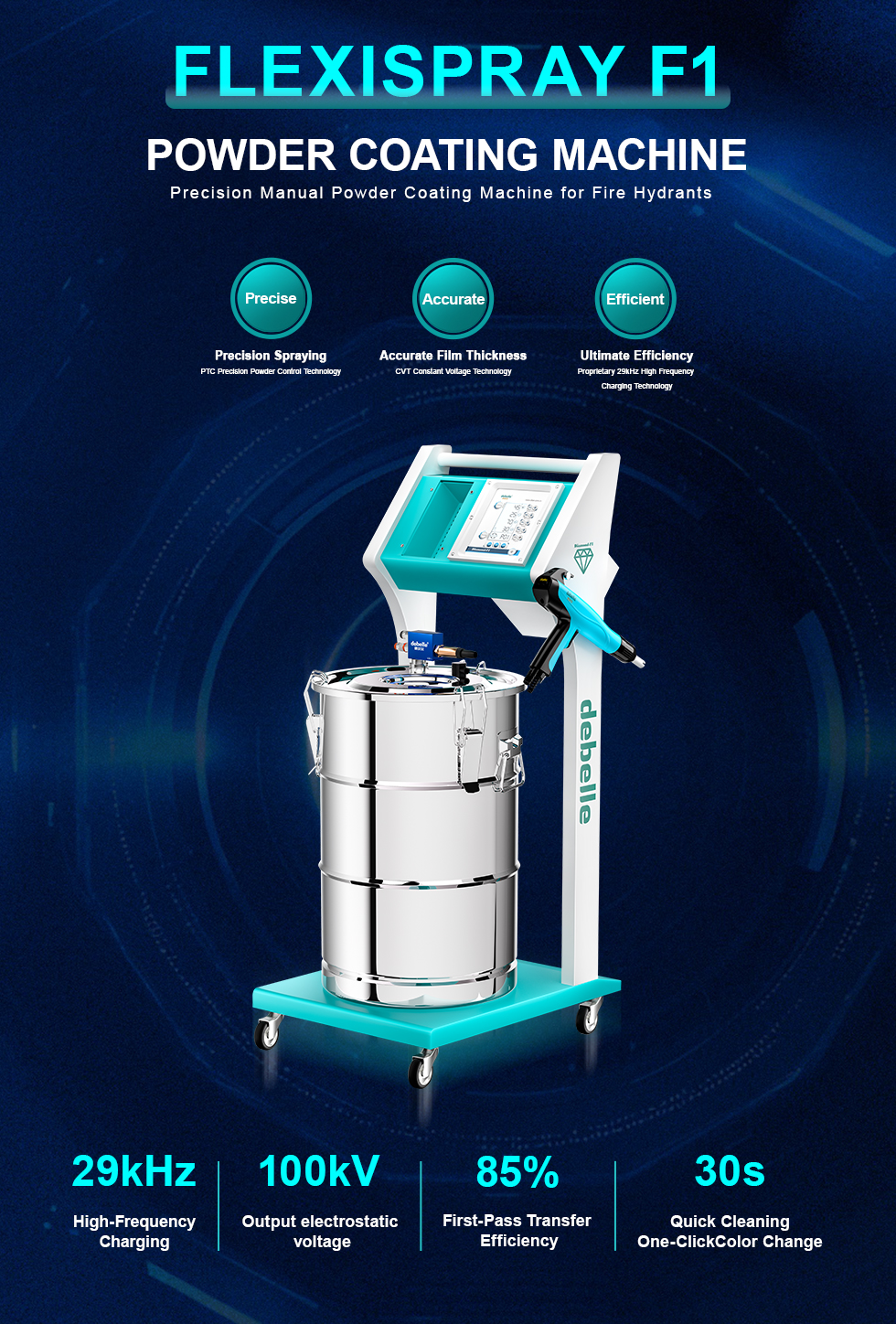

FlexiSpray F1 hopper-fed spraying system with digital controller and trolley


Still Struggling with These 3 Coating Challenges?

Metallic powder application, recessed part coverage and recoating challenges


guardrail electrostatic powder spraying equipment

Penetration | Exclusive 29kHz High‑Frequency Charging Technology

The exclusive 29kHz technology improves powder penetration into flanges, joints and casting recesses, helping the recess‑coating system minimize thinly‑coated and missed‑spray areas.

Precision | CVT Constant‑Voltage Technology

The AI‑based control system adjusts voltage, current and power in real‑time to greatly reduce the Faraday‑cage effect around outlet connections and deep‑set fire hydrant recesses.

Accuracy | PTC Precision Powder Control

Fitted with a 50 μm digital valve powder pump and dual‑stage pressure‑stabilizing system, this cast‑iron fire‑hydrant coating equipment delivers consistent powder feed.

Efficiency | 30‑Second Fast Color Change

The gun quick‑clean function cuts downtime for switching fire‑hydrant identification colours, while preset programmes streamline repetitive production workflows.

extruded aluminum groove penetration coating tool

360 ° coverage
Addressing traditionally challenging areas like grooves, complex components, and fine gaps, this system achieves 360° precision coverage, ensuring comprehensive coverage of even the most challenging areas.

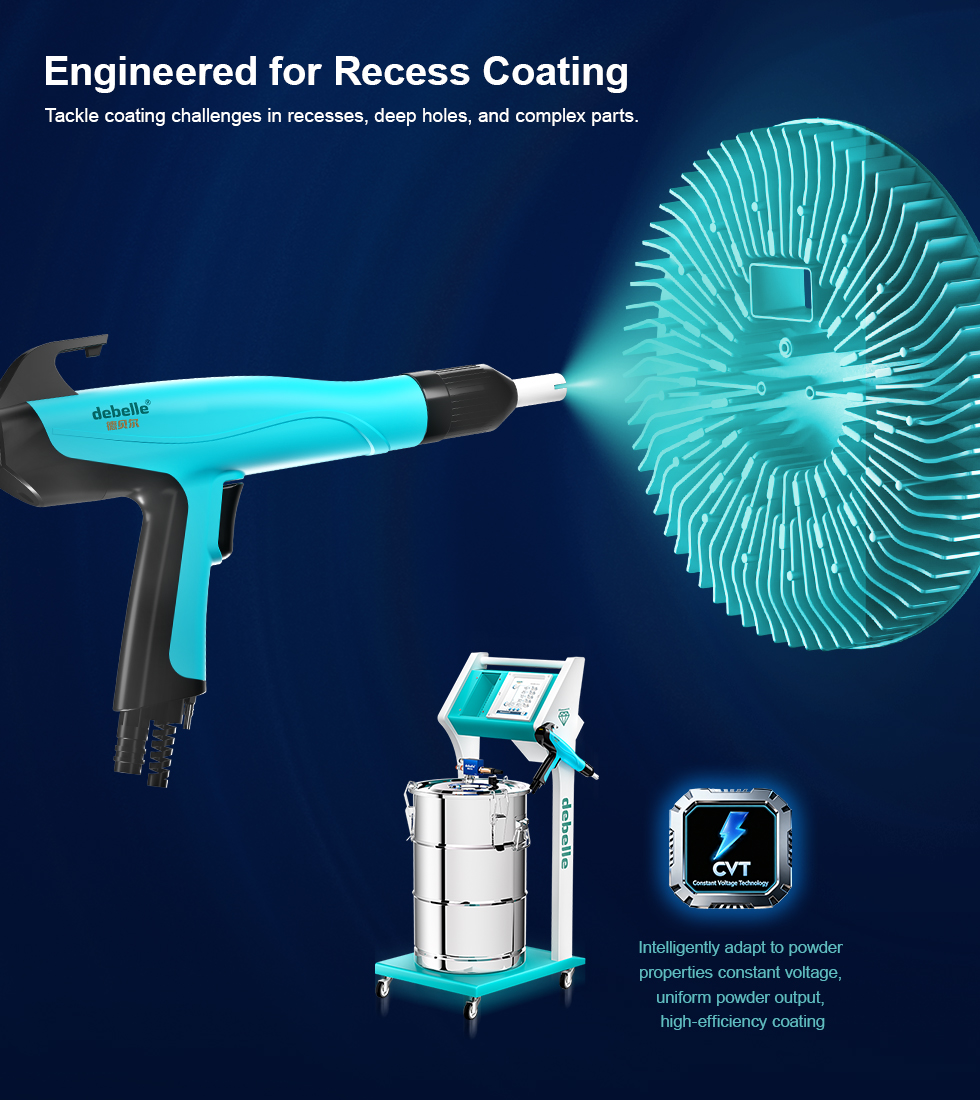

Electrostatic gun spraying a finned metal component with CVT voltage control
Intelligent recording
The system automatically stores perfect process parameters and allows for one-click recall, reproducing consistent film thickness and spray

Digital control panel with voltage and current settings for different powder types
Intelligent recording
The system automatically stores perfect process parameters and allows for one-click recall, reproducing consistent film thickness and spray results for exceptional stability and efficiency on every product.

PTC precision powder control chip illustration

0.05mm digital valve precision powder pump
Paired with a precision spraying system, one click operation achieves high-quality coating

Precision powder feed pump with 0.05 mm digital valve technology

photovoltaic rack UV-proof thick film spraying equipment

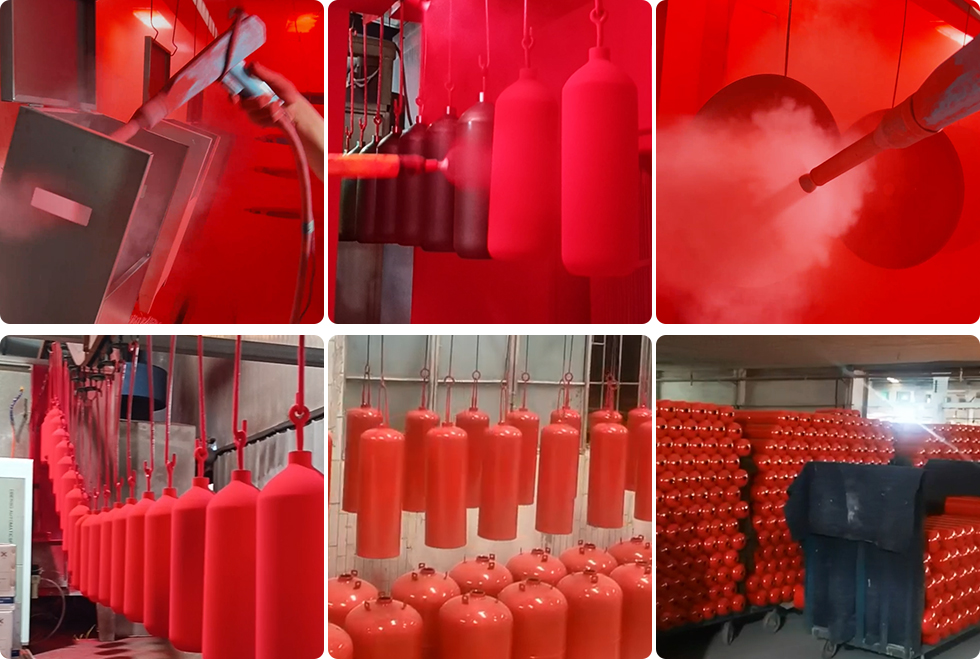

Red powder spraying on metal enclosures, cylindrical vessels and rounded components

electric vehicle precision part coating sprayer

     Input voltage:  AC100-240V      Display mode:  LED screen
     Output electrostaticvoltage:   0-100kV      Manual singlegun weight:   385g
     Output electrostaticcurrent:   0-100uA      Working pressure:   6-8kg
     Output electrostaticfrequency:   29kHz      Air consumption:   0.2 m³/min
     Powder output:   750g/min      Operating Temperature:   -20°C-65°C
     Adjustment method:   Numerical Control Adjustment      Rated power:   50W
     Packing Specification:   475*540*1080mm      Controller Specification:   175*175*250mm
     Whole machinespecifications:   420*530*1050mm


Coating kit components including nozzles, injector, hoses and grounding wire

new energy auto part powder gun

Debelle powder coating equipment and solutions are widely used in coil coating, aluminum profiles, home appliances, telecommunications equipment, sheet metal, building materials, heavy industry, automotive and components, pipelines, lighting, furniture, and new energy applications—meeting diverse requirements for workpiece structures, powder types, coating quality, and production efficiency.

Surface finishing applications across automotive, energy, furniture and appliance industries

battery backplate flat surface uniform coating equipment

Debelle business partner logos from manufacturing and technology sectors

oven inner cavity heat stable finishing spray gun

1. Which fire hydrant components can the F1 coat?
The F1 is suitable for hydrant barrels, bonnets, flanges and outlet sections, with manual control for varied casting shapes.

2. How does it improve coverage around flanges and deep joints?
29 kHz high-frequency charging improves powder penetration, while CVT regulation helps reduce electrostatic rejection in recessed areas.

3. Can it maintain even powder delivery across casting details?
Yes. PTC powder control stabilizes delivery as operators move between broad hydrant surfaces, raised edges and smaller details.

4. Does it support different hydrant colors and repeat orders?
Yes. Quick gun cleaning helps shorten color changes, while stored spraying settings simplify setup for recurring batches.

5. Can Debelle adapt the equipment to our production needs?
Yes. Debelle manufactures coating equipment and configures solutions around your hydrant dimensions, output requirements and factory layout.

6. Can we test coating quality before purchasing?
Yes. Send sample castings and powder for evaluation of recess coverage, film thickness, surface finish and powder consumption.
