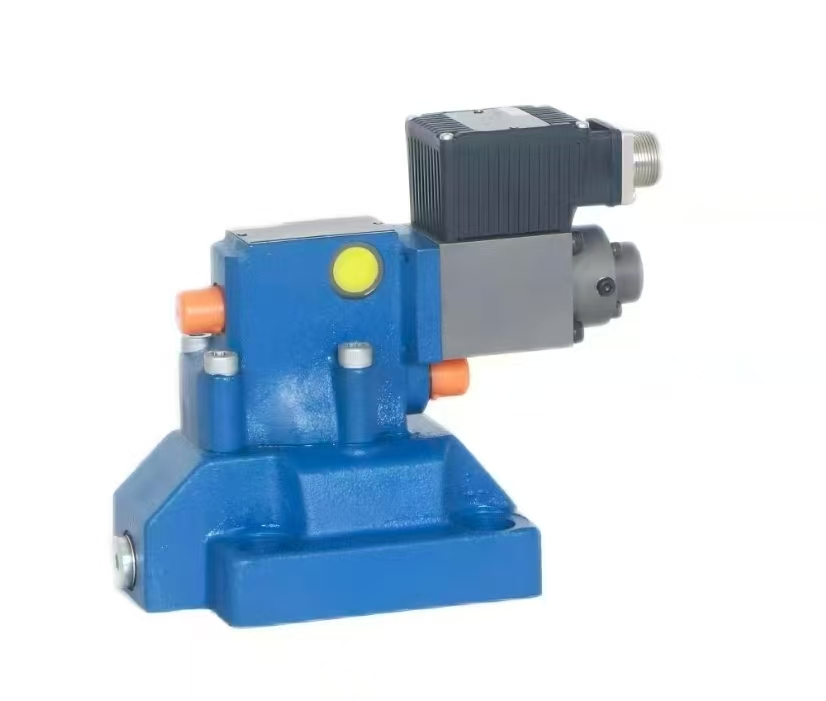

DBEM‑30 Proportional Pressure Valve
Product Overview
DBEM‑30 is a pilot‑operated electro‑hydraulic proportional pressure‑relief Hydraulic valve, specially designed for stepless, remote electronic pressure‑limiting control in heavy‑duty hydraulic system and large‑flow industrial Machine .
This large‑flow proportional Hydraulic valve adopts sub‑plate mounting with nominal size NG32. It converts analog electrical control signals into infinitely‑variable maximum pressure of the main circuit, realizing flexible and continuous pressure setting for your whole hydraulic system. With excellent linearity, low hysteresis and stable pressure‑holding performance, it provides reliable over‑pressure safety protection for downstream hydraulic actuators. It is a high‑performance pressure‑control component for large hydraulic presses, metallurgical machinery, hydraulic test‑benches and other heavy‑load hydraulic‑driven Machine.
Technical Specifications
‑ Model: DBEM‑30
‑ Product Type: Pilot‑operated electro‑hydraulic proportional pressure‑relief Hydraulic valve, external amplifier drive
‑ Nominal Size: NG32
‑ Max inlet working pressure: 315 bar
‑ Adjustable pressure range: 0‑50 / 0‑100 / 0‑200 / 0‑315 bar optional
‑ Maximum rated flow: 600 L/min
‑ Mounting form: Sub‑plate mounting, ISO 6264‑06‑09 standard installation dimension
‑ Solenoid: 24VDC wet‑pin proportional solenoid
‑ Control mode: External amplifier, control signal: 0‑10 V / 4‑20 mA
‑ Working medium: Anti‑wear hydraulic mineral oil for industrial hydraulic system
‑ Oil temperature range: ‑20℃ ~ +80℃
‑ Key Features: Large‑flow capacity, pilot‑operated structure, low hysteresis, high control accuracy, stable pressure‑limiting performance, long‑term stable operation for heavy‑load hydraulic Machine
Working Principle
DBEM‑30 proportional pressure‑relief Hydraulic valve consists of proportional pilot solenoid assembly and main spool assembly. After receiving the electrical command signal, the proportional solenoid outputs corresponding thrust to adjust pilot pressure. When pressure inside the hydraulic system rises to the preset value, the main spool opens the passage from port P to port T, discharging excess hydraulic oil to limit the maximum system pressure. It can continuously adjust the relief pressure according to electric signals, effectively preventing over‑pressure damage to all components in the hydraulic system.
Damaged proportional solenoid, spool sticking or amplifier failure will cause pressure drift, unstable pressure limiting, over‑pressure faults of the Machine. Replacing a qualified DBEM‑30 proportional pressure valve can restore accurate remote pressure‑limiting performance of your hydraulic circuit.
Core Advantages
1. Stepless electric remote pressure adjustment, greatly improving automation and flexible pressure‑setting efficiency of your hydraulic system.
2. NG32 large‑flow design, perfect for high‑power, heavy‑load industrial Machine with high‑oil‑flow demand.
3. Pilot‑operated structure achieves smooth pressure regulation, low‑noise operation and outstanding pressure‑control stability.
4. Standard ISO sub‑plate installation dimension, strong interchangeability, convenient for upgrading or refitting existing hydraulic system.
5. Built‑in mechanical emergency pressure‑limiting protection, ensuring safety operation of hydraulic equipment under electronic failure condition.
Application Range
DBEM‑30 proportional pressure‑relief Hydraulic valve is a premium large‑flow pressure‑control spare‑part for heavy‑duty industrial hydraulic system. It is widely applied to large hydraulic presses, die‑casting machinery, metallurgical rolling‑mill equipment, heavy‑duty injection‑molding machines, hydraulic test‑benches and other high‑power hydraulic‑driven industrial Machine. Suitable for hydraulic‑system integrators, heavy‑equipment‑manufacturers, maintenance workshops and global spare‑parts distributors.
