Product details

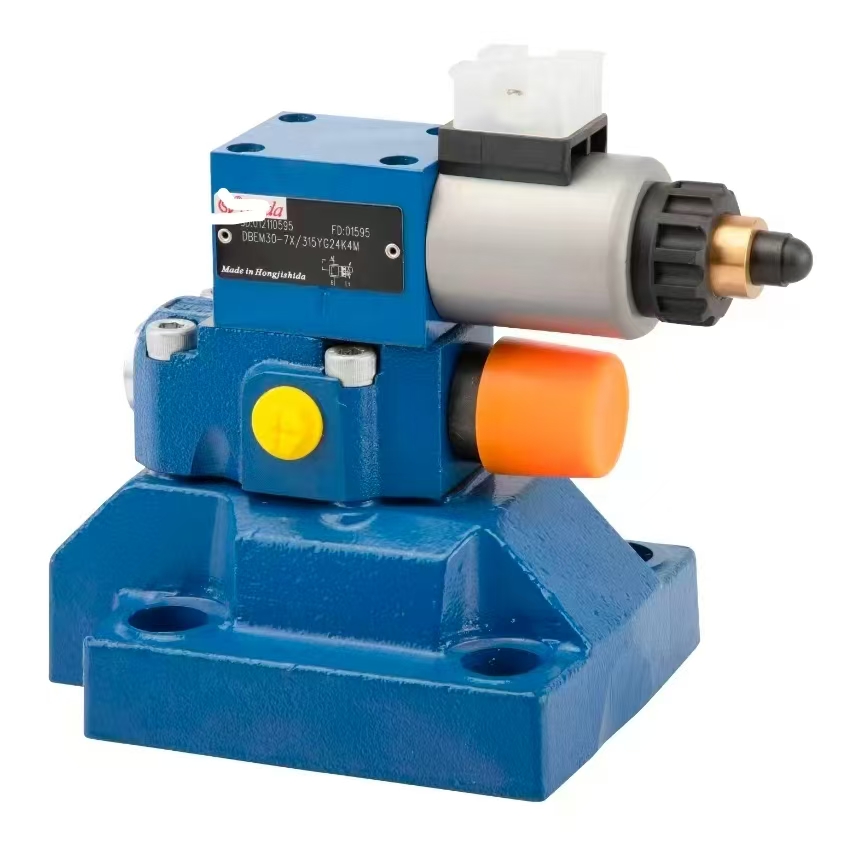

DBEM‑7X Proportional Pressure Valve
Product Overview
DBEM‑7X series is a pilot‑operated electro‑hydraulic proportional pressure‑relief Hydraulic valve, widely used for stepless remote pressure limiting and electronic pressure setting in heavy‑duty hydraulic system and high‑power industrial Machine.
This high‑performance proportional Hydraulic valve includes DBEM‑7X (external amplifier) and DBEME‑7X variant (built‑in onboard electronics OBE). It adopts sub‑plate mounting with multiple nominal sizes available: NG10, NG20, NG30. It converts analog electrical control signals into infinitely‑variable maximum system pressure, realizing continuous, flexible pressure‑limit adjustment for the main circuit of your hydraulic system. Featuring excellent linearity, low hysteresis and stable pressure‑holding performance, it provides reliable over‑pressure safety protection for downstream hydraulic actuators. It is an ideal pressure‑control component for large hydraulic presses, metallurgical equipment, die‑casting machinery, hydraulic test‑benches and other heavy‑load hydraulic‑driven Machine.
Technical Specifications
‑ Model Series: DBEM‑7X, DBEME‑7X
‑ Product Type: Pilot‑operated electro‑hydraulic proportional pressure‑relief Hydraulic valve
‑ Nominal Sizes: NG10, NG20, NG30
‑ Max inlet working pressure: 350 bar
‑ Adjustable pressure range: 0‑50 / 0‑100 / 0‑200 / 0‑315 / 0‑350 bar optional
‑ Maximum rated flow: Up to 700 L/min (NG30)
‑ Mounting form: Sub‑plate mounting, ISO 6264 standard installation dimension
‑ Solenoid: 24 VDC wet‑pin proportional solenoid, detachable rotatable coil
‑ Control Mode:
• DBEM‑7X: External amplifier drive, 0‑10 V / 4‑20 mA signal
• DBEME‑7X: Built‑in onboard electronics (OBE), plug‑and‑play control
‑ Working medium: Anti‑wear hydraulic mineral oil for industrial hydraulic system
‑ Oil temperature range: ‑20℃ ~ +80℃
‑ Key Features: Pilot‑operated large‑flow design, low hysteresis, high repeat accuracy, optional built‑in mechanical safety pressure‑limiting function, stable long‑time operation for heavy‑load hydraulic Machine
Working Principle
DBEM‑7X proportional pressure‑relief Hydraulic valve consists of proportional pilot solenoid assembly and main spool assembly. After receiving the electrical command signal, the proportional solenoid outputs corresponding thrust to adjust pilot pressure. When pressure inside the hydraulic system rises to the preset value, the main spool opens P‑T passage and discharges excess hydraulic oil, so as to limit the maximum system pressure. It can continuously adjust relief pressure according to electric signals, effectively preventing over‑pressure damage to all components inside the hydraulic system. The optional mechanical safety relief function provides backup protection even under electronic‑failure condition.
Damaged proportional solenoid, spool sticking or amplifier malfunction will cause pressure drift, unstable pressure limiting, over‑pressure faults of the Machine. Replacing a qualified DBEM‑7X proportional pressure valve can restore accurate remote pressure‑limiting performance of your hydraulic circuit.
Core Advantages
1. Stepless electric remote pressure adjustment, greatly improving automation and flexible pressure‑setting efficiency of your hydraulic system.
2. Multiple size options (NG10/20/30), large‑flow capacity, suitable for different power‑grade heavy‑duty industrial Machine.
3. Two control versions optional (external amplifier / integrated OBE electronics), flexible to match different control‑cabinet layouts.
4. Pilot‑operated smooth pressure‑regulation performance, low‑noise operation, excellent pressure‑control stability.
5. Standard ISO sub‑plate installation dimension, strong interchangeability, convenient for upgrading or refitting existing hydraulic system.
6. Optional built‑in mechanical emergency pressure‑limiting protection, enhancing safety reliability of hydraulic equipment.
Application Range
DBEM‑7X proportional pressure‑relief Hydraulic valve is a premium large‑flow pressure‑control spare‑part for heavy‑duty industrial hydraulic system. It is widely applied to large hydraulic presses, die‑casting machinery, metallurgical rolling‑mill equipment, heavy‑duty injection‑molding machines, hydraulic test‑benches and other high‑power hydraulic‑driven industrial Machine. Suitable for hydraulic‑system integrators, heavy‑equipment‑manufacturers, maintenance workshops and global spare‑parts distributors.
