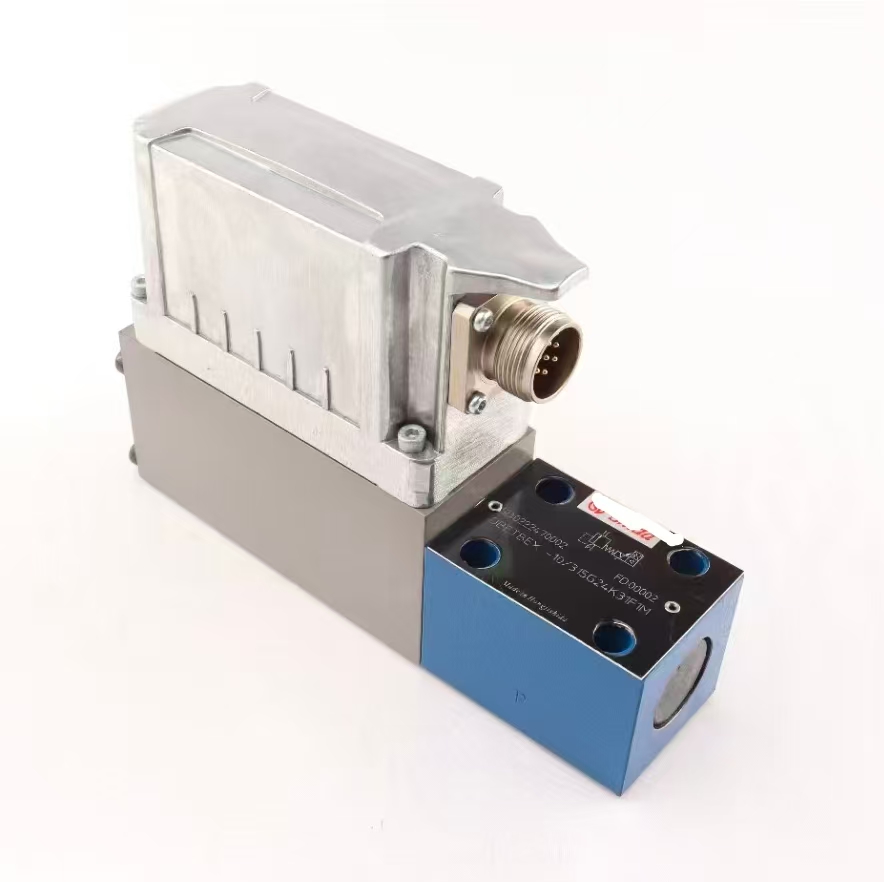

DBETBEX Proportional Pressure Valve
Product Overview
DBETBEX is a high‑precision direct‑operated poppet‑type electro‑hydraulic proportional pressure‑relief Hydraulic valve, equipped with integrated onboard electronics (OBE) and built‑in inductive spool‑position closed‑loop feedback, widely used for stepless remote pressure limiting and electronic pressure setting in high‑accuracy industrial hydraulic system and precision‑controlled industrial Machine.
This compact proportional Hydraulic valve adopts NG6 size and sub‑plate mounting design. It converts analog electrical control signals into infinitely‑variable maximum system pressure for the main circuit of your hydraulic system. Benefiting from closed‑loop position feedback control, it achieves ultra‑low hysteresis and outstanding repeat accuracy, delivering stable, high‑precision over‑pressure protection and flexible multi‑pressure setting for hydraulic circuits. It is an ideal pressure‑control component for hydraulic test‑benches, precision injection‑molding machinery, CNC hydraulic stations and various high‑accuracy hydraulic‑driven Machine.
Technical Specifications
‑ Model: DBETBEX‑1X
‑ Product Type: Direct‑operated poppet‑type electro‑hydraulic proportional pressure‑relief Hydraulic valve, integrated OBE amplifier, inductive closed‑loop spool‑position feedback
‑ Nominal Size: NG6
‑ Maximum working pressure (Port P): 315 bar; Port T max pressure: 250 bar
‑ Adjustable pressure range: 0‑80 / 0‑180 / 0‑250 / 0‑315 bar optional
‑ Rated pilot flow: 1 L/min
‑ Mounting form: Sub‑plate mounting, ISO 4401‑03‑02‑0‑05 standard installation dimension
‑ Solenoid: 24 VDC wet‑pin proportional solenoid with built‑in inductive displacement sensor
‑ Control mode: Built‑in onboard electronics, control signal: 0‑10 V / 4‑20 mA
‑ Working medium: Anti‑wear hydraulic mineral oil for industrial hydraulic system
‑ Oil temperature range: ‑20℃ ~ +80℃
‑ Key Features: Closed‑loop feedback, ultra‑low hysteresis, high repeat accuracy, plug‑and‑play integrated electronics, compact poppet‑seat structure, fast response, stable performance for precision hydraulic Machine
Working Principle
DBETBEX proportional pressure‑relief Hydraulic valve consists of proportional solenoid with inductive position sensor, poppet spool and spring assembly. After receiving electrical command signal, the built‑in electronic unit drives the proportional solenoid to generate corresponding thrust acting on the spring. The inductive sensor feeds real‑time poppet‑position signal back to onboard amplifier, forming closed‑loop correction to eliminate friction‑caused control error. When pressure inside the hydraulic system rises to the preset value, hydraulic force pushes the poppet spool away from the seat, opening P‑to‑T passage and discharging excess pilot oil to limit maximum system pressure. In case of power‑off fault, the valve automatically resets, providing basic safety pressure protection for the whole hydraulic system.
Damaged proportional solenoid, position‑sensor failure or onboard electronics malfunction will cause pressure drift, unstable pressure limiting, over‑pressure or pressure‑setting failure of the Machine. Replacing a qualified DBETBEX proportional pressure valve can restore accurate closed‑loop remote pressure‑limiting performance of your hydraulic circuit.
Core Advantages
1. Inductive closed‑loop spool‑position feedback greatly reduces hysteresis, significantly improving pressure‑setting precision and repeatability of your hydraulic system.
2. Built‑in onboard electronics (OBE), no external amplifier required, simplifying wiring layout and saving cabinet installation space for compact‑size Machine.
3. Poppet‑seat direct‑operated structure delivers fast dynamic response, suitable for pilot‑control circuits requiring frequent pressure adjustment.
4. Standard ISO sub‑plate mounting, good interchangeability, convenient for upgrading or retrofitting existing hydraulic system.
5. Built‑in mechanical safety pressure‑limiting function, improving operational safety of hydraulic‑driven industrial Machine.
Application Range
DBETBEX proportional pressure‑relief Hydraulic valve is a high‑precision pilot‑pressure‑control spare‑part for industrial hydraulic system. It is widely applied to hydraulic test‑benches, precision injection‑molding equipment, hydraulic presses, CNC machine‑tools, automated production lines and other hydraulic‑driven industrial Machine. Suitable for hydraulic‑system integrators, equipment‑manufacturers, maintenance workshops and global spare‑parts distributors.
