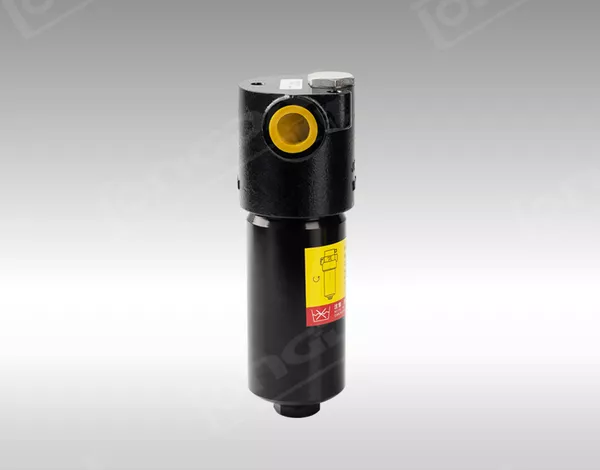

JTM Series Hydraulic High‑Pressure Filter
Product Overview
JTM Series Hydraulic High‑Pressure Filter is an inline high-pressure FILTER, a critical safety and precision protection component for industrial hydraulic system. It is installed directly on the pressure pipeline after the hydraulic pump, to capture fine solid contaminants and protect high-precision hydraulic parts of the Machine.
This high-pressure FILTER features a thick pressure-resistant housing, suitable for high working pressure conditions. It removes metal wear particles, rubber debris and hard particulate impurities in pressure oil, maintaining high cleanliness of hydraulic fluid. It effectively prevents scratches and abrasion on proportional valves, servo valves, cylinders and other core components inside the hydraulic system, greatly extending service life and reducing breakdown risk of the whole Machine.
Technical Specifications
‑ Model: JTM Series Hydraulic High‑Pressure Filter
‑ Product Type: Inline high-pressure hydraulic FILTER
‑ Application: Pressure line filtration for hydraulic system
‑ Max working pressure: Up to 32 MPa
‑ Working medium: Anti-wear hydraulic mineral oil, ISO-VG32 / VG46 recommended
‑ Operating oil temperature: -20℃ ~ +80℃
‑ Filtration precision: Multiple micron grades optional (1μm ~ 20μm)
‑ Installation: Pipeline inline mounting on pressure oil circuit
‑ Built-in feature: Differential pressure transmitter / clogging indicator, optional bypass valve
‑ Key Features: High pressure resistant housing, high filtration accuracy, low pressure drop, reliable differential pressure alarm, stable protection for precision hydraulic components of industrial Machine
Working Principle
As a high-pressure inline FILTER for the hydraulic system, pressurized hydraulic oil flows into the filter housing. Fine solid pollutants are trapped by high-performance filter media, and purified high-pressure oil flows onward to actuators of the Machine. It stops hard particles from scuffing the sealing surfaces and precision gaps inside valves and pumps of the hydraulic system.
When contaminants accumulate on the filter element, differential pressure rises. The clogging indicator sends out alarm signals to remind operators to replace the filter element in time. Optional bypass valve opens when the element is severely blocked, avoiding sudden oil cutoff and emergency shutdown of the Machine, ensuring continuous operation of the hydraulic system.
Core Advantages
1. Heavy-duty pressure vessel design, withstands high continuous pressure, delivers precise filtration to protect high-precision components of the hydraulic system and Machine.
2. High efficiency filter media, excellent retention capacity for tiny particles, keeps hydraulic oil clean for precision hydraulic circuits.
3. Differential pressure alarm function, real-time monitoring of filter element clogging status, convenient predictive maintenance.
4. Compact inline structure, simple installation and easy filter element replacement, short downtime for the Machine.
5. Standard thread/flange connection options, good interchangeability for new build or retrofitted hydraulic system.
Application Range
JTM Series Hydraulic High‑Pressure FILTER is widely used in the hydraulic system of hydraulic presses, injection molding machines, servo hydraulic stations, construction machinery and other high-pressure hydraulic-driven Machine. Popular among hydraulic maintenance workshops, hydraulic system integrators and global spare parts distributors.
