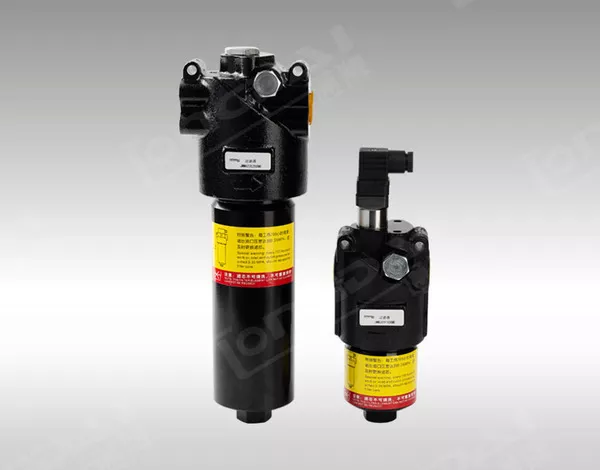

JMM Series Hydraulic High‑Pressure Filter
Product Overview
JMM Series Hydraulic High‑Pressure Filter is a heavy-duty inline high-pressure FILTER, a critical precision protection component for industrial hydraulic system. Installed directly on the high-pressure pipeline between hydraulic pump and control valves, it captures ultra-fine solid contaminants and safeguards high-precision hydraulic components of the Machine.
This high-pressure FILTER adopts thick forged steel housing to withstand extreme high pressure and pressure surges. It effectively intercepts metal wear debris, rubber fragments and fine particulate impurities in pressurized hydraulic oil, maintaining high fluid cleanliness. It prevents scratches and abrasive damage to proportional valves, servo valves, hydraulic cylinders and other core components in the hydraulic system, extending service life and lowering breakdown risk of the whole Machine.
Technical Specifications
‑ Model: JMM Series Hydraulic High‑Pressure Filter
‑ Product Type: Inline high-pressure hydraulic FILTER
‑ Application: Pressure line filtration for hydraulic system
‑ Max working pressure: Up to 42 MPa
‑ Working medium: Anti-wear hydraulic mineral oil, ISO-VG32 / VG46 recommended
‑ Operating oil temperature: -20℃ ~ +80℃
‑ Filtration precision: Multiple micron grades optional (1μm ~ 20μm)
‑ Installation: Inline pipeline mounting on pressure oil circuit
‑ Built-in feature: Differential pressure clogging indicator, optional bypass valve
‑ Key Features: Ultra-high pressure resistant housing, high filtration accuracy, large dirt holding capacity, reliable differential pressure alarm, stable protection for heavy-duty precision hydraulic components of industrial Machine
Working Principle
As a heavy-duty high-pressure inline FILTER for the hydraulic system, pressurized hydraulic oil flows into the filter housing. Tiny solid contaminants are trapped by high-performance micro-glass filter media, and purified high-pressure oil continues to be delivered to actuators of the Machine. It stops hard particles from scuffing precision matching surfaces of valves and pumps within the hydraulic system.
When the filter element accumulates contaminants, differential pressure rises. The clogging indicator triggers an alarm signal to remind operators to replace the filter element timely. If the filter element is heavily blocked, the optional bypass valve opens to prevent oil supply interruption and unexpected shutdown of the Machine, ensuring continuous running of the hydraulic system.
Core Advantages
1. Heavy-duty forged steel pressure housing, withstands long-term ultra-high pressure and pressure shock, provides reliable precision filtration protection for the hydraulic system and Machine.
2. High-efficiency micro-glass filter material with excellent dirt holding capacity, keeps hydraulic oil clean for demanding precision hydraulic circuits.
3. Differential pressure monitoring indicator, real-time element clogging status, supports predictive maintenance and reduces unplanned downtime.
4. Compact inline structure, simple installation and convenient filter element replacement, shortens maintenance downtime of the Machine.
5. Standard thread and flange connection options, great interchangeability for newly-built or retrofitted heavy-duty hydraulic system.
Application Range
JMM Series Hydraulic High‑Pressure FILTER is widely applied in the hydraulic system of heavy hydraulic presses, large injection molding machines, servo hydraulic stations, metallurgical equipment, construction machinery and other heavy-duty high-pressure hydraulic-driven Machine. Popular among hydraulic maintenance workshops, hydraulic system integrators and global spare parts distributors.
