Focused Manual Powder Coating Machine for Radiators

3 month ago
4 0
Product details
Product Overview

The F1 Manual Powder Coating Machine is a compact radiator powder coating machine featuring PTC powder control, CVT constant voltage, and 29kHz charging for improved fin penetration. This powder coating equipment combines the flexibility of a Manual Powder Coating Machine with the precise control of an Electrostatic Powder Coating Machine.

FlexiSpray F1 radiator coating system



Product Highlights

Controlled Powder Flow
PTC technology uses a 50μm digital-valve powder pump and dual-stage pressure stabilization to prevent excessive buildup on exposed surfaces.
CVT Accuracy
AI-powered control regulates voltage, current and power in real time during heat exchanger electrostatic coating, helping reduce the Faraday cage effect.
29kHz Charging
Proprietary high-frequency technology supports deep fin powder penetration, directing charged powder toward harder-to-reach areas.


Product Technical Analysis

360 ° coverage
The system provides precise 360° coverage of grooves, fine gaps, and complex components.

Electrostatic gun directing powder

Intelligent recording
The system automatically stores perfect process parameters and allows for one-click recall, reproducing consistent film thickness and spray

Digital control panel with settings for smooth, textured and metallic powders

PTC technology

PTC technology uses a 50 μm digital-valve pump and dual-stage pressure control to prevent surface buildup.


PTC precision powder control technology

0.05mm digital valve precision powder pump
Paired with a precision spraying system, one click operation achieves high-quality coating

Precision powder feed pump with 0.05 mm digital valve technology

Application Cases

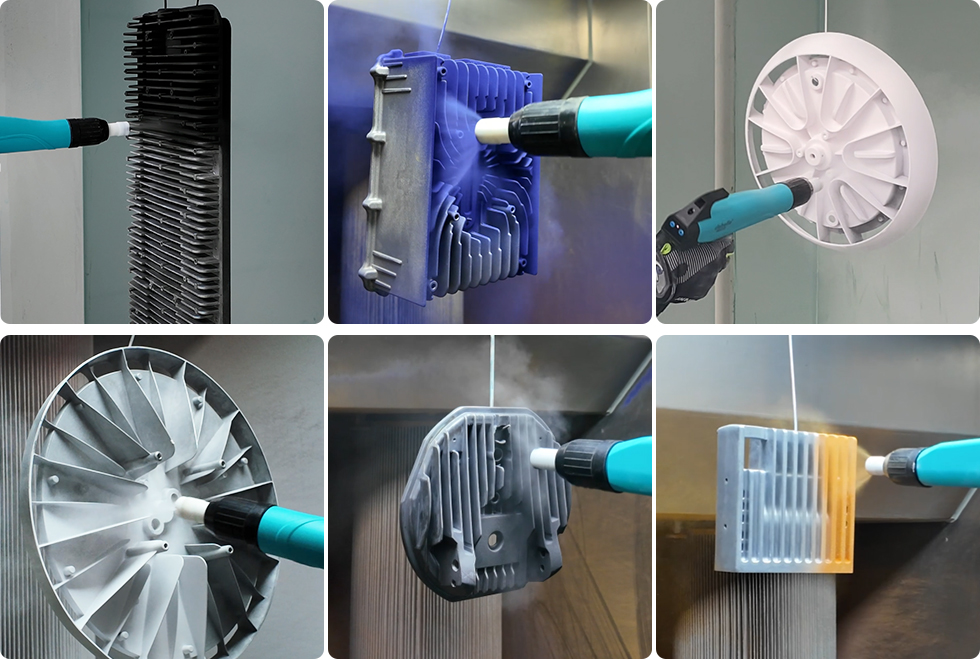

Manual powder spraying on rectangular heat sinks and circular finned components

Product Parameters

     Input voltage:  AC100-240V      Display mode:  LED screen
     Output electrostaticvoltage:   0-100kV      Manual singlegun weight:   385g
     Output electrostaticcurrent:   0-100uA      Working pressure:   6-8kg
     Output electrostaticfrequency:   29kHz      Air consumption:   0.2 m³/min
     Powder output:   750g/min      Operating Temperature:   -20°C-65°C
     Adjustment method:   Numerical Control Adjustment      Rated power:   50W
     Packing Specification:   475*540*1080mm      Controller Specification:   175*175*250mm
     Whole machinespecifications:   420*530*1050mm



Coating kit components including nozzles, injector, tubing and grounding wire

Powder Coating Solutions for Diverse Industries

Debelle powder coating solutions serve industries including coil coating, aluminum profiles, appliances, sheet metal, heavy industry, furniture,  new energy.

Industrial finishing applications in automotive, energy, furniture and household appliances

WIN-WIN COOPERATION·STRATEGIC PARTNERSHIP

Business Partners

FAQ

1. Can the F1 reach narrow gaps between radiator fins?
Yes. CVT electrostatic regulation and 29 kHz charging help improve powder penetration between fins and into recessed profiles.

2. How does it limit powder buildup on radiator faces?
PTC control maintains a steady powder flow, helping balance coverage between exposed faces and deeper sections.

3. Is the F1 suitable for radiator samples and batch production?
Yes. Manual operation supports different radiator shapes, while stored settings simplify setup for repeat batches.
