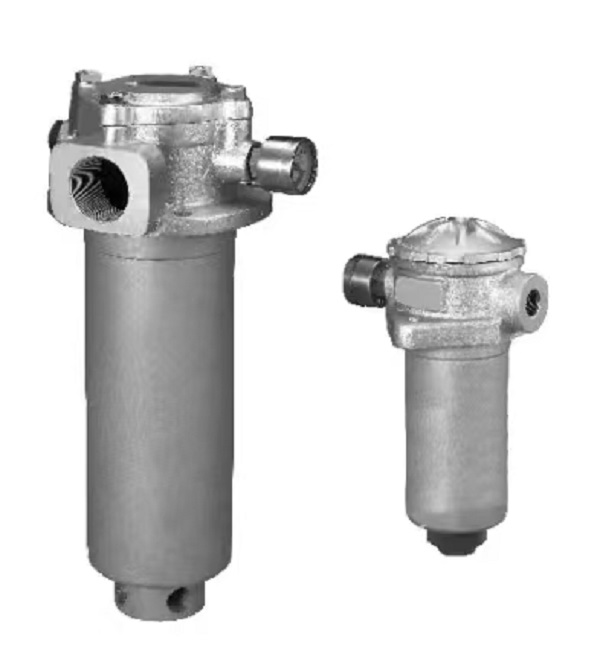

QYL Series Return Filter

Product Overview

QYL Series Return Filter is a high-performance FILTER installed on the top of hydraulic oil tank. It serves for oil purification in the hydraulic system. This FILTER removes solid contaminants in return oil before the oil flows back into the tank. It effectively guards hydraulic components and reduces wear, widely equipped on construction Machine, mining Machine and other industrial hydraulic equipment.

Technical Specifications

- Rated flow: 10 ~ 630 L/min

- Max working pressure: 1.6 MPa

- Filtration accuracy: 3μm, 5μm, 10μm, 20μm, 30μm optional

- Bypass valve opening pressure: 0.35 MPa

- Medium: mineral hydraulic oil, water-glycol

- Working temperature: -10℃ ~ +100℃

- Installation: tank top mounting

Working Principle

Polluted hydraulic oil returns from the circuit and flows through this FILTER. The filter element intercepts solid particles and impurities. When the FILTER is blocked and pressure rises, the built-in bypass valve will open automatically. It ensures the hydraulic system keeps running normally and avoids unexpected shutdown of the Machine.

Core Advantages

1. Efficient filtration, maintains high cleanliness of hydraulic oil in the hydraulic system.

2. Compact tank-mounted structure, simple installation and space-saving.

3. Built-in bypass valve provides overload protection for the Machine.

4. Large dirt holding capacity, low initial pressure drop, long filter service life.

5. Convenient element replacement, easy daily maintenance of the hydraulic system.

Application Range

This FILTER is suitable for many types of Machine, such as construction machinery, agricultural equipment, metallurgical machinery and hydraulic power stations. It protects hydraulic pumps, valves and cylinders inside the hydraulic system and prolongs the service life of the whole hydraulic equipment.
