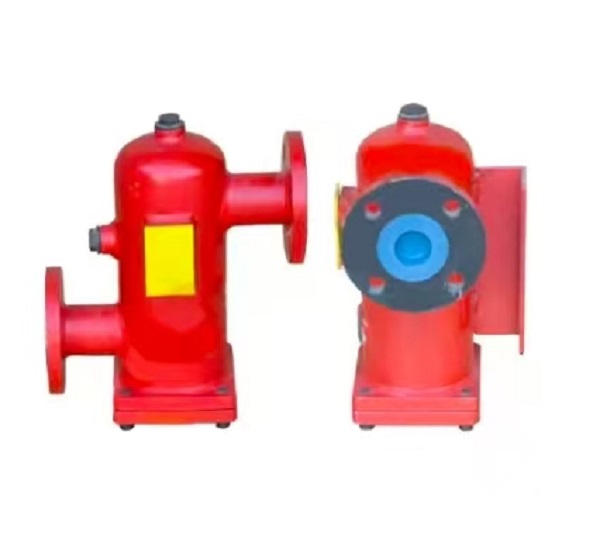

RLF Return Line Filter

Product Overview

RLF Return Line Filter is a high-performance FILTER installed on the top of hydraulic oil tank, specially used to filter return oil in the hydraulic system. This FILTER intercepts solid particles and wear debris in return hydraulic oil before oil flows back into the tank. It protects precision hydraulic components and guarantees stable operation of the Machine. Widely applied to construction Machine, mining equipment, hydraulic power packs and other industrial equipment.

Technical Specifications

- Rated flow: 30 ~ 1300 L/min

- Max working pressure: 1.6 MPa

- Filtration accuracy: 3μm, 5μm, 10μm, 20μm, 30μm optional

- Bypass valve opening pressure: 0.3~0.4 MPa

- Working medium: mineral hydraulic oil, water-glycol emulsion

- Working temperature: -10℃ ~ +100℃

- Installation: tank top mounting

Working Principle

Dirty oil from the hydraulic circuit passes through this FILTER before entering the tank. The filter element captures solid impurities. When the FILTER is blocked and pressure rises, the built-in bypass valve opens automatically to keep the hydraulic system circulating normally and prevent unexpected shutdown of the Machine.

Core Advantages

1. Efficient filtration maintains oil cleanliness and protects the entire hydraulic system.

2. Compact tank-mounted design, simple installation and saves pipeline space.

3. Built-in bypass valve offers safety protection for the Machine when FILTER gets clogged.

4. Large dirt holding capacity, low initial pressure drop, long service life of filter element.

5. Convenient element replacement, easy daily maintenance of hydraulic system.

Application Range

This FILTER is suitable for all kinds of Machine, such as construction machinery, agricultural machines, metallurgical and mining equipment, hydraulic stations. It reduces abrasion of hydraulic pumps, valves and cylinders in the hydraulic system.
