Numerical control slitting automatic lathe
2 year ago
Product details

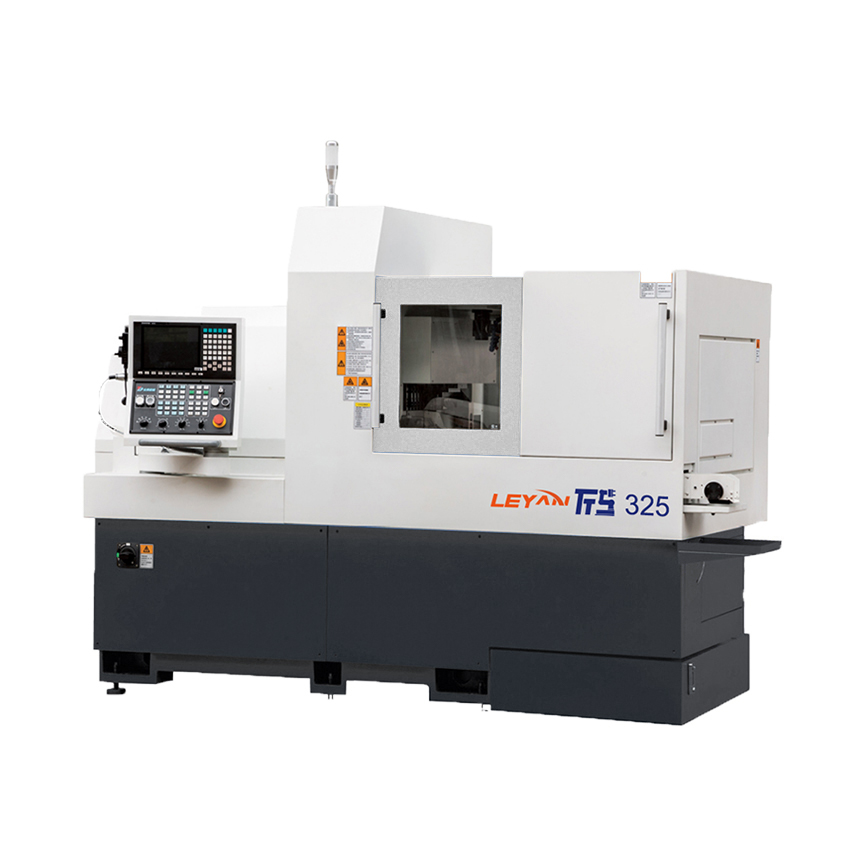

SL325 CNC High-speed Slitting Lathe Machine
Numerical control system Cnc Auto Lathe. Adopt Taiwan new generation system, double channel control, high efficiency, high precision.
. High precision spindle. With built-in motorized spindle structure, the Automatic Turning Machine spindle bearing adopts Japan ultra-high precision angular contact bearing, the first three and the last two combination, to ensure the high rigidity and durable accuracy of the spindle.. High rigidity. The Lathe Machining adopts high rigidity integral forming dense baked cast iron base, after aging treatment, high rigidity.
. High precision feed system. The feed shaft is fully servo driven, and the Japanese high precision lead screw guide rail is adopted to ensure the machining accuracy and long time accuracy.
· Guide sleeve structure. The e machine can choose full-stroke turn-back guide sleeve and no guide sleeve cutting mode to meet the requirements of diverse processing. Tool system. The machine adopts the comb structure, compact structure, smooth chip removal. Can be configured with various forms of power cutting tools. Meet the complex turning, milling, drilling complex processing requirements.
. Automation. Automatic feeding machine can realize automatic continuous processing.
Specification：
| SL325 | SPECIFICATIONS | parameter | UNIT |
| 1 |
Rod hole diameter |
Φ38 | mm |
| 2 | The largest processing bar diameter | Φ32 | mm |
| 3 | Maximum length of machining parts | 320 | mm |
| 4 | Highest spindle speed | 6000 | r/min |
| 5 | The spindle power | 6.3 | kW |
| 6 | Maximum speed of the back shaft | 6000 | r/min |
| 7 | Back shaft power | 4.2 | kW |
| 8 | Dividing of principal axis | C-axis function | Continuous indexing |
| 9 | The biggest End face hole diameter | Φ12 | mm |
| 10 | The biggest End face | M10 | mm |
| 11 | Cylindrical turning tool | 16*16 | mm |
| 12 | 3Cylindrical turning tool | 6 | 6 the |
| 13 | Axial machining tool | 4 (ER16) | / |
| 14 | Minimum resolution | 0.001 | mm |
| 15 | Fast moving speed | X / Y/Z axis:30 | m/min |
| 16 | Cooling motor power | 0.4 | kW |
| 17 | Machine tool overall dimensions (length x width x height) | 2610×1640×1920 | mm |
| 18 | Machine weight | 3750 | kg |
Main parts brand:
| ITEM | BRAND |
| CNC controller | TAIWAN-SYNTEC |
| Servo electro-spindle | TAIWAN |
| Servo motor&driver | TAIWAN-SYNTEC |
| Spindle encoder | TAIWAN-SYNTEC |
| Spindle bearing | JAPAN-NSKP4 class |
| Ball screw bearing | JAPAN-NSK |
| Ball screw | TAIWAN-HIWIN |
| Linear guideway | TAIWAN-HIWIN |
| Lubrication system | JAPAN-HERG |
| Main electricity parts | FRANCE-SCHNEIDER |
| Pneumatic parts | TAWAN-AIRTAC |
| Lock nuts | TAIWAN-YINSH |
| Shaft coupling | GERMANY-KTR |
| Optional configuration: |
| - High pressure coolant system |
| - Oil mist collection system |
| - Angular live tool |
| - Automatic chip conveyor |
| - Automatic bar feeder |
