15752 Round eyelet

Ganland GL-15752 steel round curtain grommets are precision-manufactured, heavy-duty hardware components designed to provide durable, reliable reinforcement for canvas tarps, side curtains, and industrial fabrics. As an essential part of curtain-side trailer systems, these galvanized metal grommets, also known as eyelets or rings, are installed along the edges of the curtain to create secure, tear-resistant openings for tie-down ropes, bungee cords, and tensioning straps. Their robust construction ensures that the curtain remains firmly anchored, preventing wind damage and securing cargo during transit.

The GL-15752 is defined by its heavy-duty, two-piece construction, which consists of a flanged outer ring and a matching inner insert. Crafted from high-strength steel with a bright, corrosion-resistant galvanized finish, these grommets are engineered to withstand the constant pull and friction of tie-down hardware without deforming or rusting. The galvanized coating provides excellent protection against the elements, ensuring long-term performance even when exposed to rain, road salts, and harsh UV radiation. Measuring 30mm in outer diameter, the flange of the grommet sits flat against the fabric, distributing the load over a wider area to prevent the canvas from ripping or stretching around the hole.

The installation and design of these grommets focus on maximum holding power. The inner barrel, or spout, of the grommet is designed to be inserted through a pre-punched hole in the curtain material. Once in place, the two pieces are pressed together using a specialized grommet setting tool, crimping the inner tube over the flange of the outer ring. This creates a permanent, smooth-edged mechanical bond that firmly grips the fabric without cutting or fraying the fibers. The smooth, rolled inner edge of the finished grommet prevents the tie-down ropes from chafing and wearing out prematurely, extending the life of both the curtain and the securing hardware.

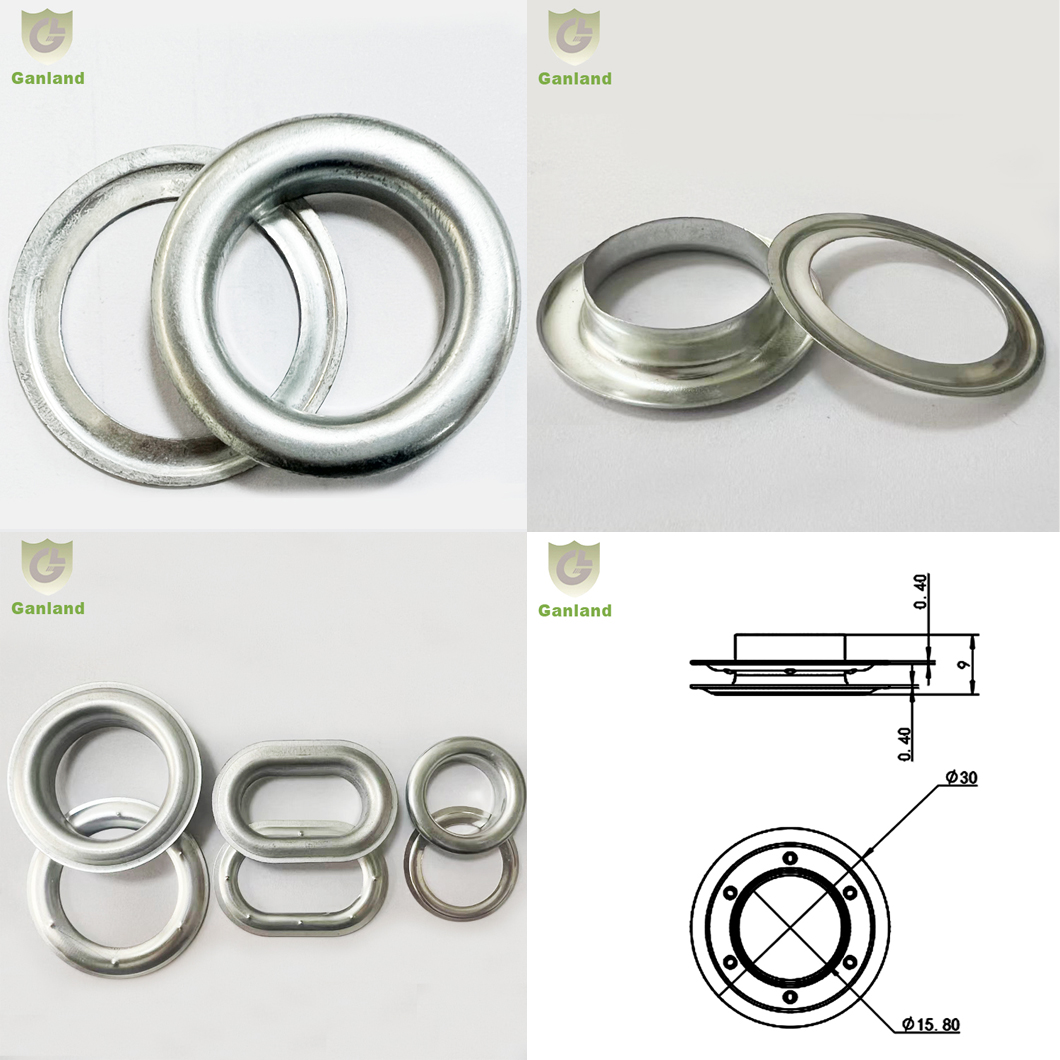

The accompanying technical diagram highlights the precise engineering tolerances of the GL-15752, noting a total outer flange diameter of 30mm and an inner hole diameter of 15.80mm. The cross-sectional view indicates a flange thickness of 0.4mm and a barrel depth of approximately 9mm, designed to accommodate standard tarp materials. The product range also includes variations in shape, such as rectangular or oval grommets, to match specific manufacturer requirements, as well as larger circular sizes for heavier applications.

By providing a secure, reinforced anchor point, the Ganland GL-15752 steel round curtain grommets significantly enhance the operational efficiency and safety of any curtain-side transport vehicle. They allow for quick and reliable tensioning of the side curtains, ensuring a tight, aerodynamic seal that protects goods from the weather and prevents accidental spills. Their combination of robust materials, precise dimensions, and ease of installation makes them an indispensable, high-quality solution for fleet operators and manufacturers seeking durable, long-lasting tarp hardware.
