Product details

Ganland GL-15746 steel round curtain eyelets are precision-manufactured, heavy-duty hardware components designed to provide durable, reliable reinforcement for canvas tarps, side curtains, and industrial fabrics. As an essential part of curtain-side trailer systems, these metal eyelets, also known as grommets or rings, are installed along the edges of the curtain to create secure, tear-resistant openings for tie-down ropes, bungee cords, and tensioning straps. Their robust construction ensures that the curtain remains firmly anchored, preventing wind damage and securing cargo during transit.

The GL-15746 is defined by its heavy-duty, two-piece construction, which consists of a flanged outer ring and a matching inner insert. Crafted from high-strength steel with a bright, corrosion-resistant galvanized finish, these eyelets are engineered to withstand the constant pull and friction of tie-down hardware without deforming or rusting. The galvanized coating provides excellent protection against the elements, ensuring long-term performance even when exposed to rain, road salts, and harsh UV radiation. Measuring approximately 60mm in outer diameter, the flange of the eyelet sits flat against the fabric, distributing the load over a wider area to prevent the canvas from ripping or stretching around the hole.

The installation and design of these eyelets focus on maximum holding power. The inner barrel, or spout, of the eyelet is designed to be inserted through a pre-punched hole in the curtain material. Once in place, the two pieces are pressed together using a specialized eyelet setting tool, crimping the inner tube over the flange of the outer ring. This creates a permanent, smooth-edged mechanical bond that firmly grips the fabric without cutting or fraying the fibers. The smooth, rolled inner edge of the finished eyelet prevents the tie-down ropes from chafing and wearing out prematurely, extending the life of both the curtain and the securing hardware.

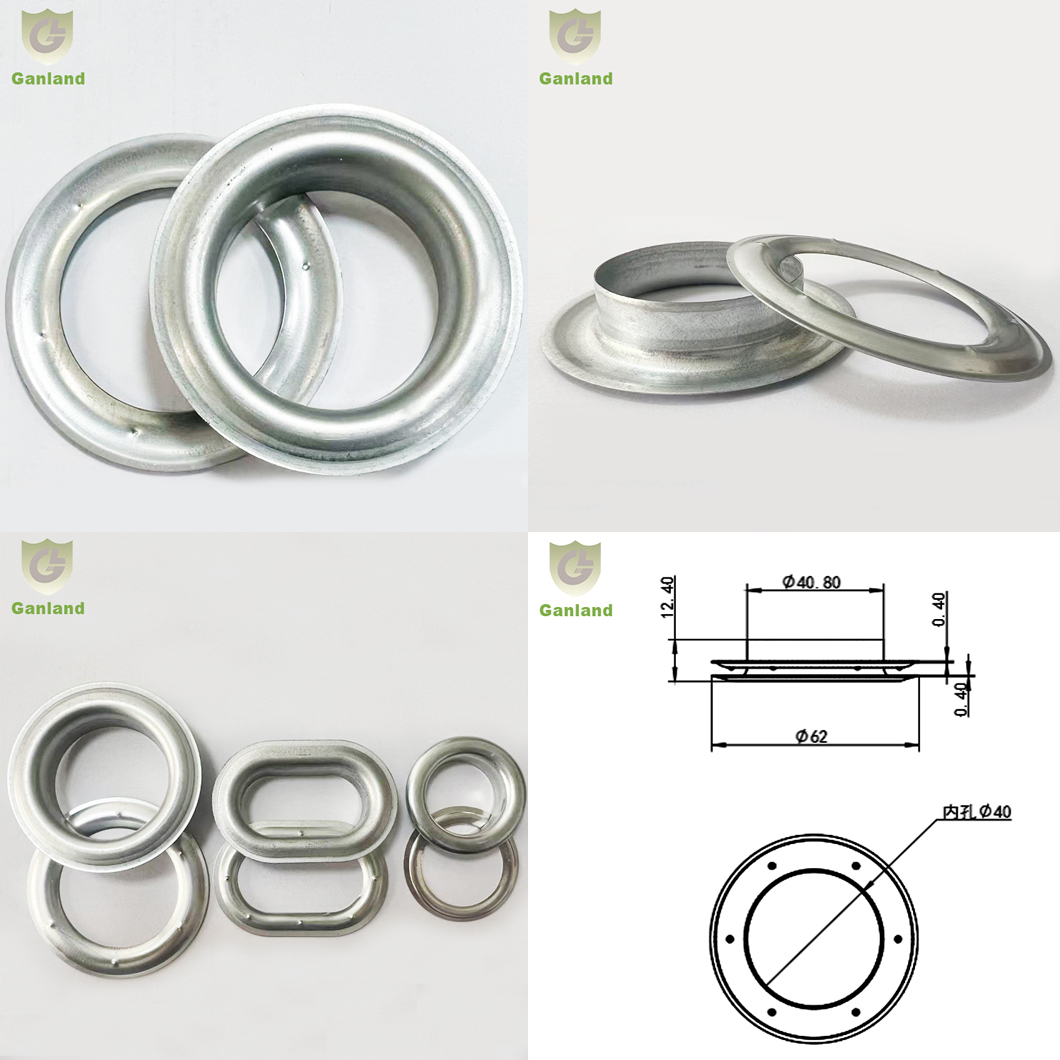

The accompanying technical diagram highlights the precise engineering tolerances of the GL-15746, noting a 62mm outer flange diameter, a 40.8mm inner barrel diameter, and a barrel depth of approximately 12.4mm, designed to accommodate thick, heavy-duty tarp materials. This specific sizing ensures compatibility with standard curtain-side trailer components, making it an ideal replacement part for maintenance and repair. The product range also includes variations in shape, such as rectangular or oval eyelets, to match specific manufacturer requirements, as well as smaller circular sizes for lighter applications.

By providing a secure, reinforced anchor point, the Ganland GL-15746 steel round curtain eyelets significantly enhance the operational efficiency and safety of any curtain-side transport vehicle. They allow for quick and reliable tensioning of the side curtains, ensuring a tight, aerodynamic seal that protects goods from the weather and prevents accidental spills. Their combination of robust materials, precise dimensions, and ease of installation makes them an indispensable, high-quality solution for fleet operators and manufacturers seeking durable, long-lasting tarp hardware.
