liquid glue dispenser Adhesive Dispenser With Digital Dial Setting And Cycle TH-2004KE1
3 year ago

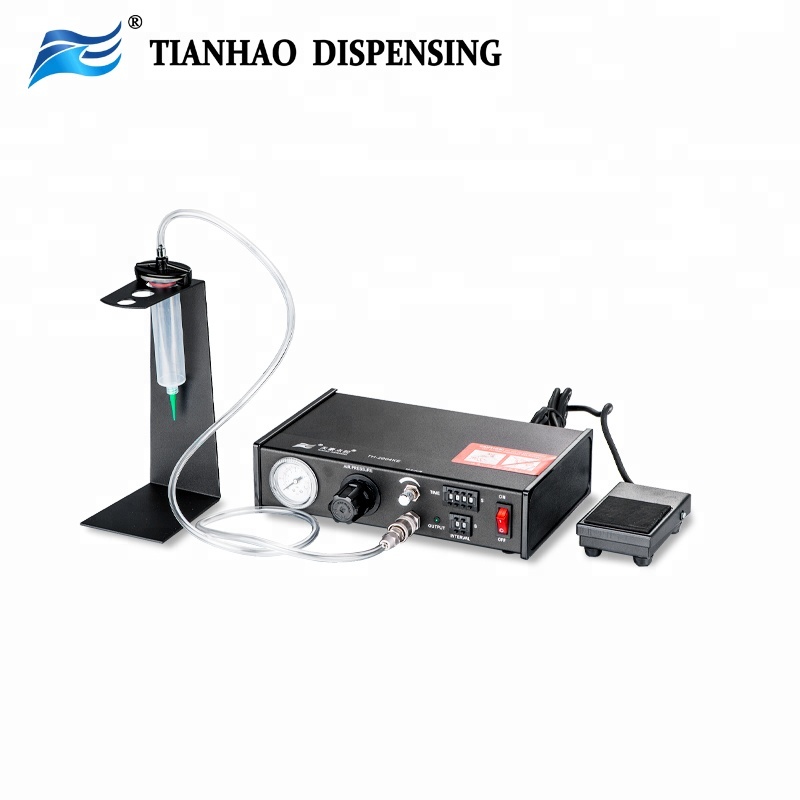

liquid glue dispenser Adhesive Dispenser With Digital Dial Setting And Cycle TH-2004KE
Product introduction
Adhesive dispenser providing precise control when applying adhesive, glue, silicone, RTV, cyanoacrylate, grease, anaerobic and UV cure resins.
Function
Liquid dispenser providing precise control when applying adhesive, glue, silicone, RTV, cyanoacrylate, grease, anaerobic and UV cure resins.
Liquid Materials
adhesives, silicone,grease, and lubricants,cyanoacrylates, RTV, silicone, UV glue, anaerobic adhesive
Features
1.Dispenser designed to suit a wide variety of dispensing applications from microdot deposits and lines, to large potting and filling. Integral.
2.Intelligent dispense software allows the user more control over dispensing applications.
3.With 4 digital timer display,can change the dispensing time.has three operating modes (manual/quantitative/cycle).
4.Suck-back ensures no dripping.
5.Foot pedal or ring switch can controlled.
6.Complete with an accessory dispensing kit.
service Free
Help you seek the glue.
Free offer trial video for your sample.
Free training with machine.
Free offer accessories dispensing kit.
Save cost
One machine instead of three or four staff, reduce the
management cost, also can work for 24 hours.
Help your business
You can bring customers to visit your workshop,the equipment to produce customer
satisfaction products,then take good business for you
Specification
|
ITEM
|
TH-2004KE
|
|
Standard
|
CE Approved
|
|
Control:
|
E-pneumatic
|
|
Operating Model
|
Manual, Timer, cycles
|
|
Time control
|
high pulse analog circuit
|
|
Vacuum function
|
Leak-proof vacuum adjusting organ
|
|
Control way
|
Foot Pedal, Finger Switch
|
|
Dispensing time
|
0.005S-99.999S /0.1-99.99s
|
|
Cycles (interval) time
|
0.1S-9.9S
|
|
Repeatability
|
+/-0.01%
|
|
Frequency
|
600 times/minute
|
|
Input Air pressure
|
1-7 bar (100 psi) maximum (1bar =1.01972kg/cm² =14.5038psi)
|
|
Air output:
|
0.1bar-0.7bar
|
|
Input voltage
|
110/220VAC
|
|
Output voltage
|
24VDC
|
|
Power
|
15W
|
|
Temperature:
|
5°C to 45°C (41°F-113°F)
|
|
Humidity
|
85% RH at 30°C non-condensing
|
|
size
|
24.10x21.00x7.00cm
|
|
Weight
|
3KG
|
Desktop robotic hot glue dispenser dispensing robot
manual dispensing machine for epoxy resin
silicone dispenser dispensing machine system
Robotic Dispensing Machine Glue Dispenser Robot With Vison Systems.
xyz axis dispenser robot for Adhesive,Adhesive Glue,Epoxy Glue For Pcb.
Desktop dispensing robots,glue liquid dispensing machine TH-2004D-300R.
|
Company Name:
|
|
|
ADD:
|
NO.789 Huchong Road cixi city zhejing china
|
|
Factory established time:
|
Augest.8.2001
|
|
Time of exports trades:
|
Jan.1.2006
|
|
Export right:
|
Have oneself right of import and export offer certificate of origin
|
|
Packaging
|
|
|
|
|
|
|
|
|
Packaging Details
|
The normal package is carton(Size: L*W*H). If container is too tigher,we will use pe film for packing or wooden box pack it according to customers special request.
|
