How Does a 2-Pole Battery Connector Work?

A 2-pole battery connector creates a detachable electrical connection between two DC power circuits.

The two contacts inside the housing carry the positive and negative power paths. When two compatible connector housings are joined, the contacts engage and complete the circuit.

The connector can be disconnected when power equipment, batteries or chargers need to be separated for service, replacement or transportation.

What Is a 50A SB50-Style Battery Connector?

A 50A SB50-style battery connector is a two-pole quick-disconnect power connector designed to connect and disconnect high-current DC circuits. It uses two electrical contacts for positive and negative power connections and a genderless housing that allows compatible connector halves to mate without separate male and female housings.

The Autoido AD50H-BL is designed for 50A applications and supports a maximum voltage of 600V AC/DC. It is commonly used with battery packs, electric forklifts, EV equipment, chargers, UPS systems and other DC power equipment.

SB50-Style vs Anderson-Style Connector

SB50-style connectors are commonly used as high-current quick-disconnect battery and power connectors. In product searches, they may also be described as Anderson-style connectors or Anderson-compatible connectors. When selecting a replacement or mating connector, users should verify the connector series, housing dimensions, color/keying, terminal configuration and electrical specifications rather than relying on the name alone.

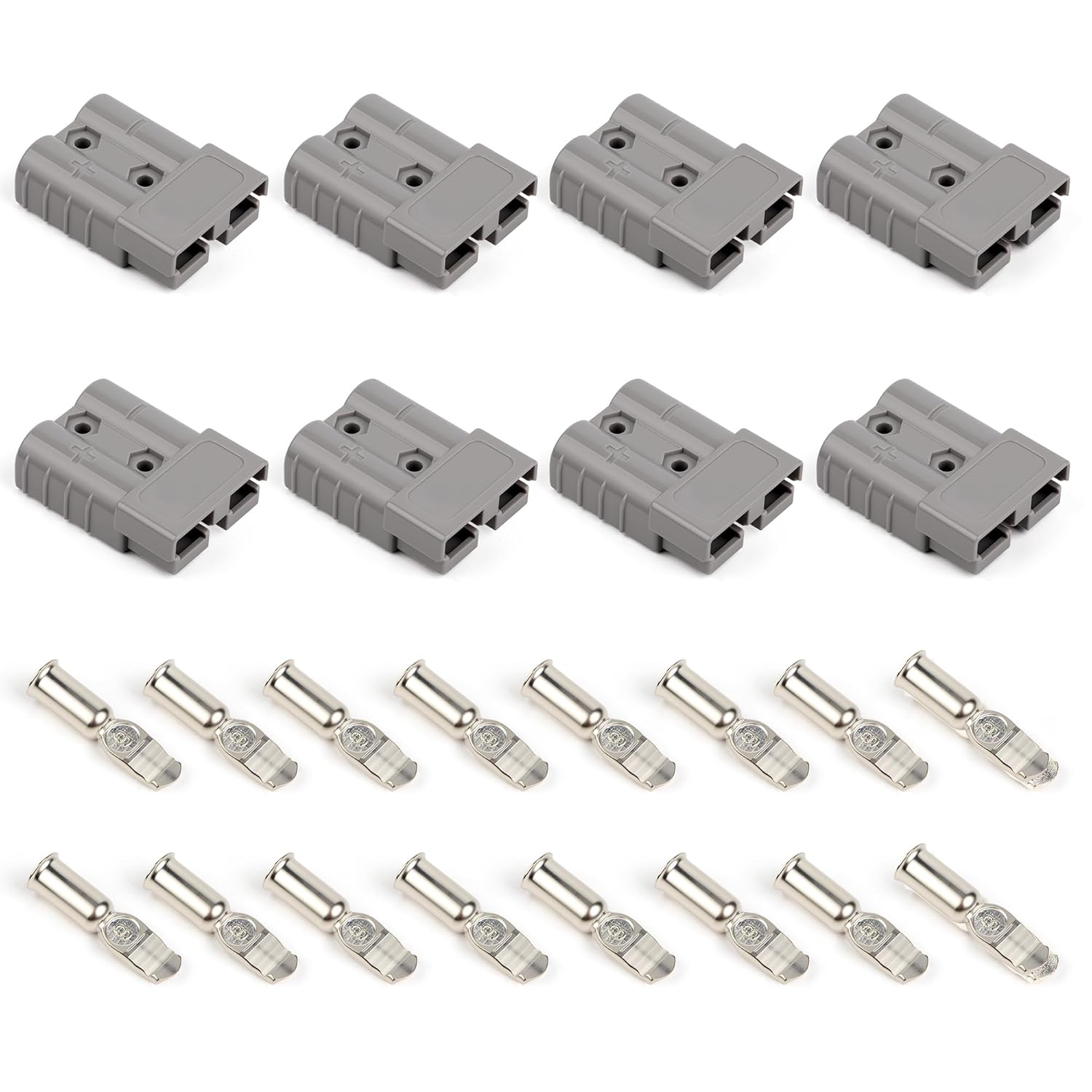

Genderless Connector Design

The AD50H-BL uses a genderless housing design.

Unlike traditional male and female connectors, two compatible housings of the same series and keying configuration can connect directly to each other.

This simplifies battery, charger and equipment connections and reduces the need to manage separate male and female housings.

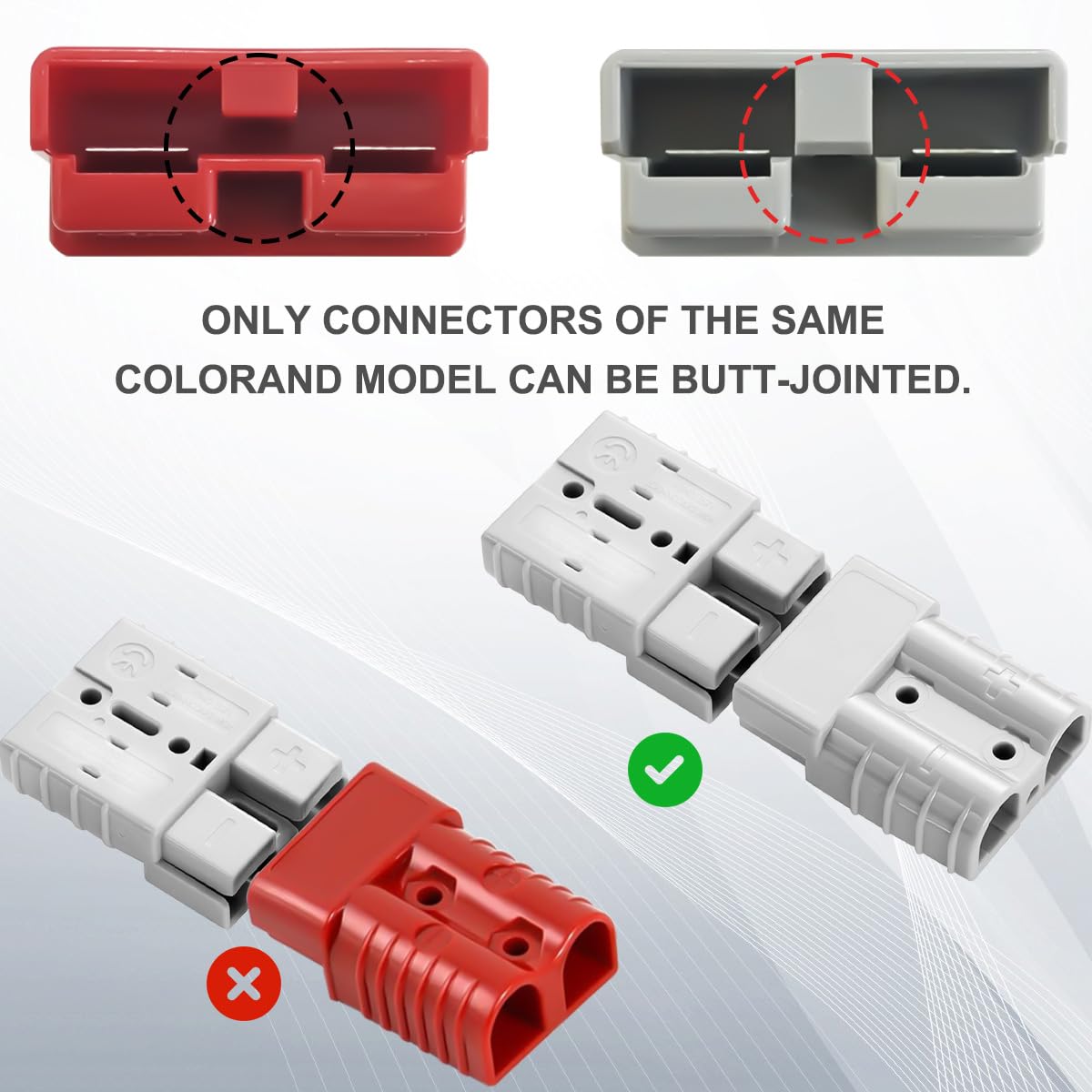

Available Housing Colors and Keying

The connector is available in multiple housing colors, including grey, red, blue, yellow and black according to the product configuration.

Color may also be associated with mechanical keying. Different colors should not automatically be considered interchangeable.

When matching connectors, confirm:

• Connector series

• Housing dimensions

• Color

• Mechanical keying

• Terminal specification

Always use two mechanically compatible housings.

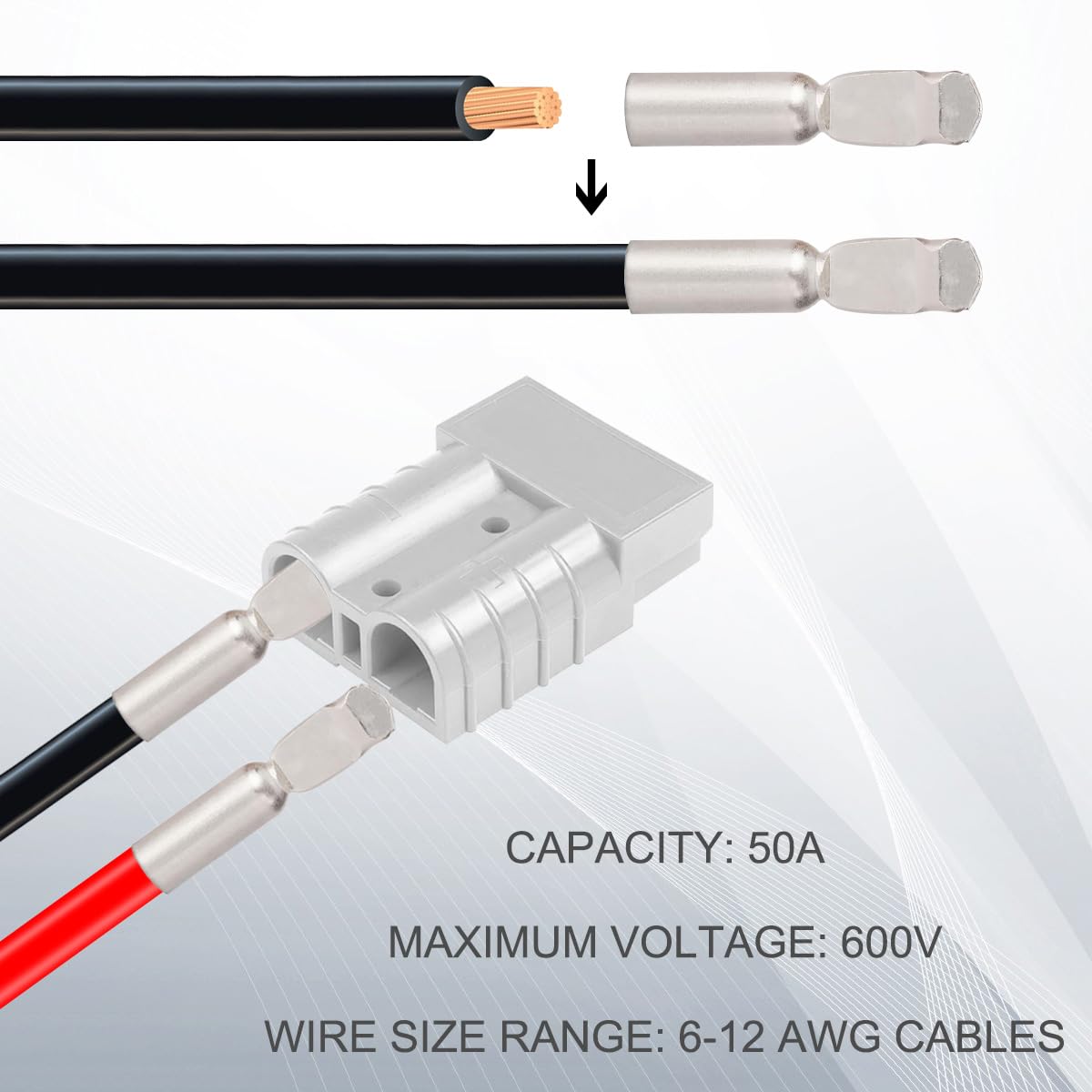

Compatible Wire Size and Terminals

The standard AD50H-BL configuration is suitable for #6/8/10/12  AWG cable.

The correct terminal should be selected according to the cable conductor size and current requirement.

For reliable performance:

• Match the terminal to the cable gauge

• Use the correct crimping tool

• Confirm the conductor is fully inserted

• Check terminal retention after assembly

• Avoid loose or poorly crimped connections

Other cable and terminal configurations may be available for OEM projects.

Typical Applications

The AD50H-BL is suitable for a wide range of battery and DC power applications, including:

• Electric forklifts

• Electric vehicles

• Battery packs

• Battery chargers

• UPS systems

• Communication power supplies

• Material handling equipment

• Industrial DC equipment

• Auxiliary battery systems

• Power distribution equipment

• RV and auxiliary battery systems

Battery Connector for EV and Forklift

Electric vehicles and forklifts require reliable connectors between batteries, chargers and electrical equipment.

The AD50H-BL provides a detachable high-current connection that can be used for battery charging, battery replacement and equipment power supply.

Its genderless design simplifies connection between compatible battery and equipment interfaces.

The connector should always be selected according to the required current, voltage, cable size and operating environment.

Battery Connector for UPS and Power Equipment

The AD50H-BL can also be used in UPS systems, communication power systems and industrial DC equipment.

Typical connections include:

Battery → Connector → UPS

or

Battery Pack → Connector → DC Equipment

The quick-disconnect design makes battery replacement and equipment servicing more convenient while maintaining a secure electrical connection during operation.

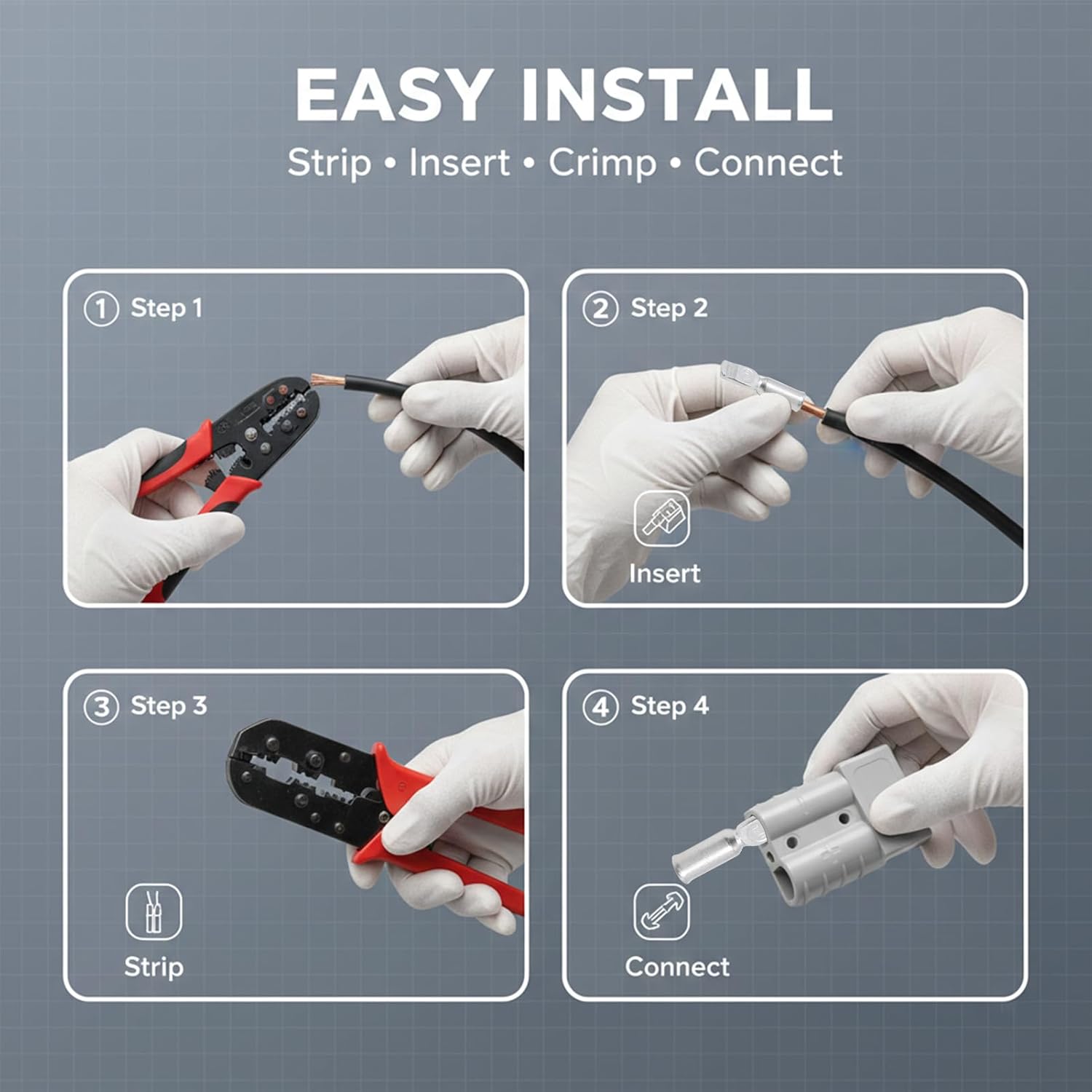

How to Install and Crimp the Connector

A typical installation process is:

1. Select the correct terminal for the cable size.

2. Strip the cable to the required length.

3. Insert the conductor fully into the terminal.

4. Crimp the terminal using the correct crimping tool.

5. Inspect the crimp connection.

6. Insert the terminal into the connector housing.

7. Confirm that the retention spring locks the terminal in place.

8. Repeat for the second conductor.

9. Check polarity before connecting two housings.

10. Test terminal retention and electrical continuity.

Soldering may also be used where appropriate, depending on the terminal and installation requirement.

Always disconnect the power source before installation. Select the correct terminal and cable size for the application, verify polarity before connection, and inspect the crimp and terminal retention before energizing the circuit.

Materials and Construction

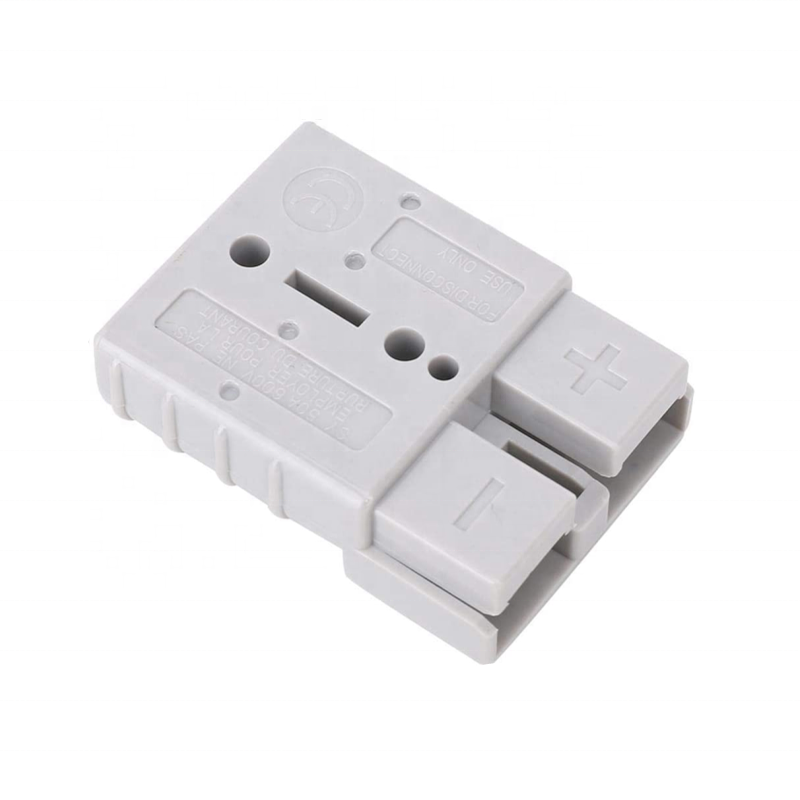

Polycarbonate Housing

The connector uses a polycarbonate housing that provides electrical insulation and mechanical protection for the internal contacts.

Silver-Plated Copper Contacts

Silver-plated copper contacts provide the main conductive path through the connector and support stable electrical connection in high-current applications.

Stainless Steel Retention Spring

The stainless steel retention spring helps secure the contact inside the housing and maintain correct terminal positioning.

Together, these components provide a robust structure for repeated connection and disconnection.

Quality Control

Autoido applies quality inspection during connector production and assembly.

Inspection items can include:

• Housing dimensions

• Housing appearance

• Terminal dimensions

• Surface plating

• Contact retention

• Crimp quality

• Electrical continuity

• Cable assembly

• Connector fit

• Packaging inspection

Customized inspection requirements can also be agreed for OEM projects.

OEM/ODM Cable Assembly and Customization

Autoido supports OEM and ODM services for battery connectors and cable assemblies.

Customization options can include:

• Cable gauge

• Cable length

• Cable color

• Terminal type

• Ring terminal connection

• Connector housing color

• Cable assembly

• Customer logo

• Private-label packaging

• Barcode and product labels

• Bulk or retail packaging

Customers can provide drawings, samples or technical requirements for evaluation.

Why Choose Autoido

Autoido supplies automotive electrical and circuit protection products for OEM, aftermarket and industrial customers.

Our capabilities include:

• More than 20 years of production and development experience

• In-house R&D support

• Product testing capability

• Connector and cable assembly

• Terminal and wire customization

• OEM/ODM production

• Mold development

• Private-label packaging

• Bulk manufacturing

• Technical support for B2B customers

Autoido can supply connectors together with cables, terminals and related automotive electrical components according to project requirements.

Frequently Asked Questions

What is a 50A battery connector?

A 50A battery connector is a detachable electrical connector designed to carry high-current DC power between batteries, chargers and electrical equipment.

Is the AD50H-BL male or female?

The AD50H-BL uses a genderless design. It does not require separate male and female housings.

Two compatible housings of the same series and keying configuration can connect directly.

What does genderless connector mean?

A genderless connector uses the same housing design on both sides of the connection.

This simplifies battery and charger systems because separate male and female connector housings are not required.

What cable size is compatible with the AD50H-BL?

The standard configuration is suitable for #6/8/10/12 AWG cable.

Other cable and terminal options may be available according to project requirements.

What is the voltage rating?

The AD50H-BL is rated for a maximum voltage of 600V AC/DC according to the product specification.

What are the connector contacts made from?

The contacts are made from silver-plated copper.

Can the connector be used for electric forklifts?

Yes. The AD50H-BL is suitable for electric forklift battery, charging and power connections when the electrical specifications match the application.

Can it be used for UPS systems?

Yes. The connector can be used between battery systems and UPS or other DC power equipment when the current, voltage and cable requirements are suitable.

Are different connector colors interchangeable?

Not necessarily.

Housing color can be associated with mechanical keying, so compatibility should be confirmed by series, color, dimensions and keying profile.

Can the terminals be crimped?

Yes. Crimping is a common installation method for the AD50H-BL terminals.

The correct crimp tool and terminal size should be used for the selected cable.

What is the operating temperature?

The specified operating temperature range is -20°C to 105°C.

Does Autoido provide custom cable assemblies?

Yes. Autoido can provide customized cable length, cable gauge, terminal configuration and complete connector cable assemblies.

Does Autoido provide OEM packaging?

Yes. Autoido supports OEM and private-label packaging, including customized labels, bulk packaging and retail packaging.
