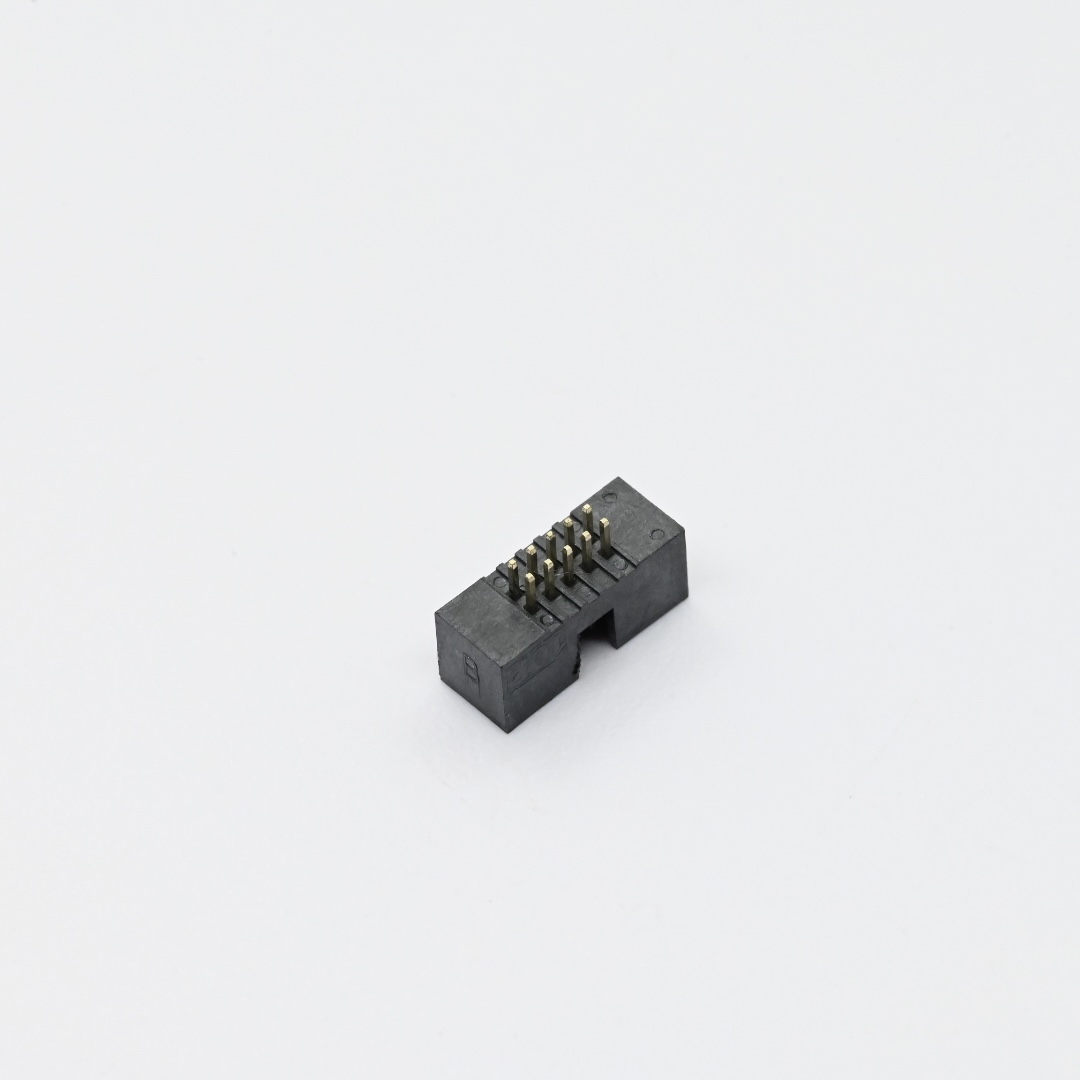

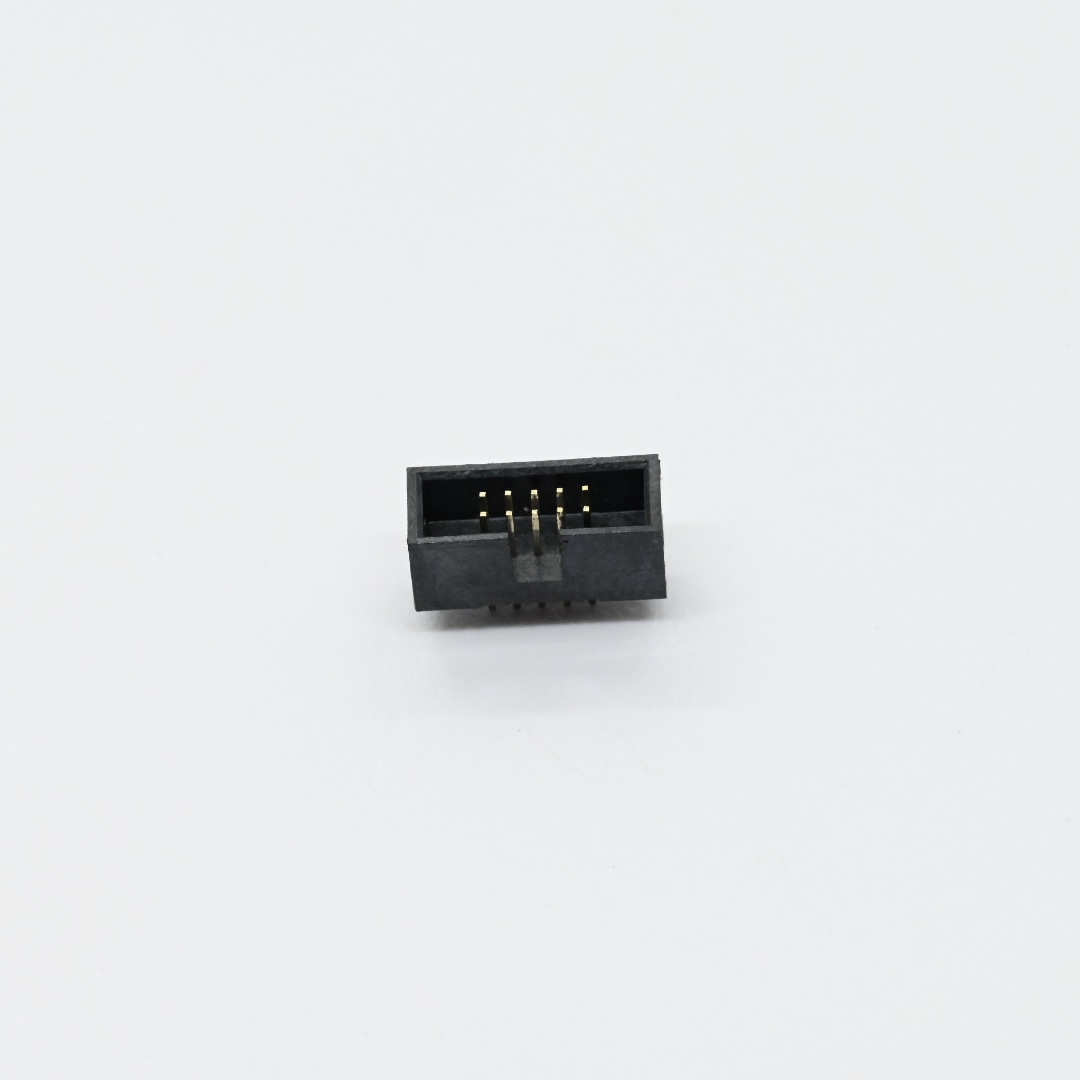

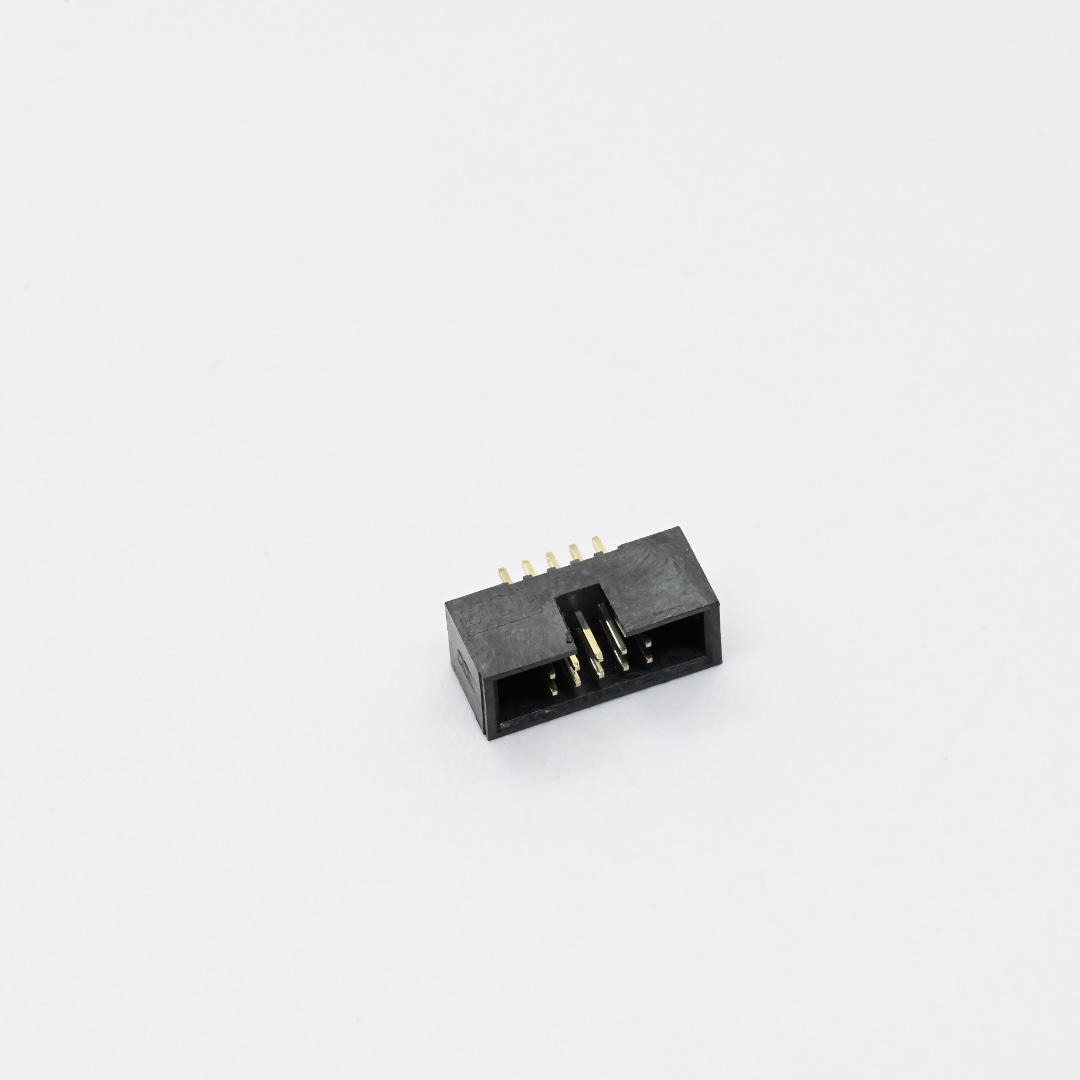

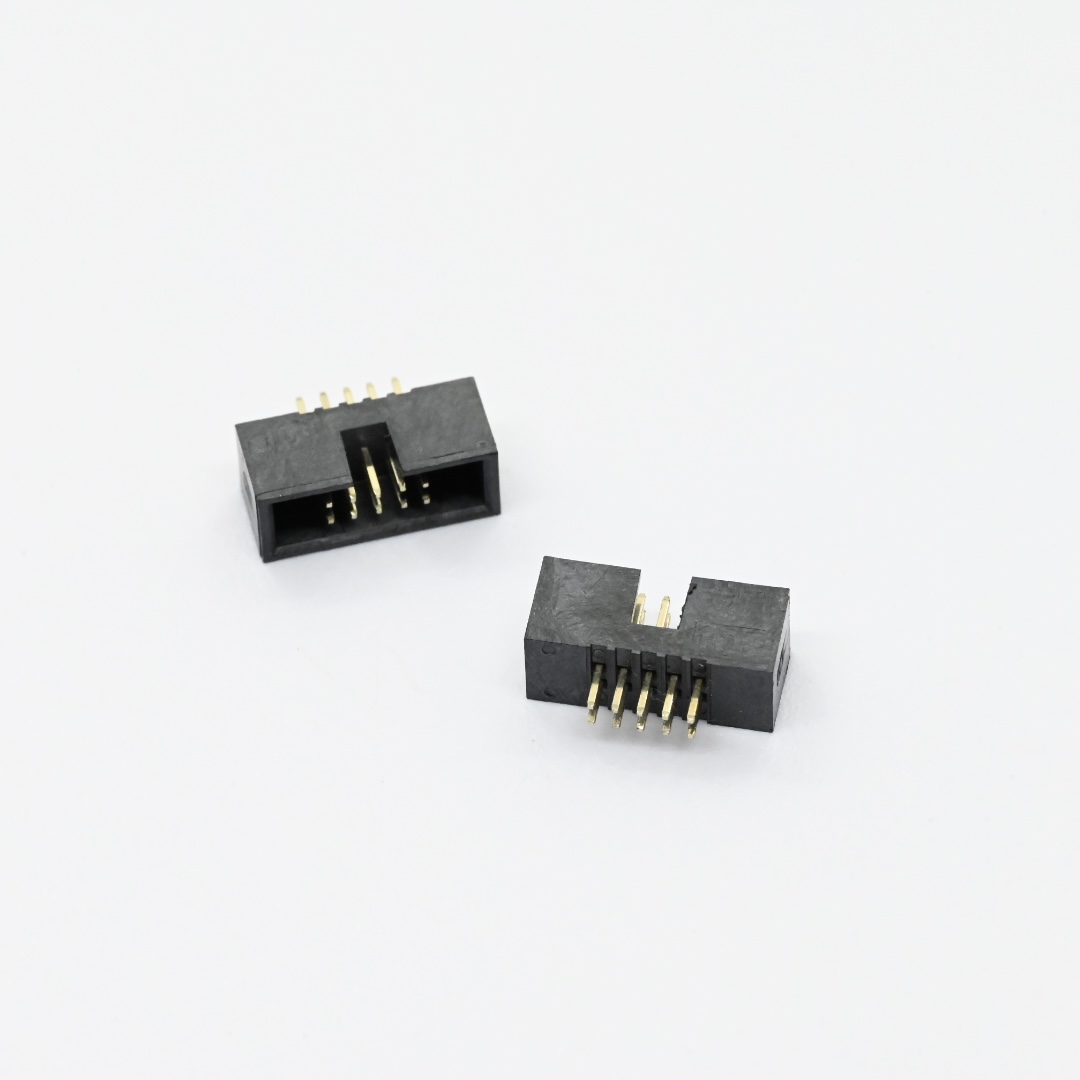

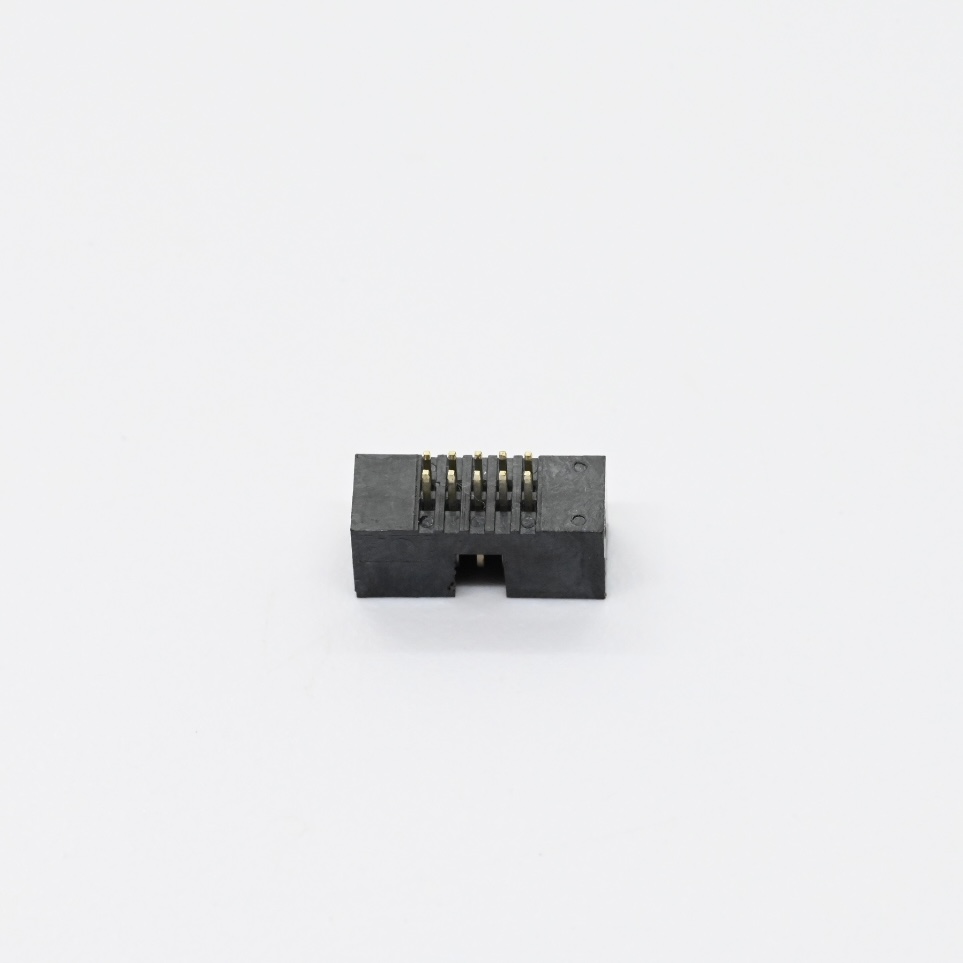

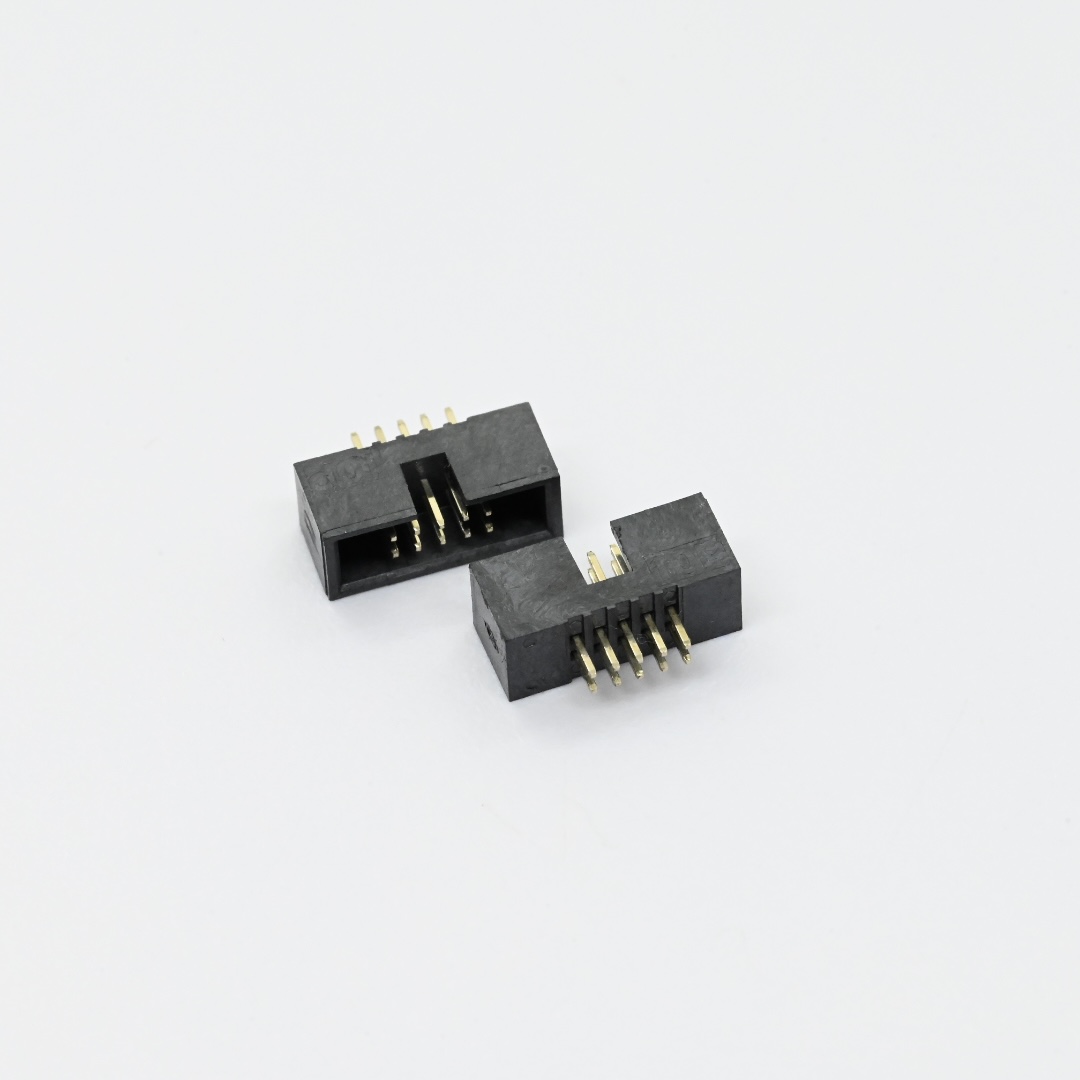

180 Degree 1.27mm Box Header
3 week ago
Product details
Product Description:
Huizhou Antenk Electronics Co., Ltd. manufactures 180 degree 1.27 millimeter box header with 5.4 millimeter insulator height to deliver dependable board to board signal and power interconnection for compact electronic hardware. This shrouded male header uses UL94 V zero flame retardant insulator material with optional PA6T LCP or PA9T plastic grades, brass contact pins, supports one amp rated current, contact resistance below twenty milliohm and insulation resistance above one thousand megaohm, dielectric withstand voltage reaches five hundred volt alternating current direct current, operating temperature ranges from minus forty degree to plus one hundred five degree, contact positions are customizable from ten up to one hundred positions. Multiple contact plating selections and insulator color choices are provided, packing options include tray bag tube and tape and reel. Users insert pins into printed circuit board holes then finish soldering process for stable electrical performance. Operators must prevent pin deformation and plastic housing damage during handling and store goods under dry conditions to avoid terminal oxidation. Unlike competitors purchasing outside components Antenk completes full in house workflow including brass stamping plastic molding assembly and comprehensive laboratory performance testing. Our factory holds ISO9001 ISO14001 IATF16949 and UL certifications and more than seventy percent finished goods are exported globally. Please send your pole count plating packing and project requirements for free sample evaluation and full technical document support.
1. High Density PCB Header saves valuable board space while realizing stable multi channel signal transmission on compact printed circuit boards.
2. Multi Color Box Connector supports various insulator color selections to help engineers distinguish different circuit groups during product assembly.
3. High Temp Shrouded Header retains stable mechanical and electrical performance when exposed to high temperature soldering and working environments.
Detailed Specifications:
1. Mechanical Specifications
1.1 Product type: 180 degree shrouded box header with insulator height 5.4 mm
1.2 Measurement unit: millimeter
1.3 Key dimension: Pitch 1.27 mm, square pin size 0.40SQ. Contact positions range from 10P to 100P, partial standard poles are available. Complete PCB layout reference is provided within technical drawing.
1.4 Assembly method: Through hole mounting for soldering onto printed circuit board
1.5 Ordering feature: Multiple insulator material options, various insulator color selections including black blue white. Rich contact plating alternatives and diverse packing styles such as tray bag tube tape and reel are optional.
1.6 CTA: Contact our engineering team to get complete dimension drawings and ordering specification for your hardware design validation.
2. Material Construction
2.1 Insulator: Optional PA6T plus 30 percent glass fiber LCP or PA9T, UL94 V‑0 flame retardant grade
2.2 Contact pin: Brass material, pins adopt gold or tin plating over nickel base layer
3. Electrical & Performance Parameters
3.1 Rated current: 1 Amp
3.2 Contact resistance: Max 20 milliohm
3.3 Insulation resistance: Minimum 1000 megaohm
3.4 Dielectric Withstanding Voltage: 500V AC DC
3.5 Operating temperature range: ‑40℃ to +105℃
4. Usage Method
4.1 Assembly mode: Insert brass pins into pre drilled holes of printed circuit board and complete soldering operation
4.2 Operation tip: Select proper pole count insulator material plating finish color and packing form according to actual project requirements.
5. Application Scenarios
5.1 Board to board power and signal interconnection for compact electronic devices
5.2 Internal circuit connection for industrial control modules
5.3 Signal transmission for digital consumer electronic products
5.4 Circuit assembly for precision instrument hardware
6. Operation & Storage Precautions
6.1 Follow drawing dimension tolerance and PCB layout data in structural design phase
6.2 Avoid pin bending and plastic insulator damage during handling and installation
6.3 Keep plated contact area away from dirt and scratch before soldering
6.4 Store products in dry environment to prevent brass pin oxidation
6.5 Confirm pole number insulator material color plating and packing requirement before placing purchase order
6.6 CTA: Submit your custom pole count material color plating and project information, we provide free sample evaluation and professional technical consultation services.
FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

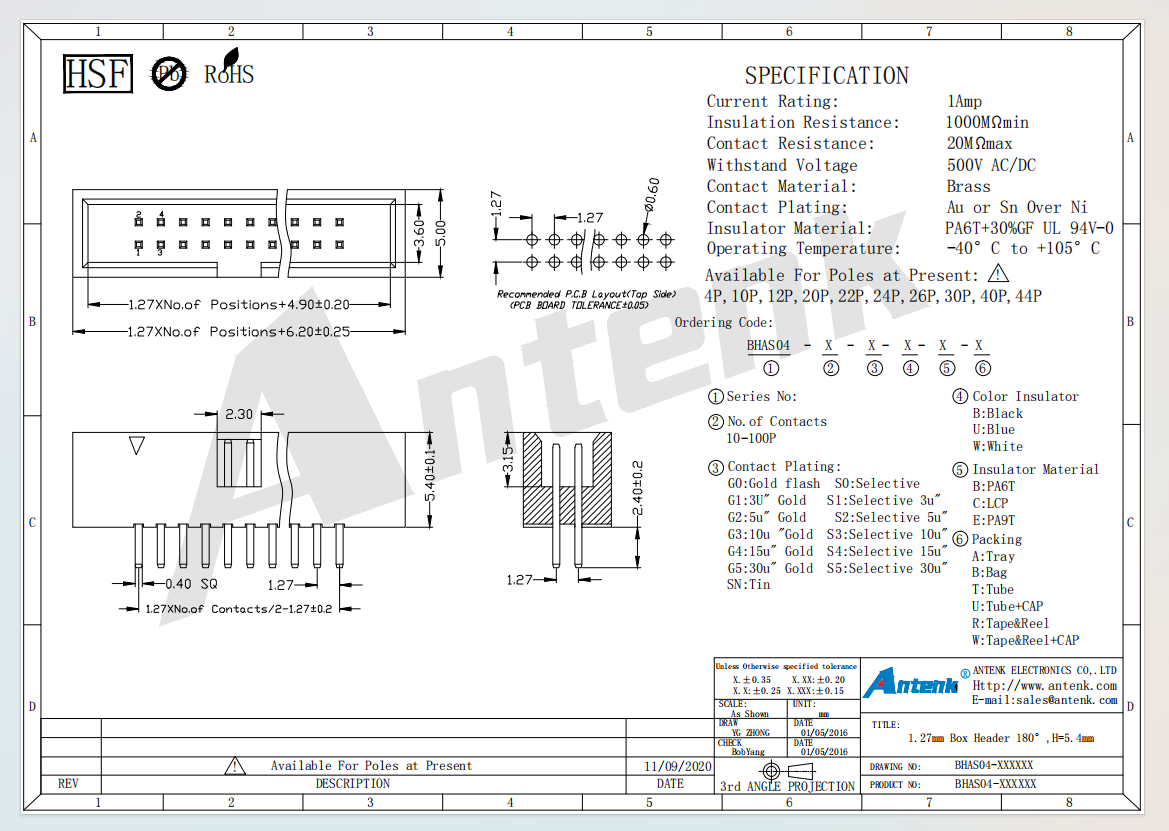

Peoduct Drawing:
