Product details

Hot-dip Galvanized Fire Protection Ladder Style Cable Tray

The MARSHINE Hot-Dip Galvanized Fire Protection Ladder Style Cable Tray is a robust cable management solution designed for supporting and routing power cables, control cables, and other electrical wiring in industrial and infrastructure installations. Its ladder-style construction consists of two longitudinal side rails connected by transverse rungs, creating a strong and open cable-supporting structure. The open ladder configuration provides excellent airflow around installed cables, helping dissipate heat and making the cable system easier to inspect, install, and maintain. The large open spaces also allow cables to be laid, secured, and accessed conveniently during installation and maintenance.

This MARSHINE Ladder Style Cable Tray features a hot-dip galvanized surface, providing enhanced protection against corrosion compared with untreated steel and making it suitable for demanding indoor and outdoor environments. Hot-dip galvanizing after fabrication is a commonly specified finish for steel cable tray systems. With its combination of a rigid ladder structure, corrosion-resistant galvanized finish, and open ventilation design, the MARSHINE cable tray provides a practical cable support solution for power distribution, industrial facilities, commercial buildings, utility infrastructure, and other electrical installations.

Product Feature

Ladder-Style Construction

Two longitudinal side rails and multiple transverse rungs form a rigid structure for supporting and organizing cables.

Hot-Dip Galvanized Surface

The galvanized coating provides enhanced corrosion protection and improves suitability for humid, outdoor, and industrial environments.

Excellent Cable Ventilation

The open-rung structure promotes airflow around cables, helping dissipate heat generated during cable operation.

Strong Cable Support

The ladder configuration provides continuous support along the cable route while maintaining an open structure.

Convenient Cable Installation

The open design of our MARSHINE Hot-dip Galvanized Cable Tray allows installers to place, secure, inspect, and maintain cables more easily than enclosed cable management systems.

Fire-Protection-Oriented Design

The open metallic construction and hot-dip galvanized steel structure provide a durable cable-support framework for installations where fire and environmental resistance are important design considerations. Specific fire-resistance performance depends on the complete tray system and project requirements.

Corrosion Resistance

Hot-dip galvanizing helps protect the underlying steel against environmental corrosion, extending service life in suitable operating conditions.

Versatile System Configuration

Straight sections can be combined with appropriate bends, tees, reducers, splice plates, supports, and other accessories to create complete cable routing systems.

Suitable for Heavy-Duty Applications

The rigid ladder structure is suitable for supporting power and control cables in demanding electrical and industrial installations.

Easy Inspection and Maintenance

The open structure provides clear access to cables, making inspection, identification, replacement, and maintenance more convenient.

Product Application

The MARSHINE Ladder Type Cable Tray is designed for organized cable routing and support in power distribution, electrical construction, industrial facilities, utility projects, and infrastructure installations. It is particularly suitable for applications where cables need to be supported over relatively long horizontal or vertical routes while maintaining good ventilation and convenient access for installation and maintenance.

Technical Parameters

Type	Ladder Style Cable Tray
Material	Hot-dip galvanized alloy steel
Thickness	0.4 mm to 3 mm
Width	50 mm to 1000 mm
Size	200100/300200/400100/500100/300150/ 200150/500*150

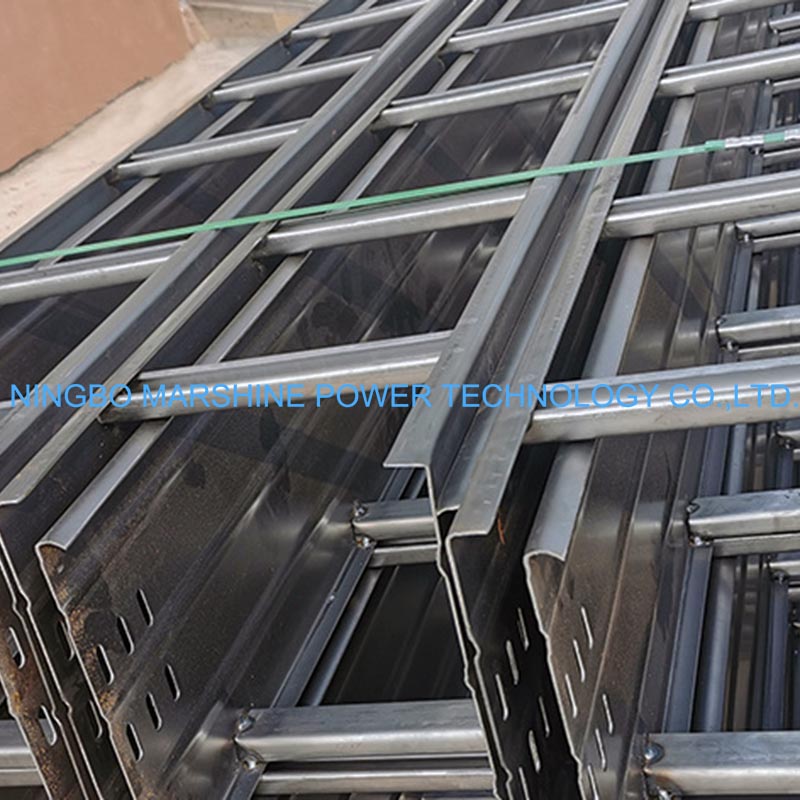

PRODUCT DISPLAY
