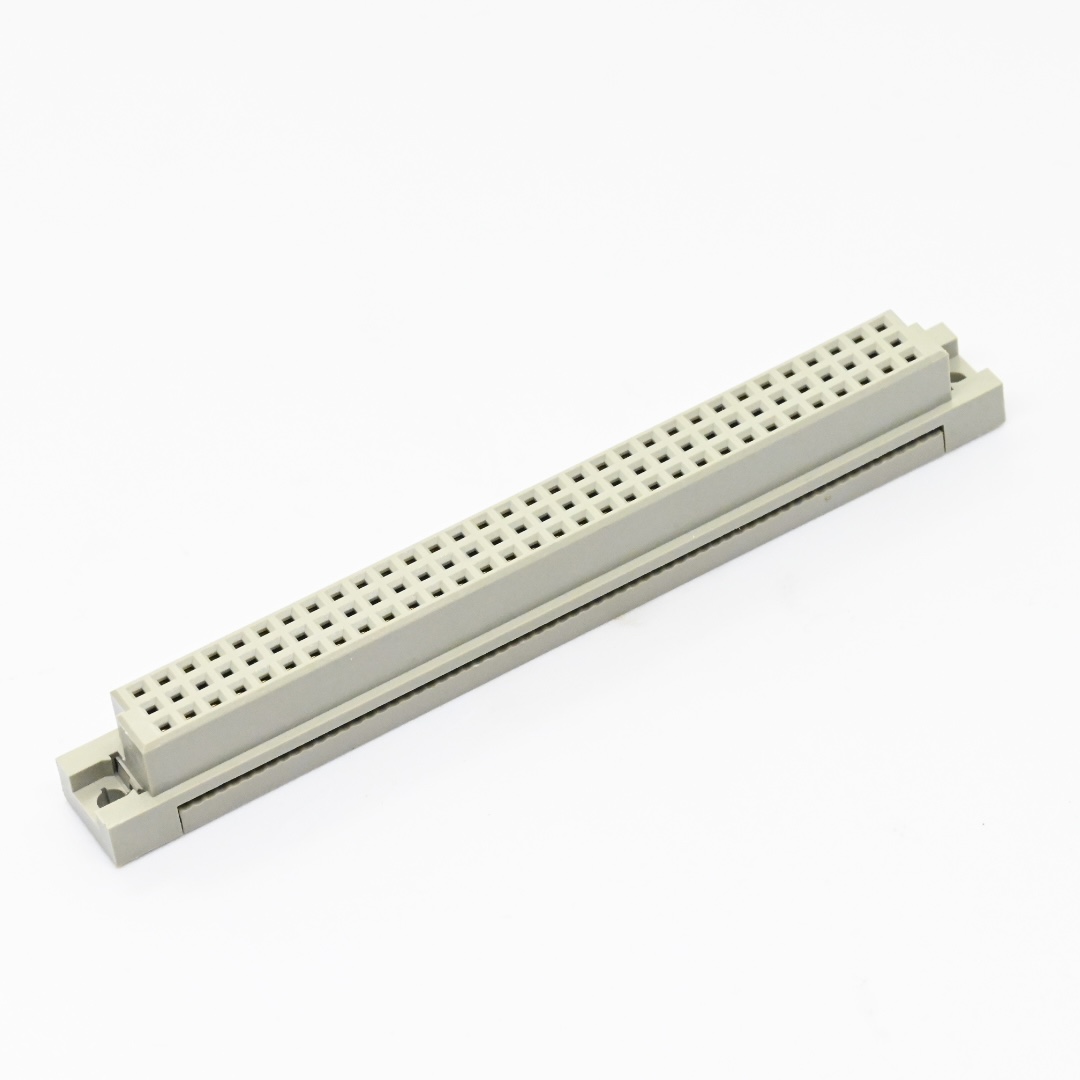

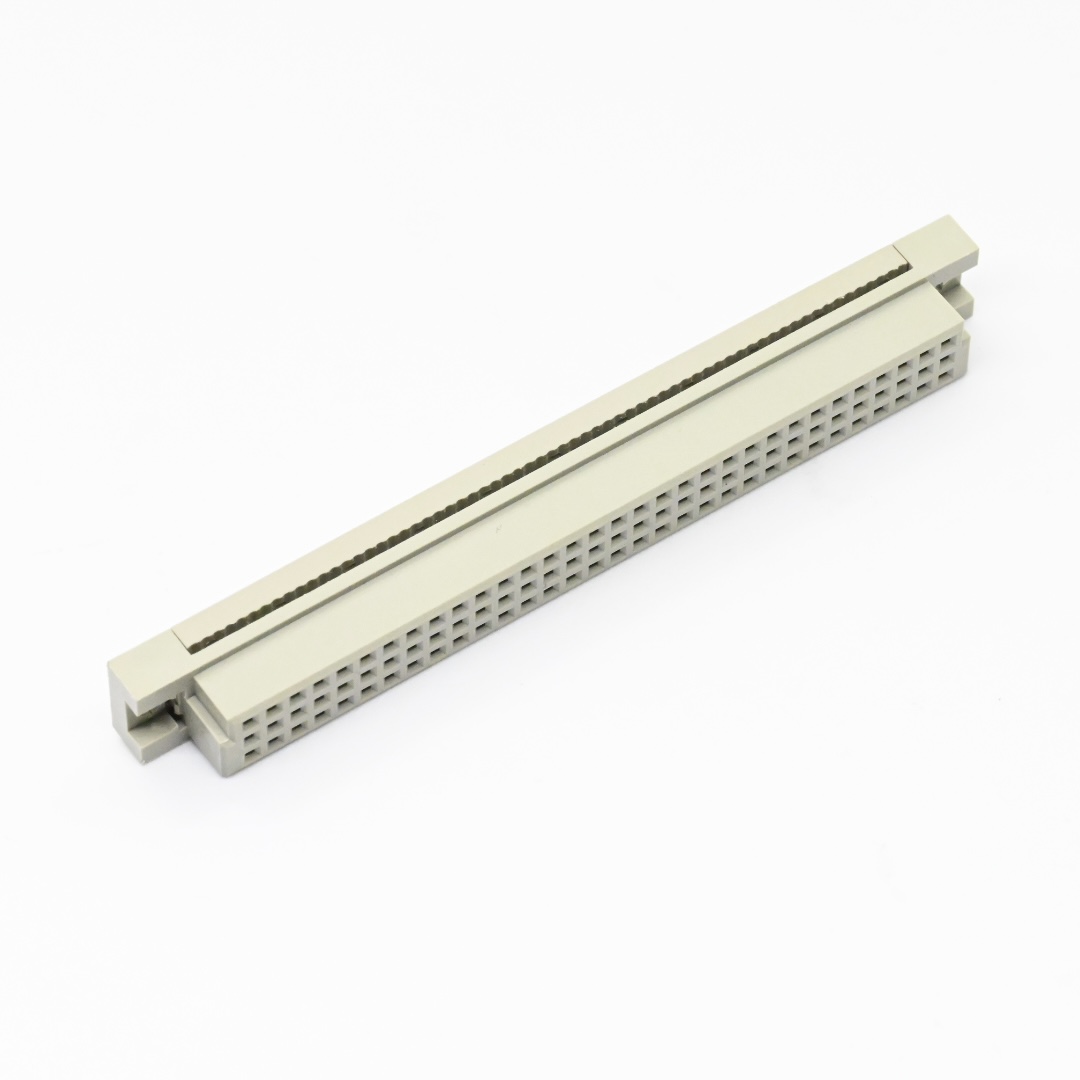

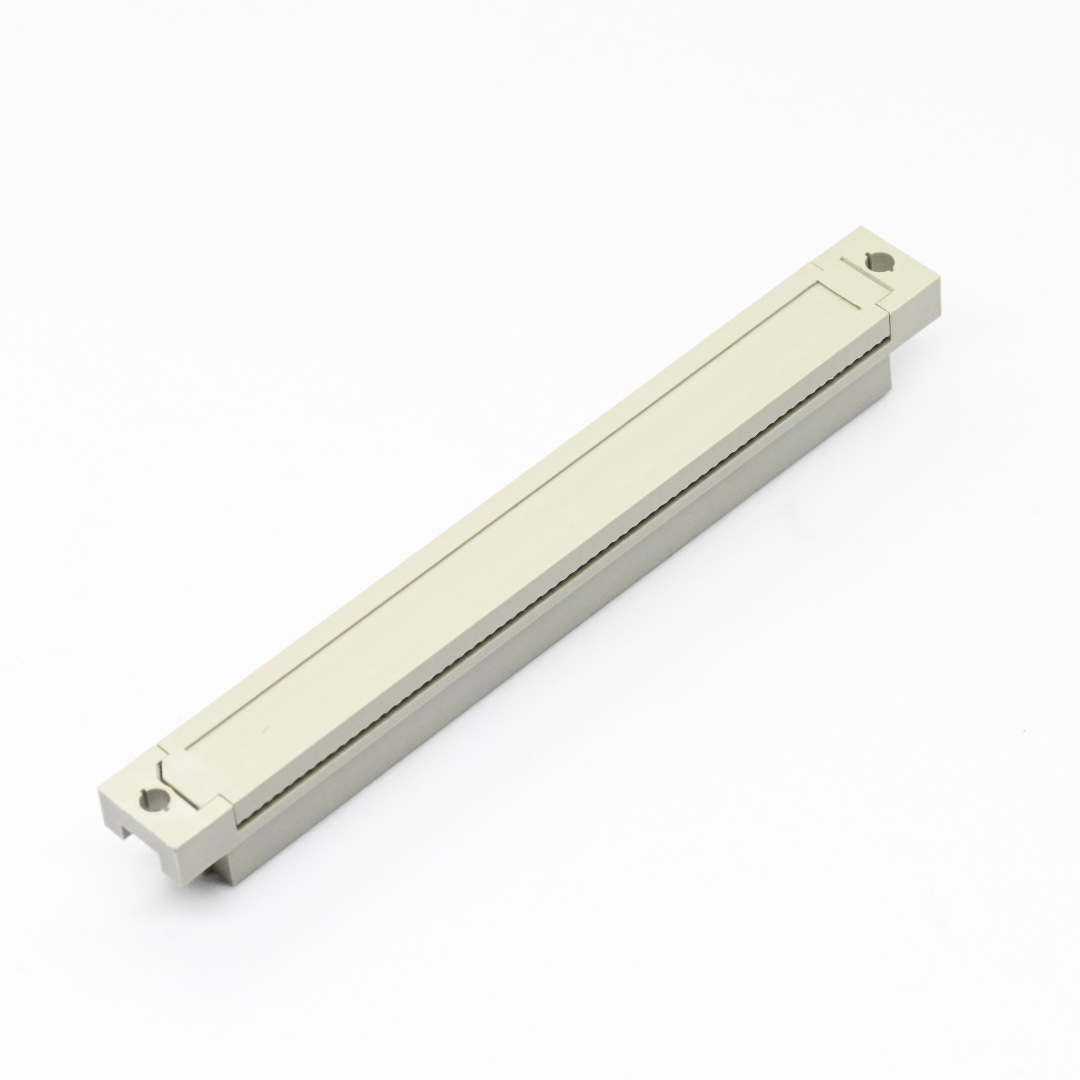

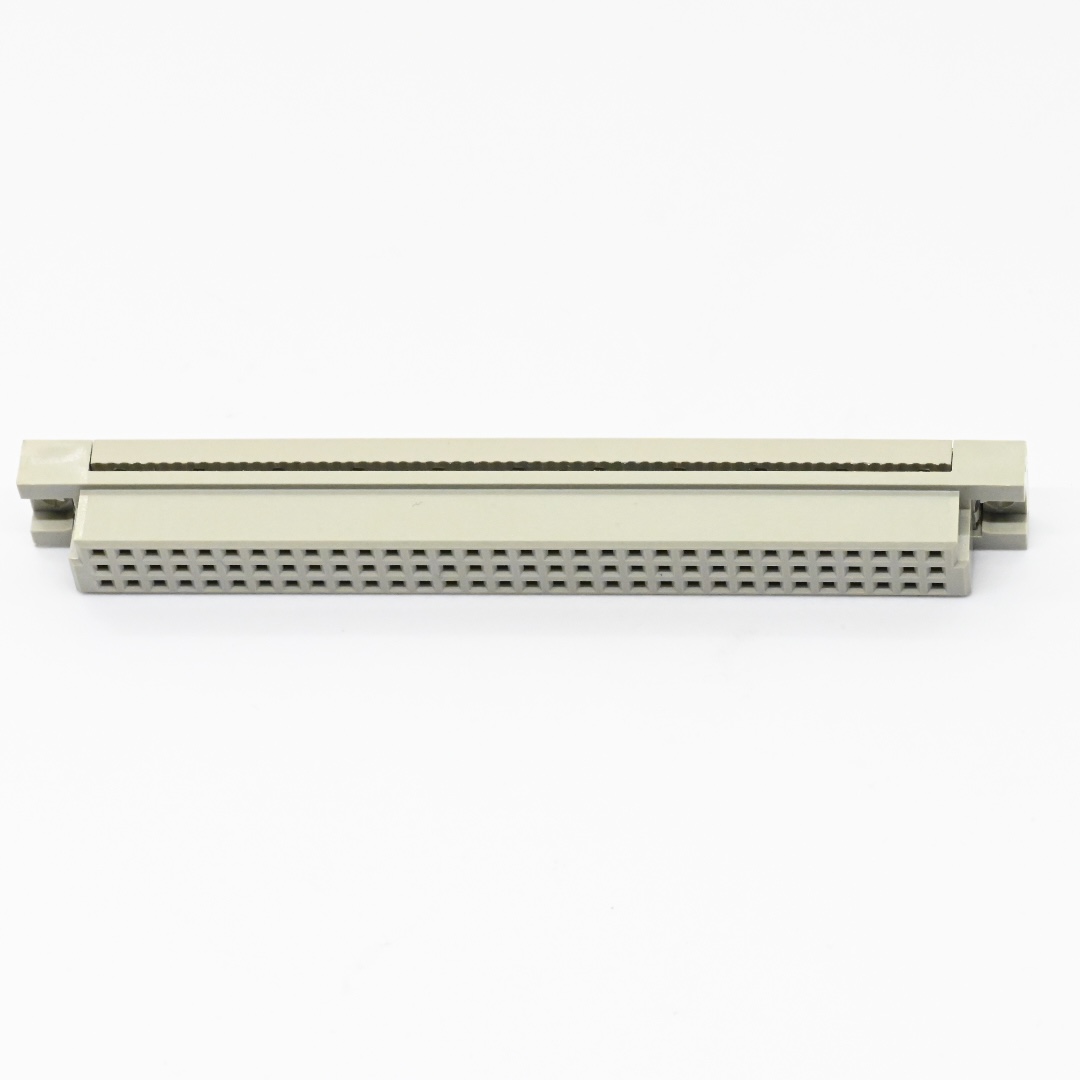

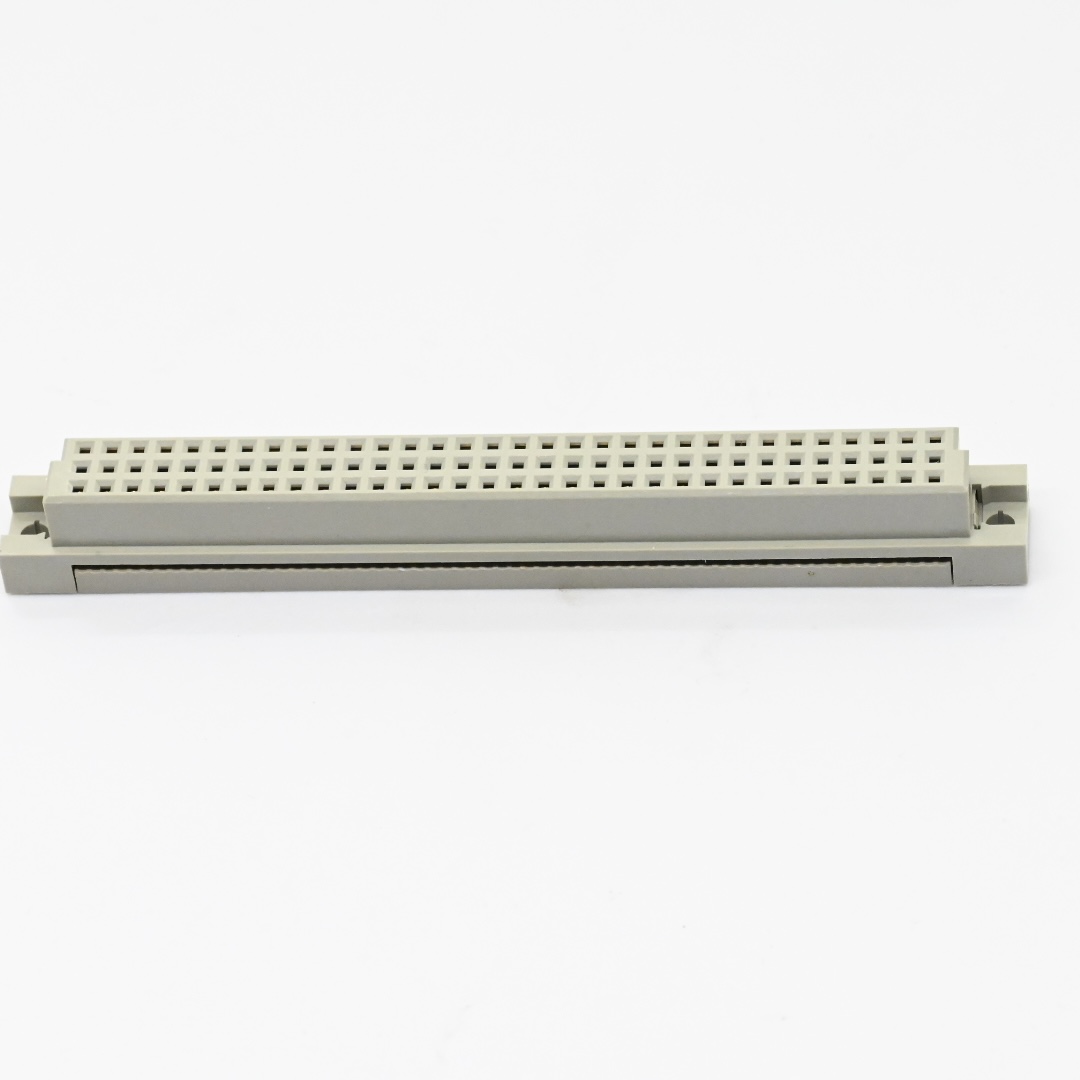

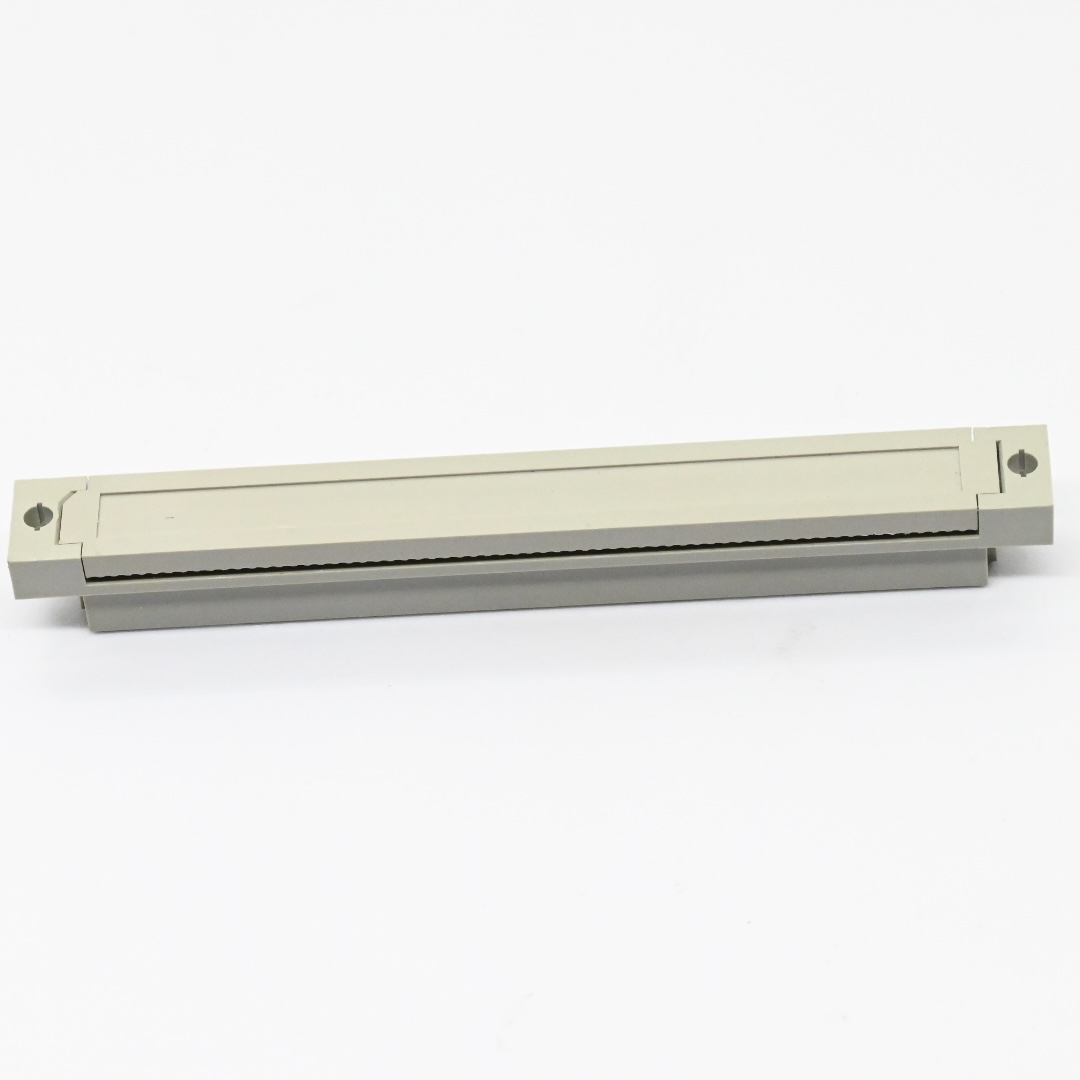

Three Row Vertical IDC Connector
3 week ago
Product details
1、Product Description：
Huizhou Antenk Electronics Co., Ltd. manufactures three row vertical female IDC connector with sixty four positions following DIN41612 standard to deliver stable signal transmission between circuit boards for industrial electronic hardware. This connector insulator adopts PBT material filled with thirty percent glass fiber and meets UL94 V zero flame retardant grade, brass contacts support gold or tin over nickel plating option, each contact carries three amp current rating, insulation resistance reaches minimum one thousand megaohm and contact resistance keeps maximum thirty milliohm with one minute one thousand volt AC withstand voltage, operating temperature ranges from minus fifty five degree Celsius to one hundred five degree Celsius. Users complete cable termination through IDC crimping operation then mate this female connector with matching male header to realize board to board signal interconnection. Operators shall avoid excessive mating force to prevent contact deformation and store products in dry environment to protect contact plating from corrosion. Unlike competitors purchasing outsourced components Antenk implements full in house workflow including brass stamping plastic molding assembly and comprehensive laboratory performance testing. Our factory holds ISO9001 ISO14001 IATF16949 and UL certifications and more than seventy percent finished goods export worldwide. Please share your contact plating option and project requirements for free sample evaluation and full technical document support.
Gold Plated IDC Connector delivers stable signal transmission and excellent anti corrosion performance for long term industrial application scenarios.
Three Row Female Connector provides sixty four contact points to support high density board to board interconnection within limited device space.
High Temperature IDC Socket works reliably under wide temperature range to adapt harsh working conditions of various industrial electronic equipment.
2、Detailed Specifications of DIN41612 3Row 64 Position Vertical Female IDC Connector
1. Mechanical Specifications
1.1 Product type: DIN41612 standard three row vertical female IDC connector, 64 positions
1.2 Measurement unit: millimeter
1.3 Key dimension: Pitch 2.54 mm. Overall dimension tolerances follow drawing requirements for PCB layout reference.
1.4 Assembly method: Complete cable termination by IDC crimping, then mate with compatible male connector to achieve board to board connection
1.5 Ordering feature: Contact plating options include gold over nickel or tin over nickel
1.6 CTA: Contact our engineering team to get complete dimension drawings and ordering guide for your hardware design validation.
2. Material Construction
2.1 Insulator: PBT with 30 percent glass fiber filler, UL94 V‑0 flame retardant grade
2.2 Contact terminal: Brass base material
2.3 Contact finish: Gold over nickel or tin over nickel plating
3. Electrical & Performance Parameters
3.1 Rated current: 3.0 Amp per contact
3.2 Insulation resistance: Minimum 1000 Megaohm
3.3 Contact resistance: Maximum 30 Milliohm
3.4 Withstand voltage: 1 minute AC 1000 Volt
3.5 Operating temperature range: ‑55℃ to +105℃
3.6 Compliance: Meets RoHS environmental requirements
4. Usage Method
4.1 Assembly mode: Perform IDC crimping to terminate flat cable onto connector contacts, align and insert the female connector with matching male counterpart to finish stable board to board signal interconnection.
4.2 Operation tip: Choose suitable contact plating according to actual working environment and service life demand.
5. Application Scenarios
5.1 Board to board signal interconnection for industrial control equipment
5.2 Internal connection of test and measurement instruments
5.3 Signal transmission for communication electronic modules
5.4 Backplane connection for industrial automation systems
6. Operation & Storage Precautions
6.1 Adhere to drawing dimension tolerances during PCB footprint design
6.2 Avoid excessive mating force to prevent brass contact deformation and damage
6.3 Prevent scratches, dirt and mechanical impact on contacts and insulator before assembly
6.4 Store products in dry environment to avoid plating layer oxidation
6.5 Confirm contact plating option and product specifications before placing purchase order
6.6 CTA: Submit your plating selection and project information, we provide free sample evaluation and professional technical consultation services.
3、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

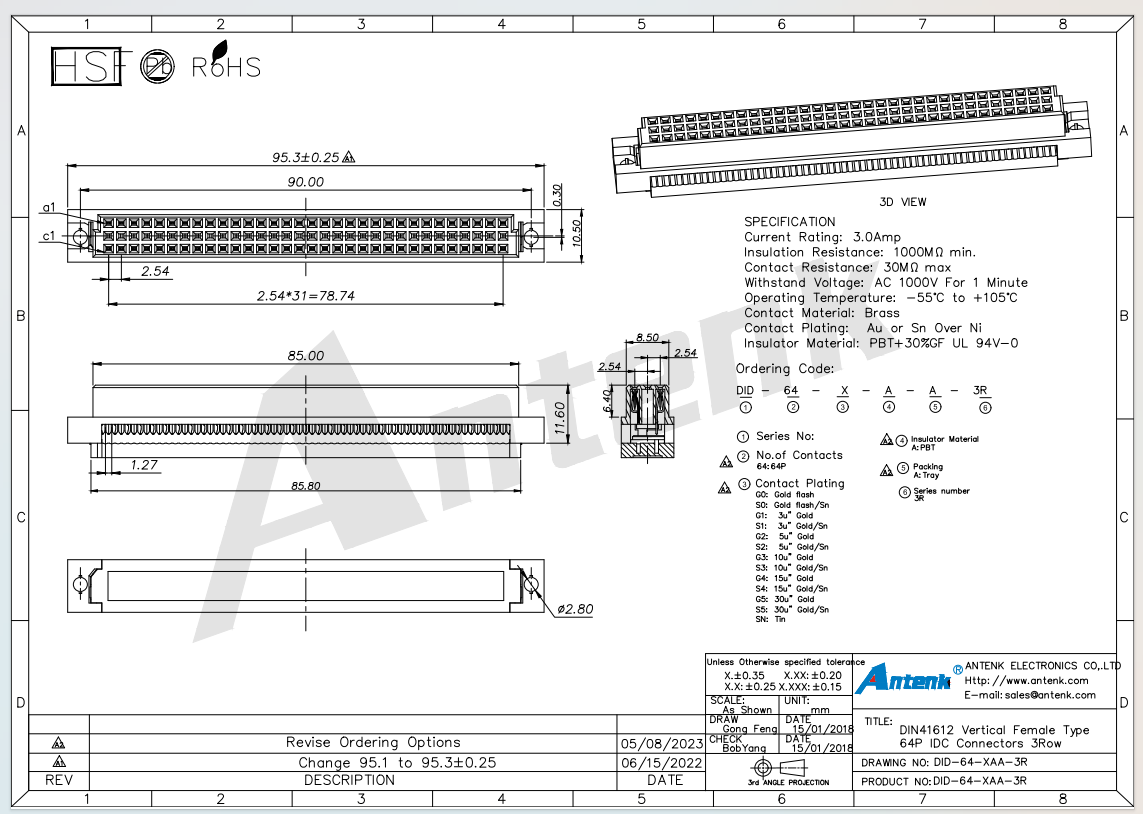

4、Product Drawing：
