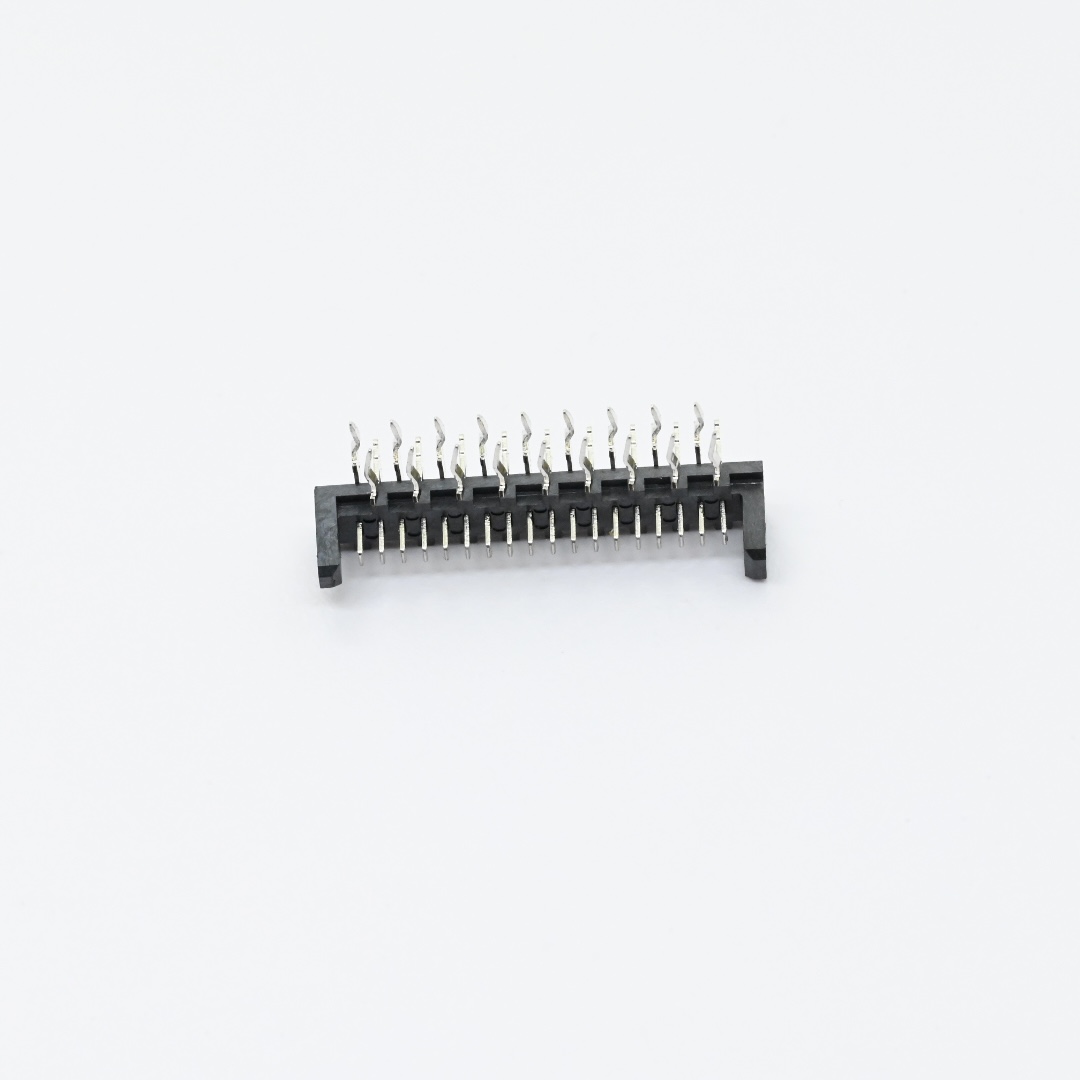

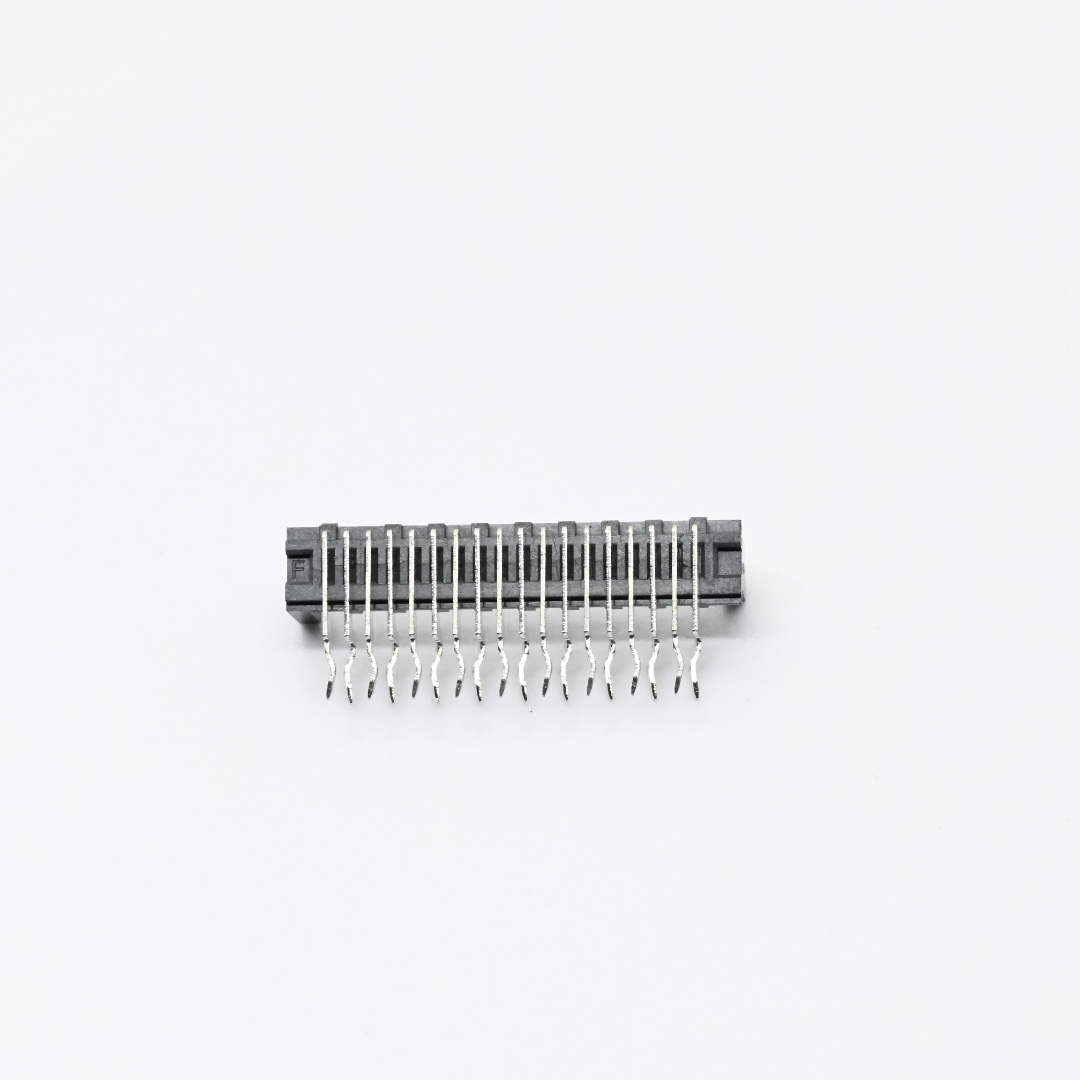

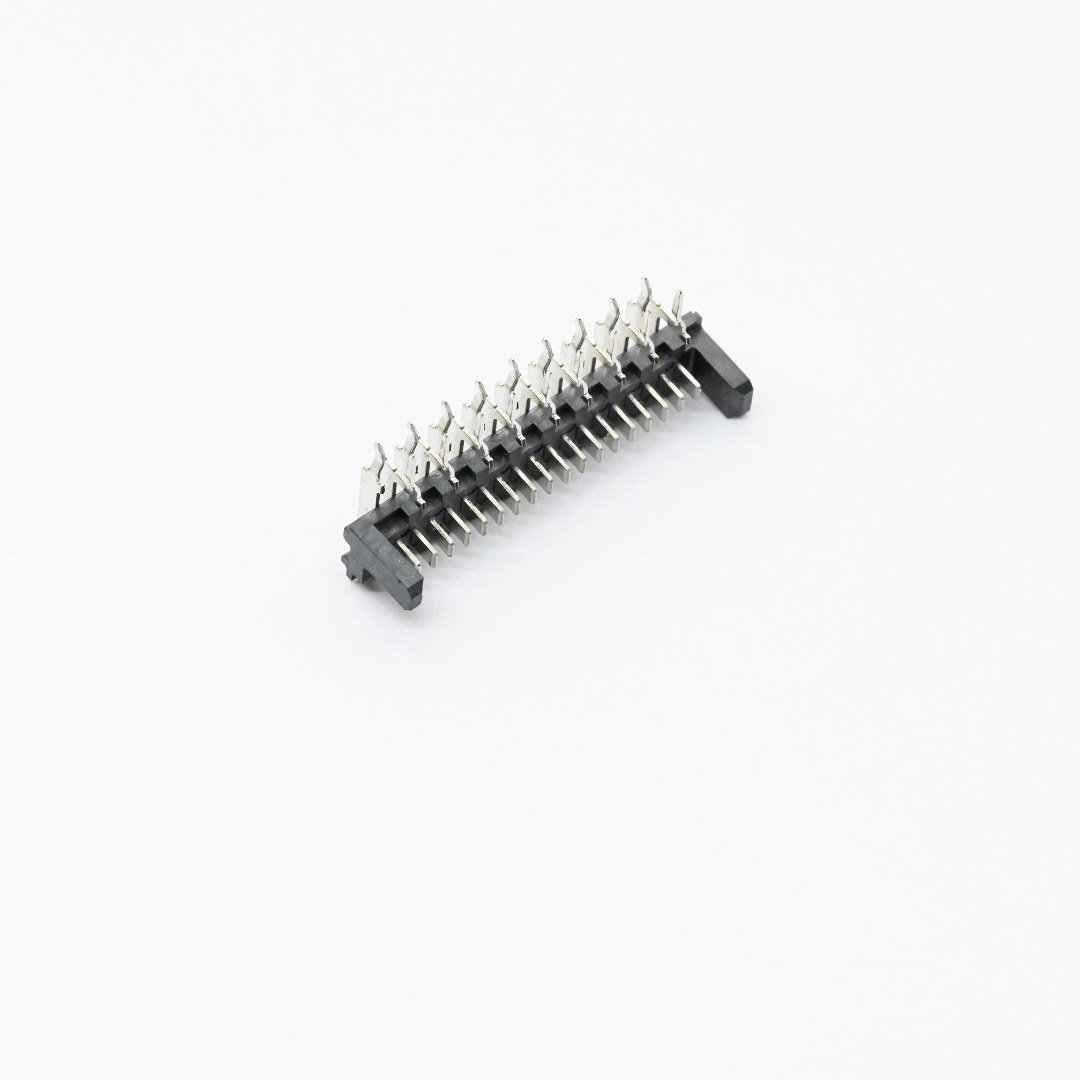

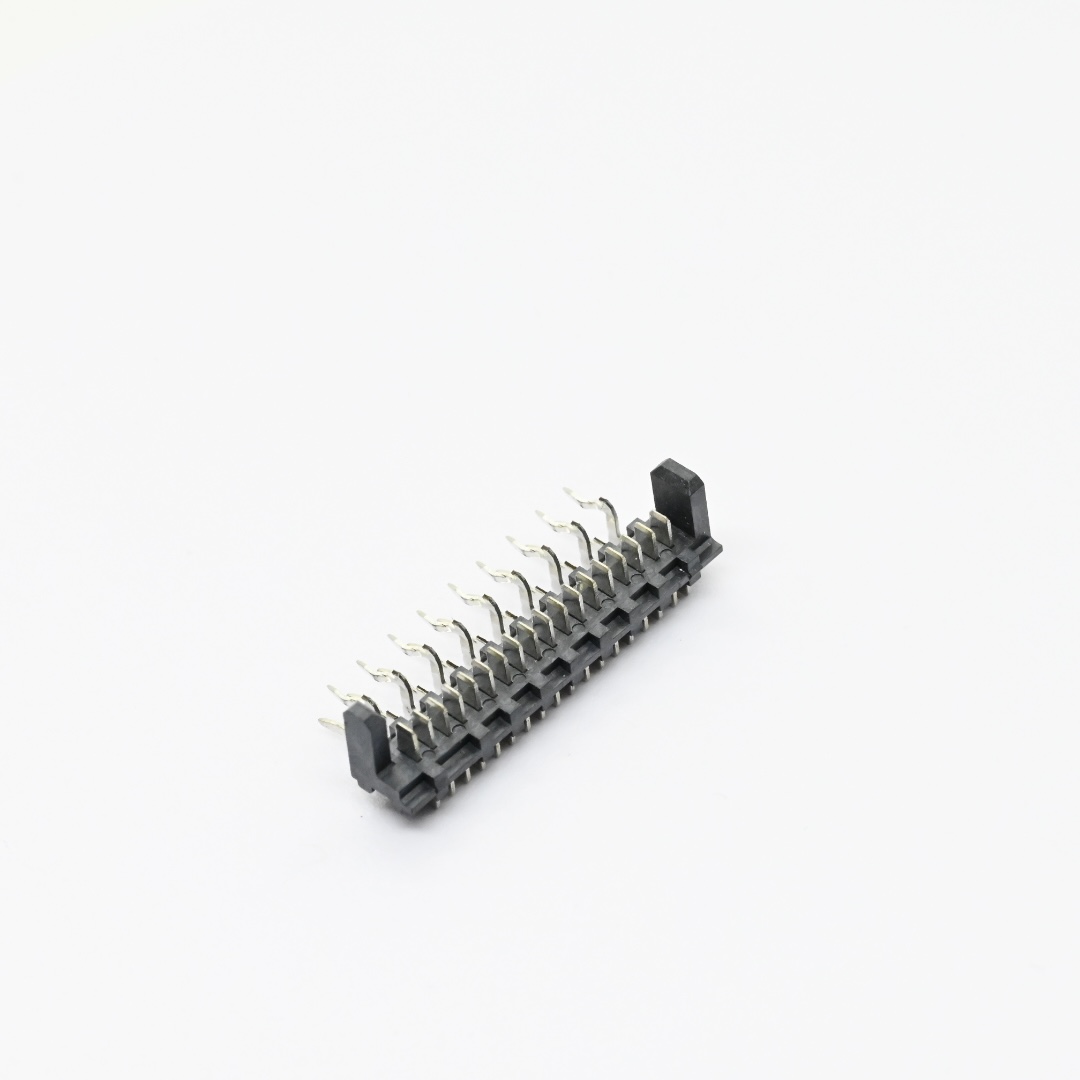

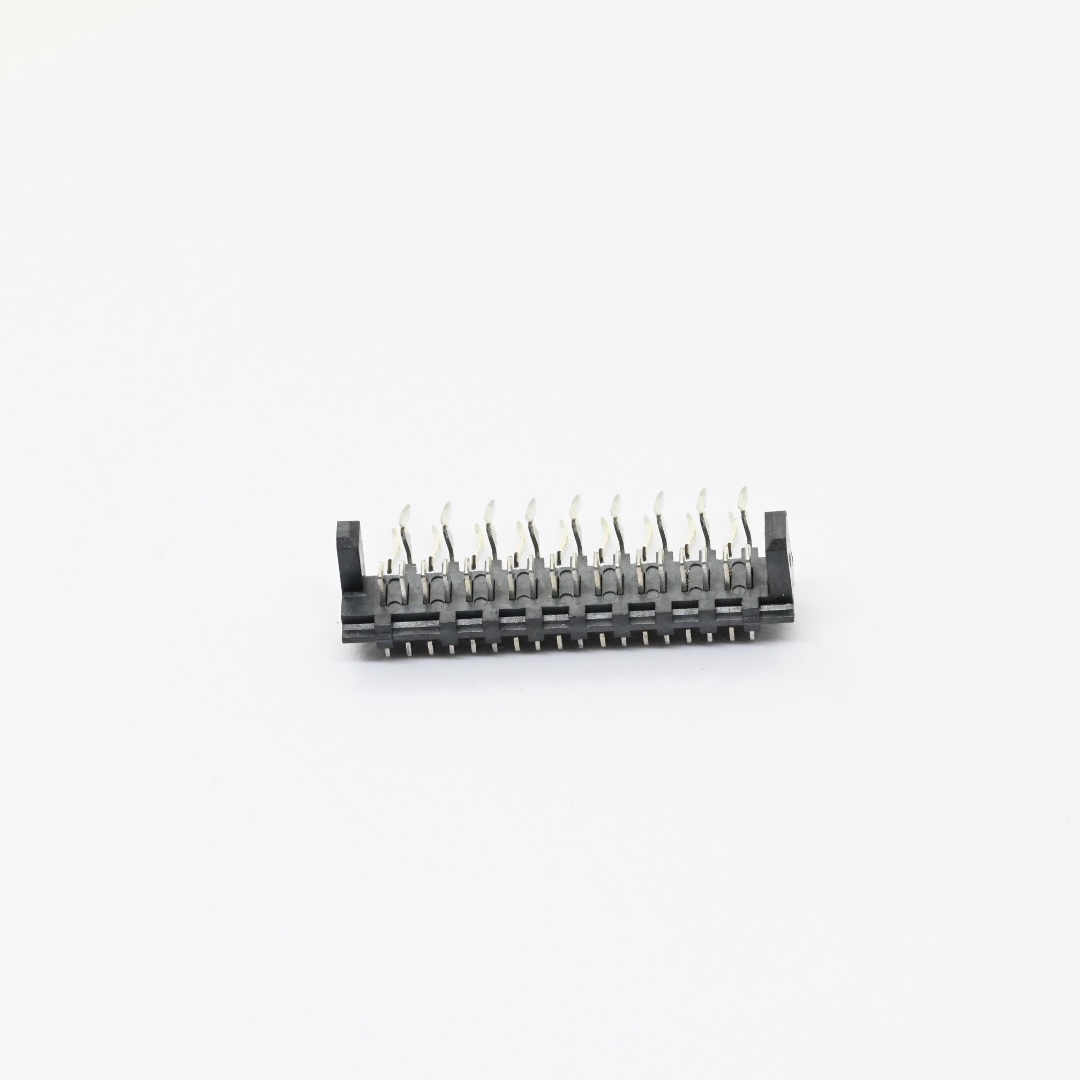

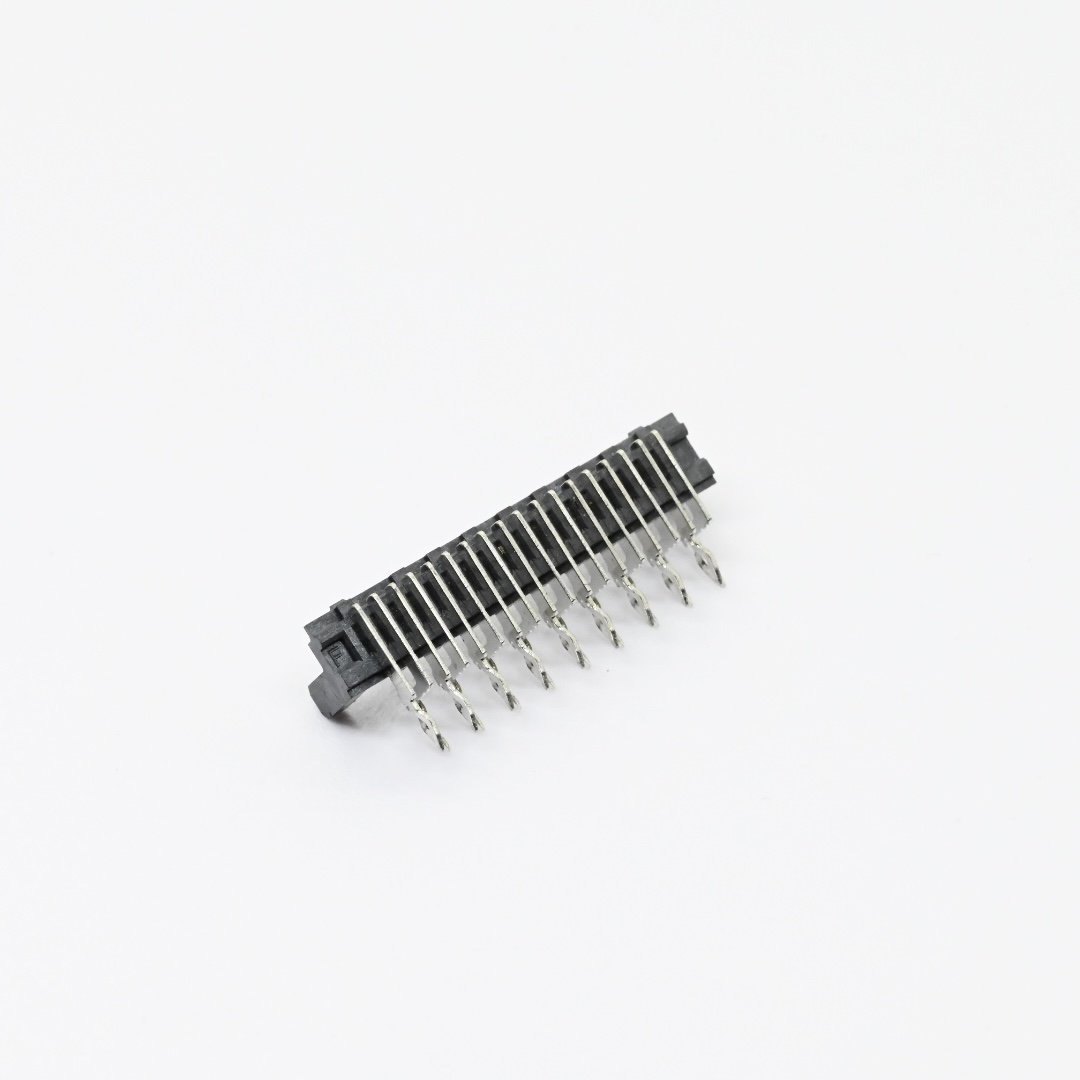

White Angle DIP IDC Connector
2 week ago
Product details
1.Product Description:
Huizhou Antenk Electronics Co., Ltd. manufactures white angle DIP IDC connector with 1.27 millimeter pitch to achieve reliable flat cable signal connection for compact electronic hardware. This connector housing uses LCP material reaching UL94 V zero flame retardant grade, brass contacts come with matte tin over nickel finish and support multiple gold plating alternatives, maximum current rating reaches 2.4 Amp, contact resistance keeps maximum 20 milliohms, insulation resistance offers minimum 1000 Megohms and dielectric withstand voltage is 50 Volt AC, operating temperature ranges from minus forty degree Celsius to one hundred five degree Celsius. Available contact positions cover 4 up to 24 positions and multiple packing selections include tray bag tube and tape reel. Users finish IDC crimping for flat cables then solder through hole pins onto printed circuit board following recommended PCB layout to complete stable signal transmission. Operators shall comply with drawing dimension tolerances during board design avoid excessive crimping force to prevent brass contact damage and keep finished goods inside dry storage space to stop metal surface oxidation. Unlike competitors purchasing outsourced components Antenk carries out full in house workflow of brass stamping plastic molding assembly and complete laboratory performance verification. Our factory owns ISO9001 ISO14001 IATF16949 and UL certifications and more than seventy percent finished items export worldwide. Please inform us of your contact count plating option and project demands for free sample evaluation and complete technical document support.
Angle DIP Receptacle adopts angled through hole pin structure to save internal device space for compact electronic equipment assembly.
LCP IDC Socket applies high performance flame retardant plastic housing to sustain stable performance under wide operating temperature range.
1.27 Pitch Connector delivers precise compact signal interconnection for flat cable wiring in miniaturized electronic modules.
2..Detailed Specifications of 1.27 mm White IDC Angle DIP Connector
1. Mechanical Specifications
1.1 Product type: 1.27 mm pitch white IDC angle DIP connector
1.2 Measurement unit: millimeter
1.3 Key dimension: Pitch 1.27 mm. PCB recommended thickness 1.60±0.20 mm. Follow drawing dimension tolerance standards for printed circuit board footprint design reference.
1.4 Assembly method: Perform IDC crimping for flat cable, then solder through hole pins onto PCB to realize cable to board signal connection.
1.5 Ordering feature: Contact positions range from 4 positions up to 26 positions. Housing color supports white or black. Multiple contact plating selections and packing options include tray bag tube and tape reel.
1.6 CTA: Contact our engineering team to acquire complete dimension drawings and ordering specification for your hardware design validation.
2. Material Construction
2.1 Insulator housing: LCP, UL94 V‑0 flame retardant grade
2.2 Contact terminal: Brass base material
2.3 Contact finish: Matte tin over nickel as standard, multiple gold plating and gold tin mixed plating alternatives available.
3. Electrical & Performance Parameters
3.1 Rated current: Maximum 2.4 Amp
3.2 Contact resistance: Maximum 20 milliohm
3.3 Insulation resistance: Minimum 1000 Megohm
3.4 Dielectric withstand voltage: 50 Volt AC at sea level
3.5 Operating temperature range: ‑40℃ to +105℃
3.6 Compliance: Meets RoHS environmental requirements
4. Usage Method
4.1 Assembly mode: Complete flat cable termination via IDC crimping process. Solder through hole pins to PCB according to recommended layout to achieve stable cable to board signal transmission.
4.2 Operation tip: Select proper contact position housing color contact plating and packing solution based on actual project conditions.
5. Application Scenarios
5.1 Compact internal wiring for industrial control equipment
5.2 Flat cable interconnection for communication electronic modules
5.3 Signal connection for test and measuring instruments
5.4 Miniature wiring for consumer digital devices
6. Operation & Storage Precautions
6.1 Adhere to drawing dimension tolerances when designing PCB footprint
6.2 Avoid excessive crimping force to prevent deformation or damage of brass contacts
6.3 Prevent scratches dirt and mechanical impact on terminals and insulator before assembly
6.4 Store products in dry environment to avoid oxidation of contact plating layers
6.5 Confirm contact count housing color plating type and packing style before placing purchase order
6.6 CTA: Submit your position count plating housing color and project information, we provide free sample evaluation and professional technical consultation services.
3.FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

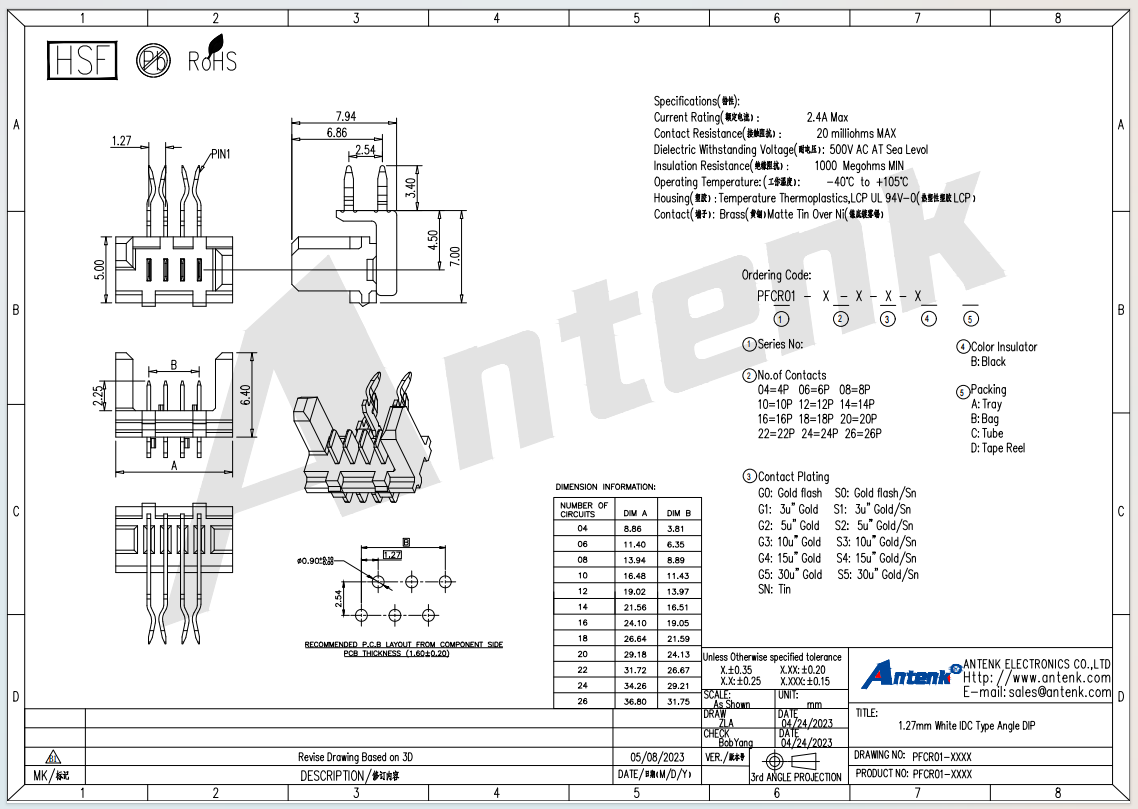

4.Product Drawing:
