35 Position Round Pin Header
3 week ago
Product details
1.Product Description：
Huizhou Antenk Electronics Co., Ltd. manufactures 35 position double row round pin header to deliver stable board to board signal connection for various electronic control equipment. This pin header insulator adopts PA66 GF15 reinforced plastic material, round pins are made of copper with bright tin plating, precise dimension control conforms to drawing tolerance standards. Users complete through hole soldering onto printed circuit board following recommended PCB layout then mate with matching female socket to realize reliable electrical signal transmission. Operators shall strictly follow drawing dimension requirements during PCB design avoid excessive mating force to prevent round pin bending and damage, and store finished goods inside dry environment to keep pin surface away from oxidation. Products must pass appearance inspection to reject parts with missing pins backward pins skewed pins burrs and shrink defects. Different from competitors purchasing outsourced components Antenk performs full in house workflow covering copper stamping plastic molding assembly and comprehensive laboratory performance testing. Our factory holds ISO9001 ISO14001 IATF16949 and UL certifications and more than seventy percent finished goods are exported globally. Please share your pin quantity plating selection and project specifications for free sample evaluation and complete technical document support.
Round Pin Header features cylindrical contact pins for smooth insertion and stable electrical connection with mating female sockets.
PA66 GF15 Header uses glass fiber reinforced nylon material to enhance mechanical strength and dimensional stability under working conditions.
Double Row Pin Header arranges contacts in two parallel rows to achieve high density board to board interconnection for electronic devices.
2.Detailed Specifications of 35 Position Round Pin Header
1. Mechanical Specifications
1.1 Product type: 35 position double‑row round pin header
1.2 Measurement unit: millimeter
1.3 Key dimension: Follow dimension tolerances shown on engineering drawing for printed circuit board design reference.
1.4 Assembly method: Complete through‑hole soldering on PCB, mate with matching female socket to establish board‑to‑board electrical connection.
1.5 Quality requirement: No missing pins, backward pins, skewed pins, burrs or shrinkage defects. Five critical dimensions are marked for inspection.
1.6 CTA: Contact our engineering team to obtain complete dimension drawings and ordering specifications for your hardware design validation.
2. Material Construction
2.1 Insulator housing: PA66 GF15 glass fiber reinforced nylon
2.2 Contact pin: Copper base material with bright tin plating finish
3. Electrical & Performance Parameters
3.1 Compliance: Meets RoHS and REACH environmental requirements
4. Usage Method
4.1 Assembly mode: Align pins with PCB through holes and finish soldering. Insert into compatible female socket to realize stable board‑to‑board signal transmission.
4.2 Operation tip: Refer strictly to drawing critical dimensions for fixture and PCB design.
5. Application Scenarios
5.1 Board‑to‑board connection for industrial control equipment
5.2 Internal interconnection for instrument and measuring devices
5.3 Signal connection for consumer electronic modules
5.4 Circuit assembly for digital communication hardware
6. Operation & Storage Precautions
6.1 Follow drawing dimensional tolerances when designing PCB footprint
6.2 Avoid excessive mating force to prevent bending or deformation of copper round pins
6.3 Protect pins and plastic housing from scratches, burr damage and mechanical impact before assembly
6.4 Store products in dry environment to prevent tin plated pin surfaces from oxidation
6.5 Inspect for pin assembly defects before purchase and SMT processing
6.6 CTA: Submit your pin count plating option and project details, we provide free sample evaluation and professional technical consultation services.
3.FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

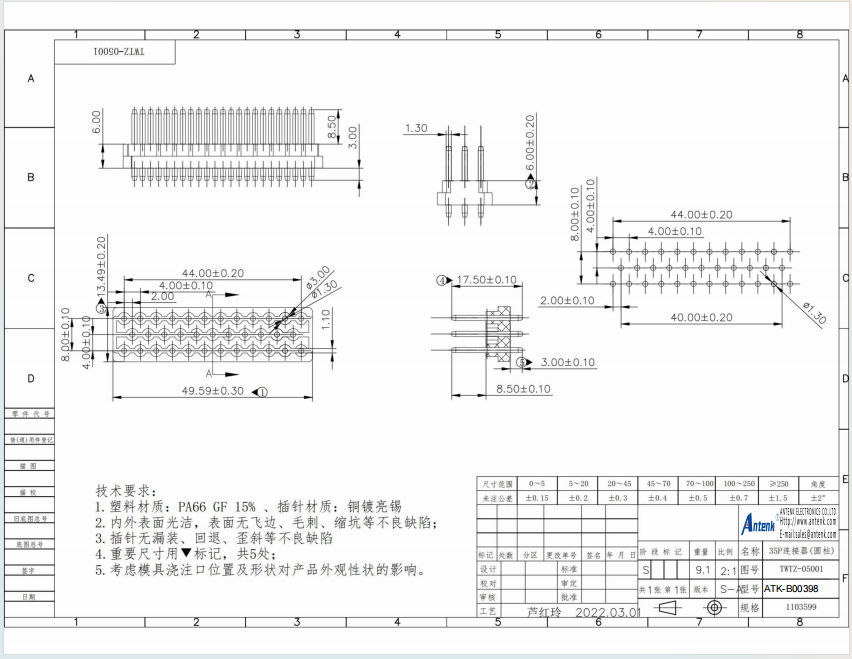

4.Product Drawing：
