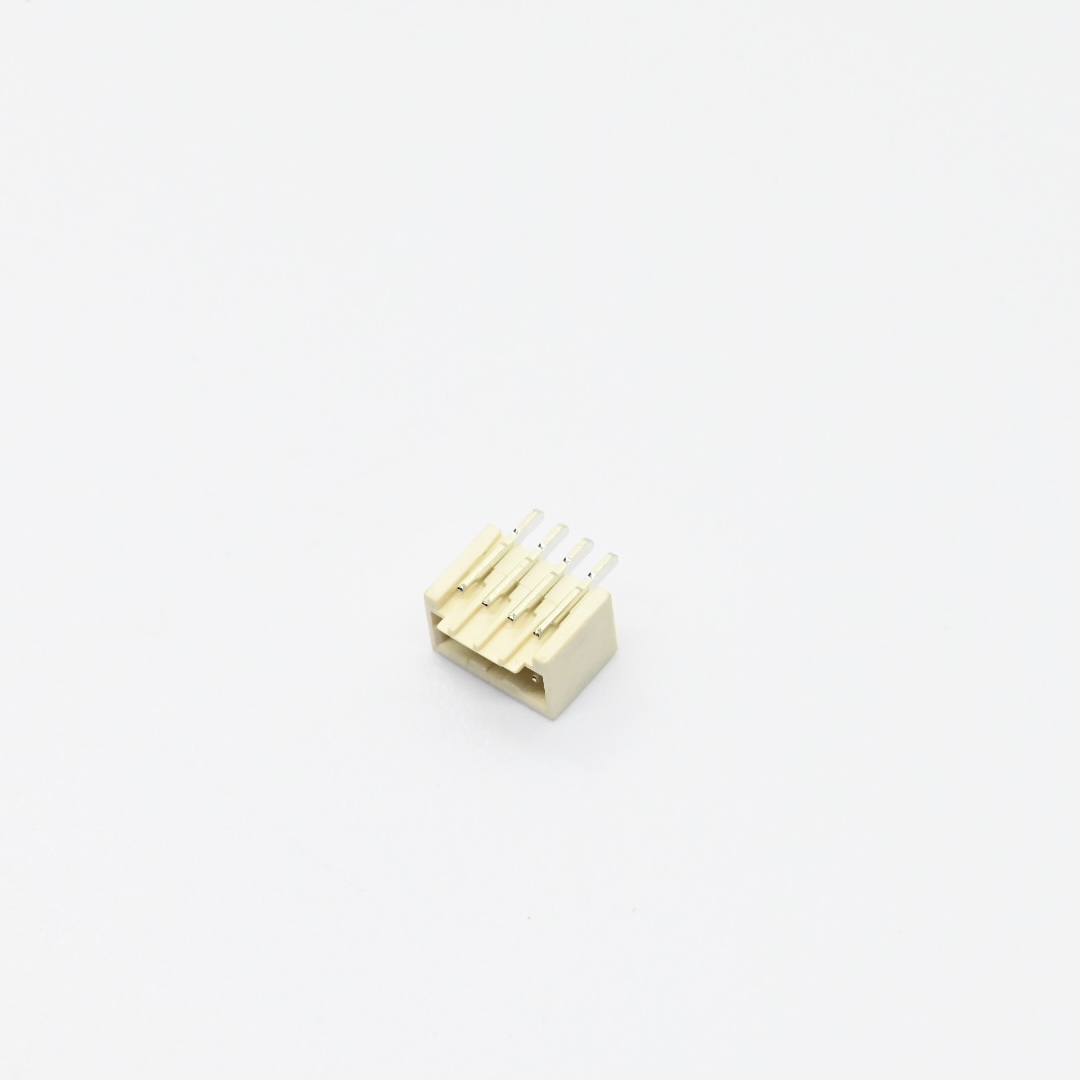

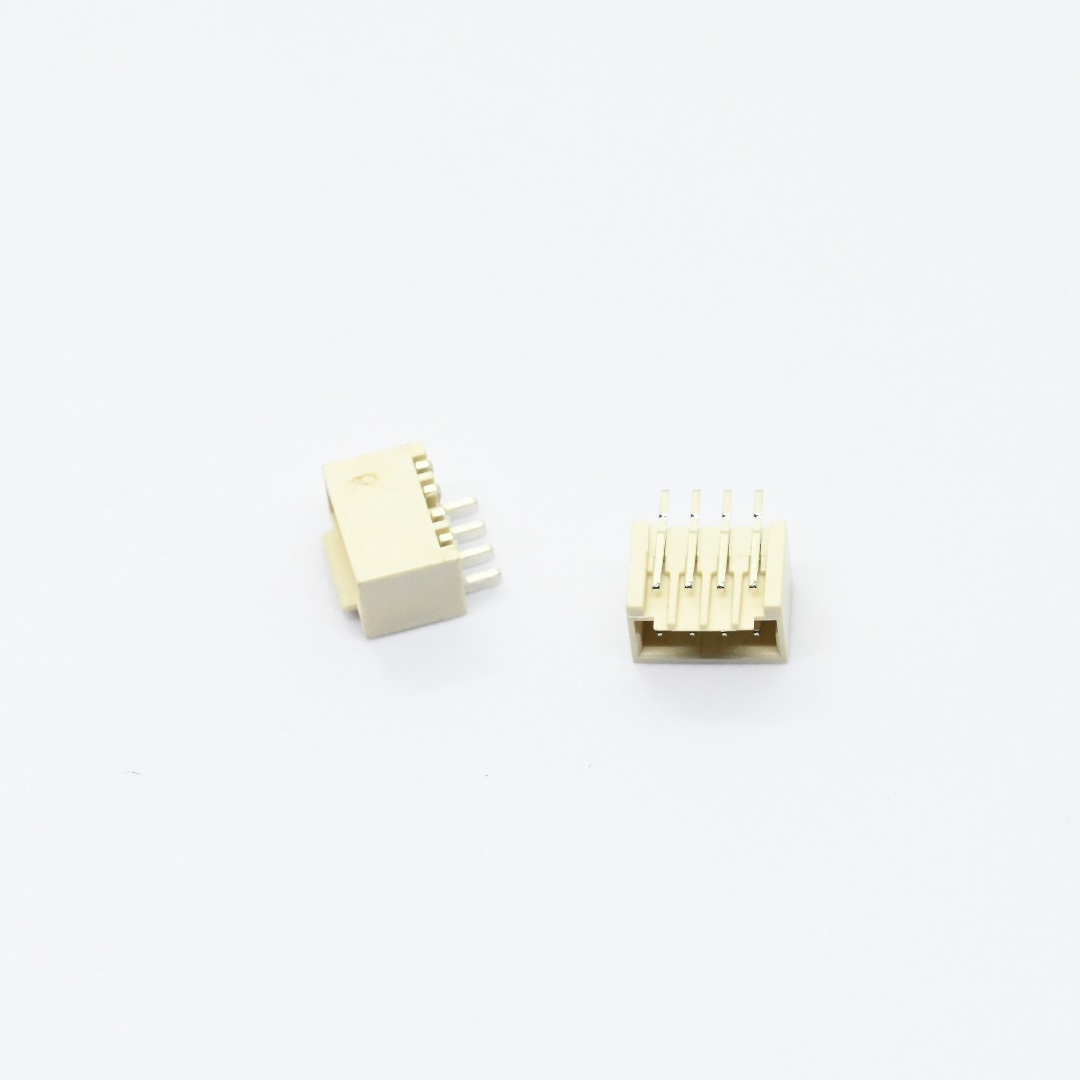

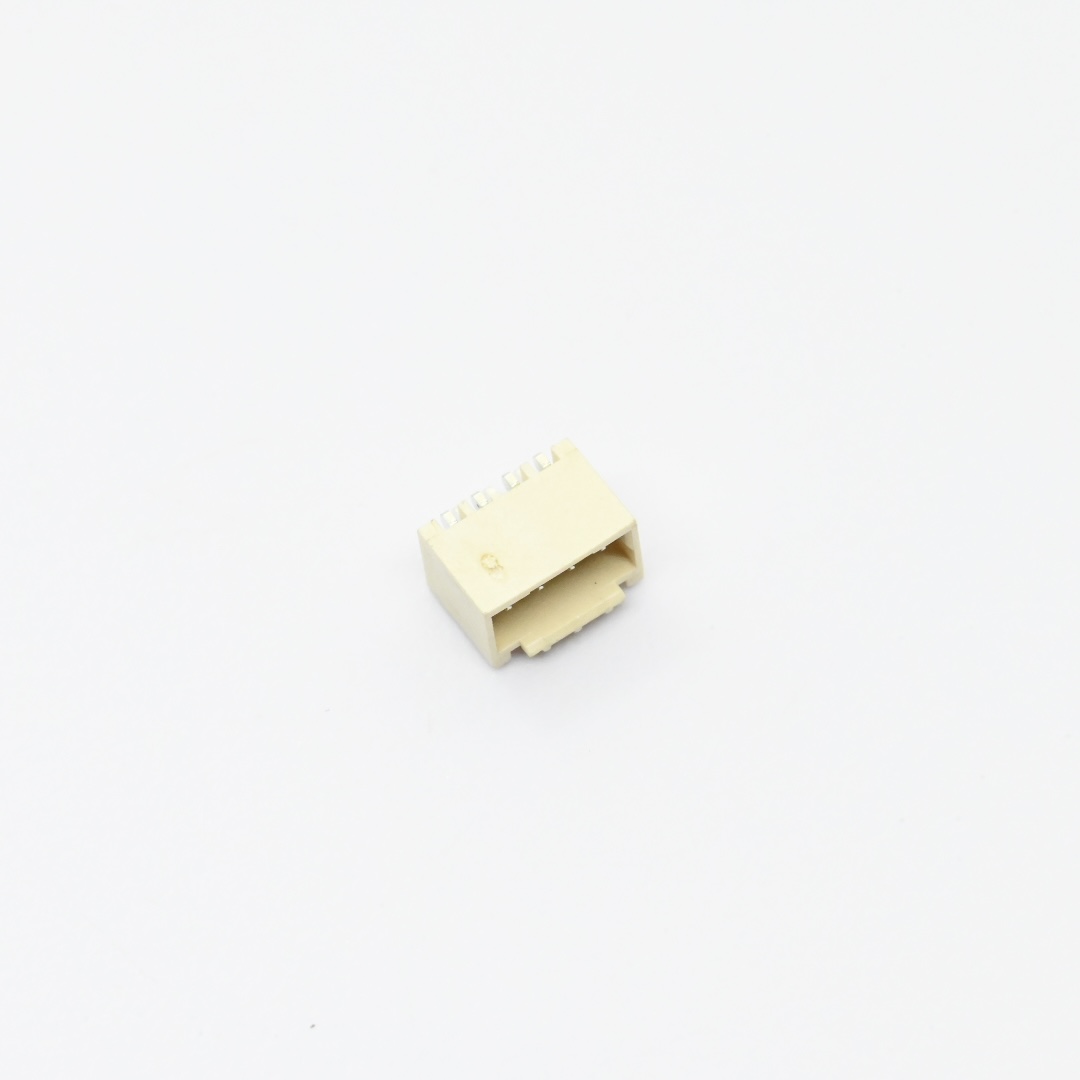

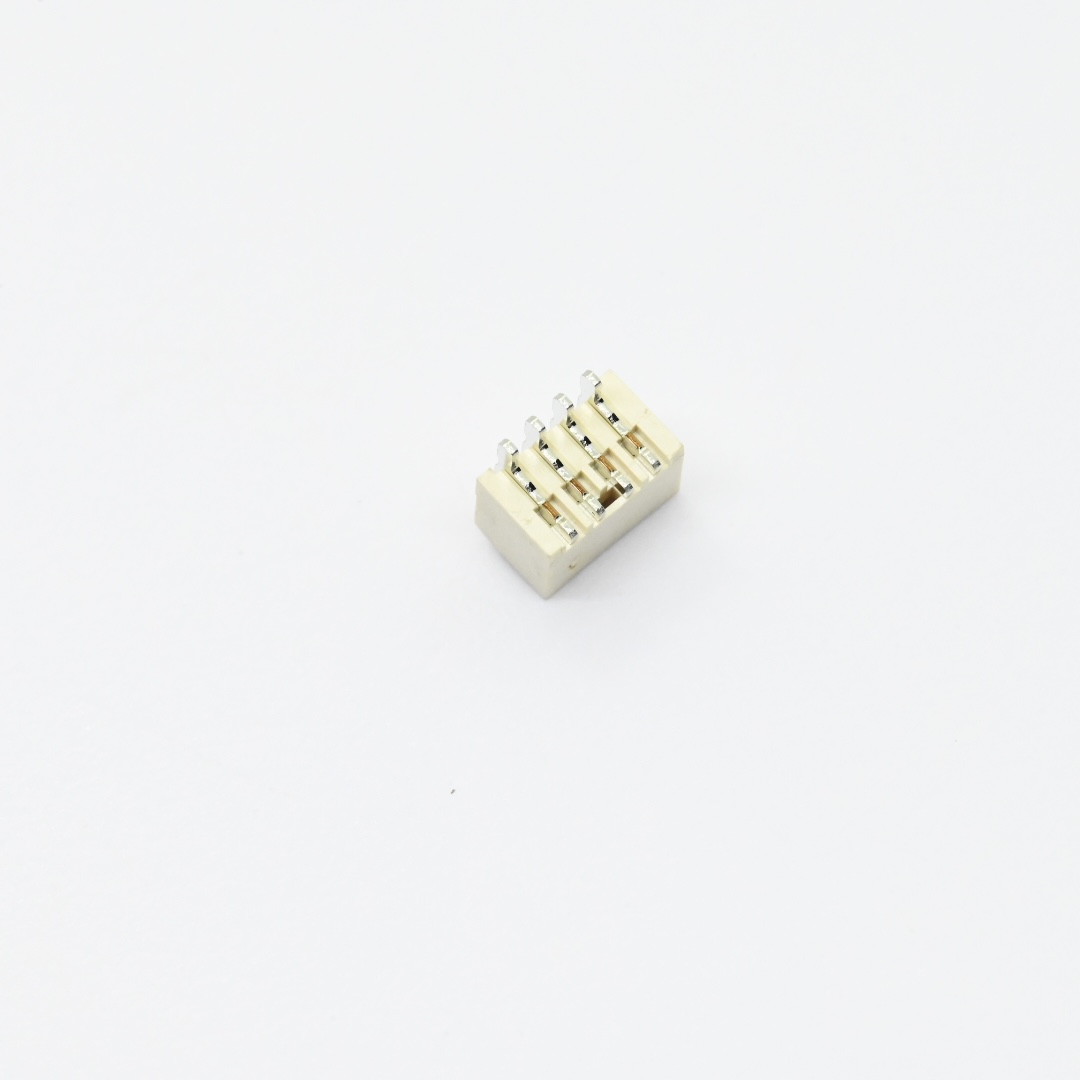

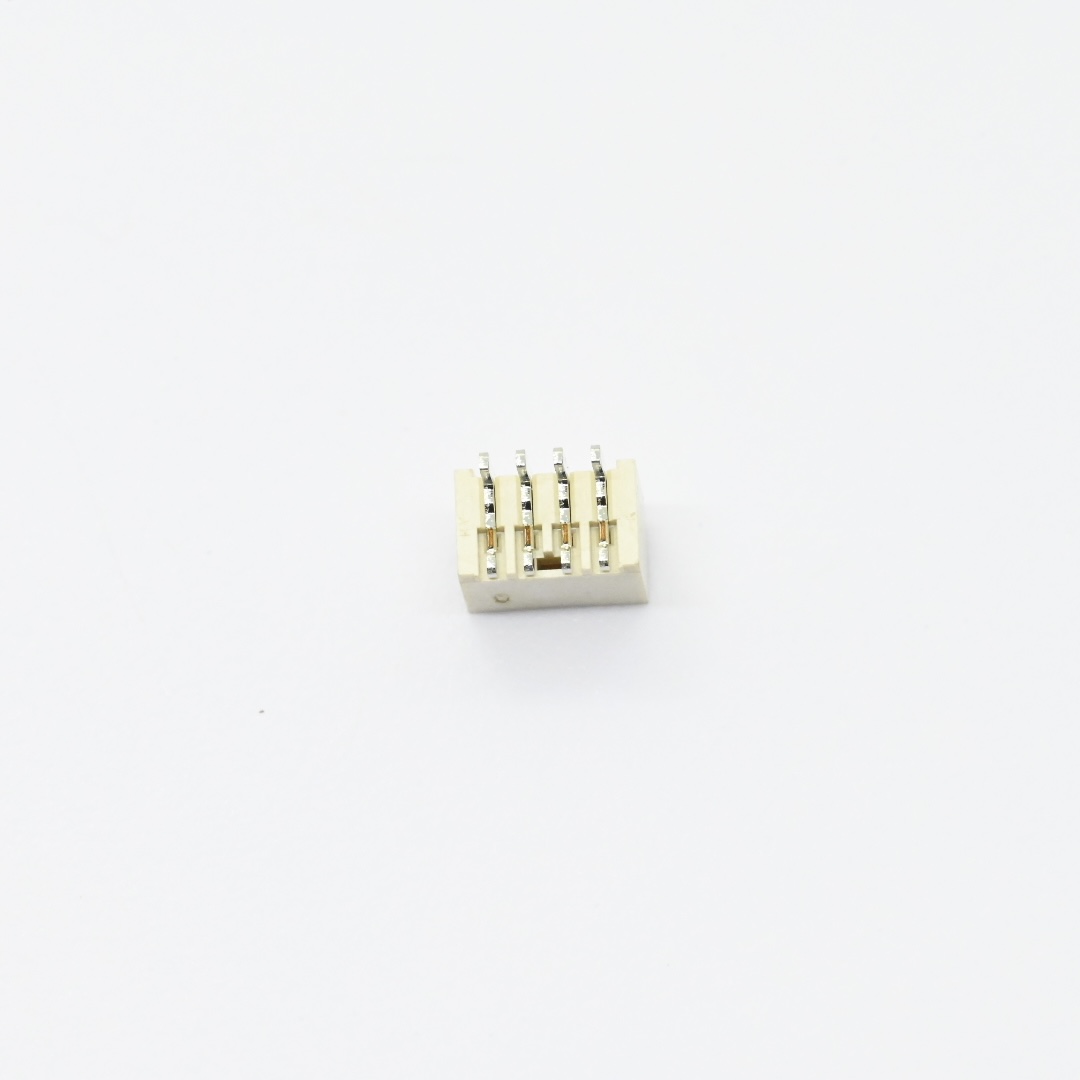

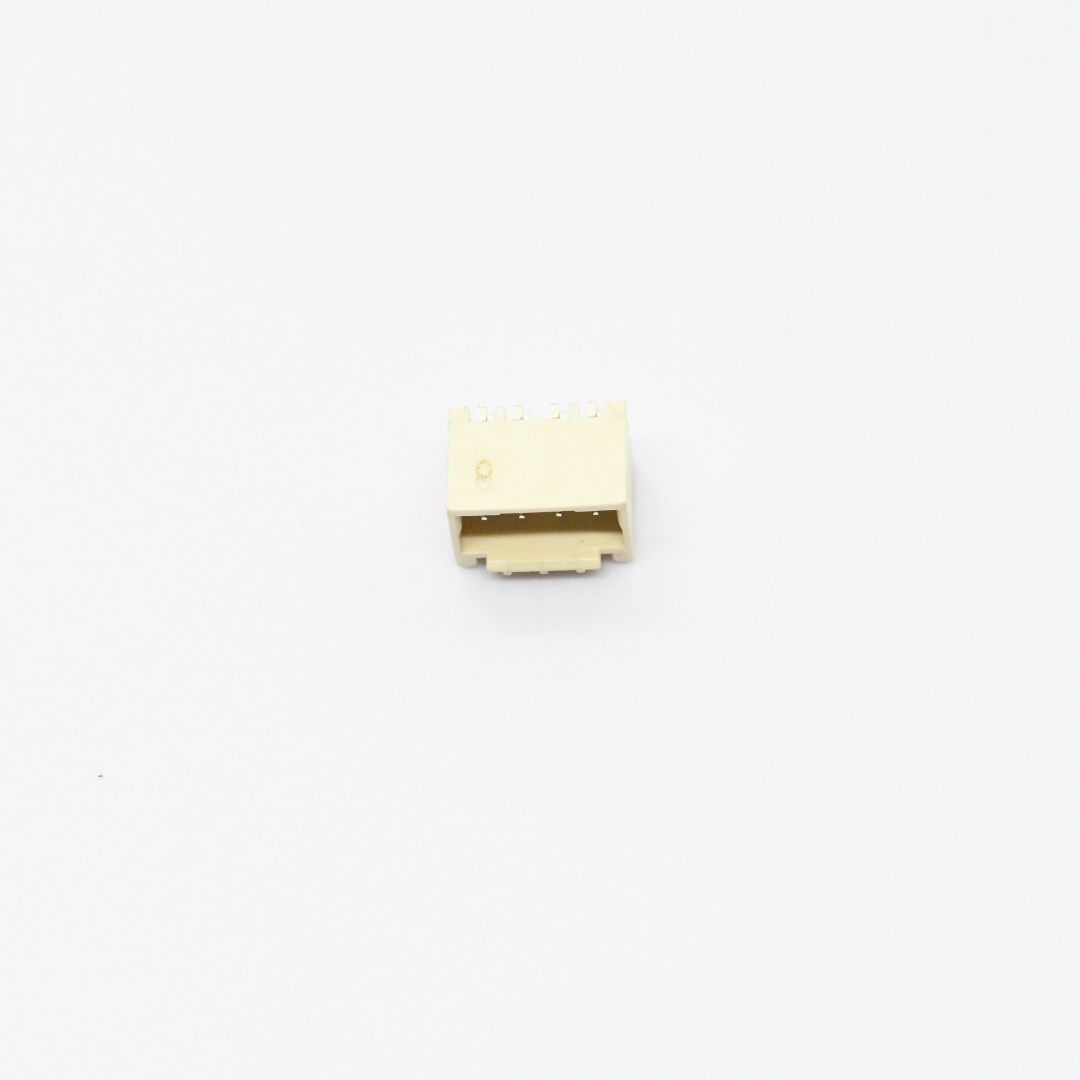

1.50mm Right Angle SMT Wafer Connector
2 week ago
Product details
1.Product Description：
Huizhou Antenk Electronics Co., Ltd. manufactures 1.50 millimeter pitch 90 degree SMT wafer connector to achieve reliable wire to board electrical connection for compact electronic devices. This wafer connector insulator applies Nylon 6T material with UL94 V zero flame retardant grade, brass terminals feature tin over nickel surface finish, rated voltage reaches 350 Volt AC DC and rated current is 3 Amp AC DC, with 500 Volt AC per minute withstand voltage and minimum 1000 Megohms insulation resistance, operating temperature ranges from minus forty degree Celsius to one hundred five degree Celsius. This surface mount component supports multiple pin counts and two housing color options including ivory and black and mates with AH1502 series housing. Users complete SMT reflow soldering onto printed circuit board following recommended PCB layout and then pair with matching housing to complete stable signal and power transmission. Operators shall observe drawing dimension tolerances during PCB design avoid excessive mating force to prevent terminal deformation and store products inside dry environment to protect plating layers against oxidation. Unlike competitors buying external components Antenk implements full in house workflow of brass stamping plastic molding assembly and comprehensive laboratory performance testing. Our factory owns ISO9001 ISO14001 IATF16949 and UL certifications and over seventy percent finished goods export worldwide. Please share your pin count housing color and project requirements for free sample evaluation and complete technical document support.
Nylon 6T Wafer Socket adopts high flame retardant nylon material to sustain stable performance within wide operating temperature scope.
SMT Wafer Connector uses surface mount soldering process to save board space for compact electronic product assembly.
1.50 Pitch Wafer Header delivers precise dense wire to board interconnection for miniaturized electronic equipment applications.
2.Detailed Specifications of 1.50 mm Pitch 90° Wafer‑SMT Connector
1. Mechanical Specifications
1.1 Product type: 1.50 mm pitch 90 degree right angle SMT wafer connector, part number AW1502R‑S‑xP
1.2 Measurement unit: millimeter
1.3 Key dimension: Pitch 1.50 mm. Follow drawing dimensional tolerances for PCB footprint design reference.
1.4 Assembly method: Perform SMT reflow soldering on printed circuit board, then mate with AH1502 series housing to realize wire‑to‑board connection.
1.5 Ordering feature: Multiple pin count options available. Housing color supports ivory and black.
1.6 CTA: Contact our engineering team to acquire complete dimension drawings and ordering specifications for your hardware design validation.
2. Material Construction
2.1 Insulator housing: Nylon 6T, UL94 V‑0 flame retardant grade
2.2 Contact pin: Brass base material with tin over nickel plating finish
3. Electrical & Performance Parameters
3.1 Rated voltage: 350V AC, DC
3.2 Rated current: 3A AC, DC
3.3 Withstanding voltage: 500V AC per minute
3.4 Insulation resistance: Minimum 1000 Megohm
3.5 Operating temperature range: ‑40℃ to +105℃
3.6 Compliance: Meets RoHS environmental requirements
4. Usage Method
4.1 Assembly mode: Complete SMT reflow soldering according to recommended PCB layout, engage with AH1502 series housing to achieve stable wire‑to‑board signal and power transmission.
4.2 Operation tip: Select proper pin count and housing color based on actual project requirements.
5. Application Scenarios
5.1 Compact wire‑to‑board interconnection for industrial control modules
5.2 Internal power and signal connection for communication electronic devices
5.3 Miniaturized wiring for smart home electronic products
5.4 Circuit connection for measuring instruments and consumer electronic hardware
6. Operation & Storage Precautions
6.1 Adhere strictly to drawing dimension tolerances during PCB footprint design
6.2 Avoid excessive mating force to prevent deformation or damage of brass contact pins
6.3 Prevent scratches, dirt and mechanical impact on terminals and insulator before assembly
6.4 Store products in dry environment to avoid oxidation of tin nickel plating layers
6.5 Confirm pin count and housing color before placing purchase order
6.6 CTA: Submit your pin count housing color and project information, we provide free sample evaluation and professional technical consultation services.
3.FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

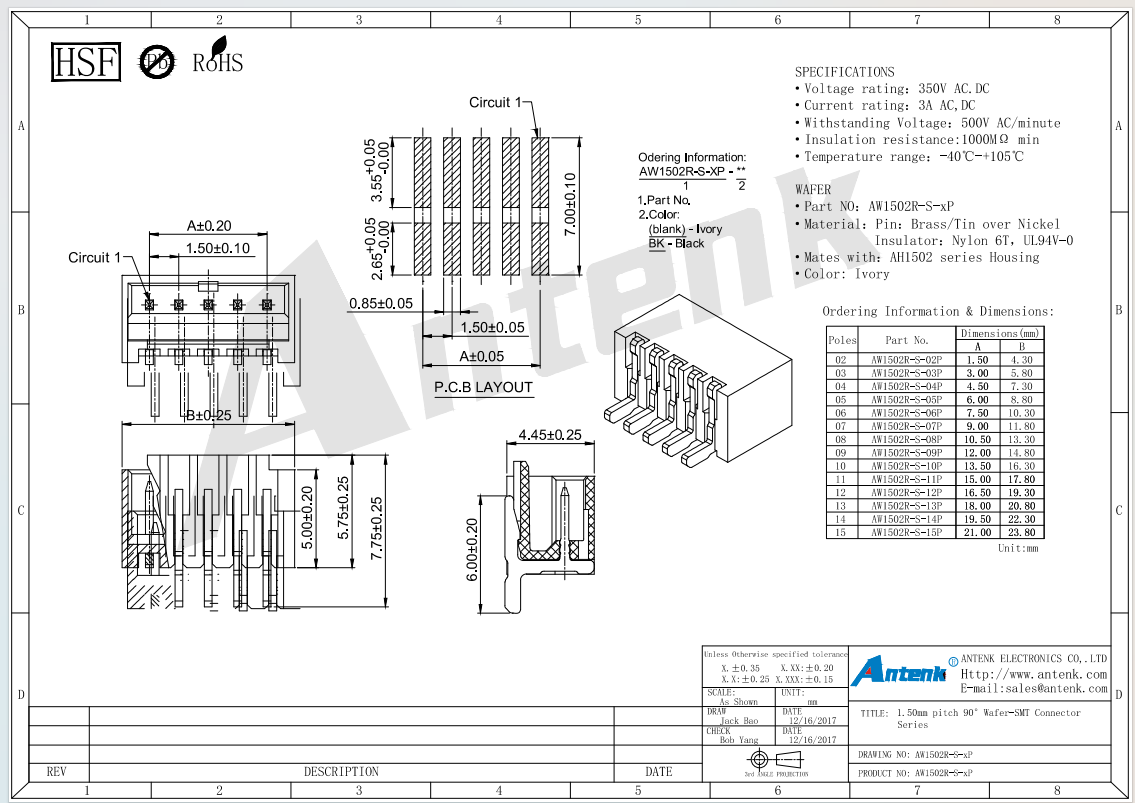

4.Product Drawing：
