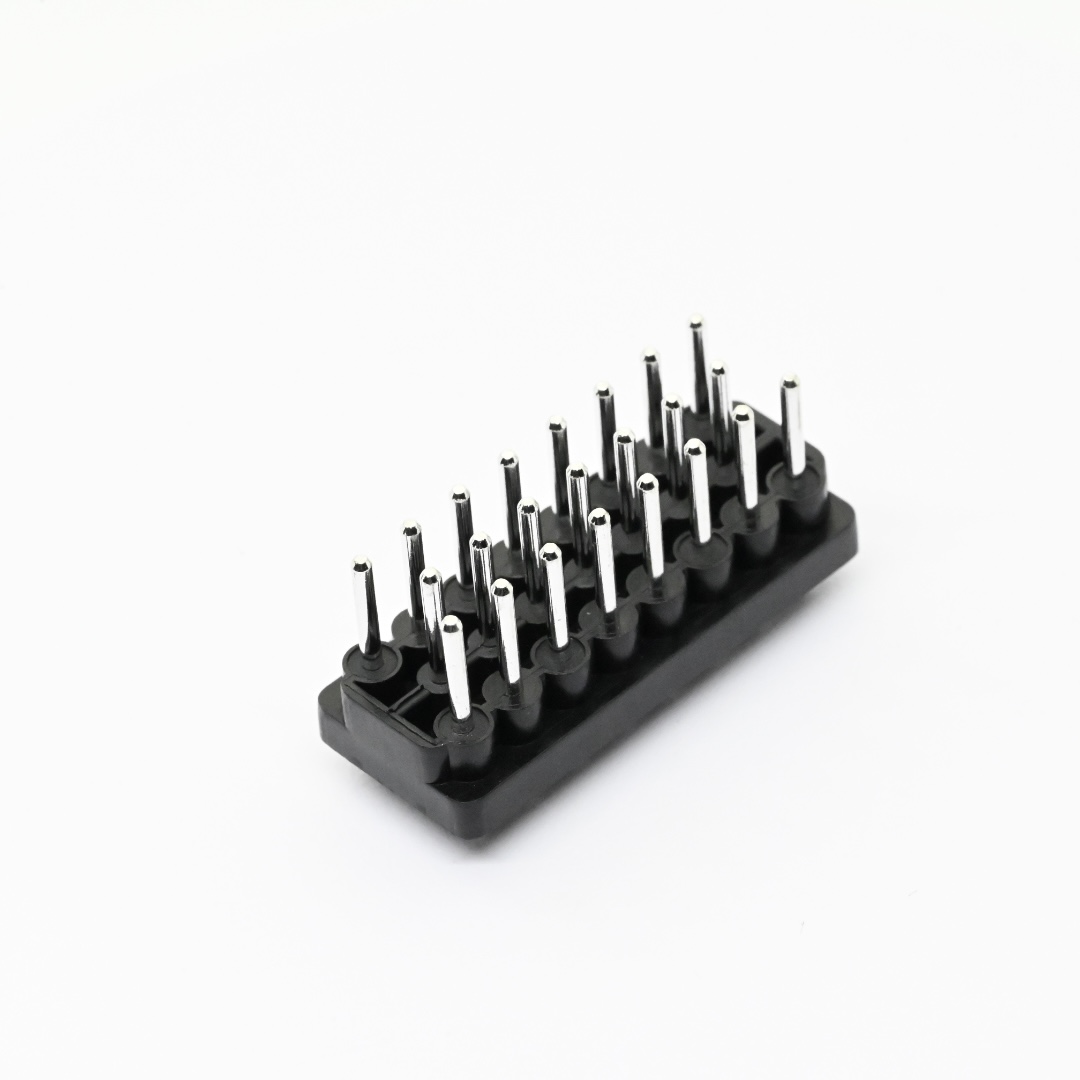

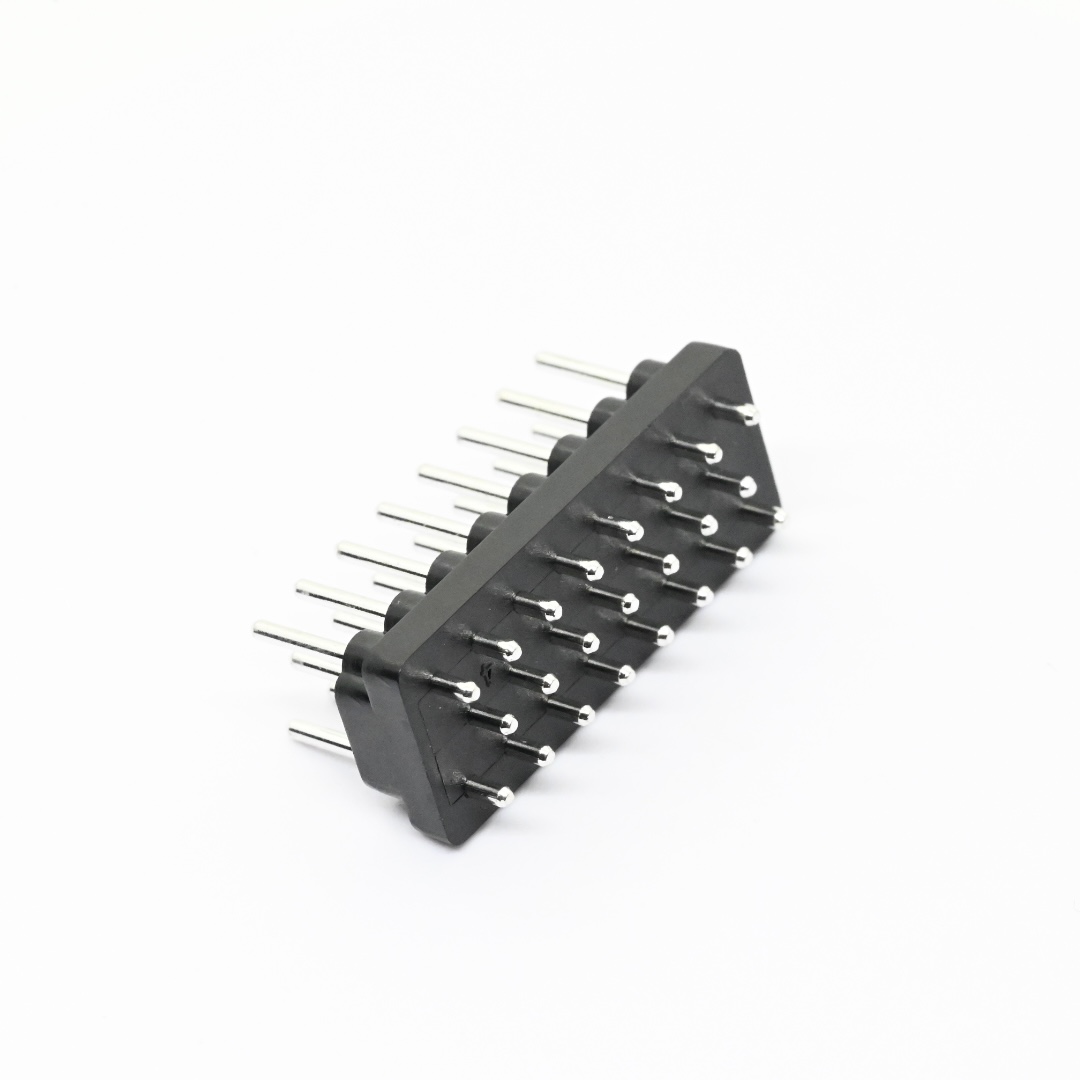

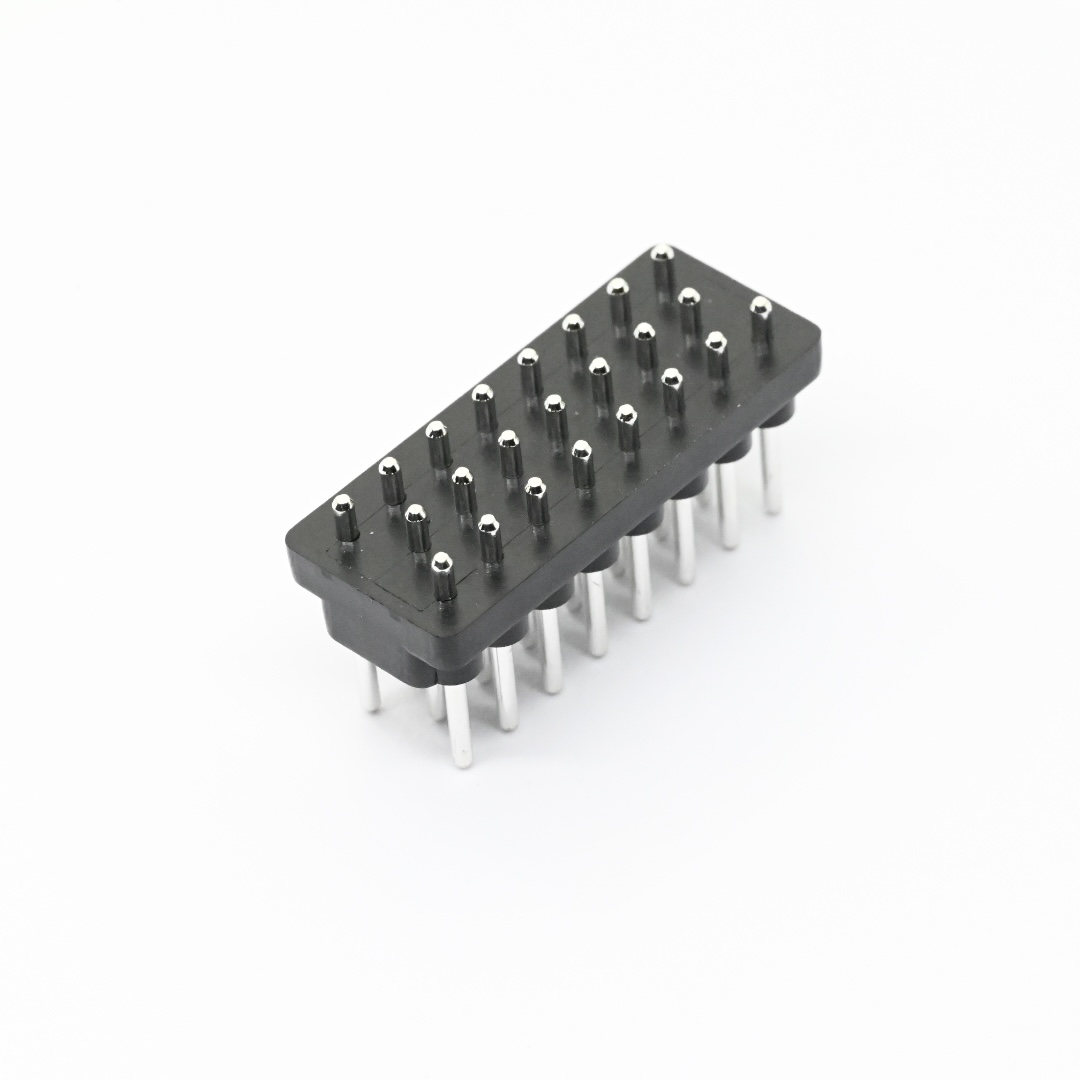

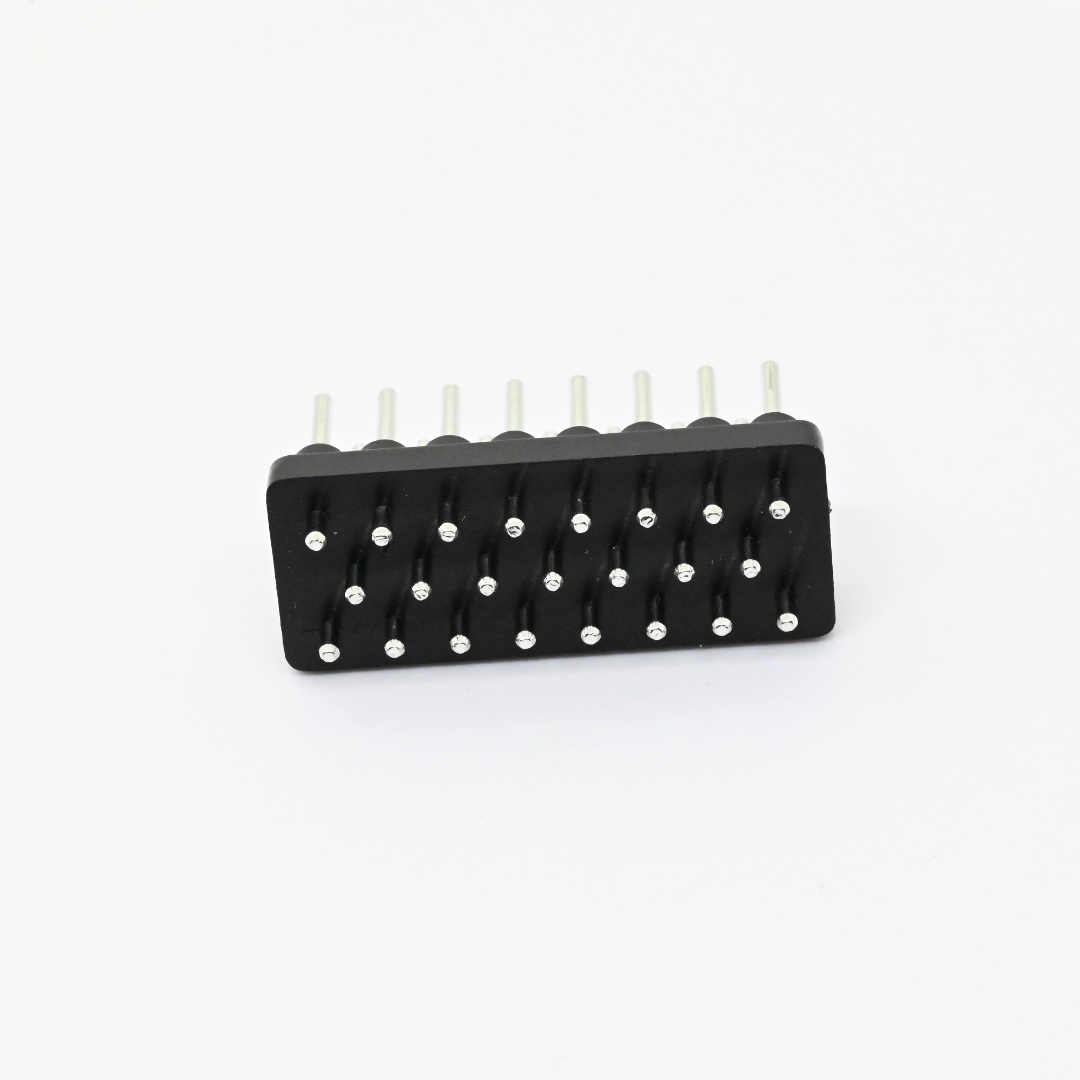

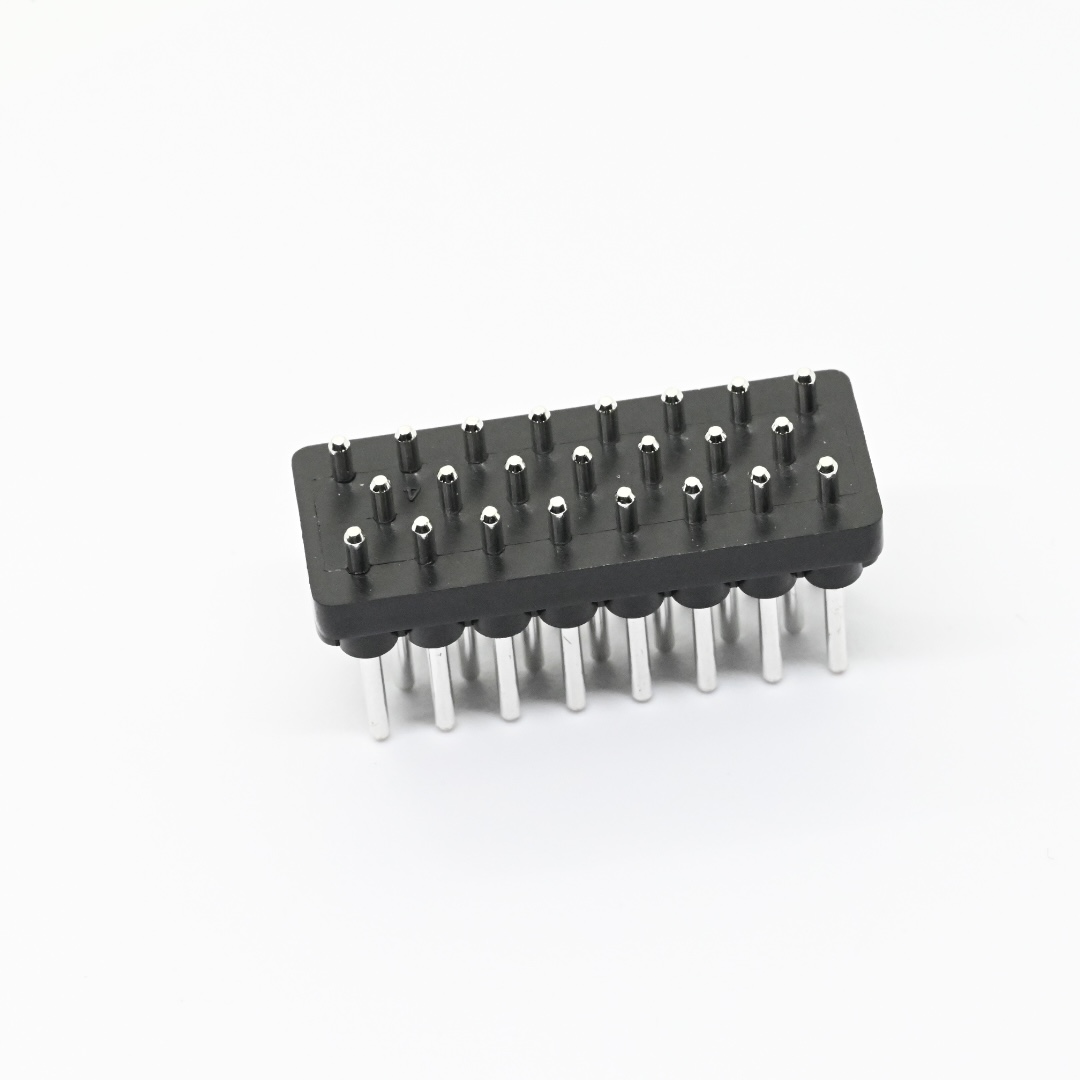

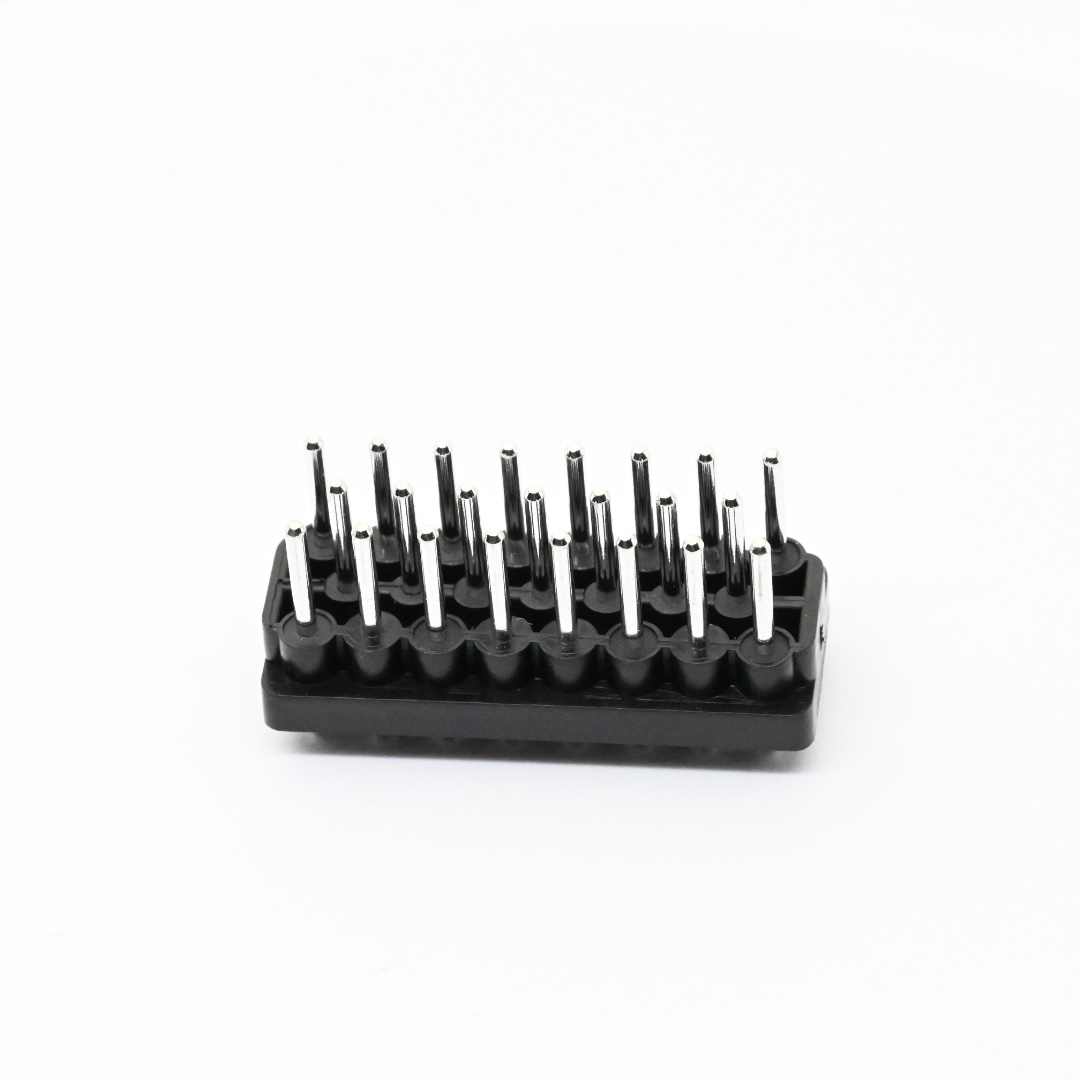

23 Position Cylindrical Pin Header
2 week ago
Product details
1.Product Description:
Huizhou Antenk Electronics Co Ltd manufactures 23 position cylindrical pin header to deliver stable board to board signal interconnection for various electronic control hardware. This 23 position connector housing adopts PA66 GF15 reinforced plastic material and round pins are constructed from copper with bright tin plating finish. Five key dimensions are marked for inspection and finished goods require smooth surface without flash burrs sink marks missing pins backward pins or skewed pins. Users complete through hole soldering on printed circuit board according to drawing dimension standards then mate with corresponding female socket to achieve dependable electrical signal transmission. Operators must comply with drawing tolerances in PCB design avoid excessive mating force to stop round pin deformation and keep finished products in dry storage environment to prevent tin plating oxidation. Different from competitors purchasing outside parts Antenk completes full in house workflow covering copper stamping plastic molding assembly and thorough laboratory performance testing. Our factory obtains ISO9001 ISO14001 IATF16949 and UL certifications and above seventy percent finished products export worldwide. This connector applies to industrial control devices measuring instruments household digital appliances and general consumer electronics. Please share your project parameters for free sample evaluation and full technical document support.
Reinforced Plastic Pin Header utilizes PA66 GF15 material to enhance structural stability for long term mechanical operation.
Bright Tin Round Pin Header features copper base with bright tin finish to deliver reliable conductivity and anti oxidation performance.
Multi Position Board Header supports multiple pin configurations to satisfy diverse board to board interconnection demands of electronic equipment.
2.Detailed Specifications:
1. Mechanical Specifications
1.1 Product type: 23 position cylindrical pin header, drawing reference ATB00397
1.2 Measurement unit: millimeter
1.3 Key dimension: Follow dimension tolerances shown on engineering drawing for PCB footprint design, five critical dimensions are marked for inspection. Overall maximum length reaches 28 millimeter. Unspecified dimensions follow drawing general tolerance standard.
1.4 Assembly method: Perform through hole soldering onto printed circuit board, mate with matching female socket to complete board to board electrical interconnection.
1.5 Quality requirement: Smooth inner and outer surface, no flash burrs or sink marks. No missing pins backward pins or skewed pins. Mold gate position effect on appearance shall be considered.
1.6 CTA: Contact our engineering team to obtain complete dimension drawings and ordering specifications for your hardware design validation.
2. Material Construction
2.1 Insulator housing: PA66 GF15 glass fiber reinforced plastic
2.2 Contact pin: Copper base material with bright tin plating finish
3. Electrical & Performance Parameters
3.1 Compliance: Meets RoHS and REACH environmental requirements
4. Usage Method
4.1 Assembly mode: Align cylindrical pins with PCB through holes and complete through hole soldering. Connect with matched female socket to achieve stable board to board signal transmission.
4.2 Operation tip: Strictly follow drawing dimension tolerances during PCB layout design.
5. Application Scenarios
5.1 Board to board interconnection for industrial control equipment
5.2 Internal wiring for measuring and testing instruments
5.3 Signal connection for digital household appliances
5.4 PCB interconnection for general consumer electronic hardware
6. Operation & Storage Precautions
6.1 Comply strictly with drawing tolerance values when designing PCB footprint
6.2 Avoid excessive mating force to prevent deformation of cylindrical copper pins
6.3 Prevent scratches mechanical impact and dirt contamination on pins and plastic housing before assembly
6.4 Keep products stored in dry surroundings to avoid oxidation of bright tin plated surfaces
6.5 Carry out visual inspection for pin assembly defects before purchase and soldering processing
6.6 CTA: Submit your project information and customization demands, we provide free sample evaluation and professional technical consultation services.
3.FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

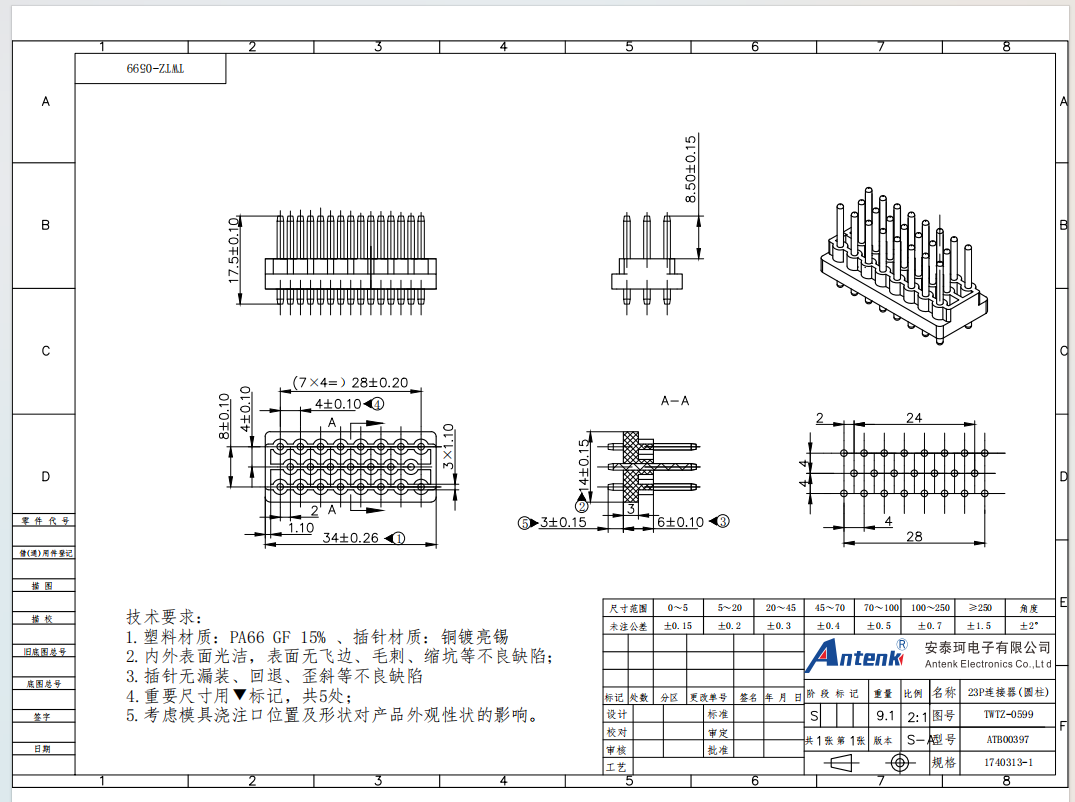

4.Product Drawing：
