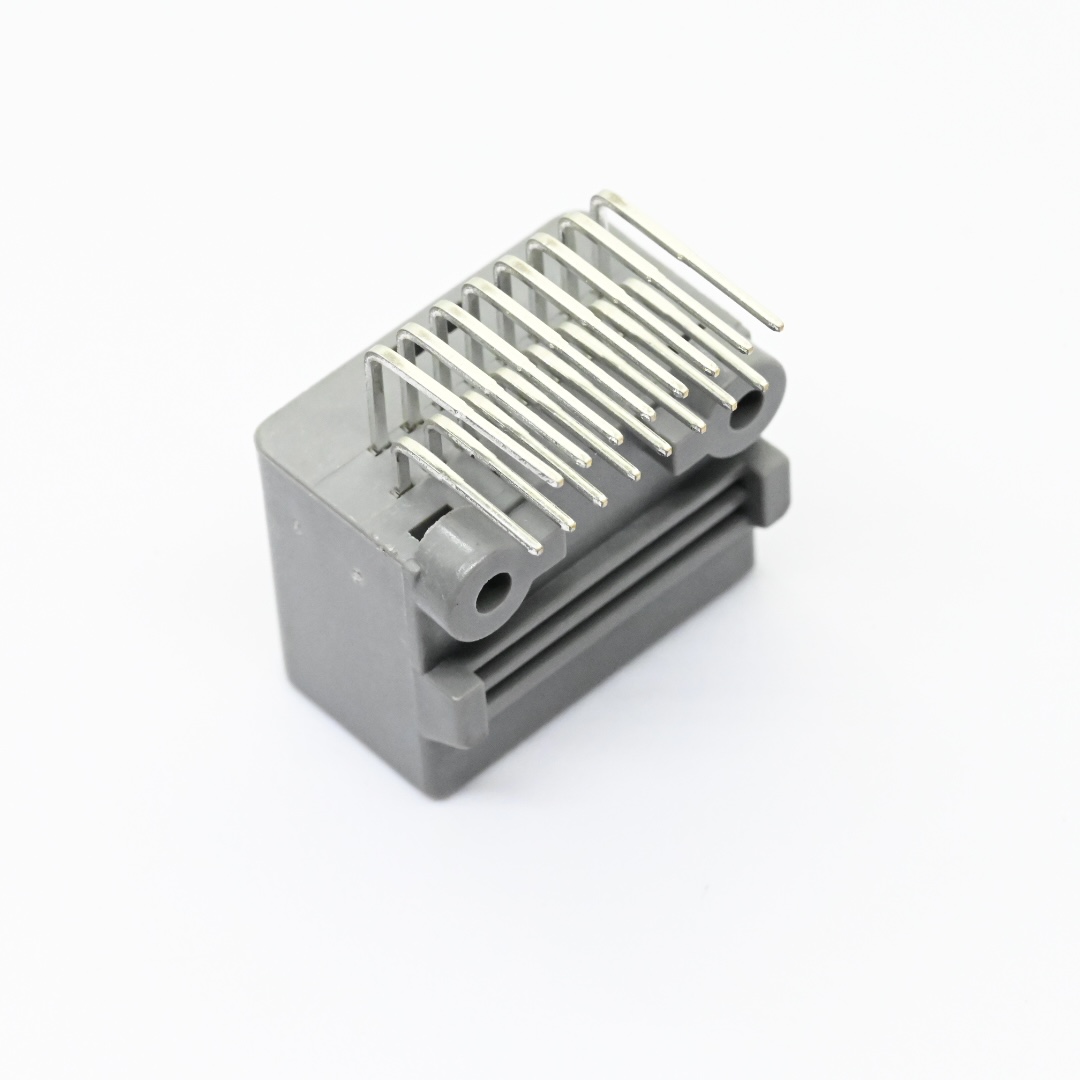

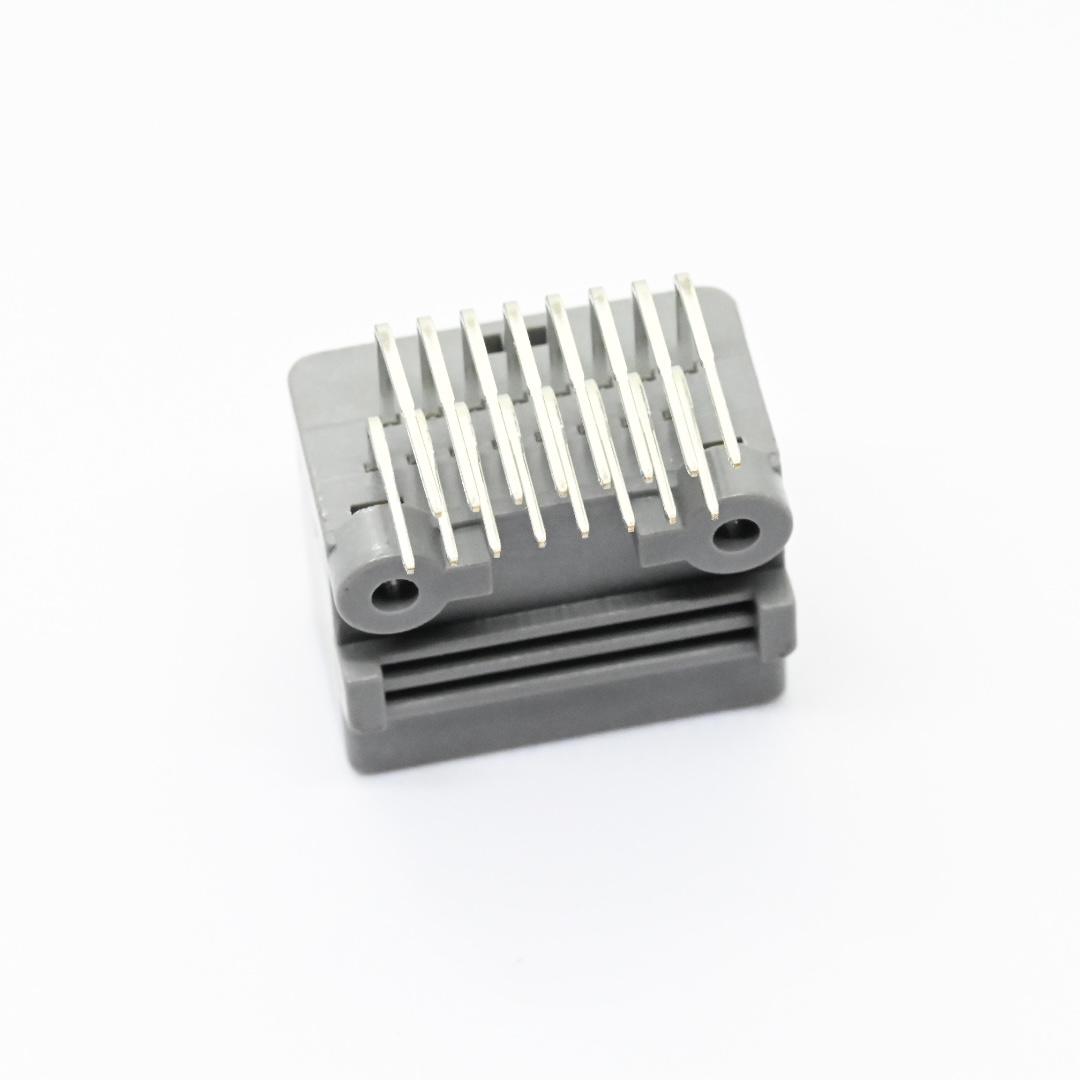

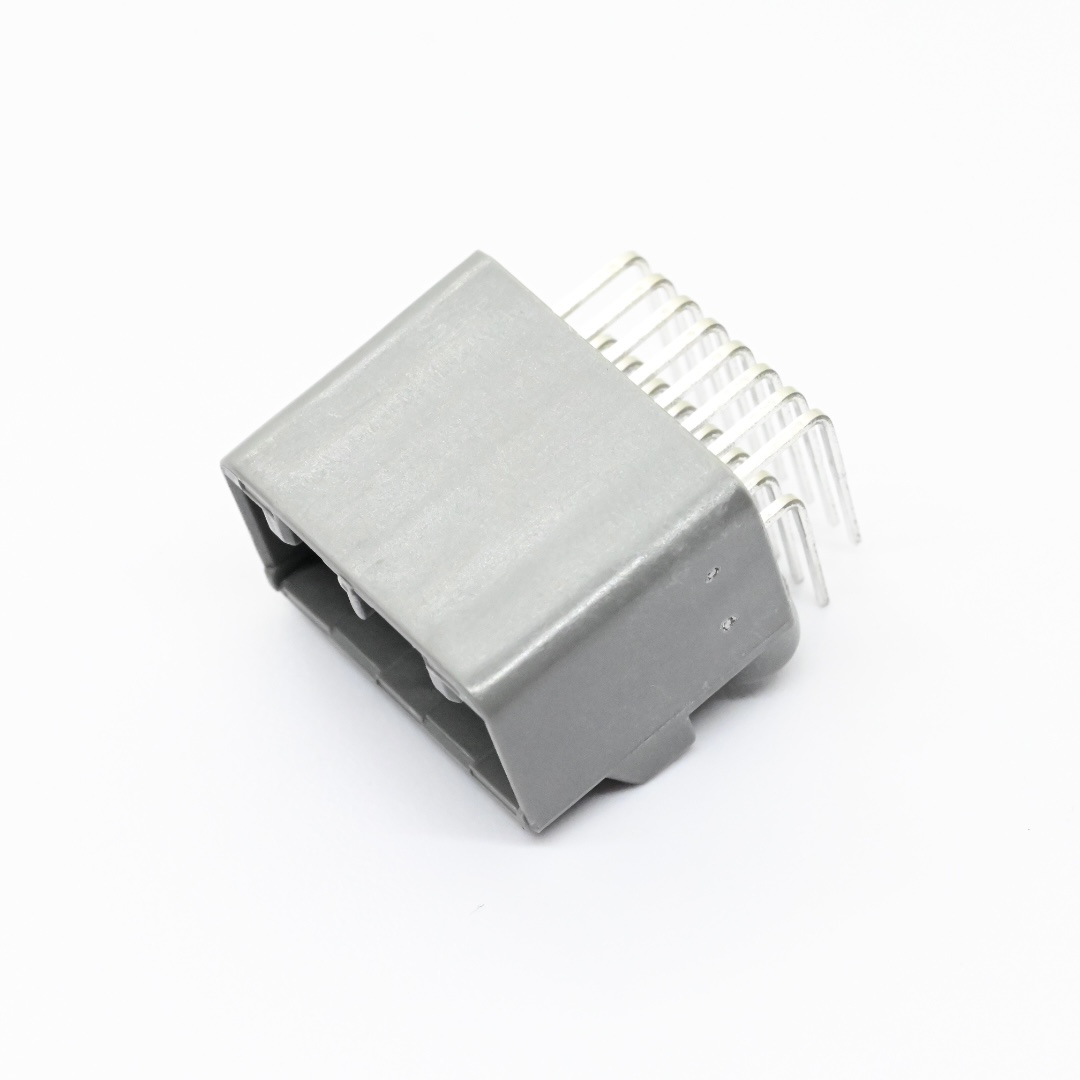

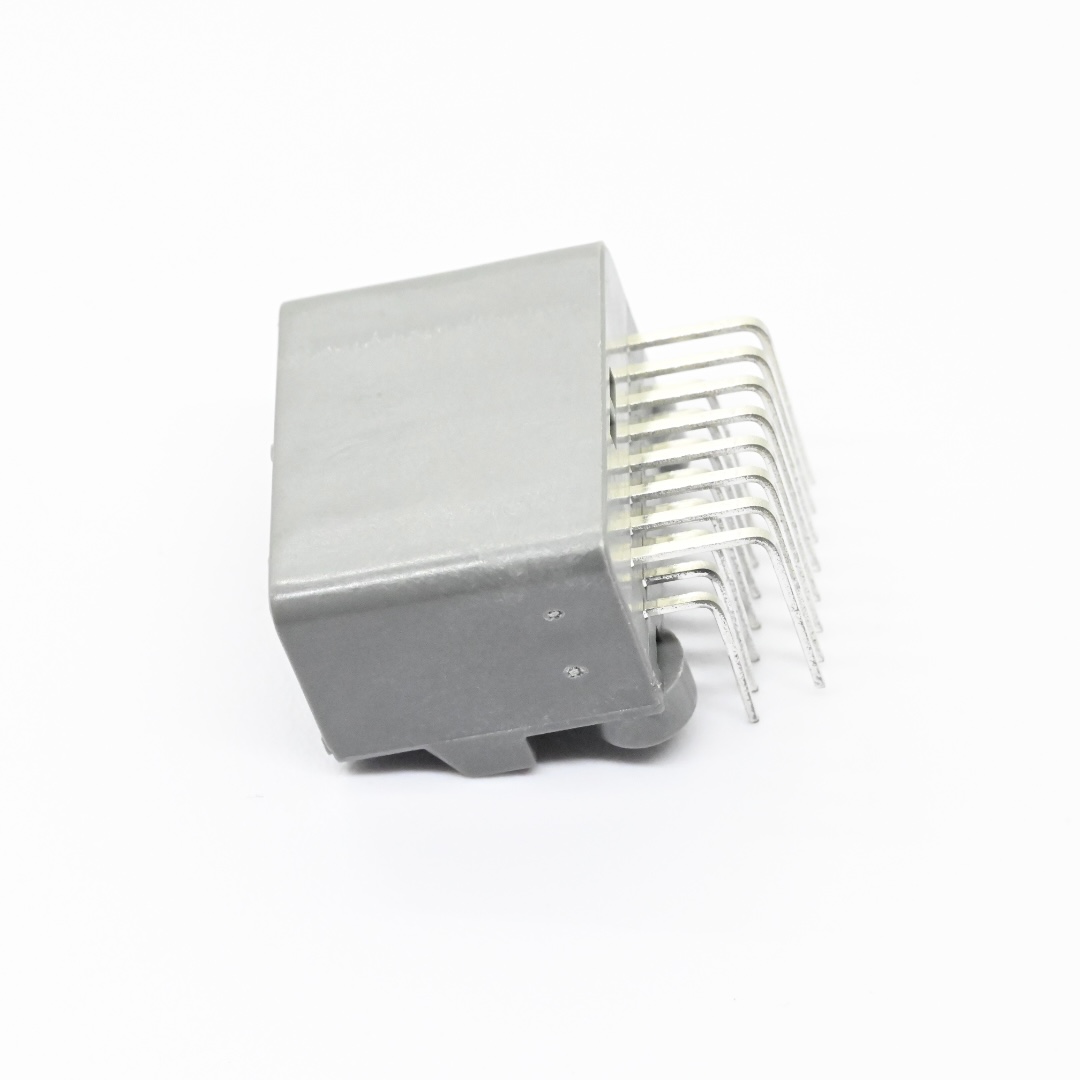

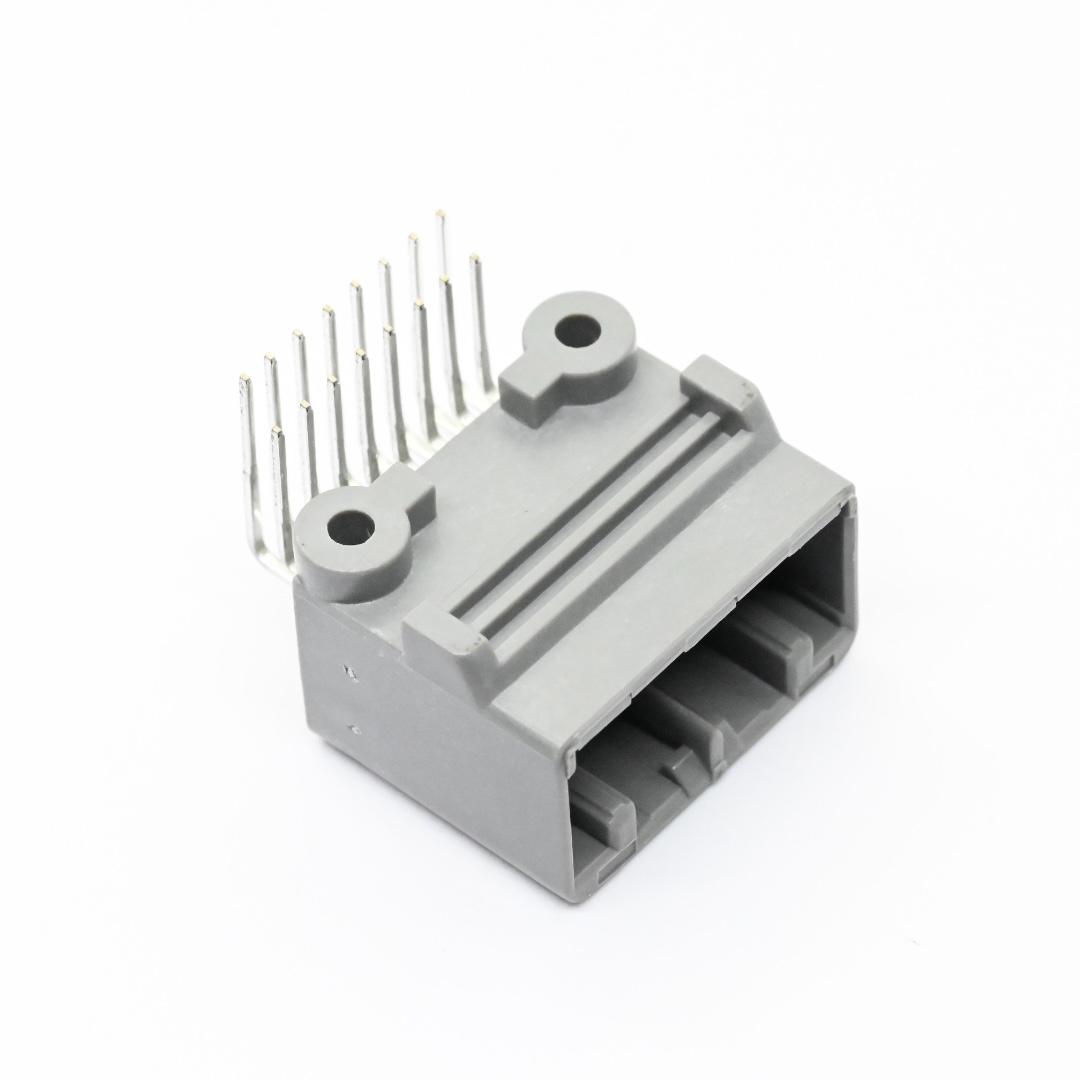

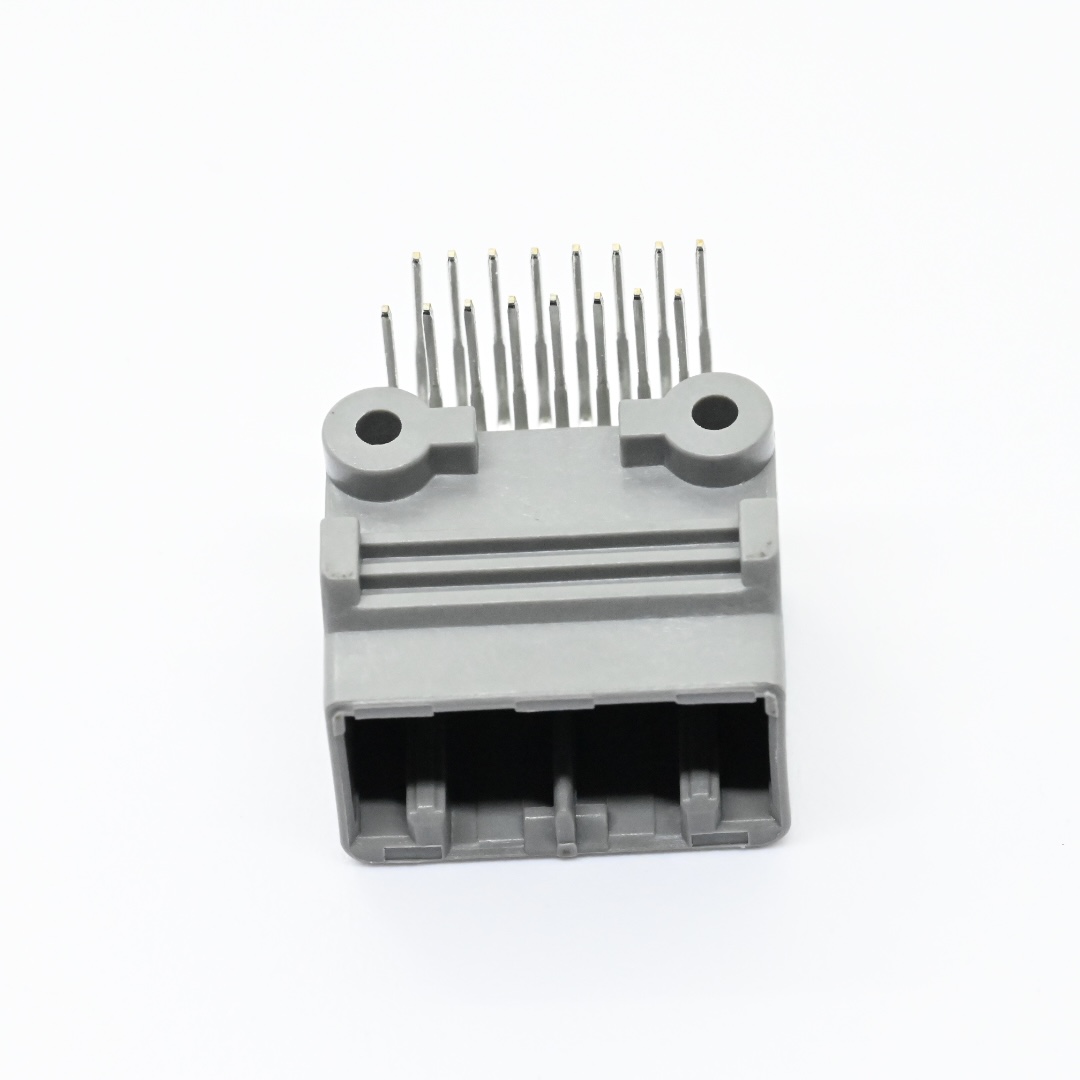

16 Pin Automotive Right Angle Male Header
2 week ago
Product details
1.Product Description:
Huizhou Antenk Electronics Co Ltd produces 16 pin automotive right angle male connector built for reliable vehicle electronic signal and power transmission. This automotive connector housing uses PET material with UL94 V zero flame retardant grade and contacts adopt gold plating finish, working temperature covers minus forty degree Celsius to plus eighty five degree Celsius. Users complete through hole soldering on printed circuit board following recommended PCB layout then mate with matching female counterpart to achieve stable electrical connection for automotive electronic assemblies. Operators must respect drawing dimension tolerances during PCB design avoid excessive mating force to prevent contact terminal deformation and keep goods stored in dry environment to protect plating layers against corrosion. Different from competitors sourcing outsourced components Antenk carries out full in house workflow including terminal stamping plastic molding assembly and comprehensive laboratory performance validation. Our factory holds ISO9001 ISO14001 IATF16949 and UL certifications and over seventy percent finished goods export globally. This connector fits automotive interior modules vehicle sensor units and industrial automotive related control hardware. Please send your pin count plating option and project specifications for free sample evaluation and complete technical document support.
Automotive PET Male Header adopts high performance PET housing material to deliver stable performance under harsh vehicle operating environments.
Right Angle Auto Header features angled structure to realize space saving PCB mounting for compact automotive electronic assemblies.
Gold Plated Auto Connector applies gold plated contact surface to sustain excellent conductivity and anti corrosion capability in vehicle application scenarios.
2.Detailed Specifications:
1. Mechanical Specifications
1.1 Product type: 16 pin automotive right angle male connector, part number AUTO‑2.2‑R‑16SN‑AG‑X‑2
1.2 Measurement unit: millimeter
1.3 Key dimension: Pitch 2.2 millimeter. Follow drawing dimension tolerances and PCB layout diagram for printed circuit board design reference.
1.4 Assembly method: Complete through hole soldering onto printed circuit board, mate with matching female counterpart to achieve automotive electrical interconnection.
1.5 Ordering feature: Multiple pin count options and different packaging selections including tray and tube.
1.6 CTA: Contact our engineering team to obtain complete dimension drawings and ordering specifications for your hardware design validation.
2. Material Construction
2.1 Insulator housing: PET material with UL94 V‑0 flame retardant grade
2.2 Contact pin: Metal base with gold plating surface treatment
3. Electrical & Performance Parameters
3.1 Contact resistance: Max 10 milliohm
3.2 Withstanding voltage: 1000V AC per minute
3.3 Insulation resistance: Minimum 1000 Megohm
3.4 Operating temperature range: ‑40℃ to +85℃
3.5 Mating durability: 50 cycles
3.6 Compliance: Meets RoHS and REACH environmental requirements
4. Usage Method
4.1 Assembly mode: Align connector pins with PCB through holes and perform through hole soldering. Connect with corresponding female connector to realize stable signal and power transmission for vehicle electronics.
4.2 Operation tip: Refer to official PCB layout drawing during circuit board development.
5. Application Scenarios
5.1 Signal connection for automotive interior electronic modules
5.2 Circuit interconnection for vehicle sensor assemblies
5.3 Power link for automotive control units
5.4 Wiring for auto related industrial control hardware
6. Operation & Storage Precautions
6.1 Strictly follow drawing dimension tolerances for PCB footprint design
6.2 Avoid excessive mating force to prevent deformation of gold plated contact terminals
6.3 Prevent scratches dirt and mechanical impact on terminals and PET housing before assembly
6.4 Store products inside dry environment to avoid corrosion of gold plating layers
6.5 Verify pin count plating option and packaging type before order placement
6.6 CTA: Submit your pin count plating requirement and project information, we provide free sample evaluation and professional technical consultation services.
3.FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

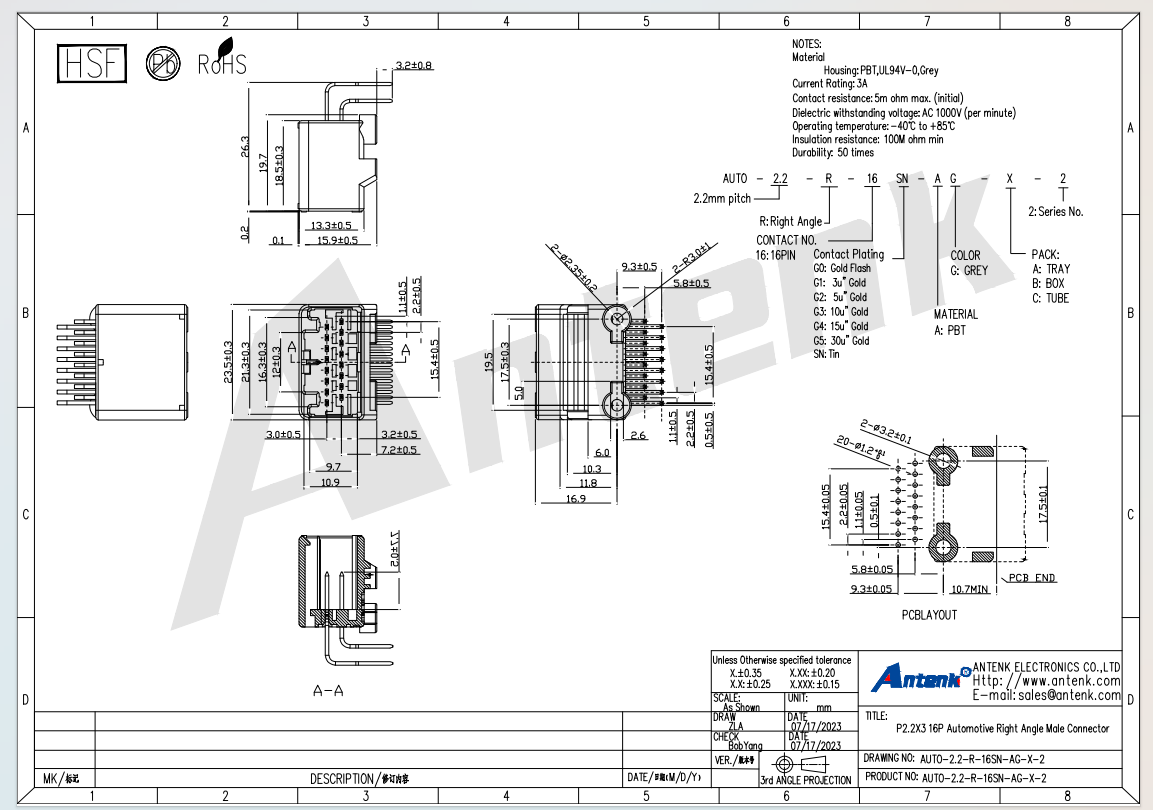

4.Product Drawing：
