JPB-N Plunger Pumps

Product Description

Ningbo Brilliant Machinery Co., Ltd is located in Ningbo, China. We offer durable triplex plunger pump units together with replacement spare components. Customers can source all needed pieces from us to assemble complete waterjet cleaning machinery. Each pump goes through pressure validation before leaving our factory.

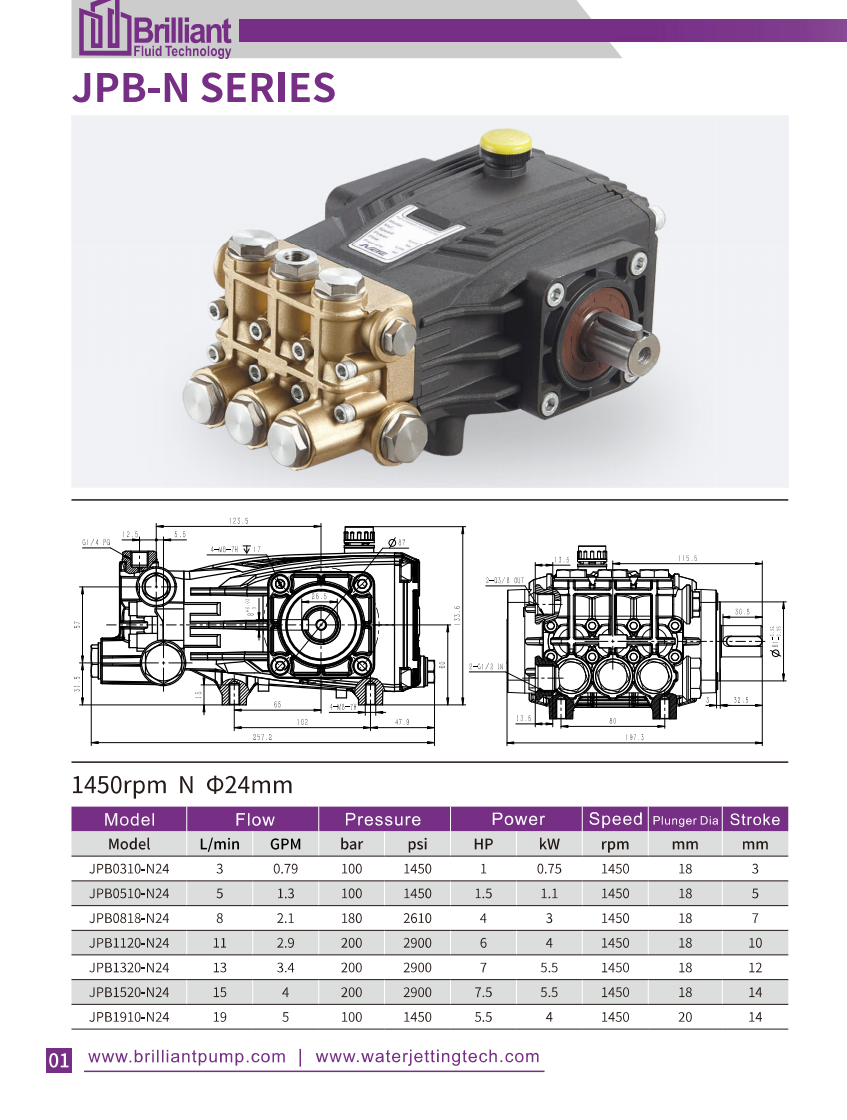

Model JPB‑N1520 delivers 15L/min flow rate with peak pressure hitting 200bar, driven by a 5.5kW motor. It adopts 18mm plunger diameter and 14mm stroke dimension. Ports are 1/2" female inlet and 3/8" female outlet, with maximum allowable working temperature up to 50℃. As a trustworthy car wash plunger pump, it performs reliably inside truck wash stations. This heavy‑use unit suits heavy daily workloads for operators running automotive and transportation high pressure washer systems.

Its forceful 200bar water jet clears mud, oil grime and road contaminants from truck bodies and chassis efficiently. Even inside high‑traffic washing workshops, it maintains consistent pressure through many hours of non‑stop operation. Worn‑out components can be replaced directly on site, which helps cut operational downtime for washing facilities. Every unit receives comprehensive pre‑delivery checks; test clips and inspection documents are available upon your request.

Key Features

200bar max pressure, 15L/min flow rate, 5.5kW drive motor

18mm plunger diameter, 14mm stroke; 1/2" F inlet, 3/8" F outlet

Max working temperature: 50℃ ‑ Powerful jet to remove mud, grease and road dirt from truck surfaces

Stable output for long‑hour operation in busy wash workshops

Fast on‑site part replacement; pre‑shipment test videos & reports supplied

Applications

Truck Exterior Washing, Vehicle Bay Cleaning, Commercial Car Wash Station, Automotive Transportation Washing Tasks
