| Max GPM | 25.4 |
| Max L/Min | 96 |
| Max PSI | 1450 |
| MaxBar | 180 |
| Power KW | 33 |
| Plunger Dia mm | 32 |
| Stroke mm | 27.5 |
| Inlet | 11/4" F |
| Outlet | 1" F |
| Max Temp | 50℃/122℉ |
| RPM | 1450 |
| Shaft Size | 30mm |
| Shaft Version | N |
| Shaft Type | Solid |
| Oil Type | Gear oil 220 |
TL Plunger Pumps
2 month ago
Product details
Product Description
Ningbo Brilliant Machinery specializes in manufacturing heavy-duty triplex plunger pumps tailored for all kinds of industrial cleaning scenarios. We supply standalone pump units as well as complete assembled pump sets, which can be perfectly adapted to various customer equipment systems. Thanks to stable field performance and responsive after-sales service, our plunger pumps are widely recognized by global industrial clients.

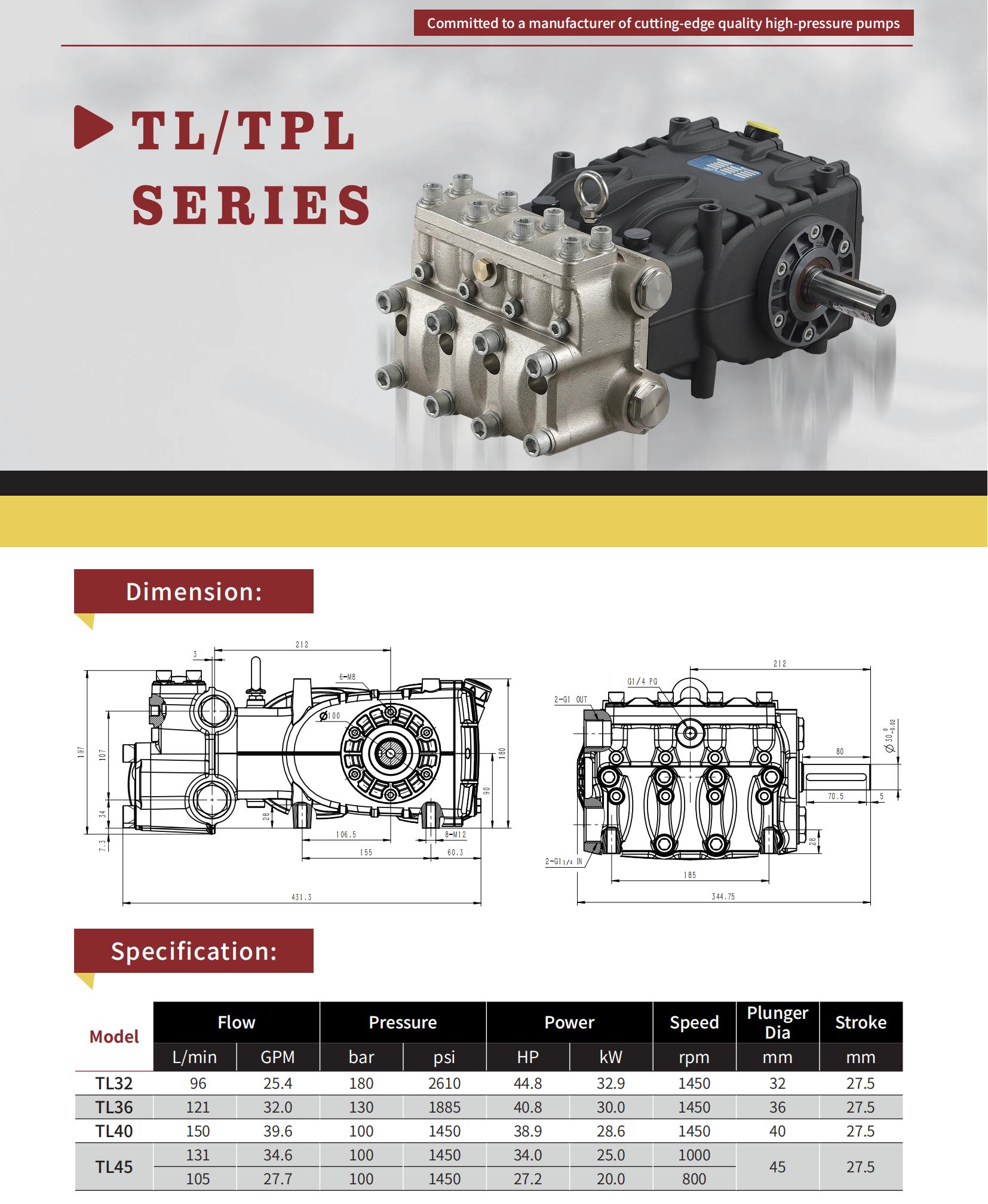

The TL32 pump operates at a fixed speed of 1450rpm, with rated working pressure of 180bar and a flow rate of 96L/min, matching 32.9kW (44.8HP) power support. Equipped with a 32mm diameter plunger and 27.5mm stroke length, this rugged pump is perfectly compatible with municipal and construction high-pressure washing equipment, ideal for on-site medium and high-pressure cleaning tasks.
This sturdy triplex plunger pump delivers consistent and smooth water jet output during prolonged continuous operation. As a practical industrial high pressure plunger pump, it is widely used for pipeline descaling, metal surface treatment and medium-flow liquid transportation. Most cleaning contractors prefer this model for its stable pressure performance in complex and tough working environments.
Adopting precision-machined plungers and high-quality sealing components, this high pressure washer pump effectively reduces internal friction and wear, greatly extending the overall service life. All core wearable accessories belong to standardized plunger pump spare parts and come with a 12-month warranty, helping customers cut daily maintenance expenses.
Thickened integral pump housing effectively suppresses operating vibration during long-hour running. It supports flexible installation methods, suitable for custom skid assembly, fixed cleaning stations and mobile washing truck refitting. Every single pump will undergo full-pressure factory testing before delivery, and complete test reports can be provided for customer quality verification.
Core Features
Standard triplex plunger structure, 180bar working pressure and 96L/min stable flow
32mm plunger diameter + 27.5mm stroke, fixed 1450rpm operating speed
Reinforced pump shell, stable output for long-term high-pressure continuous work
Wear-resistant plunger and premium seal sets for extended service life
Simple disassembly and seal replacement, convenient on-site maintenance
Applications
Industrial Pipeline Descaling, Metal Surface Preparation, Medium Volume Jet Cleaning, Water Treatment Liquid Delivery
