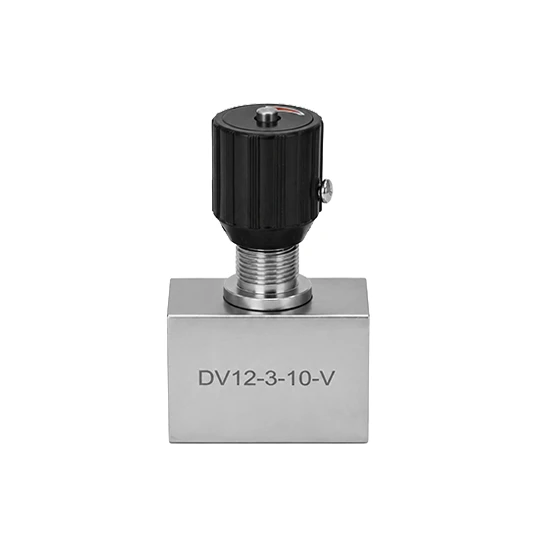

DV / DRV Series Tubular Inline Throttle Valve
Product Overview
DV / DRV Series Tubular Inline Throttle Valve is a thread‑connected Hydraulic valve. DV is a bidirectional throttle valve; DRV is throttle‑check combined valve. It is directly installed on pipeline of the hydraulic system to adjust oil flow and control operating speed of hydraulic cylinders and actuators for the Machine. DV can throttle oil flow in both directions. For DRV, forward oil passes through adjustable throttle opening for speed regulation, while reverse oil flows freely via built‑in check‑valve without throttling resistance. Damaged, scratched or improperly calibrated Hydraulic valve will result in unstable actuator speed, jerky action, slow movement, and affect overall running performance of the Machine. Compact inline structure simplifies pipeline layout, suitable for new equipment assembly and field maintenance of hydraulic system.
Technical Specifications
- Model Series: DV / DRV Series Tubular Inline Throttle Valve
- Valve Type: DV‑Bidirectional throttle Hydraulic valve; DRV‑Inline throttle‑check Hydraulic valve
- Sizes: 06,08,10,12,16,20,25,30
- Port Thread: BSP / NPT thread interface
- Max Working Pressure: 350 bar (35 MPa)
- Max Flow Rate: 15‑375 L/min (varies by nominal size)
- Check‑valve cracking pressure (DRV): 0.5 bar
- Working Medium: Anti‑wear mineral hydraulic oil
- Operating Temperature: ‑30℃ ~ +80℃
- Installation: Direct inline threaded pipe mounting
- Adjustment Mode: Graduated scale knob with locking device, repeatable flow setting
- Additional feature: Can act as shut‑off valve when fully closed
Working Principle
Inside the hydraulic system, rotating the graduated adjustment knob changes the cross‑section area of throttle orifice. For DV type, oil flow is throttled in both directions to control actuator speed of the Machine. For DRV type: when hydraulic oil flows forward, the built‑in check‑valve ball is pressed closed, all fluid must pass through adjustable throttle gap to realize speed regulation. When oil flows backward for return stroke, oil pressure lifts the check‑valve ball off the seat; hydraulic oil flows through large‑diameter passage without throttling restriction to achieve quick return motion. If throttle edge gets scratched or check‑valve sealing surface is worn, internal leakage will occur, causing flow disorder and degrading working efficiency of hydraulic system.
Core Advantages
1. Compact tubular inline thread‑through design, no extra valve manifold required, flexible pipeline layout for the Machine.
2. Graduated scale knob with locking structure, intuitive and repeatable flow setting, prevent accidental mis‑operation on‑site.
3. High‑precision internal throttle components, good sealing performance; the valve can work as shut‑off valve when fully closed.
4. Two structural options available: DV for bidirectional flow adjustment; DRV integrates check‑valve to separate working stroke and quick‑return stroke inside hydraulic system.
5. High‑pressure resistant valve body, stable performance under frequent cyclic impact load.
6. Simple installation and disassembly, direct fit for existing piping circuit, effectively solve common faults including speed fluctuation, jerky cylinder action, slow feeding speed.
Application Scope
This Hydraulic valve is widely used for general‑purpose industrial Machine, including hydraulic machine tools, hydraulic presses, injection molding machines, automation fixtures, test benches and light‑duty construction machinery. As essential flow‑regulating component of hydraulic system, it precisely controls moving speed of hydraulic cylinder and hydraulic motor. It is widely adopted for original production, equipment retrofitting and spare‑part replacement work.
