24 Pin Automotive Right Angle Male Header
2 week ago

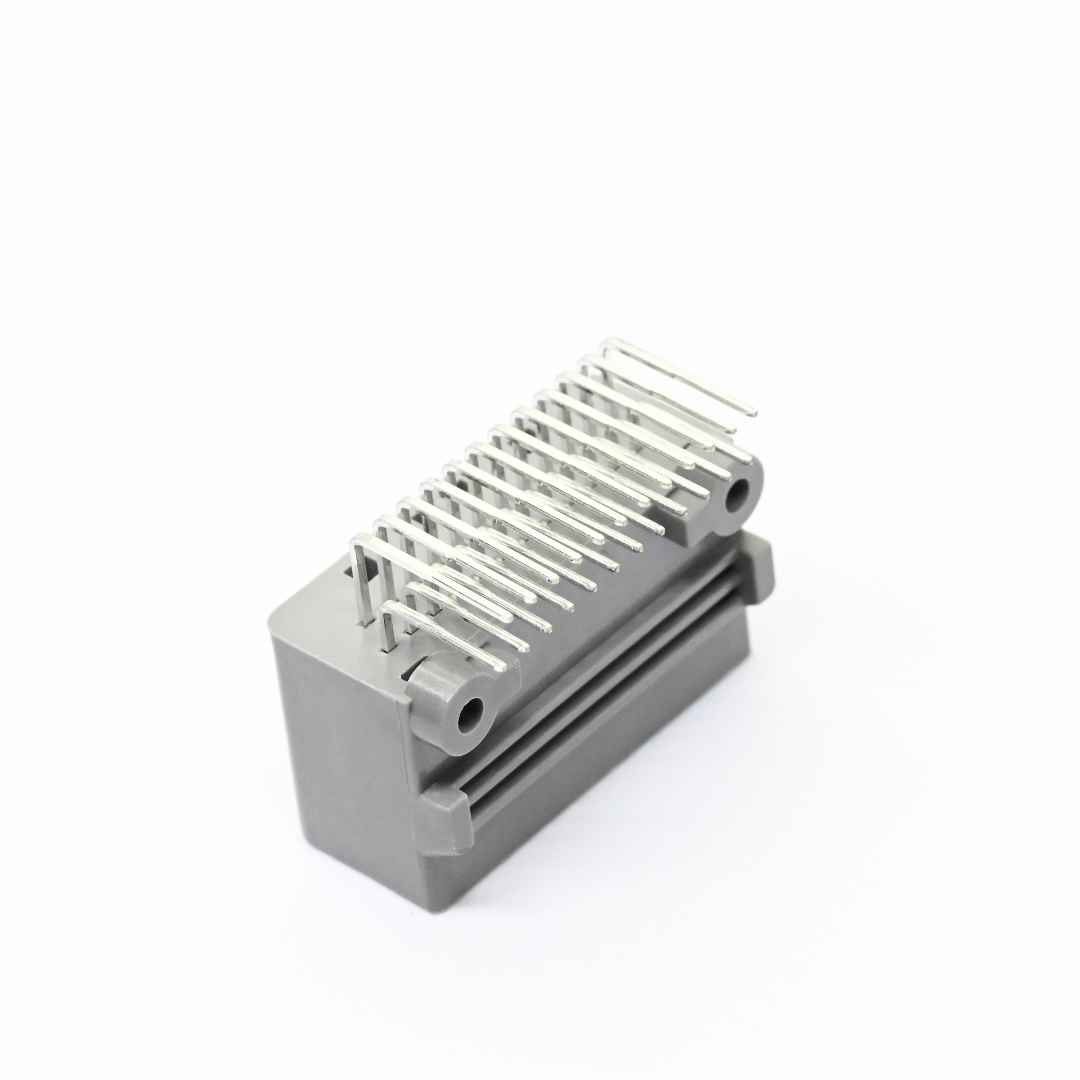

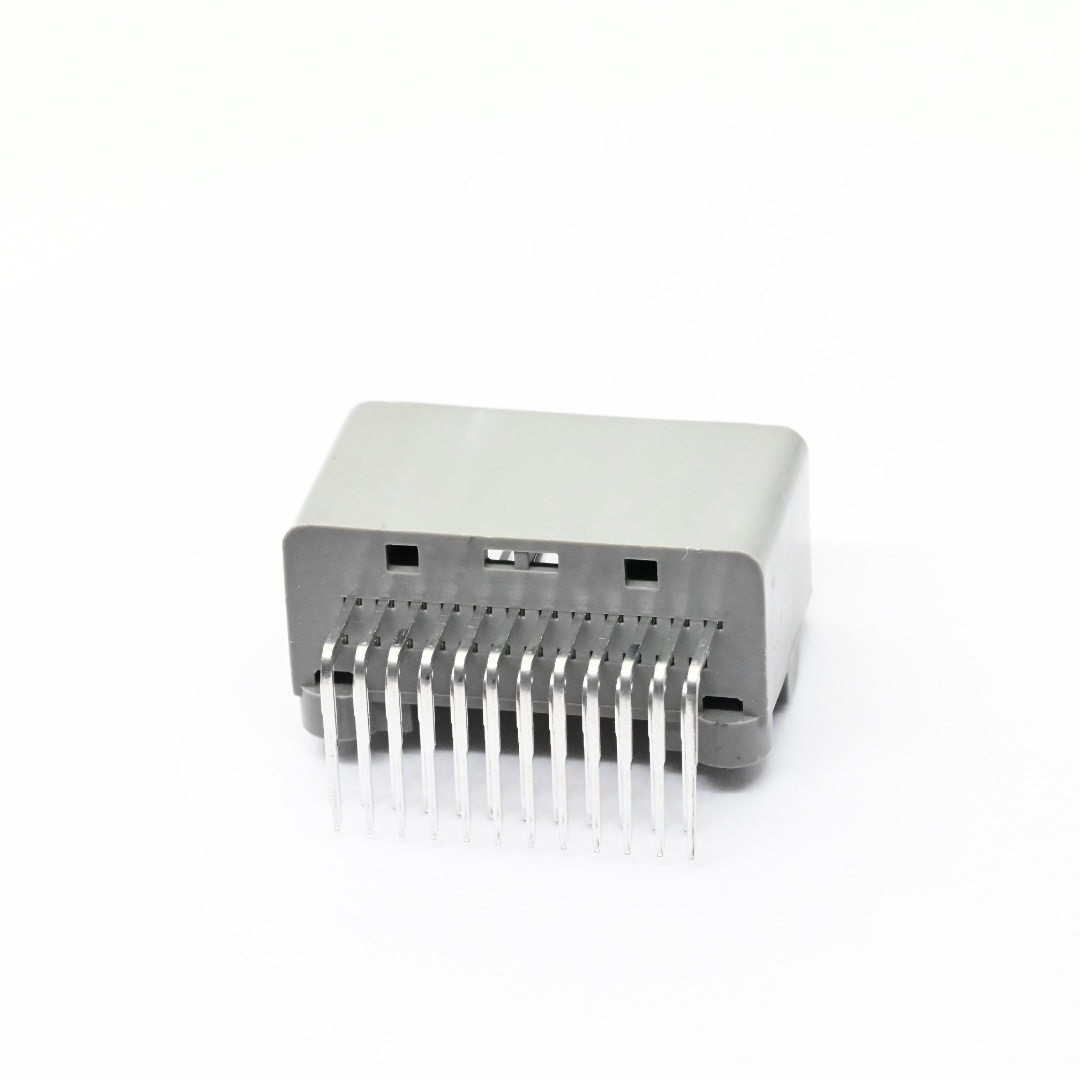

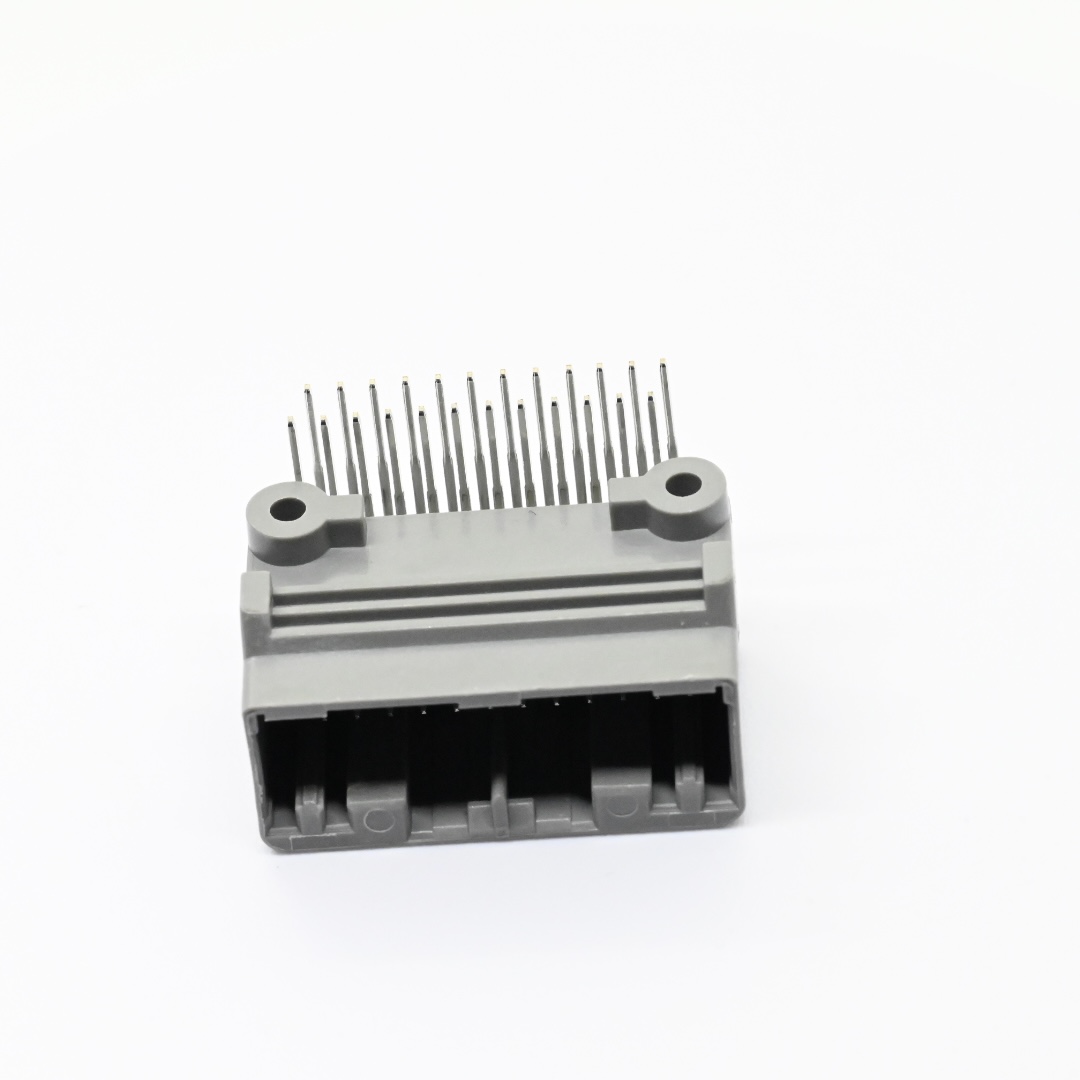

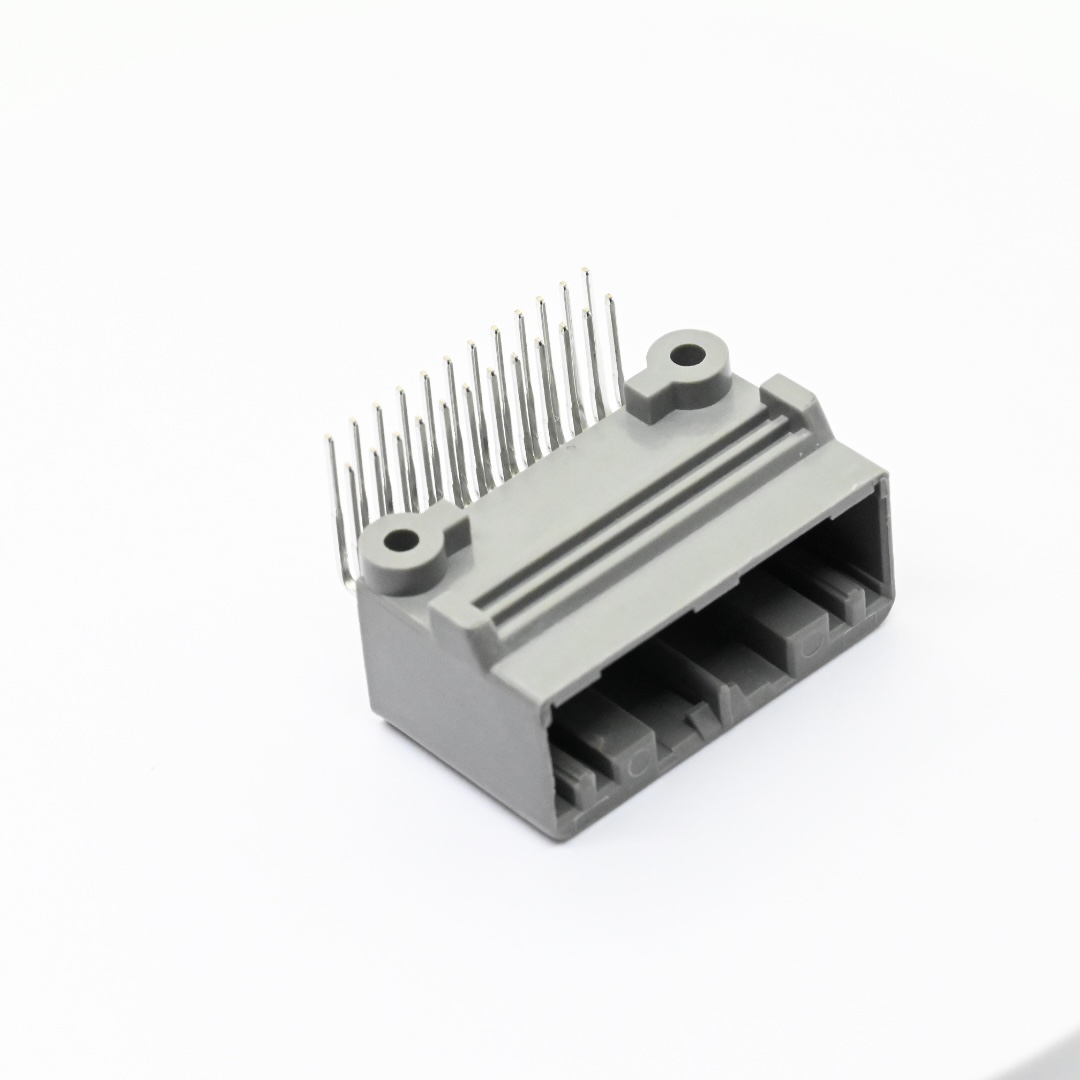

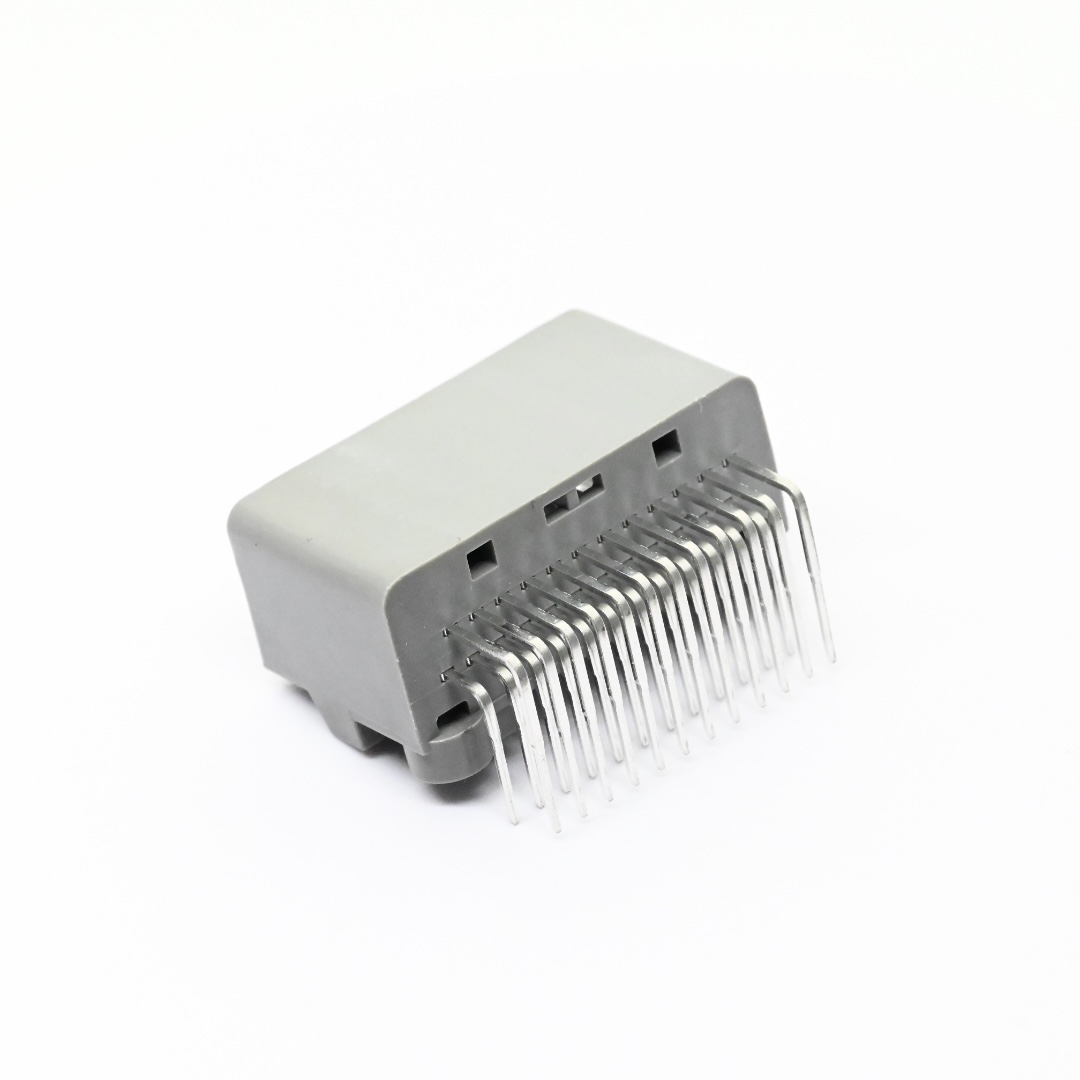

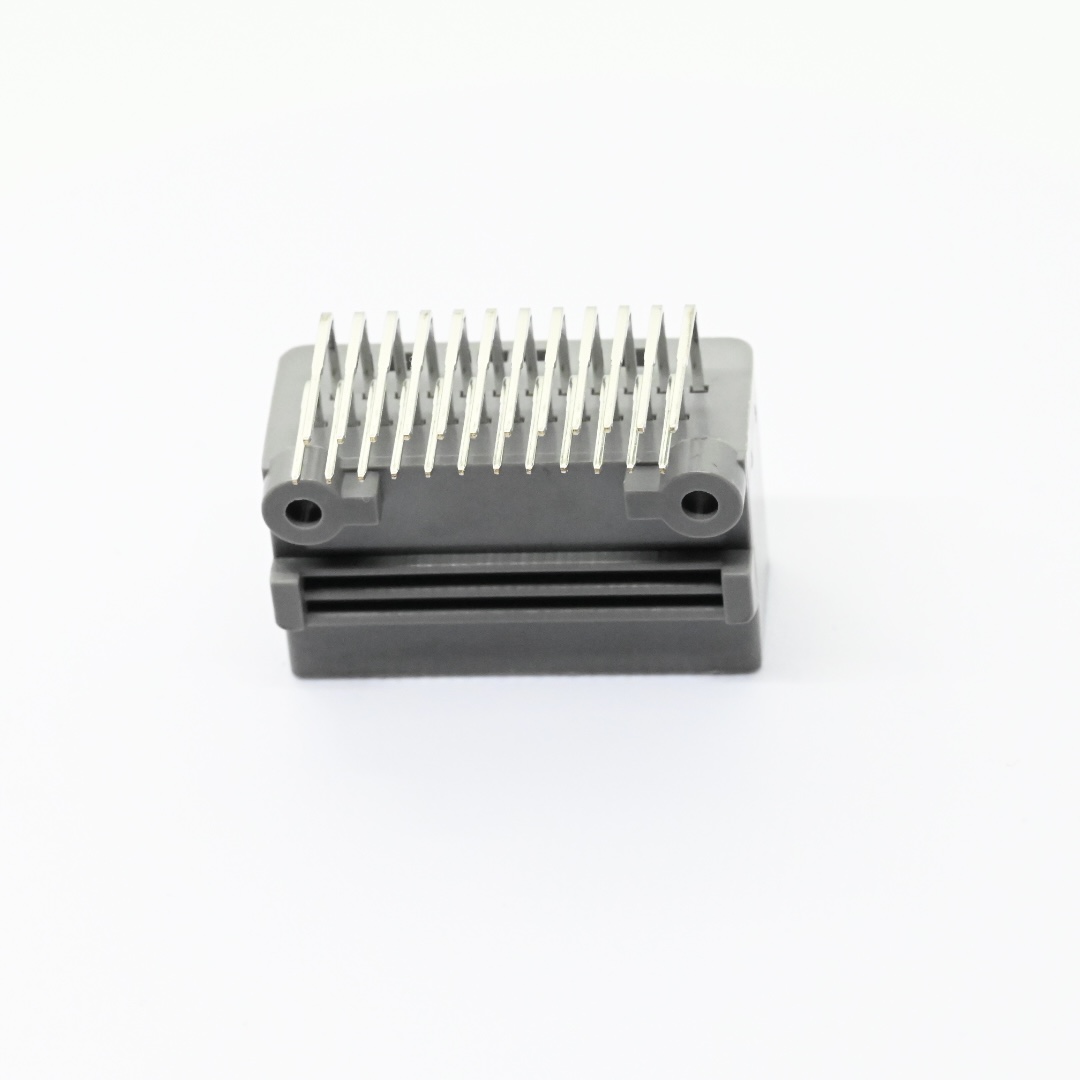

Product details
1.Product Description:
Huizhou Antenk Electronics Co Ltd manufactures 24 pin automotive right angle male connector to deliver dependable signal and power transmission for automotive electronic assemblies. This 2.2 millimeter pitch connector adopts PET housing with UL94 V zero flame retardant grade and gold plated contact terminals, supporting operating temperature from minus forty degree Celsius to plus eighty five degree Celsius with fifty times mating durability. Users complete through hole soldering on printed circuit board according to official PCB layout drawing and mate with matched female connector to build stable vehicle electrical links. Operators must comply with drawing dimension tolerances in PCB development avoid excessive mating force to prevent terminal deformation and store goods in dry condition to preserve gold plating from corrosion. Unlike competitors purchasing external components Antenk conducts full in house production workflow covering terminal stamping plastic molding assembly and comprehensive laboratory performance testing. Our factory holds ISO9001 ISO14001 IATF16949 and UL certifications and more than seventy percent finished goods export worldwide. This connector suits automotive control units vehicle interior modules and auto related industrial control equipment. Please submit your pin count plating requirement and project details for free sample evaluation and complete technical document support.
High Temp Auto Header maintains stable electrical performance under wide temperature fluctuations within automotive working environments.
Tray Pack Auto Connector adopts standardized tray packaging to protect terminals from damage during transportation and production handling.
Vehicle PCB Male Header is designed for through hole mounting to establish reliable circuit connections on automotive printed circuit boards.
2.Detailed Specifications of 24 Pin Automotive Right Angle Male Connector
1. Mechanical Specifications
1.1 Product type: 24 pin automotive right angle male connector, part number AUTO‑2.2‑R‑24SN‑AG‑X‑2
1.2 Measurement unit: millimeter
1.3 Key dimension: Pitch 2.2 millimeter. Refer to engineering drawing dimension tolerances and PCB layout diagram for printed circuit board development.
1.4 Assembly method: Perform through hole soldering onto printed circuit board, mate with matching female counterpart to realize automotive electrical interconnection.
1.5 Ordering feature: Support multiple pin count options, available packaging choices include tray and tube.
1.6 CTA: Contact our engineering team to obtain complete dimension drawings and ordering specifications for your hardware design validation.
2. Material Construction
2.1 Insulator housing: PET material with UL94 V‑0 flame retardant grade
2.2 Contact pin: Metal base with gold plating surface treatment
3. Electrical & Performance Parameters
3.1 Contact resistance: Max 10 milliohm
3.2 Withstanding voltage: 1000V AC per minute
3.3 Insulation resistance: Minimum 1000 Megohm
3.4 Operating temperature range: ‑40℃ to +85℃
3.5 Mating durability: 50 cycles
3.6 Compliance: Meets RoHS and REACH environmental requirements
4. Usage Method
4.1 Assembly mode: Align connector pins with PCB through holes and complete through hole soldering. Connect with corresponding female connector to achieve stable signal and power transmission for automotive electronic hardware.
4.2 Operation tip: Follow official PCB layout drawing during circuit board design work.
5. Application Scenarios
5.1 Signal connection for automotive interior electronic modules
5.2 Circuit interconnection for vehicle sensor assemblies
5.3 Power link for automotive control units
5.4 Wiring connection for auto related industrial control equipment
6. Operation & Storage Precautions
6.1 Strictly comply with drawing dimension tolerances for PCB footprint design
6.2 Avoid excessive mating force to prevent deformation of gold plated contact terminals
6.3 Prevent scratches dirt and mechanical impact on terminals and PET housing before assembly
6.4 Keep products stored in dry surroundings to avoid corrosion of gold plating surfaces
6.5 Confirm pin count plating option and packaging style before placing purchase order
6.6 CTA: Submit your pin count plating requirement and project information, we provide free sample evaluation and professional technical consultation services.
3.FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

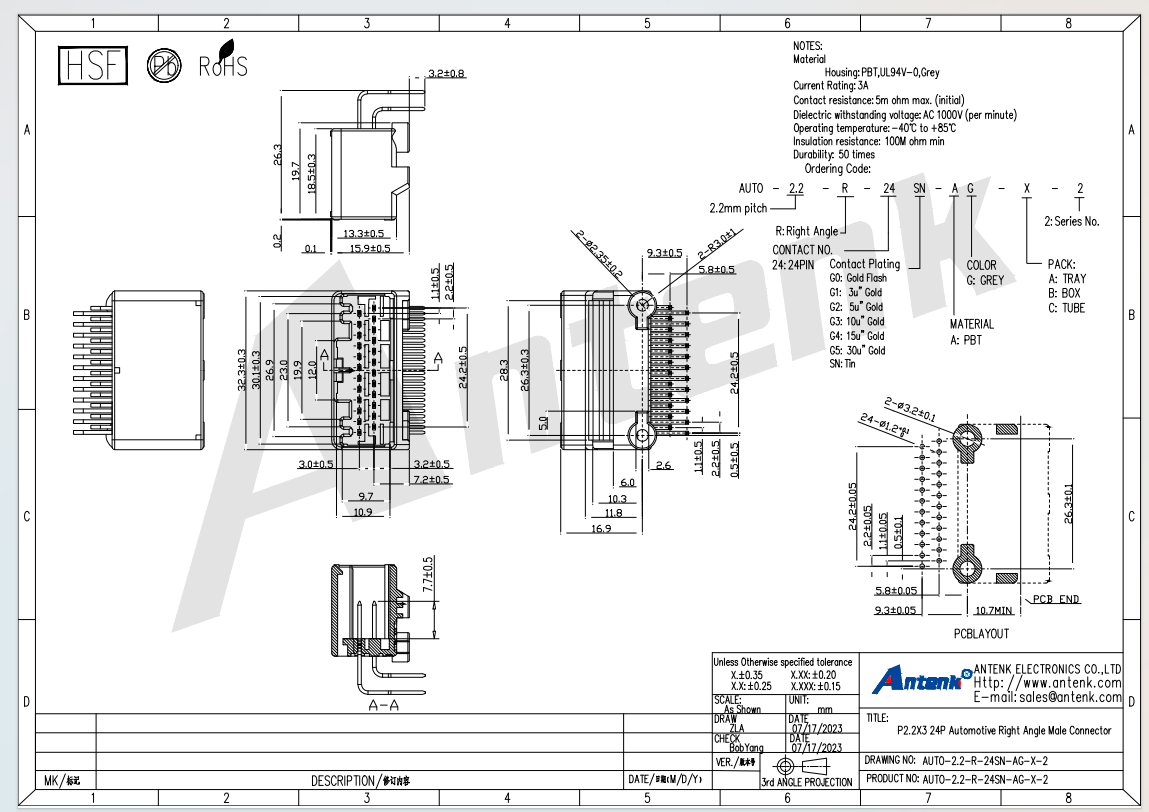

4.Product Drawing:
