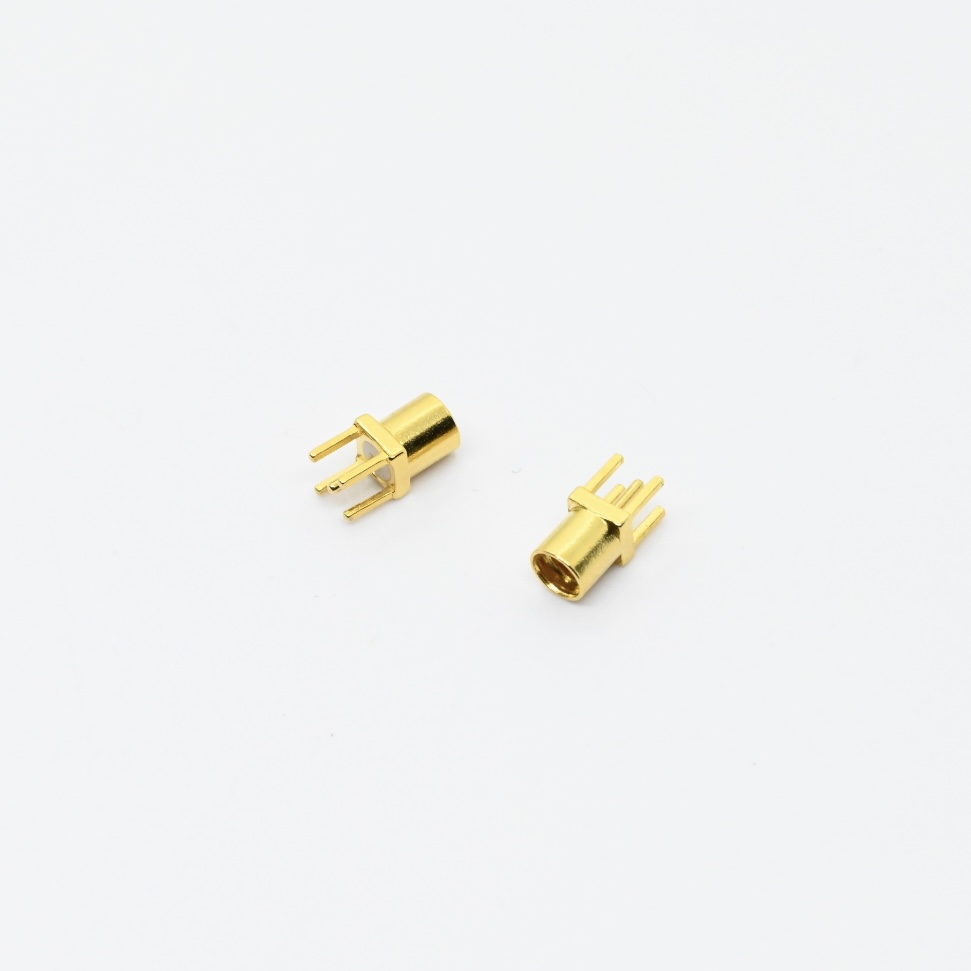

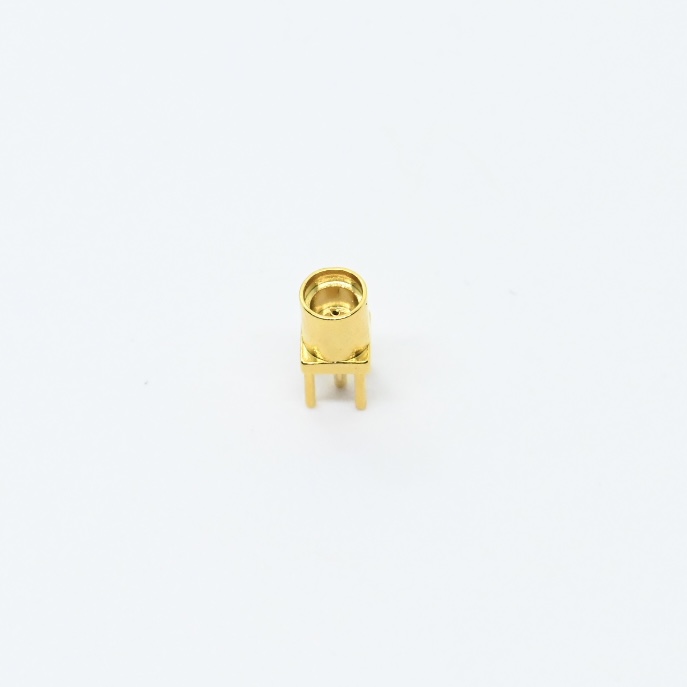

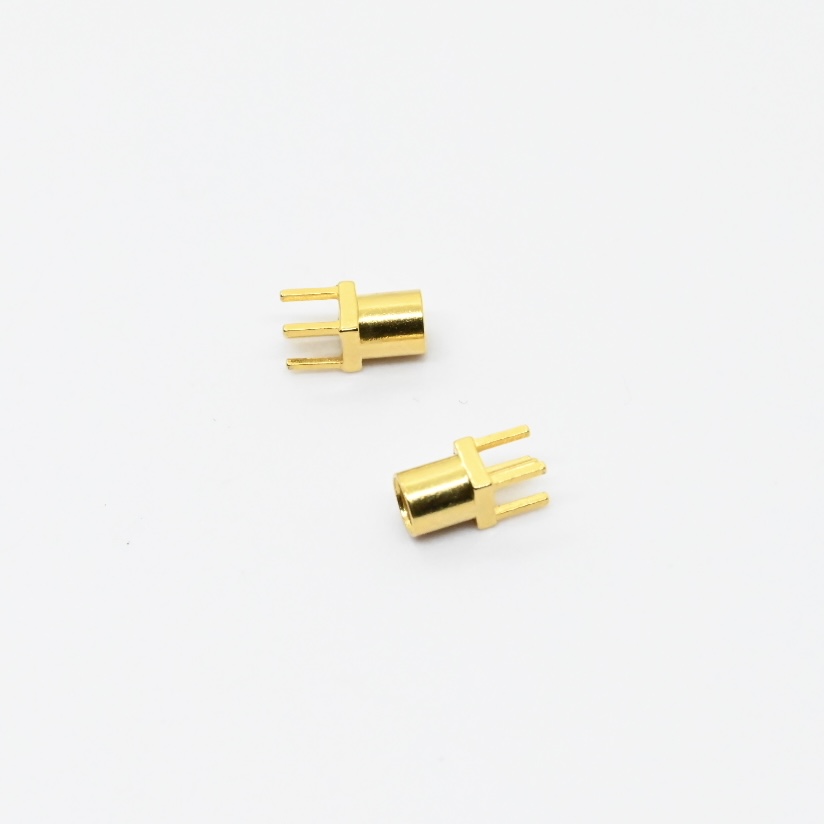

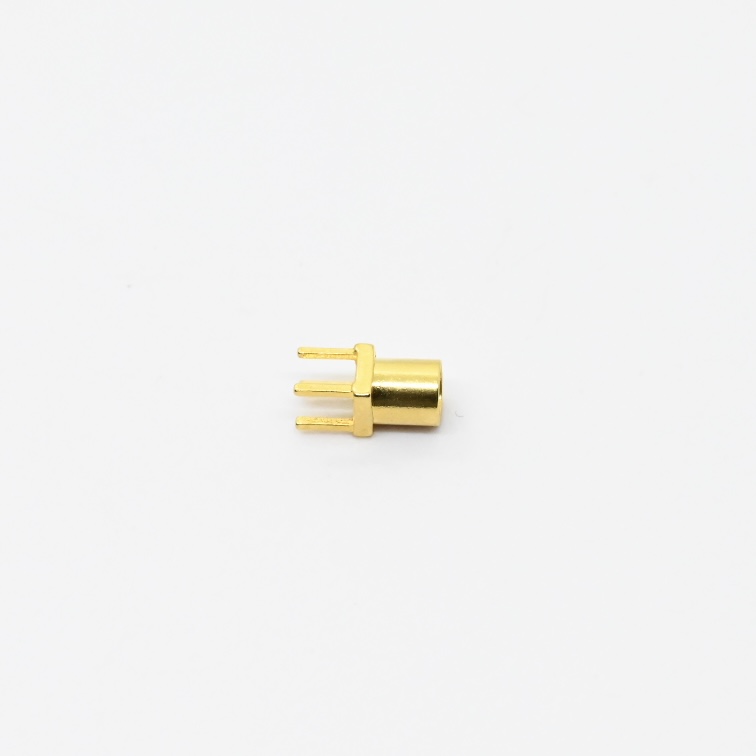

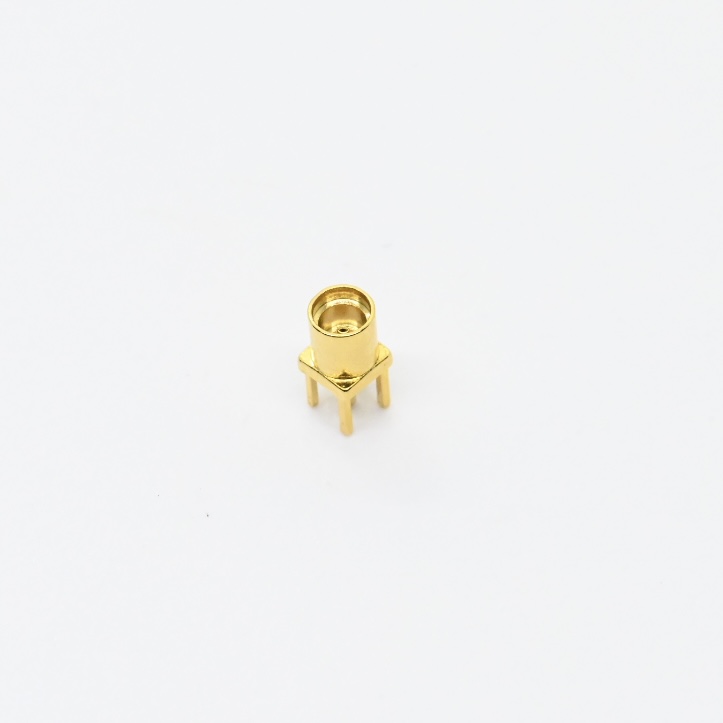

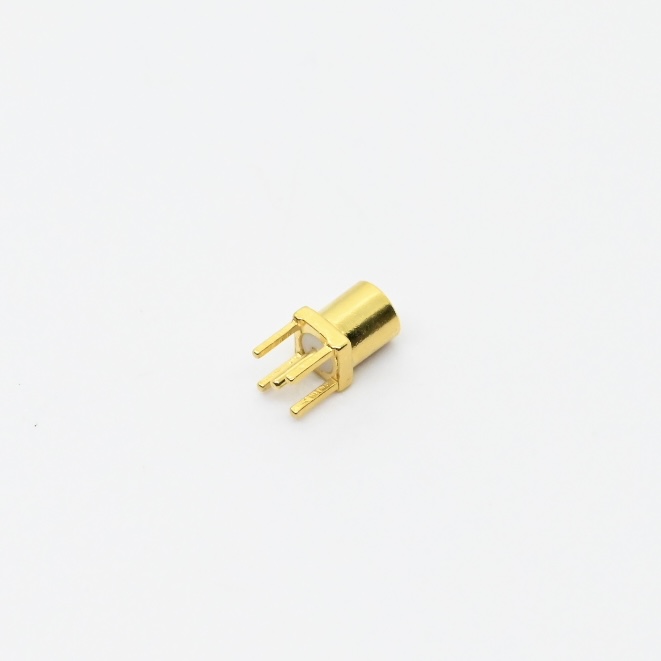

PCB Mount MMCX Straight Receptacle

Huizhou Antenk Electronics Co Ltd manufactures PCB mount MMCX straight receptacle to deliver reliable high frequency radio frequency signal interconnection for compact electronic circuit boards. This miniature coaxial connector adopts brass outer shell beryllium copper contact pin and PTFE insulating dielectric, with precise dimension parameters shown on engineering drawing for PCB footprint reference. Users complete through hole soldering on printed circuit board following official recommended mounting dimension drawing and mate corresponding MMCX plug to realize stable RF signal transmission. Operators must strictly follow drawing dimensional tolerances for PCB design avoid excessive plugging force to prevent internal contact deformation and store components inside dry environment to protect metal plating from corrosion. Unlike competitors purchasing outsourced components Antenk carries out full in house workflow covering metal stamping precision turning plastic molding assembly and comprehensive laboratory performance inspection. Our factory holds ISO9001 ISO14001 IATF16949 and UL certifications and more than seventy percent finished goods export worldwide. This receptacle fits wireless communication modules GPS equipment measuring instruments and miniature IoT hardware. Please send your plating requirement packing option and project specifications for free sample evaluation and complete technical document support.



2.Detailed Specifications of MMCX KE Straight Receptacle

1. Mechanical Specifications

    1.1 Product type: Through hole mount MMCX KE straight receptacle

    1.2 Measurement unit: millimeter

    1.3 Key dimension: Main body overall length 7.5 millimeter, refer to engineering drawing for outline sizes and recommended PCB mounting dimensions. Follow drawing standard tolerances for all unspecified dimensions for printed circuit board development.

    1.4 Assembly method: Perform through hole soldering onto printed circuit board, mate with compatible MMCX plug to realize high frequency RF signal interconnection.

    1.5 Ordering feature: Multiple surface plating options are available for metal components, diverse packaging selections can be supported.

    1.6 CTA: Contact our engineering team to obtain complete dimension drawings and ordering specifications for your hardware design validation.

2. Material Construction

    2.1 Outer shell: Brass material

    2.2 Insulating dielectric: PTFE

    2.3 Contact jack: Beryllium copper

3. Electrical & Performance Parameters

    3.1 Compliance: Meets RoHS environmental requirements

    3.2 Mechanical and radio frequency performance shall comply with corresponding drawing specification requirements

4. Usage Method

    4.1 Assembly mode: Align connector pins with PCB through holes and finish through hole soldering. Connect with matched MMCX plug to achieve stable high frequency radio frequency signal transmission.

    4.2 Operation tip: Adopt recommended PCB mounting dimensions shown on official drawing during circuit board layout design.

5. Application Scenarios

    5.1 RF signal connection for wireless communication modules

    5.2 Signal interface for GPS positioning equipment

    5.3 High frequency circuit interconnection for precision measuring instruments

    5.4 Radio frequency link for miniature IoT electronic hardware

6. Operation & Storage Precautions

    6.1 Strictly comply with drawing dimension tolerances for PCB footprint design

    6.2 Avoid excessive mating force to prevent deformation of internal beryllium copper contact jack

    6.3 Prevent scratches dirt and mechanical impact on brass shell and inner contact parts before assembly

    6.4 Store products in dry surroundings to avoid corrosion of metal plating surfaces

    6.5 Confirm metal surface plating option and packaging style before placing purchase order

    6.6 CTA: Submit your plating requirement packaging preference and project information, we provide free sample evaluation and professional technical consultation services.



3.FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

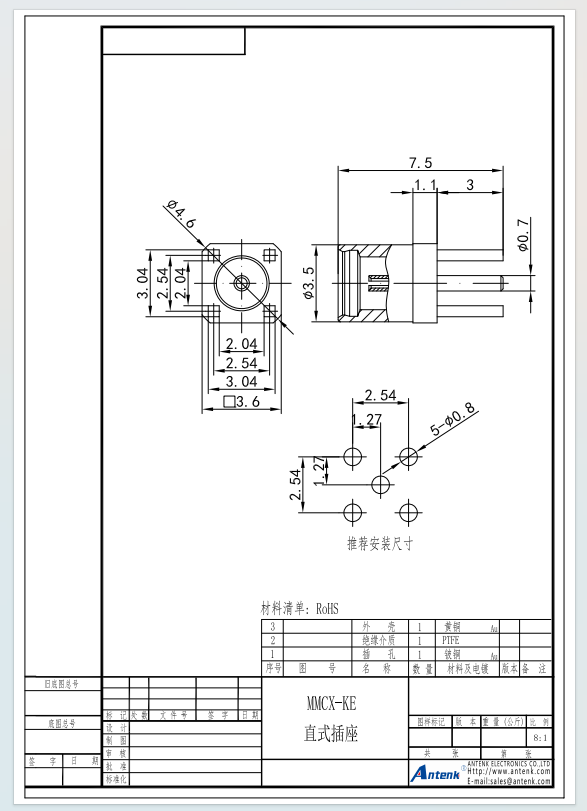

4.Product Drawing：
