Through Hole D Cell Battery Holder
2 week ago
Product details
1.Product Description：
Huizhou Antenk Electronics Co Ltd manufactures through hole D cell single battery holder to deliver stable power supply for printed circuit board based electronic equipment. This through hole mount battery holder uses black PP resin base housing with UL94 HB flammability rating or customizable grade, 1.00 millimeter 65C spring steel nickel plated spring contacts and brass nickel plated PC pins and rivets, with complete dimensional information shown on engineering drawing for PCB layout reference, operating temperature ranges from minus ten degree Celsius to eighty degree Celsius. Users perform through hole soldering onto printed circuit board following official PCB mounting drawing and insert D size battery into holder cavity to achieve steady power output for target electronics. Operators must follow drawing dimension tolerances for footprint design avoid heavy pressure to prevent spring contact deformation and store goods in dry environment to protect nickel plating layers against rust. Unlike competitors buying outsourced parts Antenk completes full in house workflow covering plastic molding terminal stamping assembly and full set laboratory performance testing. Our factory holds ISO9001 ISO14001 IATF16949 and UL certifications and over seventy percent finished goods export globally. This holder fits industrial control devices large power consumer appliances and general electronic assemblies. Please send your plating selection packing preference and project specifications for free sample evaluation and full technical document support.
Black PP Resin Battery Casing adopts black PP resin material with customizable flame resistance grade to offer reliable structural support for D size battery installation.
Nickel Plated Battery Socket applies uniform nickel plating treatment on metal components to realize stable electrical conduction and resist surface oxidation.
Spring Steel Battery Container uses high toughness spring steel parts to maintain proper contact pressure and secure placement for single D cell battery.
2.Detailed Specifications of BBC‑S‑SI‑X‑D‑001 Single Battery Holder For D Type THM
1. Mechanical Specifications
1.1 Product type: Through hole mount single battery holder for D type cell, part number BBC‑S‑SI‑X‑D‑001
1.2 Measurement unit: millimeter
1.3 Key dimension: Refer to engineering drawing for overall outline sizes and recommended PCB mounting layout. Follow drawing standard dimensional tolerances for unspecified dimensions during printed circuit board design.
1.4 Assembly method: Complete through hole soldering onto printed circuit board, insert D size battery into holder cavity to achieve stable power connection for electronic devices.
1.5 Ordering feature: Multiple contact plating selections including tin and various gold thickness grades, tray or bag packaging options are available.
1.6 CTA: Contact our engineering team to obtain complete dimension drawings and ordering specifications for your hardware design validation.
2. Material Construction
2.1 Base housing: Black PP resin, flammability rating UL94‑HB or customized grade
2.2 PC pins: 0.8 by 28 millimeter brass with nickel plating
2.3 Contact spring: 1.00 millimeter 65C spring wire with nickel plating
2.4 Rivets: Brass with nickel plating
3. Electrical & Performance Parameters
3.1 Compliance: Meets RoHS environmental requirements
3.2 Operating temperature range: Minus 10 degree Celsius to 80 degree Celsius
3.3 Electrical performance shall comply with requirements defined in official drawing documents
4. Usage Method
4.1 Assembly mode: Align holder through hole pins with PCB mounting holes and finish through hole soldering. Place D type battery inside holder cavity to realize reliable power supply for target electronic equipment.
4.2 Operation tip: Adopt recommended PCB mounting dimensions shown on official drawing for circuit board layout development.
5. Application Scenarios
5.1 Power supply for industrial control electronic equipment
5.2 Battery power connection for large size portable devices
5.3 Power source for field measuring instrument modules
5.4 Standby power for general high power consumer electronic assemblies
6. Operation & Storage Precautions
6.1 Strictly follow drawing dimension tolerances for PCB footprint design
6.2 Avoid heavy pressing force to prevent permanent deformation of 65C spring wire contacts
6.3 Prevent scratches dirt and mechanical impact on plastic base and metal components before assembly
6.4 Store products in dry environment to avoid corrosion of nickel plating surfaces
6.5 Confirm contact plating selection and packaging style before placing purchase order
6.6 CTA: Submit your plating requirement packaging preference and project information, we provide free sample evaluation and professional technical consultation services.
3.FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

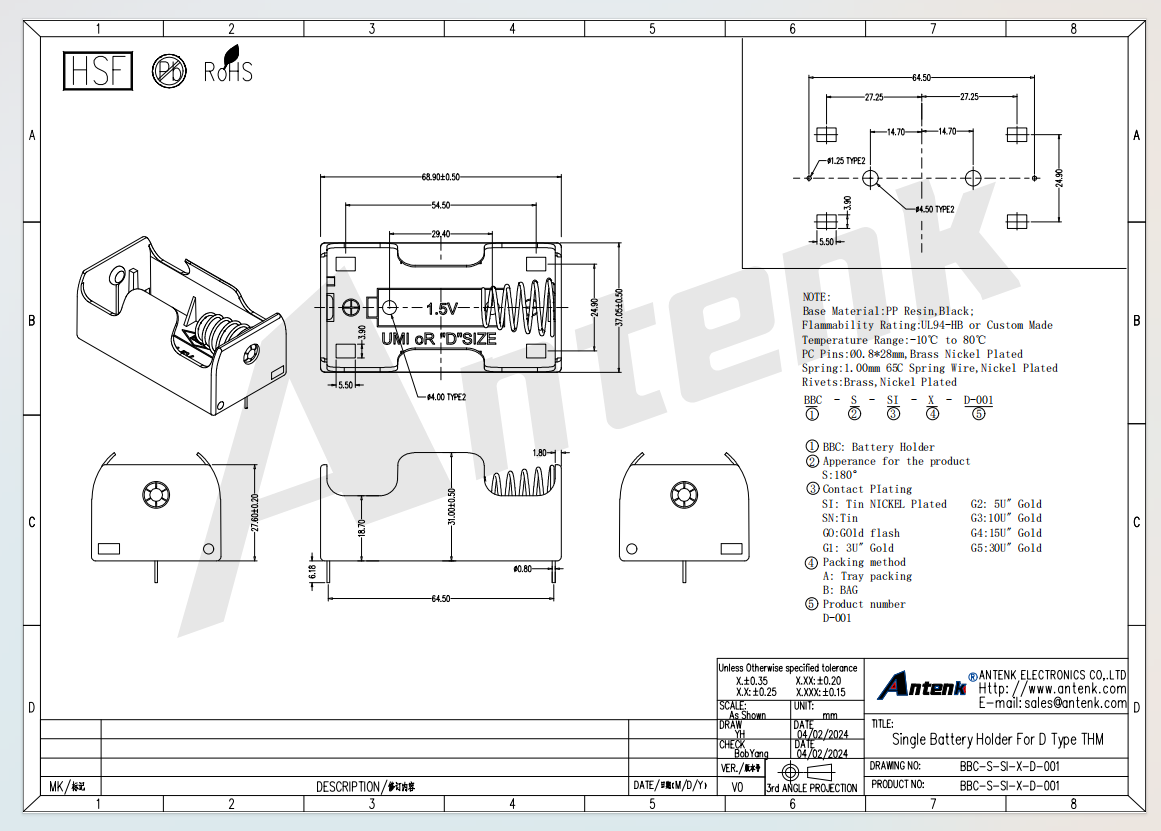

4.Product Drawing：
