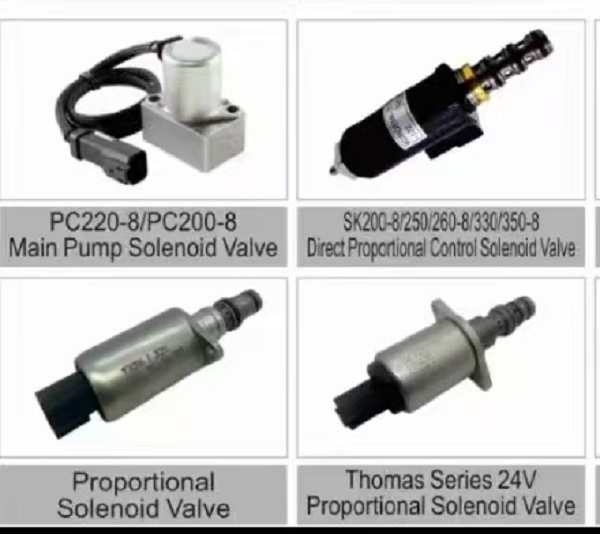

PC220-8 / PC200-8 Main Pump Solenoid Valve

Product Overview

PC220-8 / PC200-8 Main Pump Solenoid Valve, also known as EPC proportional solenoid valve, is a precision Hydraulic valve mounted on the main hydraulic pump of Komatsu PC200-8 and PC220-8 excavator. It is a core electronic control component of the excavator hydraulic system, used to adjust pump displacement dynamically according to engine load and operation signal, to match the power output of the Machine. Common OEM part numbers: 702-21-62600, 702-21-57400, 702-21-55600. It effectively prevents engine stalling, optimizes working speed and fuel consumption.

Technical Specifications

- Compatible Machine: Komatsu PC200-8, PC220-8 Excavator

- OEM Part No.: 702-21-62600, 702-21-57400, 702-21-55600

- Type: EPC Proportional Solenoid Valve

- Working Voltage: DC 24V

- Coil Resistance: About 4~5Ω

- Valve Body Material: Forged aluminum alloy

- Seals: High temperature resistant nitrile rubber

- Working Medium: Anti-wear hydraulic oil

- Operating Temperature: -20℃ ~ +85℃

- Installation: Directly fitted on hydraulic main pump

Working Principle

The controller sends variable current signal to the coil of this Hydraulic valve. The electromagnetic force pushes the internal spool to change pilot oil pressure, which acts on the regulator of main pump. The displacement of hydraulic pump will be adjusted automatically. When the Machine is under heavy load, the solenoid reduces pump flow to avoid engine stall; under light load, it increases pump output for faster operation, balancing power and fuel efficiency of the whole hydraulic system.

Core Advantages

1. Precision proportional control, stable current response, effectively solve slow movement, power loss and engine choking problems.

2. High-quality aluminum body and imported sealing parts, good oil resistance, low internal leakage, long service life.

3. Strictly tested before delivery, consistent with original size and connector, direct replacement without modification.

4. Dustproof and anti-vibration structure, suitable for harsh construction site environment.

5. Stable performance, reduce failure downtime and maintenance cost of the excavator Machine.

Application Range

Designed for Komatsu PC200-8, PC220-8 excavator hydraulic main pump control. Also compatible with PC240-8 and other similar 8-series Komatsu excavators in the hydraulic system. It is a critical replacement part for repairing poor power, slow boom movement and unstable hydraulic output.
