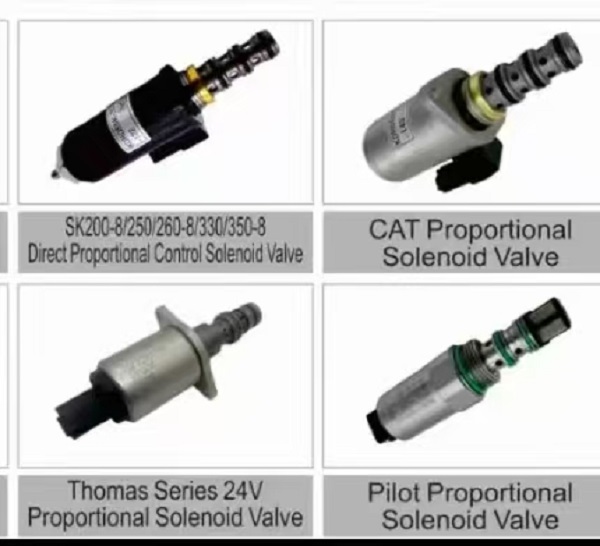

CAT Proportional Solenoid Valve

Product Overview

CAT Proportional Solenoid Valve is a precision Hydraulic valve specially designed for Caterpillar construction equipment. It serves as the electronic control unit of the excavator hydraulic system, converting PWM electric signals into continuous pilot pressure to adjust pump displacement, valve spool position and hydraulic power output of the Machine. Common OEM part numbers: 111-9916, 225-4558, 585-9231, 121-1491. Widely fitted on CAT E320B/C/D, E323GC, E330GC, E336GC and other series excavators, it solves common faults such as weak power, slow boom movement, engine stalling and unstable hydraulic response.

Technical Specifications

- Compatible Machine: Caterpillar Excavator E320B, E320C, E320D, E323GC, E330GC, E336GC etc.

- OEM Part No.: 111-9916, 225-4558, 585-9231, 121-1491

- Type: Hydraulic proportional solenoid valve

- Working Voltage: DC 12V / DC 24V (optional)

- Coil Resistance: 4~6Ω

- Valve Body Material: High-strength alloy steel / aluminum alloy

- Sealing: High temperature & wear-resistant NBR seals

- Medium: Anti-wear hydraulic oil

- Operating Temperature: -20℃ ~ +85℃

- Connector: Original matching plug, anti-loose design

Working Principle

The machine controller sends PWM signal to the coil of this Hydraulic valve. Electromagnetic force pushes the internal spool to continuously change pilot oil pressure. The regulated pilot pressure acts on the main pump regulator or main control valve, realizing stepless adjustment of pump flow and hydraulic power. When the Machine bears heavy load, the valve reduces pump output to avoid engine stall; under light load, it increases flow for faster operation, optimizing the whole hydraulic system efficiency.

Core Advantages

1. Precise proportional response, stable pressure output, effectively improve operation smoothness of CAT excavator.

2. High precision spool grinding, low internal leakage, excellent sealing performance, long service life.

3. Same dimension and connector as OEM parts, direct replacement without modification.

4. Vibration-resistant and dustproof structure, stable performance under harsh construction site conditions.

5. Strict pressure and electric testing before shipment, reduce downtime and maintenance cost of the Machine.

Application Range

Mainly used for Caterpillar excavator hydraulic main pump and main control valve power regulation in the hydraulic system. It can also be applied to CAT wheel loaders and other heavy construction machinery, to control pump power, travel speed and auxiliary hydraulic attachments.
