4WREE/4WRTE/4WRDE Closed-Loop Position Proportional Valves
5 week ago
Product details

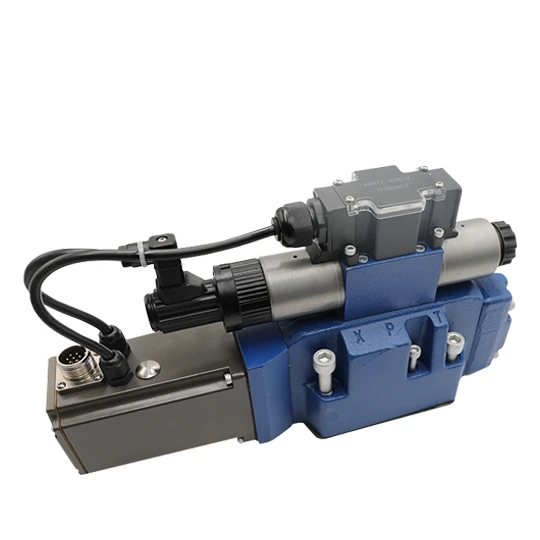

4WREE/4WRTE/4WRDE Closed-Loop Position Feedback Control Hydraulic Proportional Directional Valves
Product Overview
4WREE/4WRTE/4WRDE series are high-precision closed-loop proportional directional Hydraulic valve equipped with LVDT spool position sensor, serving as the core control unit of advanced hydraulic system for high-end Machine.
- 4WREE: Direct operated, closed-loop position feedback, compact size for medium-precision applications.
- 4WRTE: Pilot operated, high dynamic response, integrated electronics, closed-loop spool feedback for medium & high flow.
- 4WRDE: High-performance two-stage proportional valve, ultra-high precision and fast response, designed for heavy-duty high-flow closed-loop control.
All three models adopt integrated on-board electronics (OBE). The built-in position sensor continuously detects the actual spool displacement and feeds back signals to the controller to form closed-loop correction, eliminating errors caused by flow force, pressure fluctuation and temperature change. Plate mounting conforms to ISO4401 standard, widely used for high precision position, speed and force control of hydraulic actuators on industrial Machine.
Technical Specifications
- Model: 4WREE (direct acting), 4WRTE / 4WRDE (pilot operated two-stage)
- Type: Closed-loop position feedback proportional directional Hydraulic valve
- Sizes: NG6, NG10, NG16, NG25, NG32
- Max working pressure: 31.5 MPa / 35 MPa
- Rated flow: 4WREE up to 180 L/min; 4WRTE & 4WRDE up to 1600 L/min
- Power supply: DC24V
- Signal: 0~10V or 4~20mA analog signal
- Feedback: LVDT spool position closed-loop sensor
- Mounting: Subplate mounting to ISO4401
- Medium: Anti-wear hydraulic oil
- Operating temperature: -20℃ ~ +80℃
- Spool: Spring centering, multiple spool symbols optional
Working Principle
The host controller sends setpoint signal to the integrated amplifier of this Hydraulic valve. The LVDT position sensor measures real spool position and feeds data back to the built-in electronic module. The controller compares target value and actual position, automatically compensates deviation to adjust the proportional solenoid output. The spool opening and oil flow direction are precisely regulated, achieving accurate control of cylinder position, speed and output force in the hydraulic system. Even under changing load conditions, the valve maintains stable control performance for the Machine. When the control signal is removed, the centering spring resets the spool to neutral position.
Core Advantages
1. Closed-loop LVDT position feedback, excellent repeatability and linearity, greatly reduce control error of the hydraulic system.
2. Classification selection: 4WREE compact direct type for small flow; 4WRTE high dynamic; 4WRDE ultra-precision heavy-duty high flow.
3. Integrated OBE electronics, simple wiring, strong anti-interference, easy commissioning for the Machine.
4. High precision ground spool, low internal leakage, stable performance under long-cycle continuous operation.
5. Resist interference from flow force, pressure and oil temperature variation, suitable for demanding precision automation scenarios.
6. Standard ISO4401 installation interface, convenient replacement and maintenance of the Hydraulic valve.
Application Range
This series of Hydraulic valve is applied in high-precision closed-loop hydraulic system of industrial Machine: material testing machines, high-end hydraulic presses, metallurgical rolling equipment, injection molding machines, laser cutting machinery, robot hydraulic actuators, simulating test benches and automated production lines. It is used for precise positioning, synchronous motion control and constant force control of hydraulic cylinders and hydraulic motors.
