4WRKE/4WRLE High-Response Pilot-Operated Valves
5 week ago
Product details
4WRKE/4WRLE High-Response Pilot-Operated Valves | Hydraulic Proportional Directional Valves
Product Overview

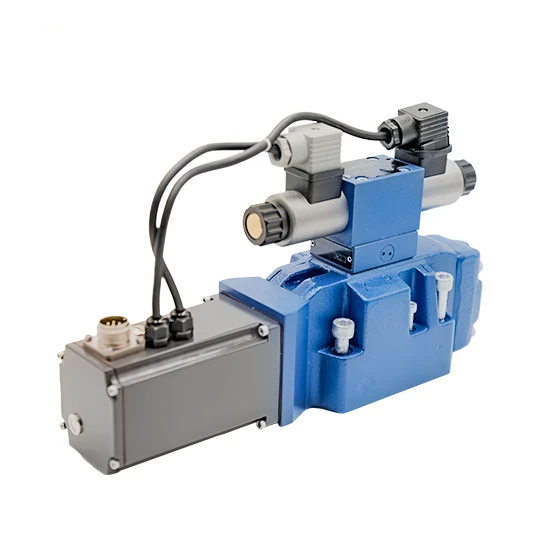

4WRKE / 4WRLE series are high-response two-stage pilot-operated proportional directional Hydraulic valve, designed for high dynamic closed-loop control. As a core control component of the hydraulic system, it precisely controls flow rate and oil direction to regulate the motion, speed and position of actuators on heavy-duty Machine.
Both models adopt main spool LVDT position feedback and integrated on-board electronics (OBE).
- 4WRKE: High-performance proportional valve, excellent stability, for high-flow heavy machinery closed-loop control.
- 4WRLE: Ultra high-response version, faster dynamic response, suitable for applications requiring rapid action switching.
The valve body follows ISO4401 subplate mounting standard, available in NG10, NG16, NG25, NG27, NG32, NG35 sizes. The two-stage pilot structure enables large flow output while maintaining high control precision, resisting disturbance from flow force and pressure fluctuation.
Technical Specifications
- Model: 4WRKE (high performance), 4WRLE (ultra high response)
- Type: Pilot operated proportional directional Hydraulic valve, closed-loop spool position feedback
- Sizes: NG10 / NG16 / NG25 / NG27 / NG32 / NG35
- Max working pressure: 35 MPa
- Max flow rate: up to 3000 L/min
- Power supply: DC24V
- Control signal: 0~10V / 4~20mA
- Feedback: LVDT spool position sensor
- Mounting: Subplate mounting ISO4401
- Medium: Anti-wear hydraulic oil
- Operating temperature: -20℃ ~ +80℃
- Spool: Spring centering, multiple spool symbols optional
Working Principle
The controller sends analog setpoint signal to the integrated amplifier of this Hydraulic valve. The pilot stage converts electric signal into pilot pressure to drive the main spool. Built-in LVDT sensor continuously detects actual spool position and feeds back data to the electronic module, forming closed-loop correction. The spool opening adjusts proportionally according to input signal, changing flow and direction of hydraulic oil inside the hydraulic system. It achieves fast, precise stepless control of hydraulic cylinder or hydraulic motor movement on the Machine. When the control signal disappears, centering spring resets main spool to neutral position.
Core Advantages
1. High-response two-stage pilot structure, high dynamic performance, low hysteresis, excellent repeatability for closed-loop control.
2. LVDT spool closed-loop feedback, effectively offset flow force impact, stable control even under large flow and variable load in the hydraulic system.
3. Integrated OBE electronics, simple wiring, strong anti-interference, convenient commissioning on the Machine.
4. Large flow capacity up to 3000 L/min, suitable for heavy-load industrial equipment.
5. Precision ground spool, low internal leakage, robust valve body, good shock and vibration resistance.
6. Standard ISO4401 installation interface, easy installation and replacement of the Hydraulic valve.
Application Range
This Hydraulic valve is widely used in high-demand closed-loop hydraulic system of heavy industrial Machine: large hydraulic presses, metallurgical rolling equipment, material test benches, heavy-duty injection molding machines, forging machinery, marine hydraulic equipment, motion simulation platforms and automated production lines. It is applied for high-speed synchronous positioning, force control and precise motion control of large hydraulic actuators.
