DBET Direct-Acting Proportional Pressure Valve

Product Overview

DBET Direct-Acting Proportional Pressure Valve is a compact direct-operated Hydraulic valve, used to continuously adjust the pressure level inside the hydraulic system of the Machine. It converts electrical control signals into proportional hydraulic pressure output, enabling stepless pressure regulation. Equipped with integrated on-board electronics (OBE), this valve features small size and quick response. It is commonly used for pressure limitation, pressure reduction and pressure holding in hydraulic circuits, widely adopted in injection molding machines, hydraulic test benches, small hydraulic power units and other industrial equipment.

Technical Specifications

- Model: DBET

- Type: Direct acting proportional pressure Hydraulic valve

- Mounting: Subplate mounting

- Max working pressure: 31.5 MPa

- Adjustable pressure range: Optional ranges such as 0~10MPa, 0~20MPa, 0~31.5MPa

- Power supply: DC24V

- Control signal: 0~10V or 4~20mA

- Medium: Anti-wear hydraulic oil

- Operating temperature: -20℃ ~ +80℃

- Structure: Direct acting, proportional solenoid drive, built-in OBE amplifier

Working Principle

The controller transmits analog signal to the proportional solenoid of this Hydraulic valve. The electromagnetic force generated by the solenoid acts on the valve spool, balancing against hydraulic pressure. The output pressure of the hydraulic system changes proportionally with the input electric signal. By modifying the signal value, operators can continuously set target pressure for the Machine. When the hydraulic pressure exceeds the set value, the valve opens to release excess oil and maintain stable system pressure.

Core Advantages

1. Direct acting design without pilot stage, fast response, simple circuit layout for the hydraulic system.

2. Integrated OBE amplifier, simple wiring, strong anti-interference, easy commissioning on the Machine.

3. Compact structure, small installation footprint, convenient installation and maintenance of the Hydraulic valve.

4. Good linearity and low hysteresis, accurate and stable proportional pressure control.

5. Multiple pressure range options available to meet different pressure regulation requirements.

Application Range

This Hydraulic valve is used for stepless pressure control in the hydraulic system of industrial Machine. Typical applications include injection molding machines, hydraulic presses, hydraulic test equipment, hydraulic clamping devices, material handling machinery and hydraulic power packs. It is applied for pressure limiting, constant pressure control and pressure switching.

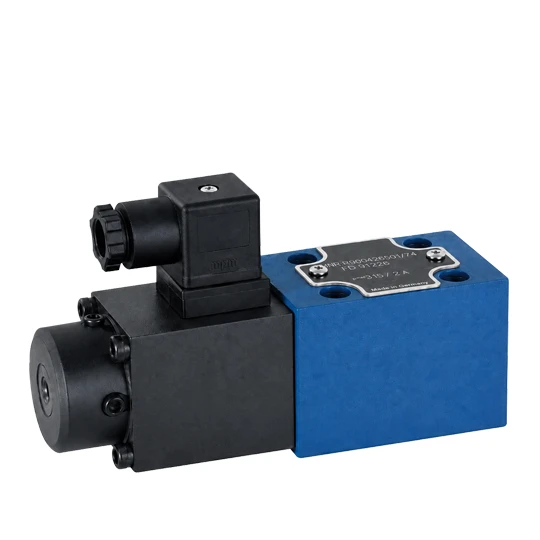

adiffer-dbet-direct-acting-proportional-pressure-relief-valve-1
