EDG Compact Proportional Pressure Relief Valve

5 week ago

8 0 

4 year

Product details

EDG Compact Proportional Pressure Relief Valve

Product Overview

EDG Compact Proportional Pressure Relief Valve is a compact direct-acting proportional Hydraulic valve. It can continuously adjust the relief pressure of the hydraulic system according to analog electrical signals and protect the Machine from overpressure damage. Featuring small footprint and simple structure, this proportional pressure valve is widely used for stepless pressure setting and pressure limiting in medium and small flow hydraulic circuits. The integrated coil design simplifies installation, and it can realize remote electric pressure regulation for hydraulic power units, test benches and automated equipment.

Technical Specifications

- Model: EDG

- Type: Direct acting proportional relief Hydraulic valve

- Mounting: Subplate mounting

- Max working pressure: 25 MPa

- Optional pressure ranges: 0~7MPa, 0~14MPa, 0~25MPa

- Power supply: DC24V

- Control signal: 0~10V or 4~20mA

- Rated flow: Up to 30 L/min

- Medium: Anti-wear hydraulic oil

- Operating temperature: -20℃ ~ +80℃

- Structure: Compact direct acting proportional solenoid

Working Principle

The controller outputs analog signal to the proportional solenoid of this Hydraulic valve. The electromagnetic force balances the hydraulic pressure acting on the spool. The relief pressure of the hydraulic system changes proportionally with the input electric signal. When the system pressure exceeds the preset value, the valve opens to discharge excess oil back to tank, maintaining stable pressure for the Machine. Adjusting the electric signal can continuously change the target pressure without manual knob adjustment.

Core Advantages

1. Ultra-compact body, occupies little space on the Machine, ideal for small hydraulic stations.

2. Direct acting structure, quick response, simple circuit design of the hydraulic system.

3. Good linearity and low hysteresis, accurate stepless pressure control.

4. Easy wiring and installation, convenient commissioning and maintenance of the Hydraulic valve.

5. Multiple pressure range options to meet different pressure regulation requirements.

Application Range

This Hydraulic valve is commonly used in the hydraulic system of industrial Machine: small hydraulic presses, injection molding auxiliary equipment, hydraulic clamping fixtures, hydraulic test benches, material handling machinery and compact hydraulic power packs. It is used for electric pressure adjustment and overpressure protection.

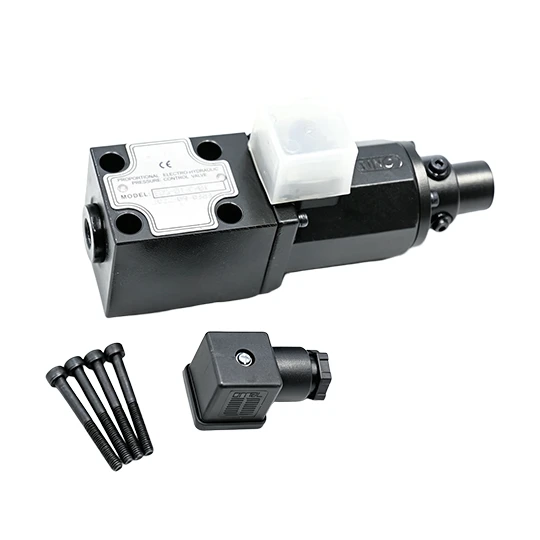

adiffer-edg-compact-proportional-pressure-relief-valve-1
