2.54mm simple cow horn straight plug patch

Simple cow is usually a four-sided plastic socket and a number of neatly arranged square pin composition. The difference between the simple cow connector and the cow horn connector is that the simple cow horn removes the snap on both sides.
According to the demand, the outer dimensions of the simple cow connector commonly used 1.27 pitch, 2.0 pitch, 2.54 pitch three specifications; according to the different pitch, the diameter of the four-sided row of pins used also changed accordingly. The bottom and PCB board contact surface can be designed for SMT chip type (shown in Figure 1) or DIP direct insertion 180 degrees.
Role: After soldering on the PCB board, the simple cow connects the corresponding specifications of the IDC row of wires, and then connects with another circuit to form the circuit that the designer needs to achieve. Usually used to transmit control signals and weak currents.

[Product name] : Pin connector / female connector / female connector / female connector / female connector

[Pitch] :1.0/1.27/2.0/2.54
[Material] :PBT/PA6T/PA9T/PPS
[Style] : Single row/Double row/Three row/four row/In-line /90 degree /SMT
[Color]: Black and white
[Explanation] : Free sample, according to customer requirements arbitrary customization

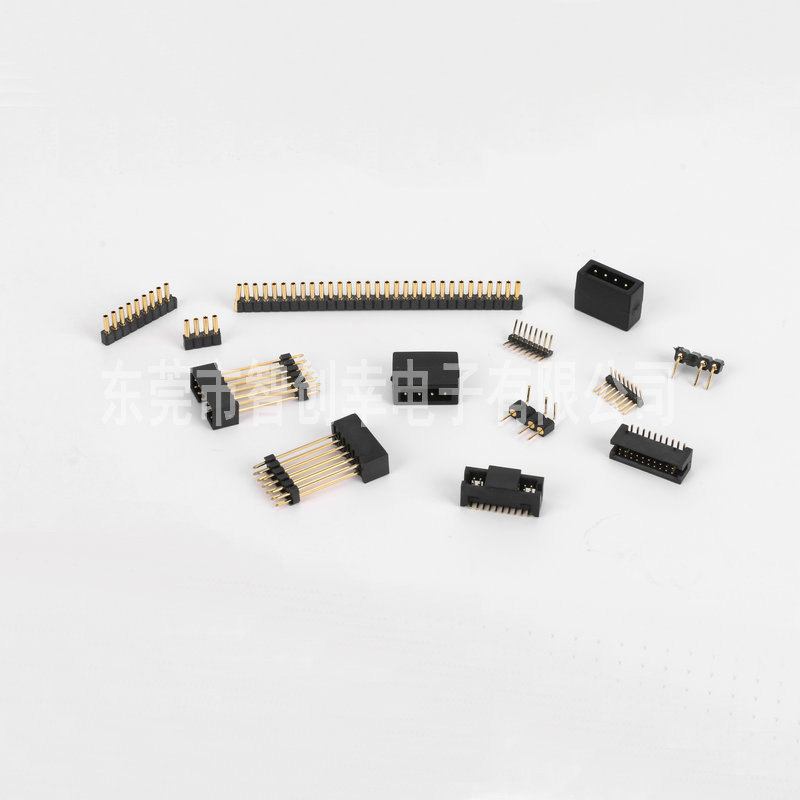

Connectors are an indispensable part of electronic equipment. Our main products are: Round connector, square pin row female connector, board to board connector, board to board connector, board to wire connector, New energy connector, round hole pin row connector, female connector, Cabinet Light connector, four policy pin row connector, female connector, Jane Ox connector, Ox horn connector, wire to board connector, top connector, flat cable, DuPont flat cable, wiring harness, IDC socket
