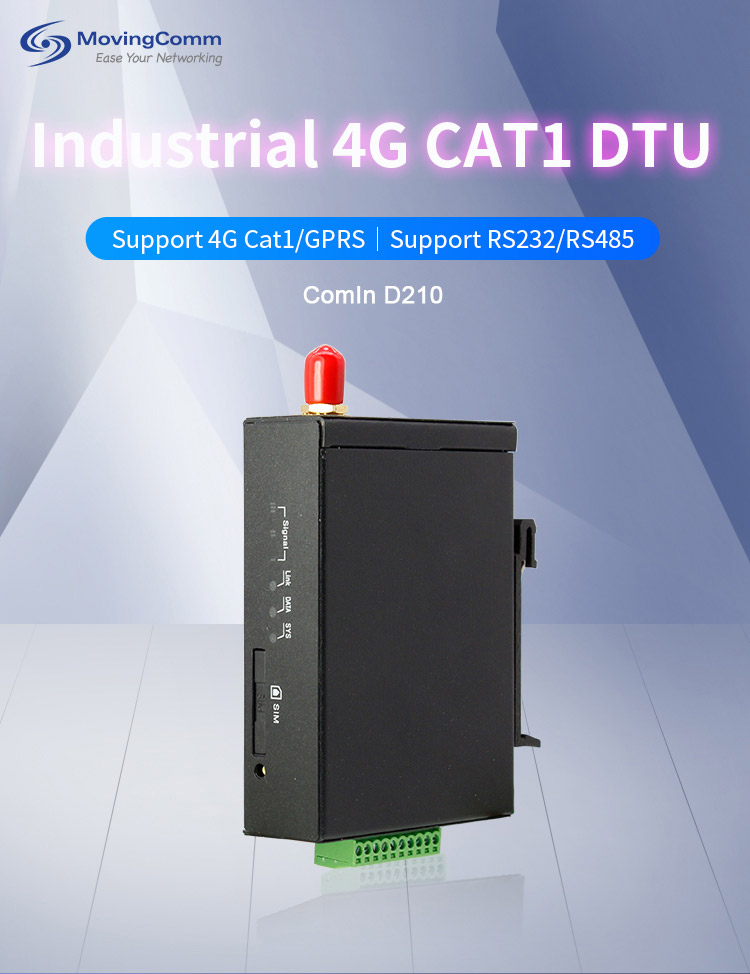

D220-M2M Router Rs323 Rs485 Serial 4G Cat1 Rtu Dtu
3 year ago
About this item
INDUSTRIAL-GRADE RS485 TO ETHERNET CONVERSION: This D220 industrial DTU serial server is designed for industrial applications to transparently transmit RS485 bus data to Ethernet in real time for remote monitoring and control.4G industrial router
SHORT MESSAGE COMMUNICATION FUNCTION: Built-in short message communication module allows SMS alarm notification or remote command interaction, which improves the flexibility and response speed of equipment management.
WIDE VOLTAGE INPUT RANGE: Supports 5-36V DC power input, adapting to the power supply requirements under a variety of complex working conditions and ensuring stable operation.industrial router
EFFICIENT AND STABLE DATA TRANSMISSION: Adopts high-performance processor and stable communication protocol to ensure low latency, high efficiency and accuracy of data transmission.
EASY TO CONFIGURE AND USE: Provides easy-to-use configuration tools and API interfaces, allowing users to quickly set parameters according to actual needs and easily realize network integration and device networking.IOT gateway
Specification
|
Main Chipset |
CPU |
ARM Cortex-A5 Processor, Core-Clock Speed 500MHz |
|
|
ROM |
8MB |
||
|
RAM |
16MB |
||
|
Interface |
SIM |
1 x 2FF SIM Card Slot (Drawer Type) |
|
|
Serial |
1 x RS232 or RS485 (cannot be used at the same time) |
||
|
Power |
5~36V DC |
||
|
Reset |
Controlled by Terminal Block (Voltage Low level) |
||
|
Antenna |
1 x SMA Connector |
||
|
Power Supply |
Power Supply Voltage |
5~36V DC, Support Reserve Polarity Protection, Overload Protection |
|
|
Power Consumption |
Typical |
15mA@12V (Continuous Data Transmission) |
|
|
Peak |
150mA@12V (Instantaneous) |
||
|
Standby |
5mA@12V |
||
|
Environment |
Operation Temperature |
-30°C to 75°C |
|
|
Storage Temperature |
-40°C to 85°C |
||
|
Humidity |
5% ~ 95% RH (Non condensing) |
||
|
Transmitting Power |
GSM850 |
+33dBm (Power Class 4) |
|
|
EGSM900 |
+33dBm (Power Class 4) |
||
|
DCS1800 |
+30dBm (Power Class 1) |
||
|
PCS1900 |
+30dBm (Power Class 1) |
||
|
LTE |
+23dBm (Power Class 3) |
||
|
Antenna |
2G/4G |
50 Ohms Characteristic Impedance |
|
|
Mechanical |
Dimension |
80 x 60 x 21mm (L x W x H), (Excluding antenna and mounting sets) |
|
|
Installation |
Hanging Ears or Din-Rail |
||
|
IP Rating |
IP41 |
||
|
Weight |
132g |
||
|
LED Indicator |
SYS |
System LED Indicator |
|
|
LINK |
Link Connection Indicator |
||
|
DATA |
Data Transmission Indicator |
||
|
SIGNAL |
3-level Signal Strength Indicator |
||
|
EMC |
ESD Immunity |
EN61000-4-2, Level 3 |
|
|
Surge Immunity |
EN61000-4-5, Level 3 |
||
|
Ring Wave Immunity |
EN61000-4-12, Level 3 |
||
Cellular Specs
|
4G CAT1 |
|||
|
Frequencies |
CN Version |
FDD-LTE |
B1, B3, B5, B8 |
|
TDD-LTE |
B38, B39, B40, B41 |
||
|
GSM/GPRS |
850, 900, 1800, 1900MHz |
||
|
EA Version |
FDD-LTE |
B1, B3, B5, B7, B8, B20, B28 |
|
|
TDD-LTE |
B38, B39, B40, B41 |
||
|
GSM/GPRS |
850, 900, 1800, 1900MHz |
||
|
Data Speed Rate |
FDD-LTE |
Non-CA Cat1, DL 10Mbps, UL 5Mbps |
|
|
FDD-TDD |
Non-CA Cat1, DL 8Mbps, UL2Mbps |
||
|
GSM/GPRS |
DL 85.6Kbps, UL 85.6Kbps |
||
Connector PIN Definition
|
Phoenix Terminal Block Pin Definition (Pitch 2.54mm) |
|||
|
PIN |
Definition |
Description |
Remark |
|
1 |
VCC |
Power Positive |
DC 5~36V |
|
2 |
GND |
Power Ground |
|
|
3 |
GND |
Signal Ground |
|
|
4 |
232-TX |
RS232 Send |
|
|
5 |
232-RX |
RS232 Receive |
|
|
6 |
485-A |
RS485 |
|
|
7 |
485-B |
RS485 |
|
|
8 |
RST |
Reset |
Low Electrical Level to Reset |
|
9 |
GPIO |
Reserved |
|
|
10 |
GPIO |
Reserved |
|
