BT-M-G0-R-CR1058B
2 year agoProduct Description
Category: Battery Holders, Clips, Contacts
Battery Holders丨 Coin Cell Holders丨 Battery Contacts丨Battery Retainers/Battery Clips

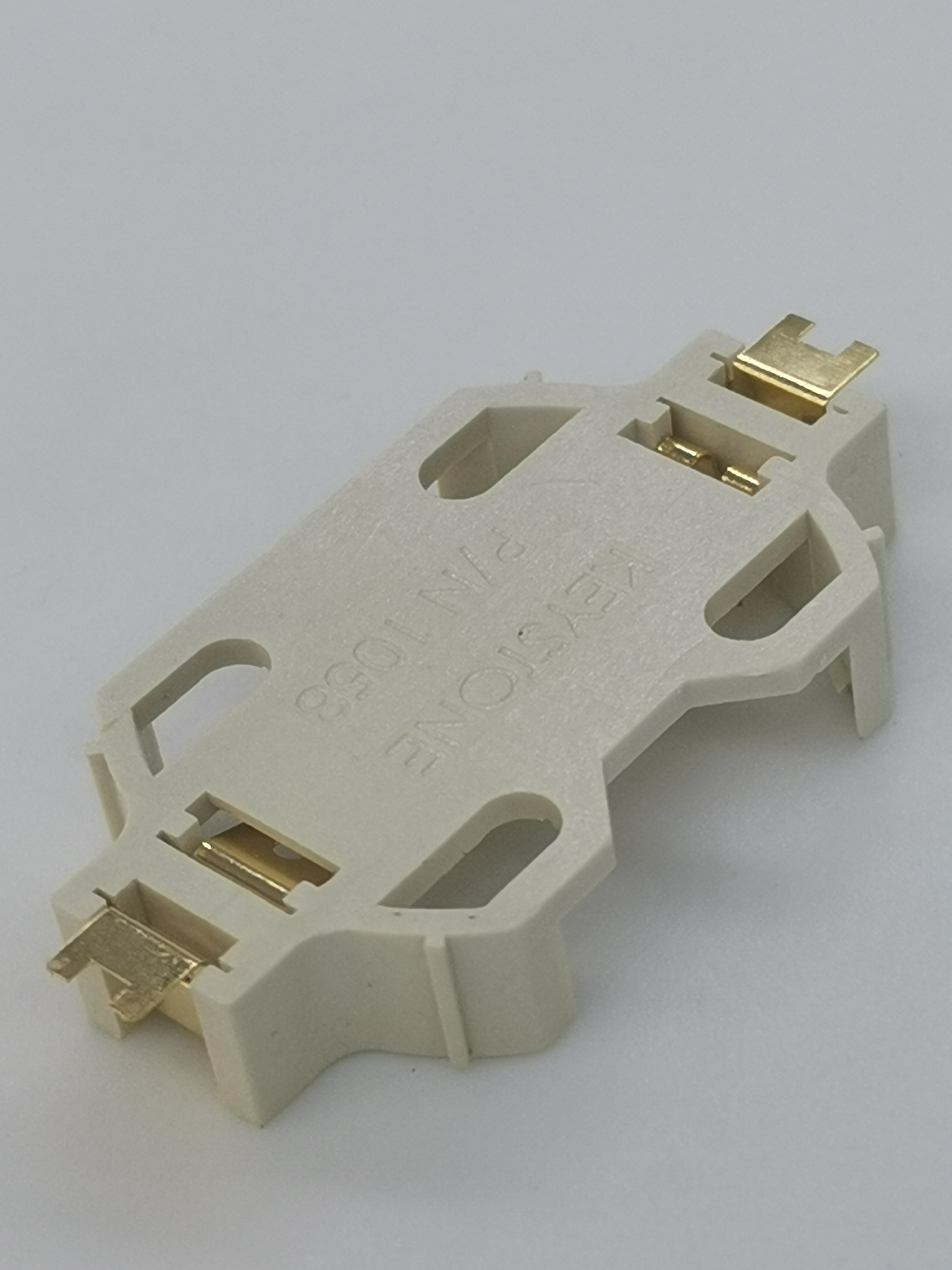

Product Name: Coin Cell Holders FOR CR2032/BATT HOLDER COIN 20MM 1 CELL SMD/Battery Holder (Open) Coin, 20.0mm 1 Cell SMD (SMT) Tab
SMT (Auto-In) Holder for 2025 & 2032 Cell can replace keystone P/N 1058 1058TR
# of Cells: 1
Battery Reference: 2025, 2032, ANSI 5003LC, ANSI 5004LC,
Cell Size: 20mm Coin Cell
Material: LCP, UL 94V-0
Mounting: SMT
Type: Holder
Ideal for applications where the battery must be automatically inserted via a vacuum or mechanical pick-and-place device.
Low Profile Design.
Available on Tape & Reel
Specification
1.BASE:
MAT'L-LCP 30% GLASS FILLED
UL94V-0
2.CONTACTS:
MAT'L-0.152 TH'K PHOSPHOR BRONZE
FINISH:GOLD FLASH 0.0000762 OVER
0.00127-0.00254 NICKEL
ON CONTACT SURFACE AND SOLDER TALL
BALANCE OF PART 0.0000254 MIN.GOLD,
OVER NICKEL PLATE
A battery holder is a compartment used to house one or more battery cells in equipment or case-mounted applications. The main purpose of a battery holder is to provide a convenient way to neatly house the battery cells while transferring power to the equipment.
Main Product Range: Connectors丨Wire Harness丨Board to Board Connector丨Wire to Board Connector丨Battery Holders丨Industrial Connector
Product advantages
Compact arrangement of terminals
Provide a variety of terminal pitches of 2.5mm, 2.54mm, 3mm, and 4mm, and the number of terminals is optional from 2pin to 10pin.
Multiple interconnect structures
Supports various interconnect structures such as shrapnel type, probe type, button battery holder type, etc.
Excellent material
Brass gold-plated contacts, corrosion resistance, shock resistance, stable transmission
