Product details

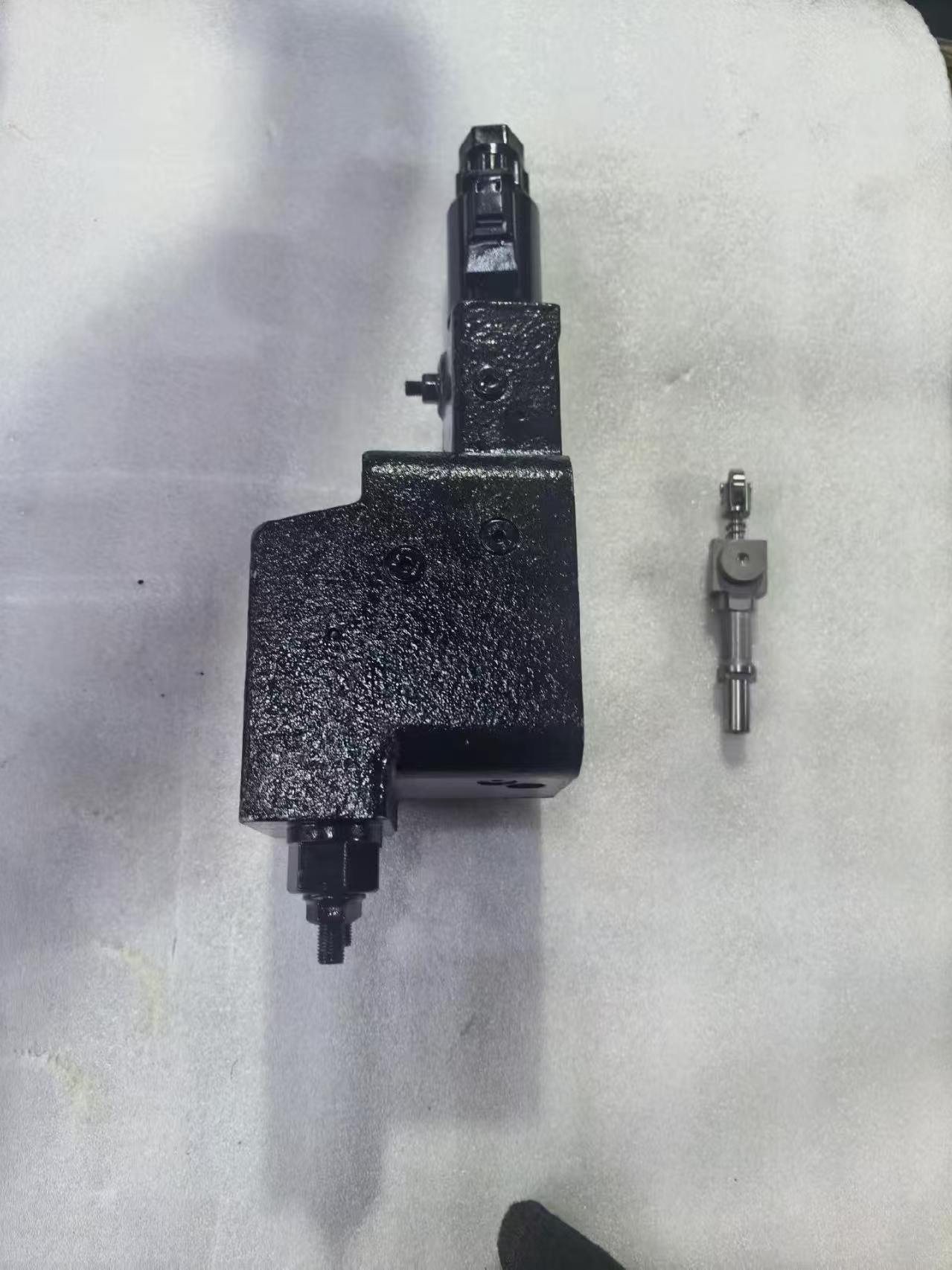

Brand New D1P260 190 Solenoid Control Valve

Product Description

This Brand New D1P260 190 Solenoid Control Valve is a core control component of the hydraulic system for engineering Machine. It cooperates with hydraulic pump and Hydraulic piston pump to precisely control the flow, pressure and direction of hydraulic oil in the hydraulic circuit.

The valve body is precision cast and machined, fitted with high accuracy valve spool and imported sealing components. It features fast response, low hysteresis and stable performance under continuous high-pressure working conditions. This solenoid control valve is widely used on construction machinery, industrial hydraulic stations and other heavy-duty equipment, as an ideal direct replacement part for original assemblies.

Technical Parameters

- Model: D1P260 190

- Type: Solenoid control valve / Hydraulic proportional control valve

- Rated pressure: 31.5 MPa

- Max working pressure: 35 MPa

- Rated flow: 260 L/min

- Control voltage: DC 24V

- Fluid: Anti-wear hydraulic oil

- Oil viscosity range: 10 ~ 400 mm²/s

- Operating temperature: -20℃ ~ +80℃

- Material: High strength cast iron valve body

- Condition: Brand New

- Application: Matched with Hydraulic piston pump for construction machine hydraulic system
