Danfoss Vickers Stack Valve, Throttle Valve, One-way Throttle Valve, Ample Stock

2 week ago

0 0 

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

4 year

Product details

DGMFN-3-X-A2W-B2W-41

DGMFN-3-Y-A1W-B1W-41

DGMFN-3-Y-A2W-41

DGMFN-3-Y-A2W-B2W-41

DGMFN-3-Y-B2W-41

DGMFN-3-Z-P2W-41

DGMFN-3-Z-T2W-41

DGMFN-5-X-A2W-B2W-30

DGMFN-5-Y-A2W-30

DGMFN-5-Y-A2W-B2W-30

DGMFN-3-Z-T1W-41

DGMFN-3-Z-T2-H-41

DGMFN-5-X-A1W-B1W-30

DGMFN-5-X-A2H-B2H-30

DGMFN-5-X-A2W-30

DGMFN-5-X-A2W-B2W-30J

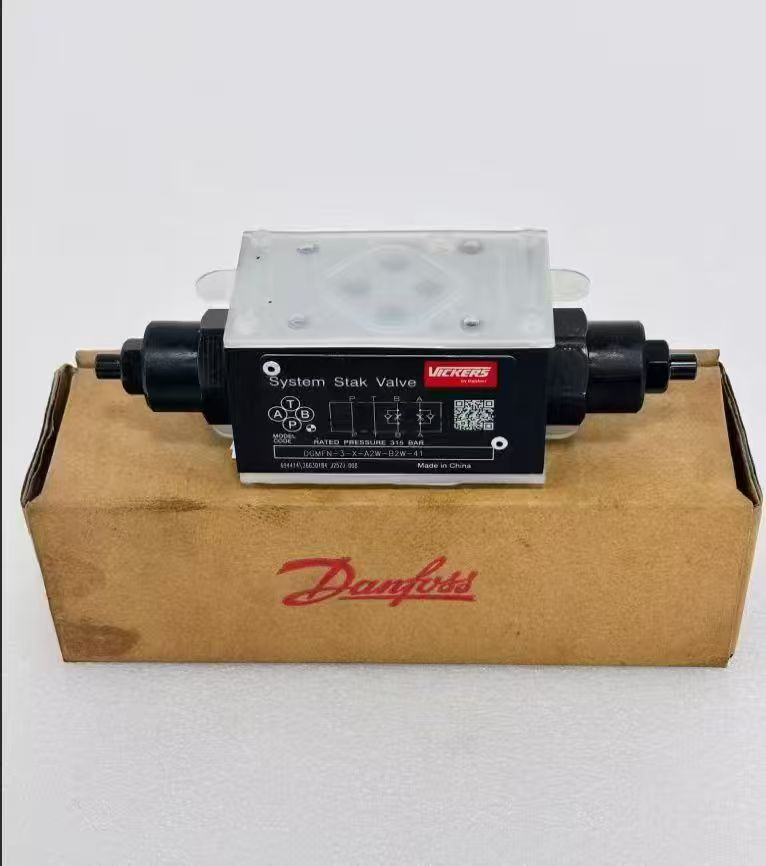

Danfoss Vickers Stack Valve, Throttle Valve, One-way Throttle Valve

Product Description

Danfoss Vickers Stack Valve, also known as modular stack valve, including throttle valve and one-way throttle valve, is a key control component widely applied in the hydraulic system of industrial Machine. Cooperating with hydraulic pump and Hydraulic piston pump, it accurately regulates the oil flow rate inside the hydraulic circuit to control the movement speed of hydraulic actuators.

This modular stack valve adopts a compact stacked installation structure. No extra manifold block is required, which greatly simplifies the layout of the hydraulic system. The one-way throttle valve realizes two-way functions: throttling speed regulation in one direction and free oil flow in the reverse direction. Precision machined valve spool ensures stable flow control, low pressure loss and excellent repeatability. High-grade sealing materials effectively prevent internal and external leakage under long-time working pressure.

These DGMFN series valves are original and high-quality aftermarket spare parts. Each valve passes strict factory testing before delivery. They are widely used for machine tools, injection molding machines, metallurgical equipment and construction machinery hydraulic stations. Easy installation and convenient maintenance make them ideal choices for hydraulic system upgrading and component replacement.

Technical Parameters

- Brand: Danfoss Vickers

- Product Type: Modular Stack Valve, Throttle Valve, One-way Throttle Valve

- Model Series: DGMFN-3 series, DGMFN-5 series

- Max Working Pressure: 21 MPa

- Working Fluid: Anti-wear hydraulic oil

- Oil Viscosity Range: 10 ~ 400 mm²/s

- Operating Temperature: -20℃ ~ +80℃

- Installation: Modular stacked mounting

- Condition: Brand New, ample stock available

- Application: Industrial Machine hydraulic system
