IOT04-QCA9531 2.4Ghz Mesh Router Openwrt Module

3 year ago

4 0 

Shenzhen MovingComm Technology Co., Ltd.

3 year

Product details

Name:Qualcomm QCA9531 Openwrt 300Mbps 1024MBb DDR2 2*2 MIMO USB UART WIFI Module For IOT Smart Home System router core board

Product description

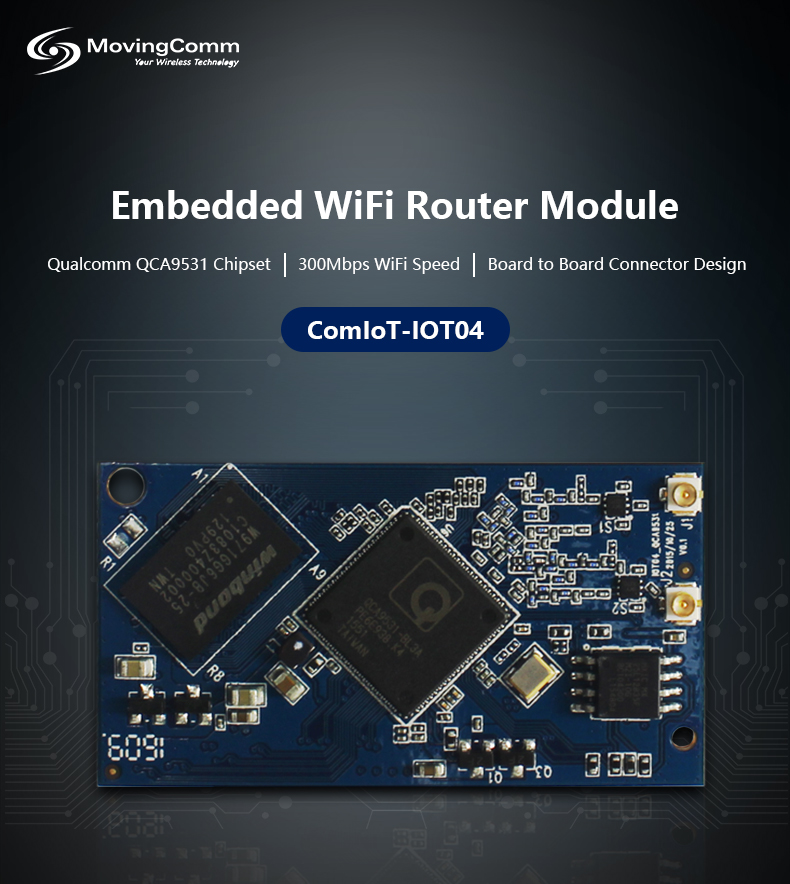

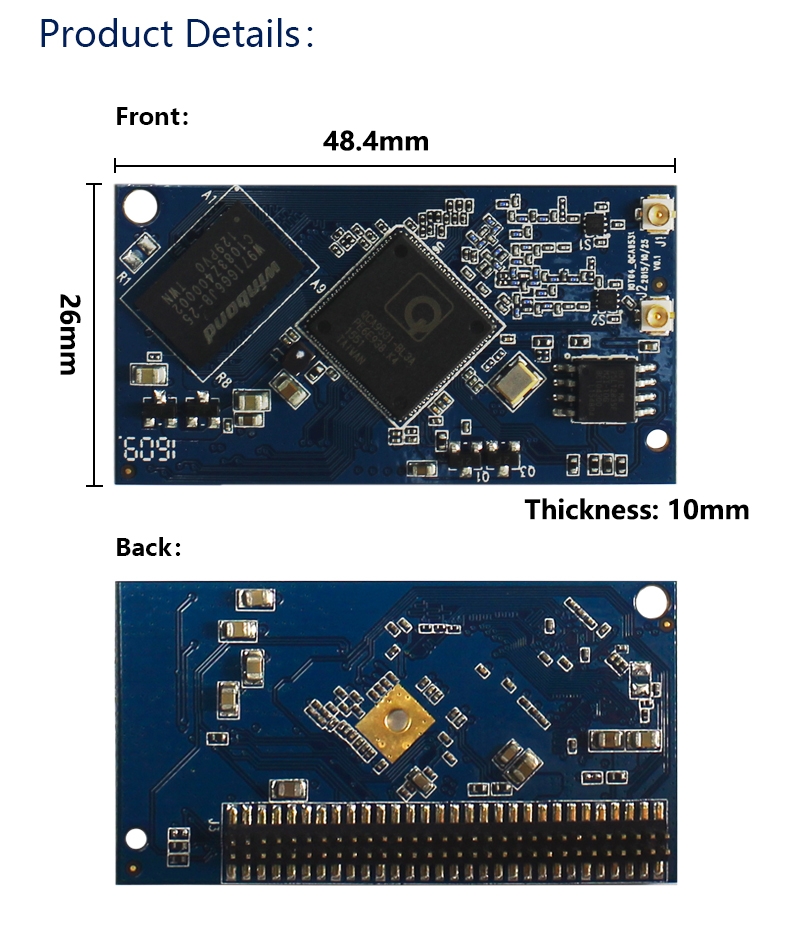

The IOT04 wireless router module includes an 802.11n MAC and baseband, a 2.4GHz radio and FEM, a 650MHz MIPS CPU, a 2-port 10/100 fast Ethernet switch. Solution for low power, low-cost, and highly integrated AP router and consumer electronic devices, the module requires only an external 3.3V power supply. It supports 802.11n operating up to 144 Mbps for 20 MHz and 300 Mbps for 40 MHz channel respectively, and IEEE 802.11b/g data rates.

The 2.4G router module supports bridge mode and AP Client mode and Gateway mode. The high performance Module can process advanced applications effortlessly, such as routing, security and VoIP. It also includes a selection of interface to support a variety of applications, such as a USB port for accessing external storage and 3G/TLE modem. Especially in the IOT, a wide range of applications.

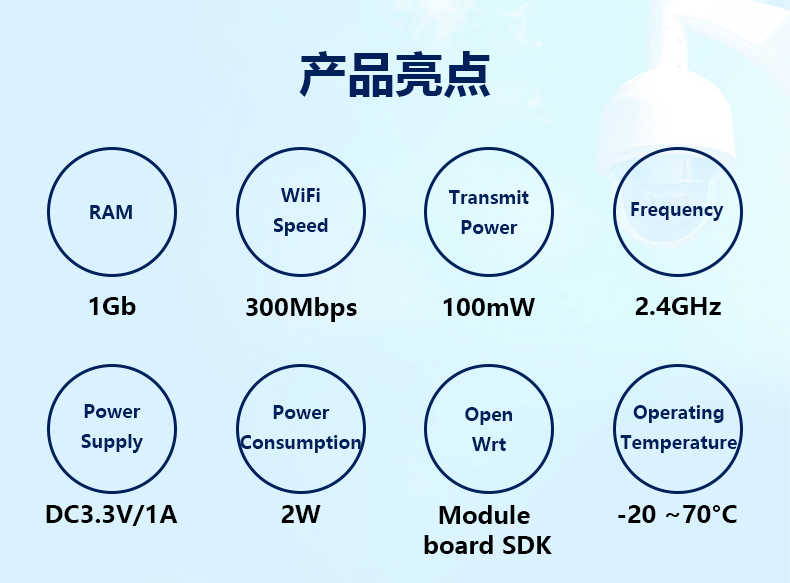

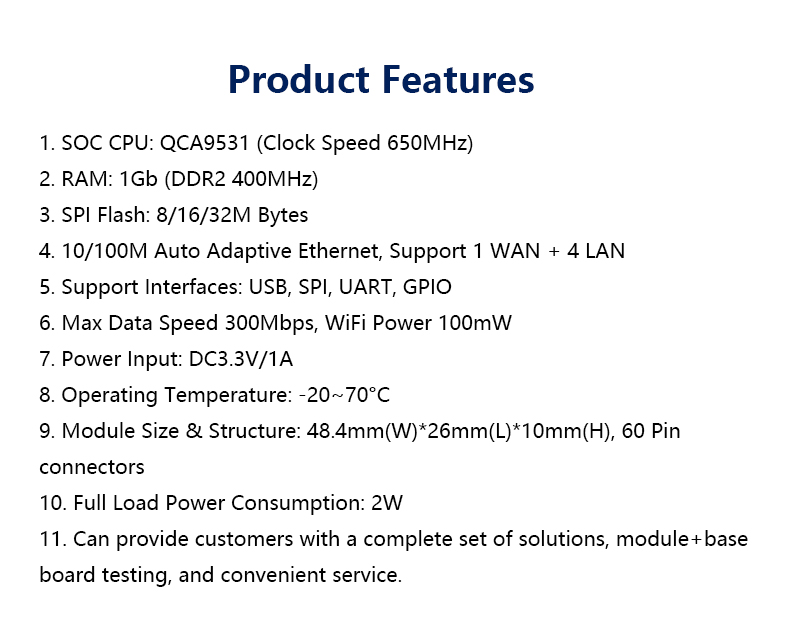

Product highlights

Compliant to IEEE 802.11b/g/n

2T2R mode with support for a 300Mbps PHY data rate

DDR2 memory up to 1024Mb

Flash memory up to 256Mb

4 LAN ports and 1 WAN port

Support USB 2.0 slave device for USB disk and USB 3G/4G dongle and USB camera

Security: WEP64/128, TKIP, AES, WPA, WPA2, WAPI

Support AP/Client/Router mode
